Home > Products > Capacitors > Trimmers, Variable Capacitors

Trimmers, Variable Capacitors

Manufacturer	Series	Packaging	Product Status	Capacitance Range	Adjustment Type	Voltage - Rated	Dielectric Material	Q @ Freq	Size / Dimension	Height - Seated (Max)	Operating Temperature	Mounting Type	Features
EW Electronics EXXELIA Knowles Johanson Manufacturing Knowles Voltronics KYOCERA AVX Murata Electronics Passive Plus Sprague-Goodman Tusonix a Subsidiary of CTS Electronic Components Vishay Beyschlag/Draloric/BC Components	* - 2807S 512 518 538 9350 A A1 A1_HV A2 A3 A4 A4_HV AIRTRIM® GAA A_HV BFC2 808 BFC2 809 Cera-Trim® CTZ, Kyocera E E_HV FILMTRIM® Giga-Trim® GKH H JR JZ JZ_HV K KE KE_HV K_HV LXRW NMA NMNT NMP NT P PISTONCAP® QM Sapphire Trimmers Seal-Trim® SGC3S SGNM-Series 1 SGNM-Series 2 SGNM-Series 3 SURFTRIM® GKG Thin-Trim® TM TP TZ03 TZB4 TZC3 TZR1 TZS2 TZV2 TZW4 TZY2	Bag Box Bulk Cut Tape (CT) Tape & Reel (TR) Tray	Active Discontinued at Key Obsolete	- 0.2 ~ 1pF 0.25 ~ 0.7pF 0.3 ~ 1.2pF 0.3 ~ 2.3pF 0.3 ~ 2pF 0.3 ~ 3pF 0.3 ~ 5pF 0.35 ~ 1.5pF 0.35 ~ 3.5pF 0.4 ~ 1.5pF 0.4 ~ 10pF 0.4 ~ 2.5pF 0.4 ~ 3.5pF 0.45 ~ 3 pF 0.45 ~ 3pF 0.45 ~ 4pF 0.5 ~ 1.3pF 0.5 ~ 15pF 0.5 ~ 1pF 0.5 ~ 2.5pF 0.5 ~ 3.5pF 0.5 ~ 4pF 0.5 ~ 5pF 0.5 ~ 8pF 0.55 ~ 1pF 0.6 ~ 1.8pF 0.6 ~ 10pF 0.6 ~ 11pF 0.6 ~ 12pF 0.6 ~ 14pF 0.6 ~ 15pF 0.6 ~ 1pF 0.6 ~ 2.5pF 0.6 ~ 2pF 0.6 ~ 3.5pF 0.6 ~ 4.5pF 0.6 ~ 4pF 0.6 ~ 5.5pF 0.6 ~ 5pF 0.6 ~ 6pF 0.6 ~ 7pF 0.6 ~ 8pF 0.6 ~ 9.5pF 0.6 ~ 9pF 0.65 ~ 2.5pF 0.7 ~ 1.5pF 0.7 ~ 20pF 0.7 ~ 9pF 0.8 ~ 10pF 0.8 ~ 12pF 0.8 ~ 13pF 0.8 ~ 14pF 0.8 ~ 16pF 0.8 ~ 18pF 0.8 ~ 20pF 0.8 ~ 21pF 0.8 ~ 23pF 0.8 ~ 25pF 0.8 ~ 30pF 0.8 ~ 38pF 0.8 ~ 4.5pF 0.8 ~ 5.5pF 0.8 ~ 5pF 0.8 ~ 7pF 0.8 ~ 8.5pF 0.8 ~ 8pF 1 ~ 10pF 1 ~ 11pF 1 ~ 120pF 1 ~ 12pF 1 ~ 14pF 1 ~ 15pF 1 ~ 16pF 1 ~ 2.5pF 1 ~ 20pF 1 ~ 22pF 1 ~ 23pF 1 ~ 24pF 1 ~ 25pF 1 ~ 28pF 1 ~ 3.5pF 1 ~ 30pF 1 ~ 36pF 1 ~ 3pF 1 ~ 4.5pF 1 ~ 42pF 1 ~ 4pF 1 ~ 52pF 1 ~ 55pF 1 ~ 5pF 1 ~ 60pF 1 ~ 6pF 1 ~ 75pF 1 ~ 90pF 1 ~ 9pF 1.2 ~ 3.5pF 1.2 ~ 4pF 1.2 ~ 5pF 1.25 ~ 2.3pF 1.4 ~ 3pF 1.4 ~ 5.5pF 1.5 ~ 10pF 1.5 ~ 14pF 1.5 ~ 15pF 1.5 ~ 19pF 1.5 ~ 20pF 1.5 ~ 30pF 1.5 ~ 3pF 1.5 ~ 4.5pF 1.5 ~ 40pF 1.5 ~ 48pF 1.5 ~ 4pF 1.5 ~ 55pF 1.5 ~ 5pF 1.6 ~ 5pF 1.8 ~ 10pF 1.8 ~ 4.5pF 1.8 ~ 9pF 10 ~ 100pF 10 ~ 120pF 10 ~ 150pF 10 ~ 50pF 10.5 ~ 50pF 100 ~ 200pF 12 ~ 180pf 12 ~ 60pF 15 ~ 60pF 16.5 ~ 33pF 18 ~ 300pF 18 ~ 300pF 2 ~ 10pF 2 ~ 120pF 2 ~ 12pF 2 ~ 130pF 2 ~ 13pF 2 ~ 15pF 2 ~ 18pF 2 ~ 19pF 2 ~ 210pF 2 ~ 250pF 2 ~ 25pF 2 ~ 30pF 2 ~ 34pF 2 ~ 46pF 2 ~ 5pF 2 ~ 64pF 2 ~ 6pF 2 ~ 7pF 2 ~ 95pF 2 ~ 96pF 2 ~ 9pF 2.3 ~ 18pF 2.5 ~ 10pF 2.5 ~ 11pF 2.5 ~ 15pF 2.5 ~ 20pF 2.5 ~ 22pF 2.5 ~ 6pF 2.5 ~ 70pF 2.5 ~ 9pF 2.6 ~ 18pF 2.7 ~ 10pF 2.7 ~ 20pF 25 ~ 600pF 3 ~ 10pF 3 ~ 11pF 3 ~ 12pF 3 ~ 15pF 3 ~ 18pF 3 ~ 20pF 3 ~ 22.5pF 3 ~ 23pF 3 ~ 33pF 3 ~ 40pF 3 ~ 55pF 3 ~ 60pF 3 ~ 6pF 3 ~ 75pF 3 ~ 8pF 3.5 ~ 10pF 3.5 ~ 20pF 3.5 ~ 27pF 30 ~ 60pF 4 ~ 18pF 4 ~ 20pF 4 ~ 25pF 4 ~ 27pF 4 ~ 30pF 4 ~ 38pF 4 ~ 40pF 4.2 ~ 20pF 4.5 ~ 20pF 4.5 ~ 30pF 4.5 ~ 40pF 4.5 ~ 50pF 45 ~ 90pF 5 ~ 15pF 5 ~ 18pF 5 ~ 20pF 5 ~ 25pF 5 ~ 57pF 5 ~ 60pF 5 ~ 85pF 5.2 ~ 30pF 5.5 ~ 18pF 5.5 ~ 20pF 5.5 ~ 25pF 5.5 ~ 30pF 5.5 ~ 40pF 5.5 ~ 50pF 5.5 ~ 65pF 5.8 ~ 20pF 6 ~ 25pF 6 ~ 35pF 6 ~ 50pF 6 ~ 80pF 6.5 ~ 25pF 6.5 ~ 30pF 6.5 ~ 70pF 6.8 ~ 45pF 7 ~ 100pF 7 ~ 18pF 7 ~ 25pF 7 ~ 40pF 7 ~ 50pF 7.5 ~ 18pF 7.5 ~ 24pF 7.5 ~ 50pF 8 ~ 25pF 8 ~ 29pF 8 ~ 30pF 8 ~ 40pF 8 ~ 45pF 8 ~ 50pF 8 ~ 80pF 8 ~ 90pF 8.5 ~ 25pF 8.5 ~ 40pF 9 ~ 100pF 9 ~ 35pF 9 ~ 90pF 9.8 ~ 60pF	- Bottom Bottom Adjustment Side Top Top and Bottom	- 100 V 1000 V 125 V 1250 V 150 V 1500 V 200 V 2000 V 25 V 250 V 2500 V 3.5 kV 300 V 3000 V 350 V 4 kV 400 V 4000 V 4500 V 50 V 500 V 6.4 kV 600 V 6000 V 750 V 7500 V 8.75 kV 8750 V	- Air Alumina Ceramic Glass Polycarbonate (PC) Polyester, Polyethylene Terephthalate (PET) Polyethylene (PE) Polypropylene (PP) Polytetrafluoroethylene (PTFE) Quartz Sapphire Zirconia	- 100 @ 1MHz 1000 @ 100MHz 1000 @ 10MHz 1000 @ 175MHz 1000 @ 1MHz 1000 @ 200MHz 1000 @ 20MHz 1000 @ 250MHz 10000 @ 100MHz 1250 @ 250MHz 1400 @ 195MHz 150 @ 1MHz 1500 @ 100MHz 1500 @ 1MHz 1500 @ 20MHz 1500 @ 213MHz 1500 @ 250MHz 1500 @ 25MHz 1700 @ 25MHz 1800 @ 25MHz 200 @ 100MHz 200 @ 1MHz 200 @ 200MHz 200 @ 500MHz 2000 @ 100MHz 2000 @ 1MHz 2000 @ 237MHz 2000 @ 250MHz 2000 @ 25MHz 2200 @ 25MHz 250 @ 100MHz 250 @ 1MHz 250 @ 20MHz 300 @ 100MHz 300 @ 1MHz 3000 @ 100MHz 3000 @ 250MHz 3000 @ 25MHz 350 @ 1MHz 350 @ 20MHz 3500 @ 25MHz 4000 @ 100MHz 4000 @ 195MHz 4000 @ 250MHz 500 @ 100MHz 500 @ 1MHz 500 @ 20MHz 500 @ 25MHz 5000 @ 100MHz 5000 @ 250MHz 550 @ 20MHz 600 @ 100MHz 600 @ 1MHz 600 @ 25MHz 650 @ 1MHz 650 @ 25MHz 700 @ 100MHz 700 @ 1MHz 700 @ 20MHz 700 @ 25MHz 7000 @ 25MHz 750 @ 100MHz 750 @ 1MHz 7500 @ 100MHz 780 @ 100MHz 800 @ 100MHz 800 @ 175MHz 800 @ 1MHz 800 @ 20MHz 800 @ 25MHz 900 @ 1MHz 900 @ 20MHz 9000 @ 100MHz 9000 @ 25MHz	- 0.024" L x 0.024" W (0.60mm x 0.60mm) 0.051" L x 0.035" W (1.30mm x 0.90mm) 0.063" Dia (1.60mm) 0.067" L x 0.059" W (1.70mm x 1.50mm) 0.075" Dia (1.90mm) 0.091" Dia (2.30mm) 0.094" Dia (2.39mm) 0.106" L x 0.087" W (2.70mm x 2.20mm) 0.114" Dia (2.90mm) 0.118" Dia (3.00mm) 0.120" Dia (3.05mm) 0.125" Dia (3.18mm) 0.126" L x 0.063" W (3.20mm x 1.60mm) 0.126" L x 0.091" W (3.20mm x 2.30mm) 0.126" L x 0.098" W (3.20mm x 2.50mm) 0.130" Dia (3.30mm) 0.138" L x 0.122" W (3.50mm x 3.10mm) 0.140" (3.56mm) Dia 0.140" Dia (3.56mm) 0.141" Dia (3.58mm) 0.145" Dia (3.68mm) 0.150" Dia (3.81mm) 0.154" Dia (3.91mm) 0.156" Dia (3.96mm) 0.160" Dia (4.06mm) 0.161" Dia (4.10mm) 0.176" L x 0.130" W (4.47mm x 3.30mm) 0.177" L x 0.126" W (4.50mm x 3.20mm) 0.177" L x 0.157" W (4.50mm x 4.00mm) 0.180" Dia (4.57mm) 0.180" L x 0.167" W (4.57mm x 4.24mm) 0.185" (4.70mm) Dia 0.190" Dia (4.83mm) 0.197" Dia (5.00mm) 0.200" Dia (5.08mm) 0.205" L x 0.165" W (5.20mm x 4.20mm) 0.210" Dia (5.33mm) 0.217" L x 0.197" W (5.50mm x 5.00mm) 0.218" Dia (5.54mm) 0.220" Dia (5.59mm) 0.225" Dia (5.72mm) 0.230" Dia (5.84mm) 0.235" Dia (5.97mm) 0.236" Dia (6.00mm) 0.240" Dia (6.10mm) 0.250" Dia (6.35mm) 0.270" Dia (6.86mm) 0.275" Dia (6.99mm) 0.280" Dia (7.11mm) 0.283" L x 0.213" W (7.20mm x 5.40mm) 0.290" L x 0.190" W (7.37mm x 4.83mm) 0.291" L x 0.264" W (7.40mm x 6.70mm) 0.295" Dia (7.49mm) 0.299" Dia (7.60mm) 0.300" Dia (7.62mm) 0.303" Dia (7.62mm) 0.310" Dia (7.87mm) 0.311" Dia (7.90mm) 0.312" Dia (7.92mm) 0.335" Dia (8.50mm) 0.335" L x 0.295" W (8.50mm x 7.50mm) 0.340" Dia (8.64mm) 0.346" L x 0.315" W (8.80mm x 8.00mm) 0.360" Dia (9.14mm) 0.365" Dia (9.27mm) 0.370" Dia (9.40mm) 0.375" Dia (9.52mm) 0.375" Dia (9.53mm) 0.380" Dia (9.65mm) 0.390" Dia (9.91mm) 0.394" Dia (10.00mm) 0.402" L x 0.402" W (10.20mm x 10.20mm) 0.429" L x 0.413" W (10.90mm x 10.50mm) 0.433" Dia (11.00mm) 0.433" L x 0.374" W (11.00mm x 9.50mm) 0.490" L x 0.250" W (12.45mm x 6.35mm) 0.525" Dia (13.34mm) 0.540" Dia (13.72mm) 0.550" Dia (13.97mm) 0.551" L x 0.453" W (14.00mm x 11.50mm) 0.560" L x 0.440" W (14.22mm x 11.18mm) 0.580" Dia (14.73mm) 0.610" L x 0.440" W (15.49mm x 11.18mm) 0.630" Dia (16.00mm) 0.670" Dia (17.02mm) 0.700" Dia (17.78mm) 0.709" L x 0.610" W (18.00mm x 15.50mm) 0.710" Dia (18.03mm) 0.750" Dia (19.05mm) 0.760" L x 0.160" W (19.30mm x 4.06mm) 0.980" Dia (24.89mm) 1.060" Dia (26.92mm) 1.130" Dia (28.70mm) 1.500" Dia (38.10mm) 1.630" Dia (41.40mm) 3.000" Dia (76.20mm)	- 0.011" (0.28mm) 0.012" (0.30mm) 0.017" (0.43mm) 0.024" (0.60mm) 0.035" (0.90mm) 0.039" (1.00mm) 0.040" (1.02mm) 0.045" (1.15mm) 0.047" (1.20mm) 0.049" (1.25mm) 0.051" (1.30mm) 0.053" (1.35mm) 0.057" (1.45mm) 0.059" (1.50mm) 0.060" (1.52mm) 0.061" (1.54mm) 0.067" (1.70mm) 0.071" (1.80mm) 0.085" (2.16mm) 0.086" (2.18mm) 0.087" (2.20mm) 0.090" (2.28mm) 0.090" (2.29mm) 0.094" (2.40mm) 0.100" (2.54mm) 0.100" (2.55mm) 0.102" (2.60mm) 0.106" (2.70mm) 0.110" (2.79mm) 0.114" (2.90mm) 0.118" (3.00mm) 0.125" (3.18mm) 0.126" (3.20mm) 0.145" (3.68mm) 0.160" (4.06mm) 0.197" (5.00mm) 0.209" (5.30mm) 0.220" (5.59mm) 0.225" (5.72mm) 0.228" (5.80mm) 0.230" (5.80mm) 0.230" (5.84mm) 0.236" (6.00mm) 0.240" (6.10mm) 0.250" (6.35mm) 0.260" (6.60mm) 0.270" (6.86mm) 0.275" (6.99mm) 0.280" (7.11mm) 0.290" (7.37mm) 0.295" (7.49mm) 0.297" (7.54mm) 0.300" (7.62mm) 0.310" (7.87mm) 0.310" (7.90mm) 0.312" (7.92mm) 0.314" (7.98mm) 0.315" (8.00mm) 0.325" (8.26mm) 0.329" (8.36mm) 0.330" (8.38mm) 0.340" (8.64mm) 0.354" (9.00mm) 0.359" (9.12mm) 0.360" (9.13mm) 0.370" (9.40mm) 0.375" (9.53mm) 0.378" (9.60mm) 0.380" (9.65mm) 0.383" (9.73mm) 0.390" (9.91mm) 0.391" (9.93mm) 0.394" (10.00mm) 0.400" (10.16mm) 0.402" (10.20mm) 0.410" (10.41mm) 0.420" (10.67mm) 0.433" (11.00mm) 0.440" (11.18mm) 0.449" (11.40mm) 0.450" (11.43mm) 0.460" (11.68mm) 0.469" (11.91mm) 0.470" (11.94mm) 0.470" (12.00mm) 0.472" (12.00mm) 0.480" (12.19mm) 0.480" (12.20mm) 0.484" (12.30mm) 0.488" (12.40mm) 0.490" (12.45mm) 0.495" (12.57mm) 0.500" (12.70mm) 0.510" (12.95mm) 0.520" (13.21mm) 0.530" (13.46mm) 0.540" (13.72mm) 0.550" (13.97mm) 0.560" (14.22mm) 0.562" (14.27mm) 0.570" (14.48mm) 0.580" (14.73mm) 0.600" (15.24mm) 0.609" (15.47mm) 0.610" (15.49mm) 0.620" (15.75mm) 0.630" (16.00mm) 0.641" (16.28mm) 0.656" (16.66mm) 0.660" (16.76mm) 0.669" (17.00mm) 0.673" (17.10mm) 0.680" (17.27mm) 0.690" (17.53mm) 0.696" (17.70mm) 0.700" (17.78mm) 0.703" (17.86mm) 0.730" (18.54mm) 0.745" (18.92mm) 0.750" (19.05mm) 0.760" (19.30mm) 0.770" (19.56mm) 0.780" (19.81mm) 0.795" (20.19mm) 0.810" (20.57mm) 0.812" (20.62mm) 0.830" (21.08mm) 0.840" (21.34mm) 0.843" (21.41mm) 0.850" (21.59mm) 0.860" (21.84mm) 0.870" (22.10mm) 0.910" (23.11mm) 0.920" (23.37mm) 0.930" (23.62mm) 0.940" (23.88mm) 0.950" (24.13mm) 0.960" (24.38mm) 0.970" (24.64mm) 0.980" (24.89mm) 0.984" (24.99mm) 1.000" (25.40mm) 1.030" (26.16mm) 1.031" (26.19mm) 1.050" (26.67mm) 1.060" (26.92mm) 1.080" (27.43mm) 1.090" (27.69mm) 1.109" (28.17mm) 1.130" (28.70mm) 1.140" (28.96mm) 1.150" (29.21mm) 1.160" (29.46mm) 1.170" (29.72mm) 1.210" (30.73mm) 1.220" (30.99mm) 1.240" (31.50mm) 1.359" (34.52mm) 1.360" (34.54mm) 1.400" (35.56mm) 1.420" (36.07mm) 1.440" (36.58mm) 1.450" (36.83mm) 1.460" (37.08mm) 1.468" (37.29mm) 1.480" (37.59mm) 1.609" (40.87mm) 1.610" (40.89mm) 1.620" (41.15mm) 1.630" (41.40mm) 1.640" (41.66mm) 1.656" (42.06mm) 1.660" (42.16mm) 1.670" (42.42mm) 1.690" (42.93mm) 1.700" (43.18mm) 1.730" (43.94mm) 1.750" (44.45mm) 1.760" (44.70mm) 1.770" (44.96mm) 1.830" (46.48mm) 1.845" (46.86mm) 1.850" (46.99mm) 1.870" (47.50mm) 1.953" (49.61mm) 1.980" (50.29mm) 2.000" (50.80mm) 2.030" (51.56mm) 2.080" (52.83mm) 2.250" (57.15mm) 2.500" (63.50mm) 3.000" (76.20mm) 3.250" (82.55mm) 3.500" (88.90mm) 4.250" (107.95mm) 4.500" (114.30mm)	- -25°C ~ 85°C -30°C ~ 85°C -40°C ~ 125°C -40°C ~ 70°C -40°C ~ 85°C -55°C ~ 125°C -55°C ~ 150°C -55°C ~ 200°C -65°C ~ 125°C	- Chassis Mount Panel Mount Surface Mount Through Hole User Defined	- General Purpose Low Profile Low Profile, Non-Magnetic Non-Magnetic Non-Magnetic, Sealed Sealed Voltage Tuning

Reset All

Apply All

Result

Trimmers, Variable Capacitors

Trimmers and variable capacitors are adjustable capacitors used to fine-tune capacitance values in electronic circuits. They are commonly used for frequency adjustment, impedance matching, oscillator tuning, RF calibration, filter alignment, and signal conditioning in communication equipment, test instruments, radio circuits, sensor modules, and precision electronic systems.

TomatoElec is an independent electronic components distributor supplying trimmers and variable capacitors from mainstream manufacturers such as Murata, TDK, KYOCERA AVX, Vishay, Knowles, Johanson Technology, and Bourns. Customers can check inventory, price, package, specifications, parameters and PDF datasheets in the product list below, and submit a BOM or RFQ for trimmer and variable capacitor sourcing support.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Capacitance Range	Adjustment Type	Voltage - Rated	Dielectric Material	Q @ Freq	Size / Dimension	Height - Seated (Max)	Operating Temperature	Mounting Type	Features
JR400HV CAP TRIMMER 8-40PF 350V SMD Knowles Voltronics	990	-	RFQ	Datasheet	JR	Bulk	Active	8 ~ 40pF	Top	350 V	Ceramic	200 @ 1MHz	0.138" L x 0.122" W (3.50mm x 3.10mm)	0.045" (1.15mm)	-40°C ~ 85°C	Surface Mount	General Purpose
JR300HV CAP TRIMMER 5.5-30PF 350V SMD Knowles Voltronics	945	-	RFQ	Datasheet	JR	Bulk	Active	5.5 ~ 30pF	Top	350 V	Ceramic	200 @ 1MHz	0.138" L x 0.122" W (3.50mm x 3.10mm)	0.045" (1.15mm)	-40°C ~ 85°C	Surface Mount	General Purpose
JR200HV CAP TRIMMER 4.5-20PF 350V SMD Knowles Voltronics	985	-	RFQ	Datasheet	JR	Bulk	Active	4.5 ~ 20pF	Top	350 V	Ceramic	500 @ 1MHz	0.138" L x 0.122" W (3.50mm x 3.10mm)	0.045" (1.15mm)	-40°C ~ 85°C	Surface Mount	General Purpose
JR100HV CAP TRIMMER 2-10PF 350V SMD Knowles Voltronics	985	-	RFQ	Datasheet	JR	Bulk	Active	2 ~ 10pF	Top	350 V	Ceramic	500 @ 1MHz	0.138" L x 0.122" W (3.50mm x 3.10mm)	0.045" (1.15mm)	-40°C ~ 85°C	Surface Mount	General Purpose
JR150HV CAP TRIMMER 3-15PF 350V SMD Knowles Voltronics	955	-	RFQ	Datasheet	JR	Bulk	Active	3 ~ 15pF	Top	350 V	Ceramic	500 @ 1MHz	0.138" L x 0.122" W (3.50mm x 3.10mm)	0.045" (1.15mm)	-40°C ~ 85°C	Surface Mount	General Purpose
9410-5SL-1R7 Thin film Knowles Johanson Manufacturing	3,000	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	8 ~ 50pF	Top	250 V	-	250 @ 100MHz	0.225" Dia (5.72mm)	0.060" (1.52mm)	-55°C ~ 125°C	Surface Mount	Low Profile
KM15HV CAP TRIMMER 1-15PF 750V SMD Knowles Voltronics	100	-	RFQ	Datasheet	K_HV	Bulk	Active	1 ~ 15pF	Top	750 V	Polytetrafluoroethylene (PTFE)	2000 @ 100MHz	0.200" Dia (5.08mm)	0.470" (11.94mm)	-65°C ~ 125°C	Surface Mount	General Purpose
A1M12HVS CAP TRIMMER 0.6-12PF 500V SMD Knowles Voltronics	360	-	RFQ	Datasheet	A1_HV	Bulk	Active	0.6 ~ 12pF	Top	500 V	Polytetrafluoroethylene (PTFE)	2000 @ 100MHz	0.120" Dia (3.05mm)	0.500" (12.70mm)	-65°C ~ 125°C	Surface Mount	General Purpose

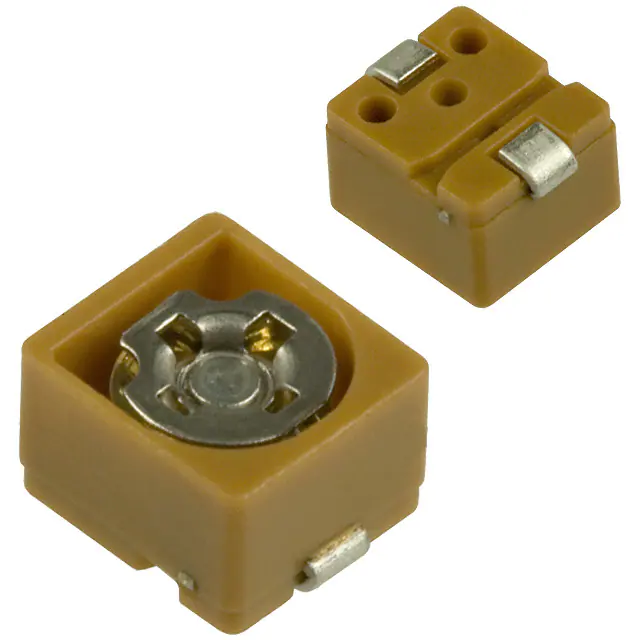

TZB4Z030AA10R00 CAP TRIMMER 1.4-3PF 100V SMD Murata Electronics	0	-	RFQ	Datasheet	TZB4	Tape & Reel (TR)	Obsolete	1.4 ~ 3pF	Top	100 V	Ceramic	300 @ 1MHz	0.177" L x 0.157" W (4.50mm x 4.00mm)	0.126" (3.20mm)	-25°C ~ 85°C	Surface Mount	General Purpose
GKH25000 CAP TRIMMER 5-25PF 25V SMD Sprague-Goodman	7,737	-	RFQ	Datasheet	GKH	Bulk	Obsolete	5 ~ 25pF	Top	25 V	Ceramic	100 @ 1MHz	0.091" Dia (2.30mm)	0.047" (1.20mm)	-25°C ~ 85°C	Surface Mount	Low Profile
GKG3R015 CAP TRIMMER 1-3PF 100V TH Sprague-Goodman	944	-	RFQ	Datasheet	SURFTRIM® GKG	Bulk	Obsolete	1 ~ 3pF	Top	100 V	Ceramic	300 @ 1MHz	0.236" Dia (6.00mm)	0.197" (5.00mm)	-25°C ~ 85°C	Through Hole	General Purpose
GYA15000 CAP TRIMMER 2-15PF 100V TH Sprague-Goodman	253	-	RFQ	Datasheet	FILMTRIM®	Bulk	Obsolete	2 ~ 15pF	Top and Bottom	100 V	Polypropylene (PP)	1000 @ 1MHz	0.335" Dia (8.50mm)	0.402" (10.20mm)	-40°C ~ 70°C	Through Hole	General Purpose
GXL8R000 CAP TRIMMER 150V TH Sprague-Goodman	5,007	-	RFQ	Datasheet	FILMTRIM®	Bulk	Obsolete	-	Top	150 V	Polytetrafluoroethylene (PTFE)	1500 @ 1MHz	-	-	-40°C ~ 125°C	Through Hole	General Purpose
GXL4R000 CAP TRIMMER 1.2-4PF 150V TH Sprague-Goodman	4,086	-	RFQ	Datasheet	FILMTRIM®	Bulk	Obsolete	1.2 ~ 4pF	Top	150 V	Polytetrafluoroethylene (PTFE)	1500 @ 1MHz	0.217" L x 0.197" W (5.50mm x 5.00mm)	0.197" (5.00mm)	-40°C ~ 125°C	Through Hole	General Purpose
GYD40000 CAP TRIMMER 3-40PF 100V TH Sprague-Goodman	4,251	-	RFQ	Datasheet	FILMTRIM®	Bulk	Obsolete	3 ~ 40pF	Side	100 V	Polypropylene (PP)	1000 @ 1MHz	0.433" Dia (11.00mm)	0.402" (10.20mm)	-40°C ~ 70°C	Through Hole	General Purpose
GXL3R000 CAP TRIMMER 150V THROUGH HOLE Sprague-Goodman	5,028	-	RFQ	Datasheet	FILMTRIM®	Bulk	Obsolete	-	Top	150 V	Polytetrafluoroethylene (PTFE)	1500 @ 1MHz	-	-	-40°C ~ 125°C	Through Hole	General Purpose
GXA5R000 CAP TRIMMER 1.6-5PF 100V TH Sprague-Goodman	4,907	-	RFQ	Datasheet	FILMTRIM®	Bulk	Obsolete	1.6 ~ 5pF	Top and Bottom	100 V	Polytetrafluoroethylene (PTFE)	1500 @ 1MHz	0.335" L x 0.295" W (8.50mm x 7.50mm)	0.402" (10.20mm)	-40°C ~ 85°C	Through Hole	General Purpose
GXE3R511 CAP TRIMMER 1-3.5PF 300V TH Sprague-Goodman	1,805	-	RFQ	Datasheet	FILMTRIM®	Bulk	Obsolete	1 ~ 3.5pF	Top and Bottom	300 V	Polytetrafluoroethylene (PTFE)	1500 @ 1MHz	0.291" L x 0.264" W (7.40mm x 6.70mm)	0.315" (8.00mm)	-40°C ~ 125°C	Through Hole	General Purpose

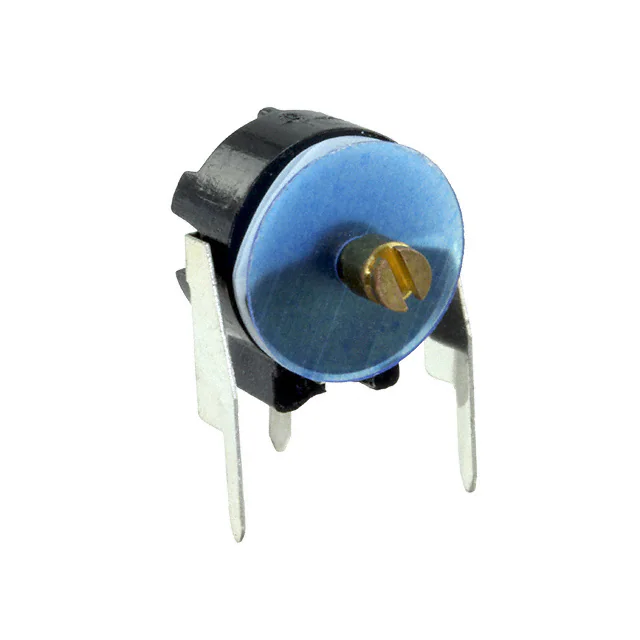

GXD13000 CAP TRIMMER 2-13PF 100V TH Sprague-Goodman	2,219	-	RFQ	Datasheet	FILMTRIM®	Bulk	Obsolete	2 ~ 13pF	Side	100 V	Polytetrafluoroethylene (PTFE)	1500 @ 1MHz	0.402" L x 0.402" W (10.20mm x 10.20mm)	0.433" (11.00mm)	-40°C ~ 85°C	Through Hole	General Purpose
GYC20004 CAP TRIMMER 3-20PF 100V TH Sprague-Goodman	349	-	RFQ	Datasheet	FILMTRIM®	Bulk	Obsolete	3 ~ 20pF	Top and Bottom	100 V	Polypropylene (PP)	1000 @ 1MHz	0.433" L x 0.374" W (11.00mm x 9.50mm)	0.402" (10.20mm)	-40°C ~ 70°C	Through Hole	General Purpose

Total 1700 Record«Prev 1... 4 5 6 789 10 11...85 Next»
