Specialty Transformers

Specialty Transformers are magnetic components designed for application-specific power conversion, signal isolation, impedance matching, pulse transfer and electrical interface requirements. They are widely used in industrial control systems, communication equipment, power supplies, medical electronics, test instruments, audio equipment, automotive electronics, renewable energy systems and embedded applications.

This category includes isolation transformers, pulse transformers, signal transformers, audio transformers, current transformers, gate drive transformers, high-frequency transformers and other application-specific magnetic components. These products are commonly selected based on transformer function, input voltage, output voltage, power rating, frequency range, insulation rating, mounting type, package style and application requirements.

TomatoElec supplies original Specialty Transformers from recognized manufacturers such as Bourns, Pulse Electronics, Würth Elektronik, TDK, Murata, Coilcraft, Triad Magnetics, Hammond Manufacturing, TE Connectivity and other major brands. As an in-stock electronic components supplier and independent distributor, TomatoElec provides inventory support, original component sourcing and BOM sourcing services for global customers.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Inductance	For Use With/Related Products	Mounting Type	Size / Dimension	Height - Seated (Max)
37816TR TRANSF ADSL OVER POTS EP7 SMD Schott Corporation	1,000	-	RFQ	Datasheet	-	Tape & Reel (TR)	Discontinued at Digi-Key	-	ADSL over Pots EP7 SMD	Surface Mount	0.420" L x 0.417" W (10.67mm x 10.60mm)	0.380" (9.65mm)

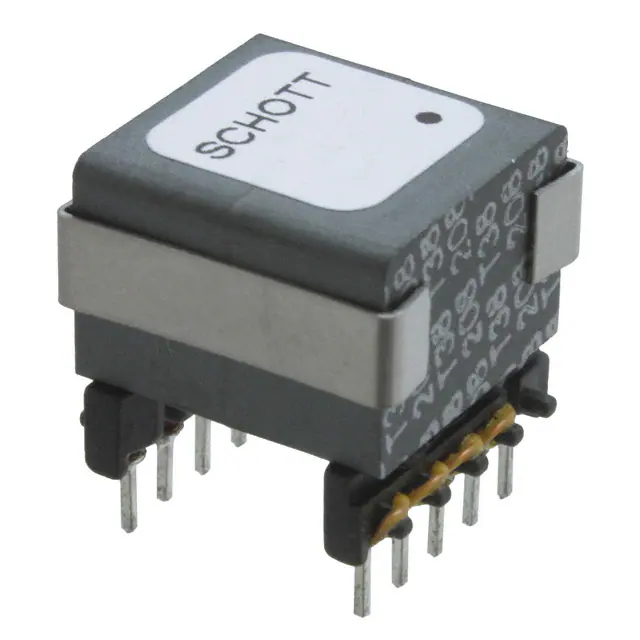

36038 TRANSFORMER GLOBESPAN EP13 TH Schott Corporation	438	-	RFQ	Datasheet	-	-	Discontinued at Digi-Key	-	Globespan EP13 Through-Hole	Through Hole	0.560" L x 0.560" W (14.22mm x 14.22mm)	0.500" (12.70mm)

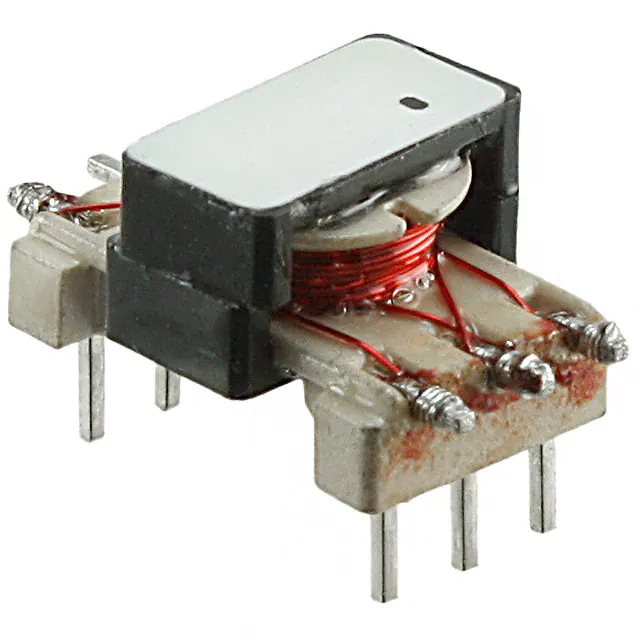

67129300 TRANSFORMER FOR CRYSTAL T1 CHIPS Schott Corporation	200	-	RFQ	-	-	-	Discontinued at Digi-Key	-	Crystal T1 Chips, Receive	Through Hole	0.365" L x 0.639" W (9.26mm x 16.24mm)	0.250" (6.35mm)
PH9085.043NLT TRANSFORMER 1.16MH MAX253 SMD Pulse Electronics	4,145	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	1.16 mH	MAX253	Surface Mount	0.319" L x 0.280" W (8.10mm x 7.10mm)	0.200" (5.08mm)

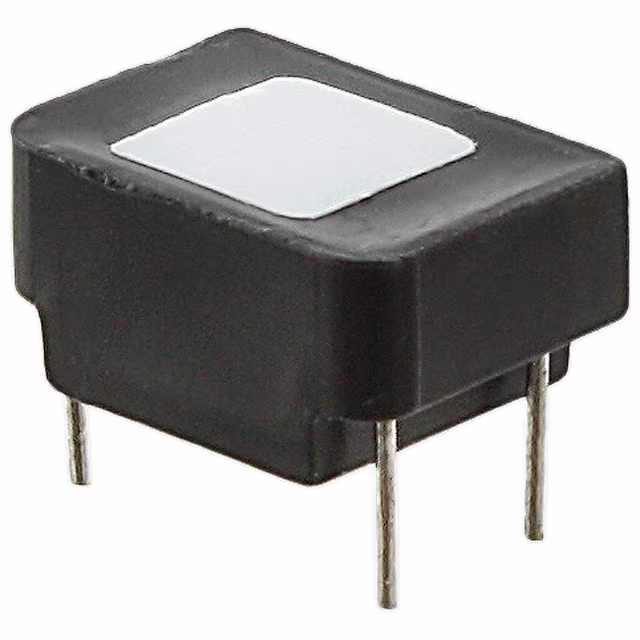

67124840 TRANSFORMER FOR CRYSTAL CS61574 Schott Corporation	265	-	RFQ	-	-	Bulk	Discontinued at Digi-Key	-	Crystal CS61574/35, 100Ohms, Transmit	Through Hole	0.350" L x 0.500" W (8.89mm x 12.70mm)	0.250" (6.35mm)
PH9084.034NLT TRANSFORMER 256UH SMD Pulse Electronics	0	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	256 µH	-	Surface Mount	-	0.211" (5.35mm)
67130850 TRANSFORMER FOR ROCKWELL 8069 Schott Corporation	158	-	RFQ	-	-	-	Discontinued at Digi-Key	-	Rockwell 8069, Transmit	Through Hole	0.365" L x 0.639" W (9.26mm x 16.24mm)	0.250" (6.35mm)

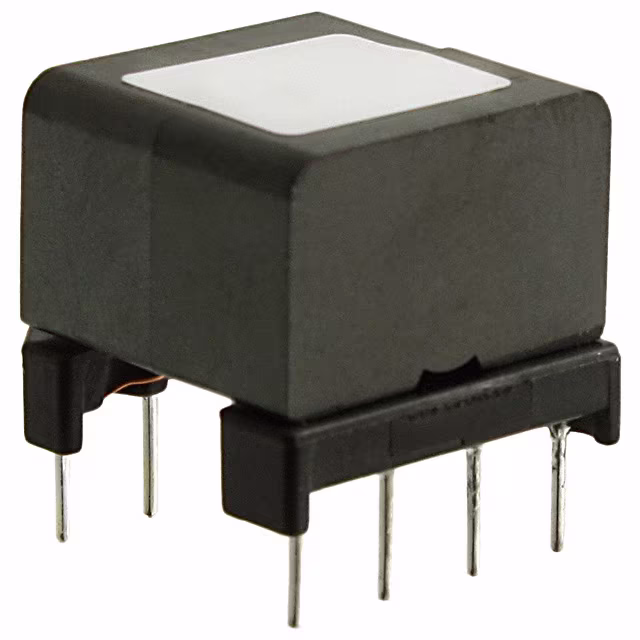

67141280 TRANSFORMER BROOKTREE 8920/8952 Schott Corporation	476	-	RFQ	-	-	-	Discontinued at Digi-Key	-	Brooktree 8920 and 8952 HDSL	-	-	-
PH9385.012NLT XFMR PUSH-PULL RS-485 COMM SMD Pulse Electronics	220	-	RFQ	Datasheet	PH9385	Tape & Reel (TR)	Active	2.6 mH	RS-485 Communications	Surface Mount	0.630" L x 0.512" W (16.00mm x 13.00mm)	0.295" (7.50mm)
PH9400.655NLT TRANSFORMER 6.48MH SMD Pulse Electronics	1,790	-	RFQ	Datasheet	PH9400	Tape & Reel (TR)	Active	6.48 mH	-	Surface Mount	0.657" L x 0.500" W (16.70mm x 12.70mm)	0.559" (14.20mm)
PH9400.566NLT TRANSFORMER 4.5MH SMD Pulse Electronics	1,040	-	RFQ	Datasheet	PH9400	Tape & Reel (TR)	Active	4.5 mH	-	Surface Mount	0.657" L x 0.500" W (16.70mm x 12.70mm)	0.559" (14.20mm)
PH9400.122NLT TRANSFORMER 2.88MH SMD Pulse Electronics	396	-	RFQ	Datasheet	PH9400	Tape & Reel (TR)	Active	2.88 mH	-	Surface Mount	0.657" L x 0.500" W (16.70mm x 12.70mm)	0.559" (14.20mm)

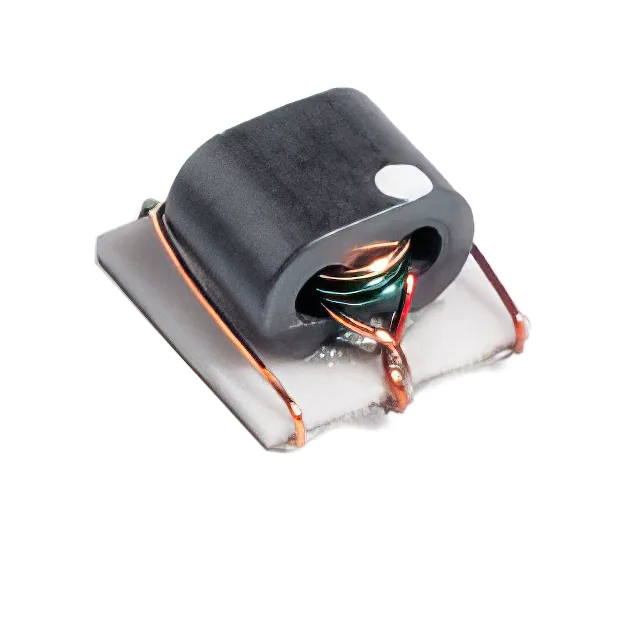

YA9308-AEC TRANSFORMER 54UH SMD Coilcraft	2,013	-	RFQ	Datasheet	-	Strip	Active	54 µH	-	Surface Mount	0.165" L x 0.175" W (4.19mm x 4.45mm)	0.120" (3.05mm)
PH9400.233ANLT TRANSFORMER 720UH SMD Pulse Electronics	1,126	-	RFQ	Datasheet	PH9400	Tape & Reel (TR)	Active	720 µH	-	Surface Mount	0.657" L x 0.500" W (16.70mm x 12.70mm)	0.559" (14.20mm)
PH9400.655ANLT TRANSFORMER 1.62MH SMD Pulse Electronics	700	-	RFQ	Datasheet	PH9400	Tape & Reel (TR)	Active	1.62 mH	-	Surface Mount	0.657" L x 0.500" W (16.70mm x 12.70mm)	0.559" (14.20mm)

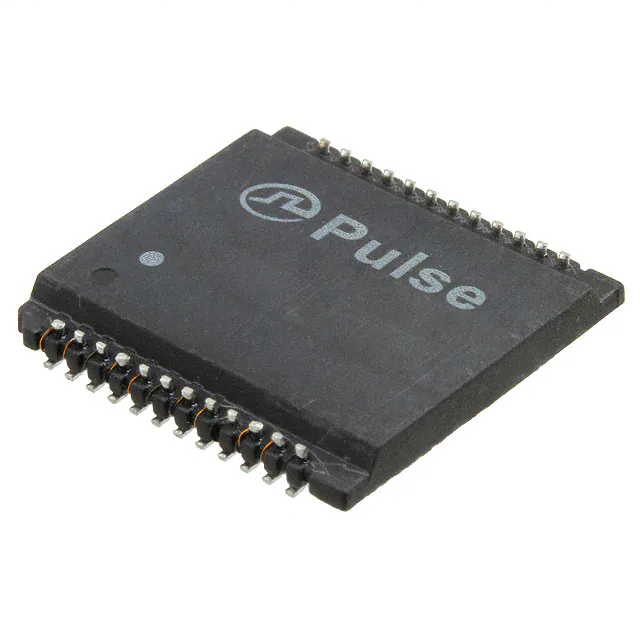

H5019EFNL TRANSFORMER 350UH SMD Pulse Electronics	267	-	RFQ	Datasheet	-	Tube	Active	350 µH	-	Surface Mount	0.780" L x 0.750" W (19.81mm x 19.05mm)	0.100" (2.54mm)
21033812817 TRANSFORMER SMD HARTING	53	-	RFQ	Datasheet	M12	Bulk	Active	-	-	Surface Mount	0.754" Dia (19.15mm)	1.000" (25.40mm)
782100/55JVC TRANSFORMER 335UH PE22100 SMD Murata Power Solutions Inc.	50	-	RFQ	Datasheet	782100	Tube	Active	335 µH	PE22100	Surface Mount	0.500" L x 0.354" W (12.70mm x 9.00mm)	0.250" (6.35mm)
S22230 TRANSFORMER FOR MAXIM 250/251 Newava Technology Inc.	88	-	RFQ	Datasheet	-	Bulk	Active	2 mH	MAX250, MAX251	Through Hole	0.650" L x 0.385" W (16.51mm x 9.78mm)	0.250" (6.35mm)
760801031 TRANSFORMER 650UH TH Würth Elektronik	41	-	RFQ	Datasheet	WE-PFC	Tray	Active	650 µH	-	Through Hole	0.984" L x 1.016" W (25.00mm x 25.81mm)	0.535" (13.60mm)

Total 276 Record«Prev 1 2 3 456 7 8...14 Next»
