Diode Arrays

TomatoElec supplies diode arrays for industrial, automotive, communication, power and general electronics applications. Our sourcing support covers commonly used diode array products for rectification, switching, signal routing and protection circuit designs.

We support flexible RFQ service for diode array sourcing and help customers improve procurement efficiency for regular demand, urgent requirements and selected hard-to-find parts.

With access to multiple supply channels, TomatoElec aims to provide customers with reliable diode array sourcing support, responsive quotation and global delivery service.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Diode Configuration	Technology	Voltage - DC Reverse (Vr) (Max)	Current - Average Rectified (Io) (per Diode)	Voltage - Forward (Vf) (Max) @ If	Speed	Reverse Recovery Time (trr)	Current - Reverse Leakage @ Vr	Operating Temperature - Junction	Grade	Qualification	Mounting Type	Supplier Device Package
STPS200170TV1Y DIODE MOD SCHOT 170V 100A ISOTOP STMicroelectronics	395	-	RFQ	Datasheet	Q	ISOTOP	Tube	Active	2 Independent	Schottky	170 V	100A	850 mV @ 100 A	Fast Recovery =< 500ns, > 200mA (Io)	-	200 µA @ 170 V	-55°C ~ 150°C	Automotive	AEC-Q101	Chassis Mount	ISOTOP®
STPS24045TV DIODE MOD SCHOTT 45V 120A ISOTOP STMicroelectronics	119	-	RFQ	Datasheet	-	ISOTOP	Tube	Active	2 Independent	Schottky	45 V	120A	670 mV @ 120 A	Fast Recovery =< 500ns, > 200mA (Io)	-	2 mA @ 45 V	150°C (Max)	-	-	Chassis Mount	ISOTOP®
STTH12012TV1 DIODE MODULE GP 1200V 60A ISOTOP STMicroelectronics	138	-	RFQ	Datasheet	-	ISOTOP	Tube	Active	2 Independent	Standard	1200 V	60A	2.25 V @ 60 A	Fast Recovery =< 500ns, > 200mA (Io)	125 ns	30 µA @ 1200 V	150°C (Max)	-	-	Chassis Mount	ISOTOP®

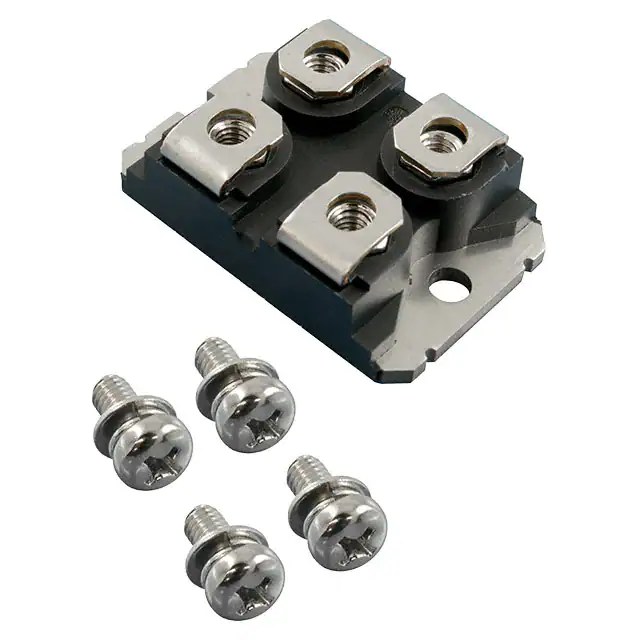

VS-QA250FA20 DIODE MOD SCHOT 200V 250A SOT227 Vishay General Semiconductor - Diodes Division	1,236	-	RFQ	Datasheet	-	SOT-227-4, miniBLOC	Tube	Active	2 Independent	Schottky	200 V	250A	1.2 V @ 200 A	Fast Recovery =< 500ns, > 200mA (Io)	54 ns	90 µA @ 200 V	-55°C ~ 175°C	-	-	Chassis Mount	SOT-227
SK2S160-100 DIODE MOD SCHOTT 100V 80A SOT227 SMC Diode Solutions	295	-	RFQ	Datasheet	-	SOT-227-4, miniBLOC	Bulk	Active	2 Independent	Schottky	100 V	80A	800 mV @ 80 A	Fast Recovery =< 500ns, > 200mA (Io)	-	2 mA @ 100 V	-40°C ~ 150°C	-	-	Chassis Mount	SOT-227
APT2X30D120J DIODE MODULE GP 1200V 30A ISOTOP Microchip Technology	257	-	RFQ	Datasheet	-	SOT-227-4, miniBLOC	Tube	Active	2 Independent	Standard	1200 V	30A	2.5 V @ 30 A	Fast Recovery =< 500ns, > 200mA (Io)	370 ns	250 µA @ 1200 V	-55°C ~ 175°C	-	-	Chassis Mount	ISOTOP®
APT2X101S20J DIODE MOD SCHOT 200V 120A ISOTOP Microchip Technology	185	-	RFQ	Datasheet	-	ISOTOP	Tube	Active	2 Independent	Schottky	200 V	120A	950 mV @ 100 A	Fast Recovery =< 500ns, > 200mA (Io)	70 ns	2 mA @ 200 V	-55°C ~ 175°C	-	-	Chassis Mount	ISOTOP®
STTH200L06TV1 DIODE MODULE GP 600V 120A ISOTOP STMicroelectronics	241	-	RFQ	Datasheet	-	ISOTOP	Tube	Active	2 Independent	Standard	600 V	120A	1.55 V @ 100 A	Fast Recovery =< 500ns, > 200mA (Io)	120 ns	100 µA @ 600 V	150°C (Max)	-	-	Chassis Mount	ISOTOP®
SK2S200-150 DIODE MOD SCHOT 150V 100A SOT227 SMC Diode Solutions	368	-	RFQ	Datasheet	-	SOT-227-4, miniBLOC	Bulk	Active	2 Independent	Schottky	150 V	100A	1.09 V @ 200 A	Fast Recovery =< 500ns, > 200mA (Io)	-	4 mA @ 150 V	-55°C ~ 150°C	-	-	Chassis Mount	SOT-227
MEK95-06DA DIODE MODULE GP 600V 95A TO240AA IXYS	167	-	RFQ	Datasheet	-	TO-240AA	Bulk	Active	1 Pair Common Cathode	Standard	600 V	95A	1.55 V @ 100 A	Fast Recovery =< 500ns, > 200mA (Io)	300 ns	2 mA @ 600 V	-40°C ~ 150°C	-	-	Chassis Mount	TO-240AA
DSEI2X61-12B DIODE MOD GP 1200V 52A SOT227B IXYS	246	-	RFQ	Datasheet	FRED	SOT-227-4, miniBLOC	Tube	Active	2 Independent	Standard	1200 V	52A	2.5 V @ 60 A	Fast Recovery =< 500ns, > 200mA (Io)	60 ns	2.2 mA @ 1200 V	-40°C ~ 150°C	-	-	Chassis Mount	SOT-227B
DSEI2X61-10B DIODE MOD GP 1000V 60A SOT227B IXYS	700	-	RFQ	Datasheet	FRED	SOT-227-4, miniBLOC	Tube	Active	2 Independent	Standard	1000 V	60A	2.3 V @ 60 A	Fast Recovery =< 500ns, > 200mA (Io)	50 ns	3 mA @ 1000 V	-40°C ~ 150°C	-	-	Chassis Mount	SOT-227B
DSEI2X121-02A DIODE MOD GP 200V 123A SOT227B IXYS	1,431	-	RFQ	Datasheet	-	SOT-227-4, miniBLOC	Tube	Active	2 Independent	Standard	200 V	123A	1.1 V @ 120 A	Fast Recovery =< 500ns, > 200mA (Io)	50 ns	1 mA @ 200 V	-40°C ~ 150°C	-	-	Chassis Mount	SOT-227B
DH2X61-18A DIODE MOD GP 1800V 60A SOT227B IXYS	639	-	RFQ	Datasheet	-	SOT-227-4, miniBLOC	Tube	Active	2 Independent	Standard	1800 V	60A	2.01 V @ 60 A	Fast Recovery =< 500ns, > 200mA (Io)	230 ns	200 µA @ 1800 V	-40°C ~ 150°C	-	-	Chassis Mount	SOT-227B
MDD95-16N1B DIODE MOD GP 1600V 120A TO-240AA IXYS	112	-	RFQ	Datasheet	-	TO-240AA	Box	Active	1 Pair Series Connection	Standard	1600 V	120A	1.43 V @ 300 A	Standard Recovery >500ns, > 200mA (Io)	-	15 mA @ 1600 V	-40°C ~ 150°C	-	-	Chassis Mount	TO-240AA
VS-401CNQ045PBF DIODE MOD SCHOT 45V 400A TO244AB Vishay General Semiconductor - Diodes Division	279	-	RFQ	Datasheet	-	TO-244AB	Bulk	Active	1 Pair Common Cathode	Schottky	45 V	400A	780 mV @ 400 A	Fast Recovery =< 500ns, > 200mA (Io)	-	20 mA @ 45 V	-	-	-	Chassis Mount	TO-244AB
GD2X50MPS12N DIODE MOD SIC 1200V 76A SOT-227 GeneSiC Semiconductor	221	-	RFQ	Datasheet	SiC Schottky MPS™	SOT-227-4, miniBLOC	Tube	Active	2 Independent	SiC (Silicon Carbide) Schottky	1200 V	76A (DC)	1.8 V @ 50 A	No Recovery Time > 500mA (Io)	0 ns	15 µA @ 1200 V	-55°C ~ 175°C	-	-	Chassis Mount	SOT-227
GD2X25MPS17N DIODE MOD SIC 1700V 50A SOT-227 GeneSiC Semiconductor	184	-	RFQ	Datasheet	SiC Schottky MPS™	SOT-227-4, miniBLOC	Tube	Active	2 Independent	SiC (Silicon Carbide) Schottky	1700 V	50A (DC)	1.8 V @ 25 A	No Recovery Time > 500mA (Io)	0 ns	20 µA @ 1700 V	-55°C ~ 175°C	-	-	Chassis Mount	SOT-227
VS-HFA220FA120 DIODE MOD GP 1200V 110A SOT-227 Vishay General Semiconductor - Diodes Division	1,128	-	RFQ	Datasheet	HEXFRED®	SOT-227-4, miniBLOC	Tube	Active	2 Independent	Standard	1200 V	110A (DC)	3.6 V @ 100 A	Fast Recovery =< 500ns, > 200mA (Io)	58 ns	75 µA @ 1200 V	-	-	-	Chassis Mount	SOT-227
MBR2X120A045 DIODE MOD SCHOTT 45V 120A SOT227 GeneSiC Semiconductor	308	-	RFQ	Datasheet	-	SOT-227-4, miniBLOC	Bulk	Active	2 Independent	Schottky	45 V	120A	700 mV @ 120 A	Fast Recovery =< 500ns, > 200mA (Io)	-	1 mA @ 45 V	-40°C ~ 150°C	-	-	Chassis Mount	SOT-227

Total 15087 Record«Prev 1 2 3 4 5 678 9 10...755 Next»
