Pulse Transformers
Pulse Transformers
Pulse Transformers are magnetic components used to transfer pulse signals, provide galvanic isolation and support reliable signal coupling in electronic circuits. They are widely used in switching power supplies, gate drive circuits, communication equipment, industrial control systems, data transmission, instrumentation, automotive electronics and embedded applications.
This category includes signal pulse transformers, gate drive transformers, isolation pulse transformers, LAN pulse transformers, trigger transformers and related high-frequency magnetic components. These products are commonly selected based on turns ratio, isolation voltage, pulse width, frequency range, impedance, package style, mounting type and application requirements.
TomatoElec supplies original Pulse Transformers from recognized manufacturers such as Pulse Electronics, Würth Elektronik, Bourns, TDK, Murata, Coilcraft, Triad Magnetics, TE Connectivity and other major brands. As an in-stock electronic components supplier and independent distributor, TomatoElec provides inventory support, original component sourcing and BOM sourcing services for global customers.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S560-6600-N7-FMODULE XFRMR LAN GSHDSL ISOL SMD |
0 | - |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SHDSL | 3mH | - | 1:5.4 | Surface Mount | 0.540" L x 0.585" W (13.72mm x 14.86mm) | 0.500" (12.70mm) | -40°C ~ 85°C | - | - |
|
|
S559-6204-18-FPULSE XFMR 1CT:1.25 1.75MH |
0 | - |
|
Datasheet |
- | Bulk | Obsolete | - | 1.75mH | - | 1CT:1.25 | Surface Mount | 0.420" L x 0.370" W (10.67mm x 9.40mm) | 0.360" (9.14mm) | - | - | - |
|
|
ESMIT-4155IC |
0 | - |
|
- |
* | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - |
|
|
ALANS100X1-2F82DTLAN SGL 100B XFMR&CMC&AUTO 12PIN |
0 | - |
|
Datasheet |
ALANS100X1-2 | Tape & Reel (TR) | Active | - | 350µH | - | 1CT:1CT | Surface Mount | 0.504" L x 0.272" W (12.80mm x 6.90mm) | 0.222" (5.65mm) | -40°C ~ 85°C | - | - |
|
DA103MC-RDIGITAL AUDIO TX 1:1 5MH SMD |
0 | - |
|
Datasheet |
DA100 | Bulk | Not For New Designs | - | 7.75mH | 28VµS | 1:1 | Surface Mount | 0.354" L x 0.375" W (9.00mm x 9.52mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
0553-0013-AC-FPULSE TRANSFORMER 1:1 1.2MH |
0 | - |
|
Datasheet |
- | Bulk | Obsolete | T1/E1 (Single) | 1.2mH | - | 1:1 | Through Hole | 0.500" L x 0.350" W (12.70mm x 8.89mm) | 0.250" (6.35mm) | - | - | - |
|

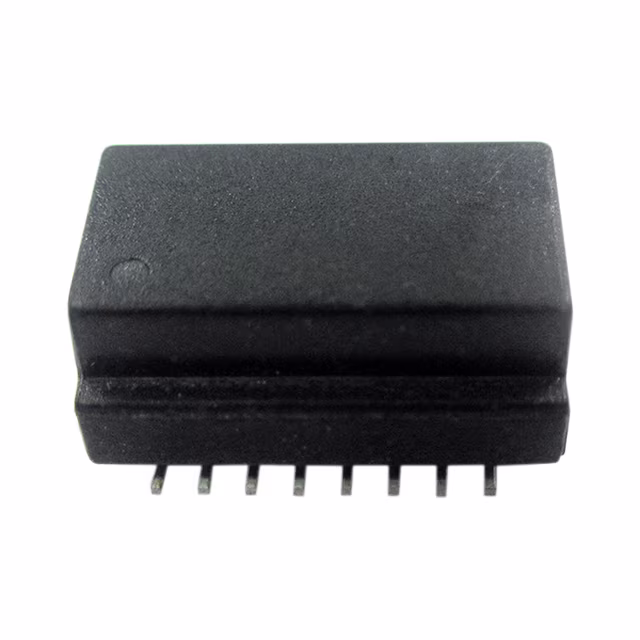

APT-106LAN XFRMR 10/100 1PORT EXT-TEMP |
0 | - |
|
Datasheet |
APT-106 | Tube | Active | - | - | - | - | - | - | - | - | - | - |
|
|
T60403K5024X0445024X044 |
0 | - |
|
- |
- | Box | Active | - | 300nH | - | 1:1 | Surface Mount | 0.451" L x 0.433" W (11.46mm x 11.00mm) | 0.299" (7.60mm) | -40°C ~ 85°C | - | - |
|
SM51430ELTRANSFORMER G FAST 8SMD |
0 | - |
|
Datasheet |
SM | Tape & Reel (TR) | Active | LAN | 10µH | - | 1:1 | Surface Mount | 0.299" L x 0.197" W (7.60mm x 5.00mm) | 0.209" (5.30mm) | -40°C ~ 85°C | - | - |
|
78601/16JC-RPULSE XFMR 1:1 3.65MH |
0 | - |
|
Datasheet |
786J | Tape & Reel (TR) | Active | General Purpose | 3.65mH | 28VµS | 1:1 | Surface Mount | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
78601/16MC-RPULSE XFMR 1:1 4MH |
0 | - |
|
Datasheet |
786 | Tape & Reel (TR) | Not For New Designs | General Purpose | 4mH | 28VµS | 1:1 | Surface Mount | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78601/1MC-RPULSE XFMR 1:1 2MH |
0 | - |
|
Datasheet |
786 | Tape & Reel (TR) | Not For New Designs | General Purpose | 2mH | 20VµS | 1:1 | Surface Mount | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78601/3JC-RPULSE XFMR 1:1 150UH |
0 | - |
|
Datasheet |
786J | Tape & Reel (TR) | Active | General Purpose | 150µH | 6VµS | 1:1 | Surface Mount | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78601/3MC-RPULSE XFMR 1:1 200UH |
0 | - |
|
Datasheet |
786 | Tape & Reel (TR) | Not For New Designs | General Purpose | 200µH | 6VµS | 1:1 | Surface Mount | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78601/8MC-RPULSE XFMR 1:1 1MH |
0 | - |
|
Datasheet |
786 | Tape & Reel (TR) | Not For New Designs | General Purpose | 1mH | 15VµS | 1:1 | Surface Mount | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78601/9MC-RPULSE XFMR 1:1 10MH |
0 | - |
|
Datasheet |
786 | Tape & Reel (TR) | Not For New Designs | General Purpose | 10mH | 56VµS | 1:1 | Surface Mount | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78602/16MC-RPULSE XFMR 1:1:1 4MH |
0 | - |
|
Datasheet |
786 | Tape & Reel (TR) | Not For New Designs | General Purpose | 4mH | 28VµS | 1:1:1 | Surface Mount | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78602/1MC-RPULSE XFMR 1:1:1 2MH |
0 | - |
|
Datasheet |
786 | Tape & Reel (TR) | Not For New Designs | General Purpose | 2mH | 20VµS | 1:1:1 | Surface Mount | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78602/3JC-RPULSE XFMR 1:1:1 180UH |
0 | - |
|
Datasheet |
786J | Tape & Reel (TR) | Active | General Purpose | 180µH | 6VµS | 1:1:1 | Surface Mount | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78602/4JC-RPULSE XFMR 1:1:1 53UH |
0 | - |
|
Datasheet |
786J | Tape & Reel (TR) | Active | General Purpose | 53µH | 4VµS | 1:1:1 | Surface Mount | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
