Pulse Transformers

Pulse Transformers are magnetic components used to transfer pulse signals, provide galvanic isolation and support reliable signal coupling in electronic circuits. They are widely used in switching power supplies, gate drive circuits, communication equipment, industrial control systems, data transmission, instrumentation, automotive electronics and embedded applications.

This category includes signal pulse transformers, gate drive transformers, isolation pulse transformers, LAN pulse transformers, trigger transformers and related high-frequency magnetic components. These products are commonly selected based on turns ratio, isolation voltage, pulse width, frequency range, impedance, package style, mounting type and application requirements.

TomatoElec supplies original Pulse Transformers from recognized manufacturers such as Pulse Electronics, Würth Elektronik, Bourns, TDK, Murata, Coilcraft, Triad Magnetics, TE Connectivity and other major brands. As an in-stock electronic components supplier and independent distributor, TomatoElec provides inventory support, original component sourcing and BOM sourcing services for global customers.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Transformer Type	Inductance	ET (Volt-Time)	Turns Ratio - Primary:Secondary	Mounting Type	Size / Dimension	Height - Seated (Max)	Operating Temperature	Grade	Qualification
PM-3009 10/00 BASE-T, ISOLATION XFMR Premier Magnetics	100	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10/100 Base-T	150µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.472" L x 0.285" W (12.00mm x 7.25mm)	0.225" (5.72mm)	-40°C ~ 85°C	-	-
PM-8538 10/100 BASE-TX ISOLATION XFMR Premier Magnetics	100	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10/100 Base-TX	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.961" L x 0.600" W (24.40mm x 15.24mm)	0.406" (10.30mm)	0°C ~ 70°C	-	-
PM-8106 QUAD PORT SMD, ISOLATION XFMR Premier Magnetics	100	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	T1/E1 (Quad)	1.2mH	-	1:1.15 Transmitter, 1:1 Receiver	Surface Mount	1.125" L x 0.480" W (28.58mm x 12.19mm)	0.250" (6.35mm)	0°C ~ 70°C	-	-
PM-8540S 5KV ISOLATION XFMR Premier Magnetics	100	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10/100 Base-TX	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.961" L x 0.600" W (24.40mm x 15.24mm)	0.406" (10.30mm)	-40°C ~ 85°C	-	-
ALT3232M-151-T001 PULSE XFMR 1CT:1CT 150UH TDK Corporation	0	-	RFQ	Datasheet	ALT	Tape & Reel (TR)	Active	LAN 10/100/1000 Base-T	150µH	-	1CT:1CT	Surface Mount	0.126" L x 0.126" W (3.20mm x 3.20mm)	0.114" (2.90mm)	-40°C ~ 85°C	-	-
S558-5999-Z5-F MODULE XFRMR LAN 10/100B-TX SMD Bel Fuse Inc.	0	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.485" L x 0.285" W (12.32mm x 7.24mm)	0.225" (5.72mm)	-40°C ~ 85°C	-	-

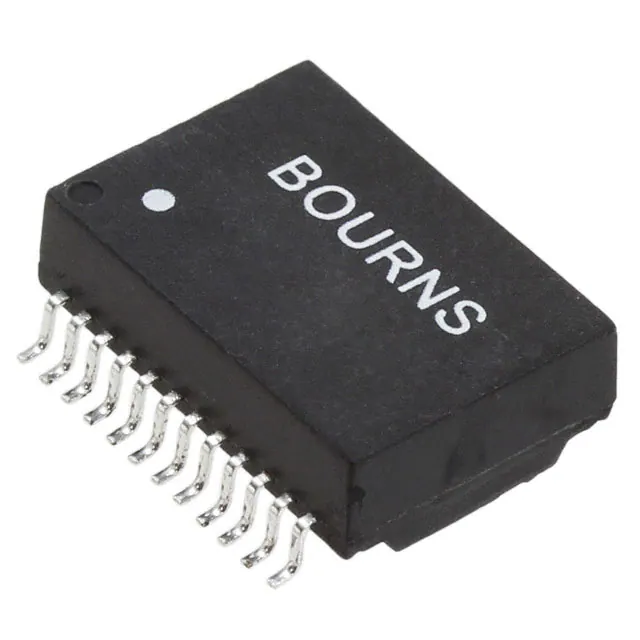

PT61020EL PULSE XFMR 1CT:1 350UH Bourns Inc.	0	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1	Surface Mount	0.694" L x 0.480" W (17.62mm x 12.20mm)	0.236" (6.00mm)	-40°C ~ 85°C	-	-
ALANL100X1-EF10JT 10/100BASE-TX LAN XFMR Abracon LLC	0	-	RFQ	Datasheet	ALANL100X1-E	Tape & Reel (TR)	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500" L x 0.280" W (12.70mm x 7.11mm)	0.085" (2.15mm)	-40°C ~ 105°C	-	-
H1102NLT XFRMR MAGNETIC 1PORT 1:1 10/100 Pulse Electronics	0	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	Isolation and Data Interface (Encapsulated)	-	-	1:1 Transmitter, 1:1 Receiver	Surface Mount	0.500" L x 0.280" W (12.70mm x 7.11mm)	0.245" (6.22mm)	0°C ~ 70°C	-	-
S558-5500-68 XFRMR MODULE LAN 10/100BT SMD Bel Fuse Inc.	10	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10/100/1000 Base-T, Power over Ethernet (PoE)	350µH	-	1:1 Transmitter, 1:1 Receiver	Surface Mount	0.690" L x 0.480" W (17.53mm x 12.20mm)	0.230" (5.84mm)	-40°C ~ 85°C	-	-

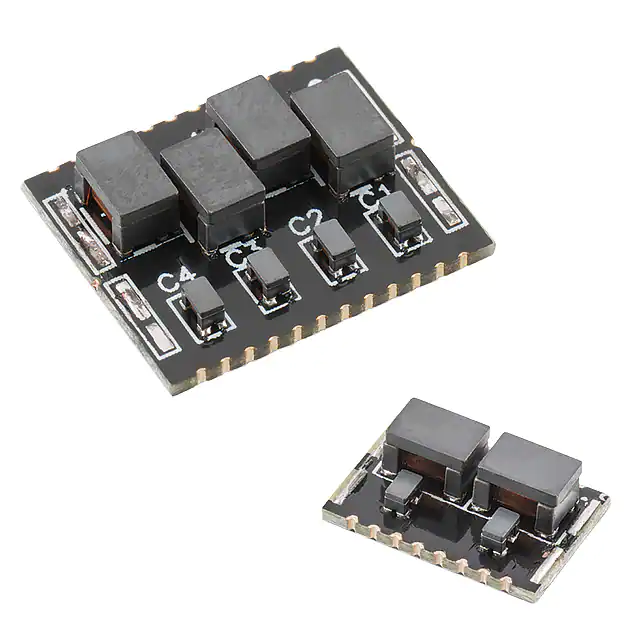

749010310 PULSE XFMR 1:1 300UH Würth Elektronik	0	-	RFQ	Datasheet	WE-LAN	Tape & Reel (TR)	Active	LAN 10/100 Base-T	350µH	-	1:1	Surface Mount	0.500" L x 0.341" W (12.70mm x 8.66mm)	0.167" (4.25mm)	-40°C ~ 85°C	-	-
HX1260NL XFRMR MODULE 1PORT 1:1 10/100 Pulse Electronics	0	-	RFQ	Datasheet	Star Magnetics™	Tube	Active	Isolation and Data Interface (Encapsulated)	-	-	1:1	Surface Mount	0.500" L x 0.280" W (12.70mm x 7.11mm)	0.245" (6.22mm)	-40°C ~ 85°C	-	-
HX2326NL MODULE 10/100B-T POE SMD Pulse Electronics	0	-	RFQ	Datasheet	-	Tube	Active	Isolation and Data Interface (Encapsulated)	-	-	1CT:1CT	Surface Mount	0.500" L x 0.280" W (12.70mm x 7.11mm)	0.245" (6.22mm)	-40°C ~ 85°C	-	-
P0584NL PULSE XFMR 1:1:1 450UH Pulse Electronics	0	-	RFQ	Datasheet	-	Tray	Active	-	450µH	95VµS	1:1:1	Through Hole	0.810" L x 0.480" W (20.57mm x 12.19mm)	0.750" (19.05mm)	-40°C ~ 125°C	-	-
H5084NL MODULE MAGNETIC 1PORT 1000BASE-T Pulse Electronics	7	-	RFQ	Datasheet	-	Tube	Active	Isolation and Data Interface (Encapsulated)	-	-	1CT:1CT	Surface Mount	0.600" L x 0.300" W (15.24mm x 7.62mm)	0.163" (4.14mm)	0°C ~ 70°C	-	-
S558-5999-BQ-F MODULE TRANSFORMER Bel Fuse Inc.	0	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	1.095" L x 0.480" W (27.81mm x 12.19mm)	0.285" (7.24mm)	-	-	-
GST5009M LF MDL 1G SINGLE PORT N/A Pulse Electronics	0	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 1000 Base-T	350µH	-	1:1CT Transmitter, 1:1CT Receiver	Surface Mount	0.594" L x 0.280" W (15.10mm x 7.10mm)	0.157" (4.00mm)	-40°C ~ 85°C	-	-
H5007NL MODULE SINGLE GIGABIT LAN 24SOIC Pulse Electronics	4	-	RFQ	Datasheet	-	Tube	Active	Isolation and Data Interface (Encapsulated)	-	-	1CT:1CT	Surface Mount	0.690" L x 0.480" W (17.53mm x 12.20mm)	0.227" (5.76mm)	0°C ~ 70°C	-	-
HX6400NL MODULE QUAD 1GPP 1:1 SMT TU Pulse Electronics	0	-	RFQ	Datasheet	HX6400NL	Tray	Active	LAN 1000 Base-T	150µH	-	1:1	Surface Mount	1.120" L x 0.680" W (28.45mm x 17.27mm)	0.440" (11.18mm)	-40°C ~ 85°C	-	-
TP-104-PIN TRANSFORMER,WIDE-BAND MACOM Technology Solutions	0	-	RFQ	Datasheet	-	Tray	Active	-	-	-	-	Surface Mount	0.374" L x 0.374" W (9.50mm x 9.50mm)	0.150" (3.80mm)	-55°C ~ 85°C	-	-

Total 5221 Record«Prev 1... 67 68 69 707172 73 74...262 Next»
