Pulse Transformers

Pulse Transformers are magnetic components used to transfer pulse signals, provide galvanic isolation and support reliable signal coupling in electronic circuits. They are widely used in switching power supplies, gate drive circuits, communication equipment, industrial control systems, data transmission, instrumentation, automotive electronics and embedded applications.

This category includes signal pulse transformers, gate drive transformers, isolation pulse transformers, LAN pulse transformers, trigger transformers and related high-frequency magnetic components. These products are commonly selected based on turns ratio, isolation voltage, pulse width, frequency range, impedance, package style, mounting type and application requirements.

TomatoElec supplies original Pulse Transformers from recognized manufacturers such as Pulse Electronics, Würth Elektronik, Bourns, TDK, Murata, Coilcraft, Triad Magnetics, TE Connectivity and other major brands. As an in-stock electronic components supplier and independent distributor, TomatoElec provides inventory support, original component sourcing and BOM sourcing services for global customers.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Transformer Type	Inductance	ET (Volt-Time)	Turns Ratio - Primary:Secondary	Mounting Type	Size / Dimension	Height - Seated (Max)	Operating Temperature	Grade	Qualification
HXB5011HLT MOD SIN 1GD 1:1 EXT. HF SMD Pulse Electronics	306	-	RFQ	Datasheet	HXB	Tape & Reel (TR)	Active	LAN 1G Base-T, Power over Ethernet (PoE)	350µH	-	1CT:1CT	Surface Mount	0.614" L x 0.335" W (15.60mm x 8.50mm)	0.091" (2.30mm)	-40°C ~ 85°C	-	-
SM91872AL-E TRANSF BMS 4KV ISOL 6 PIN Bourns Inc.	390	-	RFQ	Datasheet	SM	Tape & Reel (TR)	Active	Battery Management	450µH	-	1:1	Surface Mount	0.646" L x 0.417" W (16.40mm x 10.60mm)	0.319" (8.10mm)	-40°C ~ 125°C	Automotive	AEC-Q200
HB5013HLT MOD DUAL 1GD 1:1 HF SMD Pulse Electronics	350	-	RFQ	Datasheet	HB5	Tape & Reel (TR)	Active	LAN 1000 Base-T, Power over Ethernet (PoE)	350µH	-	1CT:1CT	Surface Mount	1.094" L x 0.480" W (27.80mm x 12.20mm)	0.283" (7.20mm)	0°C ~ 70°C	-	-
HB5014HLT MOD DUAL 1GD 1:1 HF SMD Pulse Electronics	350	-	RFQ	Datasheet	HB5	Tape & Reel (TR)	Active	LAN 1000 Base-T, Power over Ethernet (PoE)	350µH	-	1CT:1CT	Surface Mount	1.094" L x 0.480" W (27.80mm x 12.20mm)	0.283" (7.20mm)	0°C ~ 70°C	-	-
H6600NL XFRMR MODULE SIN 1G 1:1 BGA SMD Pulse Electronics	120	-	RFQ	Datasheet	H6600NLT	Tray	Active	LAN 1G Base-T, Power over Ethernet (PoE)	120µH	-	1CT:1CT	Surface Mount	0.310" L x 0.680" W (7.87mm x 17.27mm)	0.440" (11.18mm)	0°C ~ 70°C	-	-
HXB5G010HLT MOD SIN 5GPP 1:1 EXT. HF SMD Pulse Electronics	350	-	RFQ	Datasheet	HXB	Tape & Reel (TR)	Active	LAN 5G Base-T	180µH	-	1CT:1CT	Surface Mount	0.691" L x 0.480" W (17.55mm x 12.20mm)	0.236" (6.00mm)	-40°C ~ 85°C	-	-
TM6173-5ANL LAN XFMR 1G BASE-T Taoglas Limited	315	-	RFQ	Datasheet	Exos	Tape & Reel (TR)	Active	LAN 1G Base-T	350µH	-	1CT:1CT	Surface Mount	0.697" L x 0.496" W (17.70mm x 12.60mm)	0.236" (6.00mm)	-40°C ~ 85°C	-	-
TG111-HPE3NZLFTR ISO MOD 1G POE 0.6A X-TEMP HALO Electronics, Inc.	400	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10/100 Base-T, Power over Ethernet (PoE)	-	-	-	Surface Mount	0.700" L x 0.480" W (17.78mm x 12.19mm)	0.230" (5.84mm)	-40°C ~ 85°C	-	-
A6802NLT IC CHIP Pulse Electronics	244	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	-	-	-	-	-	-	-	-	-	-
TM724103NL 10G BASE-T LAN TRANSFORMER. SING Taoglas Limited	500	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	-	-	-	-	-	-	-	-	-	-
HXB4017HLT MOD SIN 2.5GPP 1:1 EXT HF SMD Pulse Electronics	350	-	RFQ	Datasheet	HXB	Tape & Reel (TR)	Active	LAN 2.5G Base-T, Power over Ethernet (PoE)	180µH	-	1CT:1CT	Surface Mount	0.691" L x 0.480" W (17.55mm x 12.20mm)	0.236" (6.00mm)	-40°C ~ 85°C	-	-
S558-5500-72 TRANSFORMER PULSE Bel Fuse Inc.	450	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 1000 Base-T	120µH, 350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	1.095" L x 0.480" W (27.81mm x 12.19mm)	0.285" (7.24mm)	-	-	-
74942400 TRANSFORMER FOR BATTERY MANAGEME Würth Elektronik	980	-	RFQ	Datasheet	WE-BMS	Tape & Reel (TR)	Active	Battery Management	450µH	-	1:1	Surface Mount	0.965" L x 0.608" W (24.52mm x 15.45mm)	0.191" (4.85mm)	-40°C ~ 125°C	-	-
74942401 TRANSFORMER FOR BATTERY MANAGEME Würth Elektronik	943	-	RFQ	Datasheet	WE-BMS	Tape & Reel (TR)	Active	Battery Management	300µH	-	1:1	Surface Mount	0.965" L x 0.608" W (24.52mm x 15.45mm)	0.191" (4.85mm)	-40°C ~ 125°C	-	-
PE-68517LNLT XFRMR MODULE 1PORT 1:1 10/100B-T Pulse Electronics	800	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	Isolation and Data Interface (Encapsulated)	-	-	1:1	Surface Mount	1.000" L x 0.350" W (25.40mm x 8.89mm)	0.370" (9.40mm)	0°C ~ 70°C	-	-
TMY85ANL LAN TRANSFORMER, 1G BASE-T, 24 P Taoglas Limited	1,150	-	RFQ	Datasheet	Exos1G	Tray	Active	LAN 1G Base-T	350µH	-	1CT:1CT	Surface Mount	0.654" L x 0.354" W (16.60mm x 9.00mm)	0.078" (1.98mm)	-40°C ~ 85°C	-	-
TG1G-E001NZLFTR ISO MOD 1G X-TEMP 24P SMD T/R HALO Electronics, Inc.	400	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10/100 Base-TX	350µH	-	1CT:1CT	Surface Mount	0.700" L x 0.480" W (17.78mm x 12.19mm)	0.230" (5.84mm)	-40°C ~ 85°C	-	-
HB6011HLT MOD DUAL 1GP 1:1 HF SMD Pulse Electronics	350	-	RFQ	Datasheet	HB6	Tape & Reel (TR)	Active	LAN 1000 Base-T, Power over Ethernet (PoE)	350µH	-	1CT:1CT	Surface Mount	1.094" L x 0.480" W (27.80mm x 12.20mm)	0.283" (7.20mm)	0°C ~ 70°C	-	-
HB6010HLT MOD DUAL 1GP 1:1 HF SMD Pulse Electronics	350	-	RFQ	Datasheet	HB6	Tape & Reel (TR)	Active	LAN 1000 Base-T, Power over Ethernet (PoE)	350µH	-	1CT:1CT	Surface Mount	1.094" L x 0.480" W (27.80mm x 12.20mm)	0.283" (7.20mm)	0°C ~ 70°C	-	-

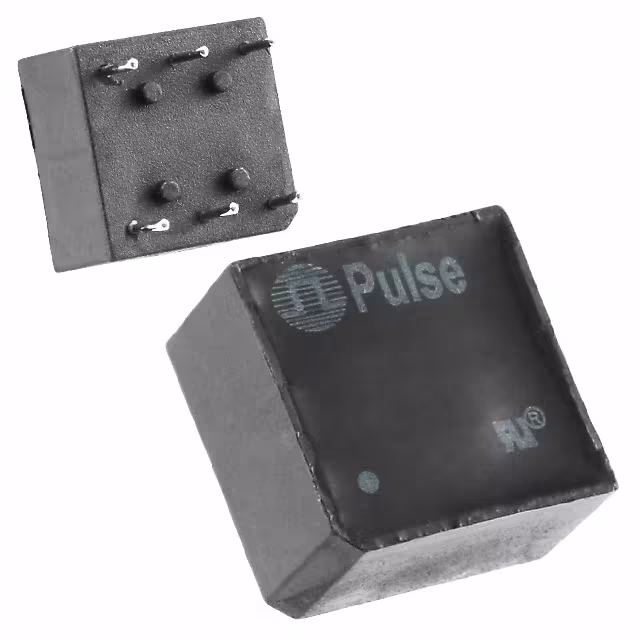

PE-65835NL XFRMR 1CT:2CT 1.20MH T/H Pulse Electronics	514	-	RFQ	Datasheet	-	Tube	Active	T1/E1 (Single)	1.2mH	-	1CT:2CT	Through Hole	0.560" L x 0.560" W (14.22mm x 14.22mm)	0.402" (10.20mm)	0°C ~ 70°C	-	-

Total 5221 Record«Prev 1... 48 49 50 515253 54 55...262 Next»
