Pulse Transformers

Pulse Transformers are magnetic components used to transfer pulse signals, provide galvanic isolation and support reliable signal coupling in electronic circuits. They are widely used in switching power supplies, gate drive circuits, communication equipment, industrial control systems, data transmission, instrumentation, automotive electronics and embedded applications.

This category includes signal pulse transformers, gate drive transformers, isolation pulse transformers, LAN pulse transformers, trigger transformers and related high-frequency magnetic components. These products are commonly selected based on turns ratio, isolation voltage, pulse width, frequency range, impedance, package style, mounting type and application requirements.

TomatoElec supplies original Pulse Transformers from recognized manufacturers such as Pulse Electronics, Würth Elektronik, Bourns, TDK, Murata, Coilcraft, Triad Magnetics, TE Connectivity and other major brands. As an in-stock electronic components supplier and independent distributor, TomatoElec provides inventory support, original component sourcing and BOM sourcing services for global customers.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Transformer Type	Inductance	ET (Volt-Time)	Turns Ratio - Primary:Secondary	Mounting Type	Size / Dimension	Height - Seated (Max)	Operating Temperature	Grade	Qualification
G509 TRANSFORMER 0.50MH 1CT:1CT PULSE Tamura	357	-	RFQ	Datasheet	G5	Tube	Active	Isolation and Data Interface (Encapsulated)	500µH	8.5VµS	1CT:1CT	Through Hole	0.350" L x 0.500" W (8.90mm x 12.70mm)	0.250" (6.35mm)	0°C ~ 70°C	-	-
R4009NL XFRMR ETHERNET MOD IND 10/100B-T iNRCORE, LLC	135	-	RFQ	Datasheet	-	Tube	Active	LAN 10/100 Base-T	350µH	-	-	Surface Mount	1.080" L x 0.480" W (27.43mm x 12.19mm)	0.226" (5.74mm)	-40°C ~ 85°C	-	-
TM2019ANL LAN XFMR 10/100 BASE-T (POE+) Taoglas Limited	3,871	-	RFQ	Datasheet	Exos	Tape & Reel (TR)	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500" L x 0.285" W (12.70mm x 7.24mm)	0.185" (4.70mm)	-40°C ~ 85°C	-	-
H7029FNL 10GBASE-T DISCRETE 4CH MAR/SOL P Pulse Electronics	1,355	-	RFQ	Datasheet	-	Tube	Active	LAN 10G Base-T	120µH	-	1:1	-	0.539" L x 0.591" W (13.70mm x 15.00mm)	0.230" (5.85mm)	0°C ~ 70°C	-	-
TM42430ANL LAN XFMR 10/100 BASE-T (POE) Taoglas Limited	2,000	-	RFQ	Datasheet	Exos	Tape & Reel (TR)	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.535" L x 0.480" W (13.60mm x 12.20mm)	0.224" (5.70mm)	-40°C ~ 85°C	-	-

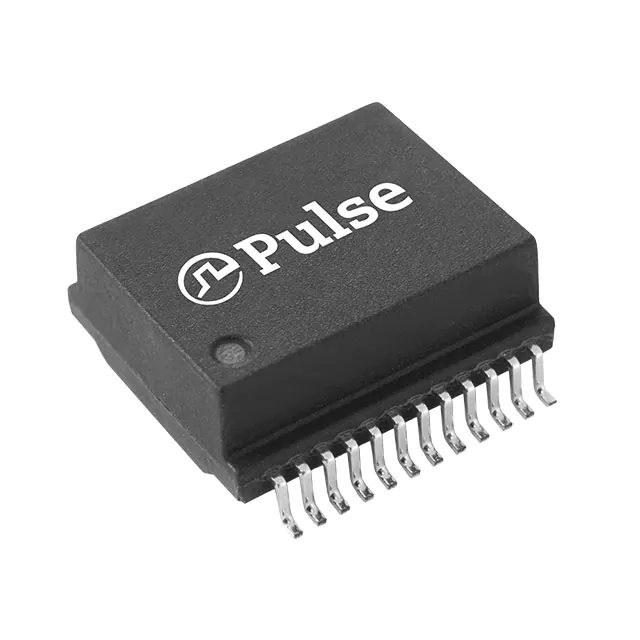

HU4006NL MODULE MAGNETIC SNGL 2.5GB SMT Pulse Electronics	200	-	RFQ	Datasheet	-	Tube	Active	-	-	-	-	Surface Mount	0.540" L x 0.480" W (13.72mm x 12.19mm)	0.226" (5.75mm)	0°C ~ 70°C	-	-
R5003NL XFRMR ETHERNET MOD IND 1000B-T iNRCORE, LLC	120	-	RFQ	Datasheet	-	Tube	Active	LAN 1000 Base-T	350µH	-	-	Surface Mount	1.100" L x 0.297" W (27.94mm x 7.54mm)	0.341" (8.66mm)	-40°C ~ 85°C	-	-
TX1341NL XFRMR OCTAL 1:2 1.2MH SMD Pulse Electronics	146	-	RFQ	Datasheet	-	Tube	Active	T1/E1 (Octal)	1.2mH	-	1:2	Surface Mount	1.000" L x 0.310" W (25.40mm x 7.87mm)	0.295" (7.49mm)	-40°C ~ 85°C	-	-
749050010U 10G BASE-T TRANSFORMER 1 PORT Würth Elektronik	284	-	RFQ	Datasheet	WE-LAN	Tape & Reel (TR)	Active	LAN 10G Base-T	200µH	-	-	Surface Mount	0.550" L x 0.500" W (13.97mm x 12.00mm)	0.260" (6.60mm)	0°C ~ 70°C	-	-
H5019NL TRANSFORMER MODULE GIGABIT 1PORT Pulse Electronics	941	-	RFQ	Datasheet	-	Tube	Active	Isolation and Data Interface (Encapsulated)	-	-	1:1	Surface Mount	0.780" L x 0.655" W (19.81mm x 16.64mm)	0.100" (2.54mm)	0°C ~ 70°C	-	-
TM5007NL LAN XFMR 1G BASE-T SINGLE Taoglas Limited	1,593	-	RFQ	Datasheet	Exos	Tape & Reel (TR)	Active	LAN 1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.715" L x 0.480" W (18.16mm x 12.20mm)	0.224" (5.70mm)	0°C ~ 70°C	-	-
S558-5999-AN-F MODULE XFRMR GIGABIT MINIPCI SMD Bel Fuse Inc.	1,441	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	-	-	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.880" L x 0.540" W (22.35mm x 13.72mm)	0.084" (2.13mm)	0°C ~ 70°C	-	-
2337822-5 DISCRETE ETHERNET MAGNETICS SING TE Connectivity AMP Connectors	411	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	-	-	-	-	Surface Mount	-	-	-40°C ~ 105°C	-	-
H5004ENL PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics	105	-	RFQ	Datasheet	-	Tube	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.689" L x 0.480" W (17.50mm x 12.20mm)	0.225" (5.72mm)	0°C ~ 70°C	-	-
TX1341NLT XFRMR OCTAL 1:2 1.2MH SMD Pulse Electronics	3,070	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	T1/E1 (Octal)	1.2mH	-	1:2	Surface Mount	1.000" L x 0.310" W (25.40mm x 7.87mm)	0.295" (7.49mm)	-40°C ~ 85°C	-	-
TX1473NLT XFRMR OCTAL 1:2/1:1 1.2MH SMD Pulse Electronics	600	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	T1/E1 (Octal)	1.2mH	-	1:2, 1:1	Surface Mount	1.000" L x 0.310" W (25.40mm x 7.87mm)	0.295" (7.49mm)	-40°C ~ 85°C	-	-
TM7008NL LAN XFMR 10G BASE-T (POE+) Taoglas Limited	1,800	-	RFQ	Datasheet	Exos	Tape & Reel (TR)	Active	LAN 10G Base-T, Power over Ethernet (PoE)	120µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.539" L x 0.480" W (13.70mm x 12.20mm)	0.223" (5.67mm)	0°C ~ 70°C	-	-
HX6106NLT PULSE XFMR 350UH Pulse Electronics	388	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN, Power over Ethernet (PoE)	350µH	-	-	Surface Mount	0.715" L x 0.511" W (18.16mm x 12.98mm)	0.410" (10.41mm)	-	-	-
T1068NLT XFRMR 4PORT 1:2CT 1.2MH SMD Pulse Electronics	737	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	T1/E1 (Quad)	1.2mH, 1.2mH	-	1:2CT Transmitter, 1:1CT Receiver	Surface Mount	1.125" L x 0.485" W (28.58mm x 12.32mm)	0.230" (5.84mm)	0°C ~ 70°C	-	-
T1124NLT XFRMR T1/E1/CEPT/ISDN-PRI 1:2CT Pulse Electronics	380	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	T1/E1 (Quad)	1.2mH, 1.2mH	-	1:2CT Transmitter, 1CT:2 Receiver	Surface Mount	1.125" L x 0.485" W (28.58mm x 12.32mm)	0.230" (5.84mm)	0°C ~ 70°C	-	-

Total 5221 Record«Prev 1... 32 33 34 353637 38 39...262 Next»
