Pulse Transformers

Pulse Transformers are magnetic components used to transfer pulse signals, provide galvanic isolation and support reliable signal coupling in electronic circuits. They are widely used in switching power supplies, gate drive circuits, communication equipment, industrial control systems, data transmission, instrumentation, automotive electronics and embedded applications.

This category includes signal pulse transformers, gate drive transformers, isolation pulse transformers, LAN pulse transformers, trigger transformers and related high-frequency magnetic components. These products are commonly selected based on turns ratio, isolation voltage, pulse width, frequency range, impedance, package style, mounting type and application requirements.

TomatoElec supplies original Pulse Transformers from recognized manufacturers such as Pulse Electronics, Würth Elektronik, Bourns, TDK, Murata, Coilcraft, Triad Magnetics, TE Connectivity and other major brands. As an in-stock electronic components supplier and independent distributor, TomatoElec provides inventory support, original component sourcing and BOM sourcing services for global customers.

Mfr. Part #	Price	Quantity	Datasheet	Series	Packaging	Product Status	Transformer Type	Inductance	ET (Volt-Time)	Turns Ratio - Primary:Secondary	Mounting Type	Size / Dimension	Height - Seated (Max)	Operating Temperature	Grade	Qualification
100B-4005NLT XFMR CHK QUAD 100BT SMT X RPB iNRCORE, LLC	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10/100 Base-T	350µH	-	1:1	Surface Mount	1.120" L x 0.480" W (28.45mm x 12.19mm)	0.290" (7.36mm)	-	-	-
100B-4005T XFMR CHK QUAD 100BT SMT CO PBC iNRCORE, LLC	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10/100 Base-T	350µH	-	1:1	Surface Mount	1.120" L x 0.480" W (28.45mm x 12.19mm)	0.290" (7.36mm)	-	-	-
T60404N4646X976 4646X976 VACUUMSCHMELZE	-	RFQ	Datasheet	-	Box	Active	-	-	-	-	-	-	-	-	-	-
1000B-5027FXT MDL SIN 1GD 1:1 SMT TR PBC iNRCORE, LLC	-	RFQ	Datasheet	*	Tape & Reel (TR)	Active	-	-	-	-	-	-	-	-	-	-
1000B-5027XT MDL SIN 1GD 1:1 SMT TR PBC iNRCORE, LLC	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10/100/1000 Base-T	-	-	1CT:1CT	Surface Mount	0.700" L x 0.620" W (17.78mm x 15.75mm)	0.185" (4.70mm)	-	-	-

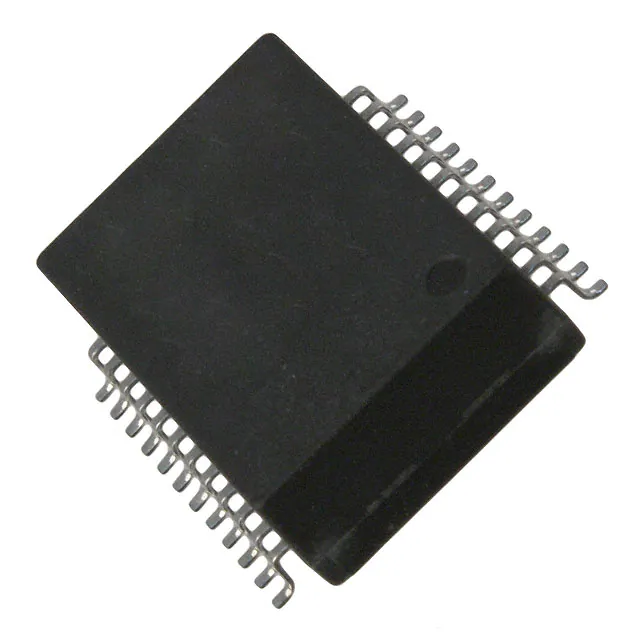

1000B-5001XNLT XFMR CHOKE SHUNT QUAD 100 RPB iNRCORE, LLC	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10/100/1000 Base-T	350µH	-	1:1	Surface Mount	0.690" L x 0.480" W (17.53mm x 12.19mm)	0.235" (5.97mm)	-	-	-
T60404N4644X201 4644X201 VACUUMSCHMELZE	-	RFQ	Datasheet	-	Box	Active	-	-	-	-	-	-	-	-	-	-
100B-2002FX MDL DUAL 100D 1:1 SMT TU PBC iNRCORE, LLC	-	RFQ	Datasheet	*	Tube	Active	-	-	-	-	-	-	-	-	-	-
SMG1553-63 TRANSFORMER 1553 SINGLE PBC iNRCORE, LLC	-	RFQ	Datasheet	-	Tube	Active	MIL-STD-1553	-	-	-	Surface Mount	0.400" L x 0.400" W (10.16mm x 10.16mm)	0.185" (4.70mm)	-	-	-
100B-1035 ETHERNET iNRCORE, LLC	-	RFQ	Datasheet	-	Tube	Active	LAN 10/100 Base-TX	350µH	-	1CT:1CT	Surface Mount	0.510" L x 0.360" W (12.95mm x 9.15mm)	0.088" (2.24mm)	-40°C ~ 85°C	-	-
100B-4005XNLT XFMR CHK QUAD 100BT SMT X EXM iNRCORE, LLC	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10/100 Base-T	350µH	-	1:1	Surface Mount	1.120" L x 0.480" W (28.45mm x 12.19mm)	0.290" (7.36mm)	-	-	-
100B-4005XT XFMR CHK QUAD 100BT SMT X PBC iNRCORE, LLC	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10/100 Base-T	350µH	-	1:1	Surface Mount	1.120" L x 0.480" W (28.45mm x 12.19mm)	0.290" (7.36mm)	-	-	-
T60404N4644X271 4644X271 VACUUMSCHMELZE	-	RFQ	Datasheet	-	Box	Active	-	-	-	-	-	-	-	-	-	-
100B-2002FXNL MDL DUAL 100D 1:1 SMT TU RPB iNRCORE, LLC	-	RFQ	Datasheet	-	Tube	Active	LAN 10/100 Base-T	350µH	-	1:1	Surface Mount	0.518" L x 0.595" W (13.16mm x 15.11mm)	0.251" (6.37mm)	-	-	-
1000B-5036NLT ETHERNET iNRCORE, LLC	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 1000 Base-T	-	-	1CT:1CT	Surface Mount	-	-	-40°C ~ 85°C	-	-
1000B-5036T ETHERNET iNRCORE, LLC	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 1000 Base-T	-	-	1CT:1CT	Surface Mount	-	-	-40°C ~ 85°C	-	-
T60404N4644X200 4644X200 VACUUMSCHMELZE	-	RFQ	Datasheet	-	Box	Active	-	-	-	-	-	-	-	-	-	-
1000B-5033XT ETHERNET iNRCORE, LLC	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 1000 Base-T	-	-	1CT:1CT	Surface Mount	-	-	-55°C ~ 125°C	-	-
1000B-5033XNLT ETHERNET iNRCORE, LLC	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 1000 Base-T	-	-	1CT:1CT	Surface Mount	-	-	-55°C ~ 125°C	-	-
100B-2002XNL MDL DUAL 100D 1:1 SMT TU RPB iNRCORE, LLC	-	RFQ	Datasheet	-	Tube	Active	LAN 10/100 Base-T	350µH	-	1:1	Surface Mount	0.518" L x 0.595" W (13.16mm x 15.11mm)	0.251" (6.37mm)	-	-	-

Total 5221 Record«Prev 1... 190 191 192 193194195 196 197...262 Next»
