Pulse Transformers

Pulse Transformers are magnetic components used to transfer pulse signals, provide galvanic isolation and support reliable signal coupling in electronic circuits. They are widely used in switching power supplies, gate drive circuits, communication equipment, industrial control systems, data transmission, instrumentation, automotive electronics and embedded applications.

This category includes signal pulse transformers, gate drive transformers, isolation pulse transformers, LAN pulse transformers, trigger transformers and related high-frequency magnetic components. These products are commonly selected based on turns ratio, isolation voltage, pulse width, frequency range, impedance, package style, mounting type and application requirements.

TomatoElec supplies original Pulse Transformers from recognized manufacturers such as Pulse Electronics, Würth Elektronik, Bourns, TDK, Murata, Coilcraft, Triad Magnetics, TE Connectivity and other major brands. As an in-stock electronic components supplier and independent distributor, TomatoElec provides inventory support, original component sourcing and BOM sourcing services for global customers.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Transformer Type	Inductance	ET (Volt-Time)	Turns Ratio - Primary:Secondary	Mounting Type	Size / Dimension	Height - Seated (Max)	Operating Temperature	Grade	Qualification
TGR26-3755V12LF ISO MOD T1 1C:2C REINF 3.75KV 12 HALO Electronics, Inc.	0	-	RFQ	Datasheet	-	Tube	Active	Interface	1.5mH	-	1CT:2CT Transmitter, 1CT:2CT Receiver	Surface Mount	0.675" L x 0.560" W (17.15mm x 14.22mm)	0.390" (9.91mm)	-40°C ~ 85°C	-	-
TGR04-3755V12LF ISO MOD T1 1C:1C REINF 3.75KV 12 HALO Electronics, Inc.	0	-	RFQ	Datasheet	-	Tube	Active	Interface	1.5mH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.675" L x 0.560" W (17.15mm x 14.22mm)	0.390" (9.91mm)	-40°C ~ 85°C	-	-
TGR74-3755V12LF ISO MOD T1 1C:1C/1C:2C REINF 3.7 HALO Electronics, Inc.	0	-	RFQ	Datasheet	-	Tube	Active	T1/E1 (Dual)	1.5mH	-	1CT:1CT, 1CT:2CT	Surface Mount	0.675" L x 0.560" W (17.15mm x 14.22mm)	0.390" (9.91mm)	-40°C ~ 85°C	-	-
AGS6014R MDL 2.5G DUAL PORT 4PAIR POE 60W Pulse Electronics	0	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	-	-	-	-	-	-	-	-	-	-
TG110-EMX6NXRL ISO MOD 10/100 QUAD X-TEMP 40P S HALO Electronics, Inc.	0	-	RFQ	Datasheet	-	Tube	Not For New Designs	LAN 10/100 Base-T	-	-	-	Surface Mount	1.100" L x 0.480" W (27.94mm x 12.19mm)	0.230" (5.84mm)	-40°C ~ 85°C	-	-
SM91527L BMS TRANSFORMER/CMC,6PIN,SGL,7.6 Bourns Inc.	3	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	-	-	-	-	-	-	-	-	-	-
TG80-1505NXRLTR ISO MOD T1 QUAD 1:2.45C X-TEMP HALO Electronics, Inc.	0	-	RFQ	Datasheet	-	Tape & Reel (TR)	Not For New Designs	T1/E1 (Quad)	1.5mH	-	1:2.45CT Transmitter, 1:2.45CT Receiver	Surface Mount	1.100" L x 0.480" W (27.94mm x 12.19mm)	0.230" (5.84mm)	-40°C ~ 85°C	-	-
HX5062FNL PULSE XFMR 1 CT:1CT TX/RX 350UH Pulse Electronics	0	-	RFQ	Datasheet	-	Bulk	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.689" L x 0.600" W (17.50mm x 15.24mm)	0.225" (5.72mm)	-40°C ~ 85°C	-	-
PT61018AAPEL-S PULSE XFMR 1CT:1CT 350UH Bourns Inc.	0	-	RFQ	Datasheet	PT	Tape & Reel (TR)	Obsolete	LAN 10/100 Base-T	350µH	-	1CT:1CT	Surface Mount	0.504" L x 0.272" W (12.80mm x 6.90mm)	0.232" (5.90mm)	-40°C ~ 85°C	Automotive	AEC-Q200
TG41-4006NCRLTR ISO MOD 10BASE-T 1C:2.5C 4.5KV HALO Electronics, Inc.	0	-	RFQ	Datasheet	-	Tape & Reel (TR)	Not For New Designs	LAN 10 Base-T	35µH	-	1CT:1CT Transmitter, 1CT:2.5CT Receiver	Surface Mount	0.675" L x 0.455" W (17.15mm x 11.56mm)	0.340" (8.64mm)	-	-	-
TG93-1505NZLFTR ISO MOD T1 DUAL 1C:2.42C X-TEMP HALO Electronics, Inc.	0	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	T1/E1 (Dual)	-	-	1CT:2.42CT Transmitter, 1CT:2.42CT Receiver	Surface Mount	0.700" L x 0.480" W (17.78mm x 12.19mm)	0.230" (5.84mm)	-	-	-
T1SB01LN6 MDL 10G SINGLE PORT N/A Pulse Electronics	0	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10 Base-T	100µH	-	1:1CT Transmitter, 1:1CT Receiver	Surface Mount	0.691" L x 0.480" W (17.55mm x 12.20mm)	0.236" (6.00mm)	-40°C ~ 90°C	-	-
TG2G-HPE3NYNLFTR ISO MOD 2.5G POE 0.6A X-TEMP HALO Electronics, Inc.	0	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 2.5/5G Base-T	-	-	1CT:1CT	Surface Mount	0.560" L x 0.300" W (14.22mm x 7.62mm)	0.340" (8.64mm)	-40°C ~ 85°C	-	-

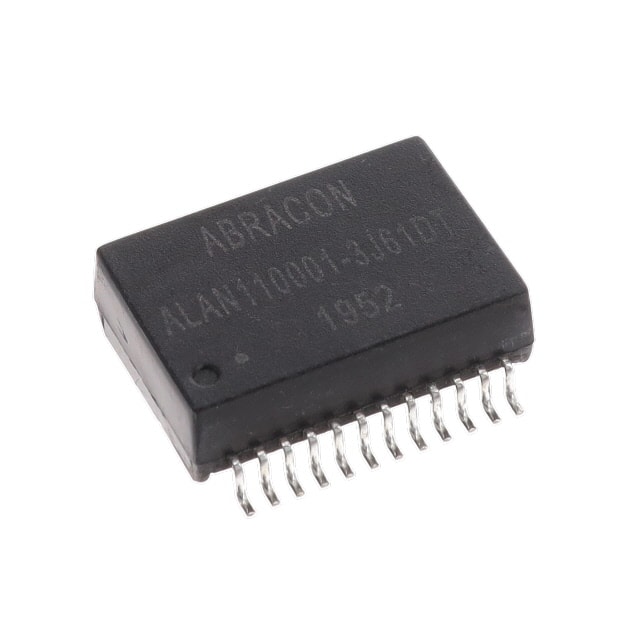

ALAN110001-3J61DT XFRMR LAN 1CT:1CT 350UH Abracon LLC	0	-	RFQ	Datasheet	ALAN110001-3	Tape & Reel (TR)	Active	LAN 10/100/1000 Base-T, Power over Ethernet (PoE)	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.724" L x 0.490" W (18.38mm x 12.44mm)	0.254" (6.45mm)	-40°C ~ 85°C	-	-
PFBR45-SP13150S TRANSFORMER PLC 0.45W 1.15MH EP1 Bourns Inc.	0	-	RFQ	Datasheet	PFBR45	Tape & Reel (TR)	Active	General Purpose	1.15mH	-	2:1	Surface Mount	0.972" L x 0.571" W (24.70mm x 14.50mm)	0.500" (12.70mm)	-40°C ~ 125°C	-	-
TG1G-AE11NZ6NLTR ISO MOD 1G AEC-Q X-TEMP 24P SMD HALO Electronics, Inc.	0	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT	Surface Mount	0.700" L x 0.480" W (17.78mm x 12.19mm)	0.310" (7.87mm)	-40°C ~ 105°C	Automotive	AEC-Q200
TG58-S020NXRLTR ISO MOD 10BASE-T QUAD 1C:1C 40P HALO Electronics, Inc.	0	-	RFQ	Datasheet	-	Tape & Reel (TR)	Not For New Designs	LAN 10 Base-T	100µH	-	1CT:1CT Transmitter, 1:1 Receiver	Surface Mount	1.100" L x 0.480" W (27.94mm x 12.19mm)	0.230" (5.84mm)	-	-	-
TG88-2006NXRLTR ISO MOD 10BASE-T QUAD 1C:2C/1:1 HALO Electronics, Inc.	0	-	RFQ	Datasheet	-	Tape & Reel (TR)	Not For New Designs	LAN 10 Base-T	50µH, 200µH	-	1CT:2CT Transmitter, 1:1 Receiver	Surface Mount	1.100" L x 0.480" W (27.94mm x 12.19mm)	0.230" (5.84mm)	-	-	-
TG88-S010NXRLTR ISO MOD 10BASE-T QUAD 1C:2C/1:1 HALO Electronics, Inc.	0	-	RFQ	Datasheet	-	Tape & Reel (TR)	Not For New Designs	LAN 10 Base-T	50µH, 200µH	-	1CT:2CT Transmitter, 1:1 Receiver	Surface Mount	1.100" L x 0.480" W (27.94mm x 12.19mm)	0.230" (5.84mm)	-	-	-
TG58-S010NXRLTR ISO MOD 10BASE-T QUAD 1C:1C 40P HALO Electronics, Inc.	0	-	RFQ	Datasheet	-	Tape & Reel (TR)	Not For New Designs	LAN 10 Base-T	100µH	-	1CT:1CT Transmitter, 1:1 Receiver	Surface Mount	1.100" L x 0.480" W (27.94mm x 12.19mm)	0.230" (5.84mm)	-	-	-

Total 5221 Record«Prev 1... 158 159 160 161162163 164 165...262 Next»
