Home > Products > Circuit Protection > PTC Resettable Fuses

PTC Resettable Fuses

Manufacturer	Package/Case	Series	Packaging	Product Status	Type	Voltage - Max	Current - Hold (Ih) (Max)	Current - Trip (It)	Current - Max	Time to Trip	Resistance - Initial (Ri) (Min)	Resistance - Post Trip (R1) (Max)	Resistance - 25°C (Typ)	Operating Temperature	Grade	Qualification	Ratings	Mounting Type	Size / Dimension	Height - Seated (Max)	Thickness (Max)	Lead Spacing
Ametherm Amphenol Advanced Sensors (Thermometrics) Bel Fuse Inc. Bourns Inc. Eaton - Electronics Division EPCOS - TDK Electronics Littelfuse Inc. Meritek Molex Murata Electronics OptiFuse RFE/Fuzetec SCHURTER Inc. SparkFun Electronics TE Connectivity Thinking Electronics Industrial Co. Vishay Beyschlag/Draloric/BC Components YAGEO	- 0402 (1005 Metric) 0402 (1005 Metric), Concave 0603 (1608 Metric) 0603 (1608 Metric), Concave 0805 (2012 Metric) 0805 (2012 Metric), Concave 1206 (3216 Metric) 1206 (3216 Metric), Concave 1210 (3225 Metric) 1210 (3225 Metric), Concave 1812 (4532 Metric) 1812 (4532 Metric), Concave 2-SMD 2016 (5041 Metric), Concave 2018 (5045 Metric) 2018 (5045 Metric), Concave 2920 (7351 Metric) 2920 (7351 Metric), Concave 3225 (8063 Metric) 4-SMD 4-SMD Cube 4032 (1080 Metric) 4520 (11350 Metric) 4520 (11350 Metric), Concave 8-DIP (0.197", 5.00mm) Blade Type Nonstandard SMD Radial, Box Radial, Disc Strap	* - 0ZCA 0ZCB 0ZCC 0ZCD 0ZCE 0ZCF 0ZCG 0ZCH 0ZCJ 0ZCK 0ZCM 0ZCN 0ZRA 0ZRB 0ZRC 0ZRE 0ZRF 0ZRG 0ZRM 0ZRN 0ZRP 0ZRR 0ZRS 0ZRV 0ZSA 0ZSC 0ZTF 0ZTG 0ZTH 0ZTJ 0ZTK 3425L B59101 B59115 B59201 B59215 B59301 B59315 B59407 B59606 B59607 B59622 B59623 B59707 B59750 B59751 B59770 B59771 B59772 B59773 B59774 B59807 B59907 B59935 B59940 B59945 B59950 B59955 B59960 B59965 B59970 B59975 B59980 B59985 B59990 B59995 BK130 BK16 BK250 BK30 BK60 BK600 CMF-RL CMF-RLC CMF-RQ CMF-SD CMF-SDP FRG FRU FRV FRX60 FRX90 FSMD0805 FSMD1206 FSMD1812 FSMD2920 KMC KRG Lo Rho LoRho Surface Mount LVR MF-MSMD MF-RX/72 MHP MPRV MPTR MPTS Multifuse® freeXpansionTM, MF-NSMF Multifuse® MF-MSHT Multifuse®, MF-ASML/X Multifuse®, MF-FSHT Multifuse®, MF-FSMF Multifuse®, MF-FSML Multifuse®, MF-GSMF Multifuse®, MF-LR Multifuse®, MF-LS Multifuse®, MF-LSMF Multifuse®, MF-MSMD Multifuse®, MF-MSMF Multifuse®, MF-NSHT Multifuse®, MF-NSMF Multifuse®, MF-NSML Multifuse®, MF-NSML/X Multifuse®, MF-PSHT Multifuse®, MF-PSMF Multifuse®, MF-PSML Multifuse®, MF-PSML/X Multifuse®, MF-R Multifuse®, MF-R/600 Multifuse®, MF-R/90 Multifuse®, MF-RG Multifuse®, MF-RHS Multifuse®, MF-RHT Multifuse®, MF-RM Multifuse®, MF-RX Multifuse®, MF-RX/250 Multifuse®, MF-RX/72 Multifuse®, MF-S Multifuse®, MF-SD Multifuse®, MF-SM Multifuse®, MF-SM/250 Multifuse®, MF-SM/250V Multifuse®, MF-SMDF Multifuse®, MF-SMHT Multifuse®, MF-SVS Multifuse®, MF-USHT Multifuse®, MF-USMD Multifuse®, MF-USMF Multifuse®, MF-USML Multifuse®, MF-USML/X Multifuse®, MF-VS nanoSMD PFDF PFHT PFLR PFLT PFMD PFMF PFMU PFNF PFRA PFRT PFRX PFRY PFSM PFST PFUF PFVS PMFE POLY-FUSE® 60R POLY-FUSE®, 0603L POLY-FUSE®, 0805L POLY-FUSE®, 1206L POLY-FUSE®, 1210L POLY-FUSE®, 16R POLY-FUSE®, 1812L POLY-FUSE®, 2016L POLY-FUSE®, 250R POLY-FUSE®, 250S POLY-FUSE®, 2920L POLY-FUSE®, 30R POLY-FUSE®, 600R POLY-FUSE®, 60R POLY-FUSE®, 72R POLY-FUSE®, HVR250 POLY-FUSE®, HVR600 POLY-FUSE®, LoRho POLY-FUSE®, LR POLY-FUSE®, LT POLY-FUSE®, RLD30 POLY-FUSE®, RLD60 POLY-FUSE®, SMD0805 POLY-FUSE®, SMD1206 POLY-FUSE®, SMD1210 POLY-FUSE®, SMD1812 POLY-FUSE®, SMD2920 POLY-FUSE®, ST POLY-FUSE®, USBR POLY-FUSE®, VL POLY-FUSE®, VT PolySwitch® PolySwitch® 1206L PolySwitch® 1210L PolySwitch® AHS PolySwitch® ASMD PolySwitch® Low Rho PolySwitch® LVR PolySwitch® picoASMDC POLYSWITCH® zeptoSMDC PolySwitch®, AGRF PolySwitch®, AHEF PolySwitch®, AHR PolySwitch®, AHRF PolySwitch®, AHRL PolySwitch®, AHS PolySwitch®, ASMD PolySwitch®, BD280 PolySwitch®, BD540 PolySwitch®, decaSMD PolySwitch®, femtoASMD PolySwitch®, femtoSMD PolySwitch®, femtoSMDC PolySwitch®, LoRho PolySwitch®, LR4 PolySwitch®, LSP PolySwitch®, LTP PolySwitch®, LVB PolySwitch®, LVR PolySwitch®, LVRL PolySwitch®, MGP PolySwitch®, microASMD PolySwitch®, microSMD PolySwitch®, miniASMD PolySwitch®, miniSMD PolySwitch®, MXP PolySwitch®, nanoASMD PolySwitch®, nanoASMDC PolySwitch®, nanoSMD PolySwitch®, nanoSMDC020F PolySwitch®, picoASMD PolySwitch®, picoASMDC PolySwitch®, picoSMD PolySwitch®, RGEF PolySwitch®, RHEF PolySwitch®, RKEF PolySwitch®, RUEF PolySwitch®, RUSBF PolySwitch®, RXE PolySwitch®, RXEF PolySwitch®, SMD PolySwitch®, SRP PolySwitch®, TCF250 PolySwitch®, TR600 PolySwitch®, TRF250 PolySwitch®, TRF600 PolySwitch®, TS250 PolySwitch®, TS600 PolySwitch®, TSL250 PolySwitch®, TSM PolySwitch®, TSV250 PolySwitch®, VLP PolySwitch®, VLR PolySwitch®, VTP PolySwitch®nanoASMDCH Posistor® POSISTOR® PTGL POSISTOR®, PRG POSISTOR®, PTGL PSR PTCCL PTCCL - 145V PTCCL - 265V PTCCL - 30V PTCCL - 600V PTCCL - 60V PTCLL PTCTL PTCTZ PTF PTH PTO PTR016V PTR030V PTR060V PTS0603 PTS0805 PTS1206 PTS1812 PTSA0805 PTSA1206 PTSA1210 PTSA1812 PTSAHT0805 PTSAHT1206 PTSLR0603 PTSLR0805 PTSLR1206 PTSLR1210 PTSLR1812 PTSM R0603 R0603LR R1206 R1812 R2920 RALT RS120 RS16 RS16HT RS30 RS60RB RS60SB RS90 SMD0603 SMD0805 SMD1206 SMD1210 SMD1812 SMD2016 SMD2920 SMDC TS YH YM YM120 YP YQ YS	Bag Box Bulk Cut Tape (CT) Reel® Strip Tape & Box (TB) Tape & Reel (TR) Tray	Active Discontinued at Key Not For New Designs Obsolete	- Ceramic Polymeric	- 1.0kV 1.2kV 100V 100V (250V Int) 10V 120V 120V (135V Int) 125V 12V 13.2V 130V 135VAC 13V 140V 145V 14V 15V 160V 16V 18V 200V 20V 21V 220V 220V (600V Int) 230V 230V (250V Int) 230V (600V Int) 230V (650V Int) 240V 240V (250V Int) 240V (265V Int) 245V 24V 250V 250V (600V Int) 250V (60V Int) 25V 265V 277V (305V Int) 280V 300V 30V 32V 33V 350V 36V 400V 40V 420V 425V 42V 440V 480V 48V 500V 50V 51V 54V 550V 56V 5V 600V 60V 60V (250V Int) 60V (600V Int) 63V 680V 6V 72V 72V (90V Int) 75V 80V 80V (250V Int) 8V 90V 99V 9V	- 1 A 1.025 A 1.04 A 1.1 A 1.17 A 1.2 A 1.25 A 1.27 A 1.3 A 1.35 A 1.36 A 1.5 A 1.545 A 1.55 A 1.6 A 1.7 A 1.73 A 1.75 A 1.8 A 1.85 A 1.9 A 1.97 A 10 A 10 mA 100 mA 105 mA 11 A 11 mA 110 mA 112 mA 115 mA 12 A 12 mA 120 mA 122 mA 124 mA 125 mA 128 mA 13 A 13 mA 130 mA 134 mA 139 mA 14 A 14 mA 140 mA 145 mA 15 A 15 mA 150 mA 154 mA 155 mA 16 A 16 mA 160 mA 161 mA 165 mA 168 mA 170 mA 175 A 175 mA 180 mA 183 mA 184 mA 186 mA 187 mA 19 mA 190 mA 192 mA 2 A 2.1 A 2.2 A 2.3 A 2.4 A 2.5 A 2.6 A 2.7 A 2.82 A 20 A 20 mA 200 mA 205 mA 21 A 21 mA 210 mA 212 mA 213 mA 215 mA 216 mA 22 mA 220 mA 230 mA 234 mA 236 mA 240 mA 244 mA 245 mA 248 mA 249 mA 250 mA 260 mA 270 mA 28 mA 280 mA 287 mA 29 mA 290 mA 3 A 3.1 A 3.3 A 3.4 A 3.5 A 3.7 A 3.75 A 3.8 A 30 A 30 mA 300 mA 307 mA 310 mA 314 mA 320 mA 326 mA 33 mA 330 mA 340 mA 35 mA 350 mA 355 mA 36 mA 360 mA 37 mA 370 mA 38 mA 380 mA 389 mA 39 mA 390 mA 393 mA 4 A 4.2 A 4.5 A 40 mA 400 mA 407 mA 410 mA 420 mA 421 mA 425 mA 44 mA 440 mA 45 mA 450 mA 460 mA 47 mA 470 mA 490 mA 5 A 5.5 A 5.6 A 50 mA 500 mA 505 mA 510 mA 522 mA 532 mA 54 mA 540 mA 55 mA 550 mA 556 mA 57 mA 59 mA 6 A 6 mA 6.5 A 60 mA 600 mA 610 mA 62 mA 63 mA 645 mA 65 mA 650 mA 7 A 7.3 A 7.5 A 70 mA 700 mA 704 mA 705 mA 710 mA 730 mA 749 mA 75 mA 750 mA 76 mA 8 A 80 mA 800 mA 810 mA 830 mA 84 mA 85 mA 850 mA 867 mA 87 mA 870 mA 875 mA 880 mA 9 A 90 mA 900 mA 91 mA 920 mA 93 mA 94 mA 95 mA 950 mA	- 1 A 1.05 A 1.065 A 1.1 A 1.153 A 1.19 A 1.2 A 1.225 A 1.245 A 1.25 A 1.3 A 1.31 A 1.32 A 1.38 A 1.4 A 1.45 A 1.48 A 1.5 A 1.52 A 1.55 A 1.6 A 1.62 A 1.625 A 1.7 A 1.75 A 1.755 A 1.8 A 1.9 A 1.95 A 10 A 10.2 A 10.5 A 10.7 A 10.8 A 100 mA 11 A 11.1 A 11.7 A 11.9 A 110 mA 112 mA 115 mA 116 mA 12 A 120 mA 125 mA 127 mA 13 A 13.1 A 13.2 A 13.6 A 13.7 A 130 mA 131 mA 135 mA 137 mA 14 A 14 mA 14.1 A 14.8 A 140 mA 143 mA 145 mA 149 mA 15 A 15.3 A 150 mA 155 mA 16 A 16.5 A 16.7 A 160 mA 162 mA 165 mA 17 A 17 mA 170 mA 172 mA 173 mA 175 mA 178 mA 18 A 18.5 A 18.7 A 180 mA 181 mA 190 mA 193 mA 195 mA 2 A 2.16 A 2.2 A 2.25 A 2.3 A 2.4 A 2.41 A 2.46 A 2.5 A 2.6 A 2.65 A 2.7 A 2.72 A 2.8 A 2.855 A 2.88 A 2.95 A 20 A 20 mA 20.3 A 20.4 A 20.5 A 200 mA 205 mA 21 mA 21.2 A 210 mA 22 A 22 mA 22.1 A 220 mA 228 mA 23 mA 23.8 A 230 mA 24 A 24 mA 240 mA 245 mA 249 mA 25 mA 25.5 A 250 mA 251 mA 252 mA 255 mA 26 A 260 mA 265 mA 27 A 27.3 A 270 mA 28 A 28 mA 28.3 A 280 A 280 mA 282 mA 283 mA 285 mA 286 mA 29 mA 290 mA 296 mA 3 A 3.05 A 3.1 A 3.2 A 3.3 A 3.4 A 3.5 A 3.6 A 3.7 A 3.75 A 3.8 A 3.9 A 3.93 A 30 A 30 mA 300 mA 310 mA 314 mA 315 mA 32 A 32 mA 320 mA 324 mA 33 A 330 mA 331 mA 340 mA 350 mA 360 mA 368 mA 370 mA 375 mA 38 A 380 mA 382 mA 386 mA 39 mA 390 mA 398 mA 4 A 4.1 A 4.15 A 4.2 A 4.4 A 4.5 A 4.6 A 4.7 A 4.9 A 40 A 40 mA 400 mA 405 mA 42 mA 420 mA 431 mA 440 mA 444 mA 45 mA 450 mA 452 mA 460 mA 461 mA 470 mA 475 mA 48 mA 480 mA 490 mA 5 A 5.1 A 5.2 A 5.3 A 5.4 A 5.5 A 5.8 A 5.9 A 50 A 50 mA 500 mA 510 mA 517 mA 523 mA 540 mA 55 mA 550 mA 560 mA 565 mA 575 mA 580 mA 59 mA 590 mA 6 A 6.2 A 6.25 A 6.3 A 6.5 A 6.8 A 60 mA 600 mA 606 mA 61 mA 610 mA 615 mA 64 mA 640 mA 65 mA 650 mA 660 mA 670 mA 675 mA 680 mA 685 mA 690 mA 694 mA 7 A 7.4 A 7.5 A 7.6 A 7.8 A 70 mA 700 mA 705 mA 708 mA 71 mA 715 mA 73 mA 735 mA 739 mA 740 mA 75 mA 750 mA 780 mA 8 A 8.1 A 8.3 A 8.5 A 8.7 A 8.9 A 80 mA 800 mA 810 mA 820 mA 830 mA 85 mA 850 mA 86 mA 860 mA 880 mA 9 A 9.1 A 9.2 A 9.4 A 90 mA 900 mA 91 mA 915 mA 920 mA 936 mA 95 mA 950 mA 955 mA 97 mA 970 mA 98 mA 980 mA 996 mA	- 1 A 1.1 A 1.2 A 1.3 A 1.4 A 1.5 A 1.6 A 1.7 A 1.8 A 10 A 100 A 100 mA 11 A 110 mA 12 A 12.5 A 120 mA 13 A 13.5 A 130 mA 140 mA 15 A 150 mA 165 mA 17 A 170 mA 2 A 2.2 A 2.5 A 2.7 A 2.8 A 20 A 200 mA 220 mA 25 A 27 A 3 A 3.1 A 3.2 A 3.3 A 3.5 A 3.8 A 3.9 A 300 mA 375 mA 39 A 4 A 4.1 A 4.26 A 4.3 A 4.5 A 4.6 A 40 A 40 mA 400 mA 420 mA 450 mA 5 A 5.5 A 50 A 500 mA 550 mA 590 mA 6 A 6.5 A 60 A 60 mA 600 mA 630 mA 650 mA 7 A 7.2 A 7.5 A 70 A 700 mA 8 A 8.5 A 80 A 80 mA 800 mA 82 mA 9 A 90 mA 900 mA	- 0.04 s 0.05 s 0.06 s 0.1 s 0.2 s 0.3 s 0.4 s 1 s 1.1 s 1.2 s 1.3 s 1.4 s 1.5 s 1.6 s 1.7 s 1.8 s 10 ms 10 s 10.3 s 10.5 s 10.8 s 100 ms 11 s 11.2 s 11.3 s 11.4 s 11.5 s 12 s 12.5 s 12.6 s 12.7 s 120 ms 13 s 13.4 s 13.5 s 13.6 s 130 ms 14 s 14.4 s 14.5 s 140 ms 15 s 15.2 s 15.5 s 15.6 s 150 ms 16 s 17.5 s 18 s 18.5 s 18.8 s 19.8 s 2 s 2.2 s 2.3 s 2.4 s 2.5 s 2.9 s 20 ms 20 s 200 ms 21 s 22 s 23 s 24 s 25 s 250 ms 26 s 28 s 3 s 3.2 s 3.3 s 3.4 s 3.5 s 3.6 s 3.8 s 3.9 s 30 s 300 ms 35 s 36 s 4 s 4.3 s 4.5 s 4.7 s 4.8 s 40 s 400 ms 45 s 450 ms 5 s 5.2 s 5.3 s 5.5 s 5.6 s 5.7 s 5.8 s 5.9 s 50 ms 50 s 500 ms 6 s 6.2 s 6.3 s 6.5 s 6.6 s 6.8 s 60 ms 60 s 600 ms 65 s 7 s 7.2 s 7.3 s 7.5 s 70 s 700 ms 750 ms 8 ms 8 s 8.2 s 8.5 s 8.7 s 80 ms 80 s 800 ms 850 ms 9 s 9.5 s 9.6 s 9.8 s 90 s 900 ms	- 0.0033 Ohms 0.0035 Ohms 0.0038 Ohms 0.0042 Ohms 0.0046 Ohms 0.006 Ohms 0.0073 Ohms 0.0085 Ohms 0.009 Ohms 0.0095 Ohms 0.012 Ohms 0.0135 Ohms 0.0145 Ohms 0.016 Ohms 0.018 Ohms 0.11 Ohms 0.12 Ohms 0.17 Ohms 0.316 Ohms 1 mOhms 1 Ohms 1.1 Ohms 1.2 Ohms 1.25 Ohms 1.3 Ohms 1.35 Ohms 1.4 Ohms 1.5 mOhms 1.5 Ohms 1.6 mOhms 1.6 Ohms 1.7 mOhms 1.7 Ohms 1.8 Ohms 1.83 Ohms 1.85 Ohms 1.9 Ohms 10 mOhms 10 Ohms 100 mOhms 104 mOhms 11 mOhms 110 mOhms 12 mOhms 12 Ohms 120 mOhms 13 mOhms 13.5 mOhms 130 mOhms 14 mOhms 14 Ohms 14.5 mOhms 140 mOhms 15 mOhms 15 Ohms 15.4 Ohms 150 mOhms 150 Ohms 152 mOhms 16 mOhms 16.5 Ohms 165 mOhms 17 mOhms 17.5 mOhms 170 mOhms 18 mOhms 18.5 Ohms 18.6 mOhms 180 mOhms 190 mOhms 2 mOhms 2 Ohms 2.1 Ohms 2.2 mOhms 2.3 Ohms 2.4 Ohms 2.5 mOhms 2.5 Ohms 2.6 mOhms 2.7 mOhms 2.8 Ohms 2.9 mOhms 20 mOhms 20 Ohms 200 mOhms 200110 mOhms 21 mOhms 218 mOhms 22 mOhms 220 mOhms 23 mOhms 230 mOhms 24 mOhms 240 mOhms 240 Ohms 25 mOhms 250 mOhms 265 Ohms 27 mOhms 27 Ohms 270 mOhms 280 mOhms 29 mOhms 290 mOhms 3 mOhms 3 Ohms 3.1 mOhms 3.2 mOhms 3.3 mOhms 3.3 Ohms 3.4 mOhms 3.5 mOhms 3.5 Ohms 3.6 Ohms 3.7 mOhms 3.8 mOhms 3.8 Ohms 30 mOhms 300 mOhms 300 Ohms 310 mOhms 316 mOhms 32 mOhms 320 mOhms 33 mOhms 34 mOhms 35 mOhms 35 Ohms 350 mOhms 370 mOhms 38 mOhms 39 mOhms 4 mOhms 4 Ohms 4.1 mOhms 4.2 mOhms 4.5 mOhms 4.5 Ohms 4.6 mOhms 4.7 mOhms 4.8 mOhms 4.9 mOhms 40 mOhms 400 mOhms 40110 mOhms 410 mOhms 420 mOhms 43 mOhms 430 mOhms 44 mOhms 45 mOhms 450 mOhms 48 mOhms 480 mOhms 49 mOhms 5 mOhms 5 Ohms 5.1 mOhms 5.4 Ohms 5.5 mOhms 5.6 mOhms 50 mOhms 50 Ohms 500 mOhms 500 Ohms 520 mOhms 55 mOhms 550 mOhms 57 mOhms 59 mOhms 6 mOhms 6 Ohms 6.1 mOhms 6.2 mOhms 6.3 Ohms 6.5 Ohms 6.6 mOhms 60 mOhms 600 mOhms 630 mOhms 640 Ohms 65 mOhms 650 mOhms 68 mOhms 7 mOhms 7 Ohms 7.2 mOhms 7.3 mOhms 7.3 Ohms 7.4 mOhms 7.4 Ohms 7.5 Ohms 7.7 mOhms 7.8 Ohms 70 mOhms 700 mOhms 74 mOhms 750 mOhms 760 mOhms 770 mOhms 8 mOhms 8 Ohms 8.5 mOhms 8.5 Ohms 8.7 mOhms 8.8 mOhms 80 mOhms 800 mOhms 810 mOhms 830 mOhms 85 mOhms 880 mOhms 89 mOhms 9 mOhms 9 Ohms 9.4 mOhms 9.5 mOhms 9.5 Ohms 9.6 Ohms 90 mOhms 900 mOhms 940 mOhms 950 mOhms 96 Ohms 98 mOhms 980 mOhms	- 0.007 Ohms 0.0077 Ohms 0.0083 Ohms 0.009 Ohms 0.0098 Ohms 0.0145 Ohms 0.0168 Ohms 0.019 Ohms 0.0225 Ohms 0.0252 Ohms 0.032 Ohms 0.033 Ohms 0.038 Ohms 0.04 Ohms 0.044 Ohms 0.05 Ohms 0.3 Ohms 0.37 Ohms 0.47 Ohms 0.839 Ohms 1 Ohms 1.1 Ohms 1.17 Ohms 1.2 Ohms 1.25 Ohms 1.29 Ohms 1.3 Ohms 1.35 Ohms 1.4 Ohms 1.45 Ohms 1.5 kOhms 1.5 Ohms 1.55 Ohms 1.6 Ohms 1.65 Ohms 1.7 Ohms 1.75 Ohms 1.8 Ohms 1.9 Ohms 1.95 Ohms 10 mOhms 10 Ohms 10.2 mOhms 10.5 mOhms 10.5 Ohms 100 mOhms 100 Ohms 102 mOhms 105 mOhms 11 mOhms 11 Ohms 110 mOhms 112 mOhms 113 mOhms 114 mOhms 115 mOhms 12 mOhms 12 Ohms 12.5 mOhms 12.7 Ohms 120 mOhms 125 mOhms 126 mOhms 13 mOhms 13 Ohms 13.5 mOhms 13.5 Ohms 130 mOhms 134 mOhms 14 mOhms 14 Ohms 14.5 mOhms 140 mOhms 143 mOhms 144 Ohms 15 mOhms 15 Ohms 15.5 mOhms 150 mOhms 150 Ohms 16 mOhms 16 Ohms 160 mOhms 165 mOhms 17 mOhms 17 Ohms 17.5 mOhms 170 mOhms 18 mOhms 18 Ohms 18.1 mOhms 18.5 Ohms 180 mOhms 19 mOhms 190 mOhms 2 Ohms 2.1 Ohms 2.2 Ohms 2.3 Ohms 2.5 Ohms 2.6 Ohms 2.7 Ohms 20 mOhms 20 Ohms 200 mOhms 21 mOhms 21.5 mOhms 210 mOhms 22 mOhms 22 Ohms 220 mOhms 220 Ohms 221 mOhms 23 mOhms 230 mOhms 24 mOhms 24 Ohms 240 mOhms 25 mOhms 25 Ohms 250 mOhms 26 mOhms 26 Ohms 260 mOhms 270 mOhms 28 mOhms 280 mOhms 290 mOhms 290 Ohms 3 Ohms 3.1 Ohms 3.2 Ohms 3.3 Ohms 3.4 Ohms 3.5 Ohms 3.6 Ohms 3.8 Ohms 30 mOhms 30 Ohms 300 mOhms 31 mOhms 32 mOhms 320 mOhms 33 mOhms 33 Ohms 330 mOhms 34 mOhms 340 mOhms 35 mOhms 35 Ohms 350 mOhms 36 mOhms 360 mOhms 360 Ohms 37 mOhms 370 mOhms 38 Ohms 380 mOhms 390 mOhms 4 Ohms 4.1 Ohms 4.2 Ohms 4.3 mOhms 4.3 Ohms 4.4 mOhms 4.4 Ohms 4.5 Ohms 4.8 mOhms 4.8 Ohms 40 mOhms 40 Ohms 400 mOhms 410 mOhms 43 mOhms 430 mOhms 44 mOhms 440 mOhms 45 mOhms 45 Ohms 450 mOhms 460 mOhms 47 mOhms 470 mOhms 470 Ohms 48 mOhms 480 mOhms 482 mOhms 5 Ohms 5.3 mOhms 5.5 Ohms 5.8 mOhms 5.8 Ohms 50 mOhms 50 Ohms 500 mOhms 52 mOhms 520 mOhms 53 mOhms 54 mOhms 55 mOhms 550 mOhms 58 mOhms 580 mOhms 6 mOhms 6 Ohms 6.3 mOhms 6.4 mOhms 6.4 Ohms 6.5 mOhms 6.5 Ohms 6.8 mOhms 60 mOhms 600 mOhms 61 mOhms 610 mOhms 62 mOhms 63 mOhms 64 mOhms 640 mOhms 65 mOhms 65 Ohms 650 mOhms 680 mOhms 690 mOhms 7 mOhms 7 Ohms 7.5 mOhms 7.5 Ohms 7.8 Ohms 70 mOhms 70 Ohms 700 mOhms 72 mOhms 720 mOhms 75 mOhms 750 mOhms 750 Ohms 76 mOhms 78 mOhms 79 mOhms 8 mOhms 8 Ohms 8.5 Ohms 8.6 mOhms 8.9 mOhms 80 mOhms 800 mOhms 82 mOhms 83 mOhms 839 mOhms 840 mOhms 85 mOhms 850 mOhms 9 mOhms 9 Ohms 9.2 mOhms 9.9 mOhms 90 mOhms 90 Ohms 900 mOhms 92 mOhms 950 mOhms 97.5 mOhms 98 mOhms 99 mOhms	- 1 kOhms 1 Ohms 1.1 kOhms 1.1 Ohms 1.2 kOhms 1.2 Ohms 1.3 Ohms 1.5 kOhms 1.5 Ohms 1.6 kOhms 1.65 Ohms 1.7 Ohms 1.8 kOhms 1.8 Ohms 1.9 kOhms 1.9 Ohms 1.95 Ohms 10 Ohms 100 Ohms 11 Ohms 115 Ohms 12 Ohms 120 Ohms 125 Ohms 13 mOhms 13 Ohms 131 mOhms 14 Ohms 15 Ohms 150 mOhms 150 Ohms 16 Ohms 160 Ohms 17 Ohms 18 Ohms 18.1 Ohms 180 Ohms 19 Ohms 2 kOhms 2.1 Ohms 2.2 Ohms 2.3 Ohms 2.5 Ohms 2.7 Ohms 2.8 Ohms 2.9 Ohms 20 Ohms 200 mOhms 200 Ohms 21 mOhms 22 Ohms 220 Ohms 240 Ohms 25 Ohms 250 Ohms 253 mOhms 260 Ohms 27 Ohms 270 mOhms 28 Ohms 29 Ohms 3 kOhms 3 Ohms 3.1 Ohms 3.3 Ohms 3.5 Ohms 3.7 Ohms 3.8 Ohms 3.9 Ohms 300 mOhms 300 Ohms 33 Ohms 330 mOhms 334 mOhms 35 Ohms 39 Ohms 4 Ohms 4.2 Ohms 4.3 Ohms 4.4 Ohms 4.6 Ohms 4.7 Ohms 4.9 Ohms 40 Ohms 400 Ohms 42 Ohms 45 Ohms 450 mOhms 47 Ohms 470 mOhms 470 Ohms 48 Ohms 483 mOhms 5 kOhms 5 Ohms 5.3 Ohms 5.6 Ohms 50 mOhms 50 Ohms 500 mOhms 500 Ohms 55 Ohms 56 Ohms 6 Ohms 6.25 kOhms 6.6 Ohms 6.7 Ohms 6.8 Ohms 60 Ohms 600 mOhms 600 Ohms 62 Ohms 65 Ohms 7 Ohms 7.5 kOhms 7.6 Ohms 70 Ohms 700 mOhms 75 Ohms 8 Ohms 8.2 Ohms 8.4 Ohms 80 Ohms 800 mOhms 82 Ohms 85 Ohms 9 Ohms 9.4 Ohms 900 mOhms	- -0°C ~ 60°C -10°C ~ 60°C -20°C ~ 105°C -20°C ~ 60°C -20°C ~ 75°C -20°C ~ 80°C -20°C ~ 85°C -30°C ~ 125°C -30°C ~ 85°C -40°C ~ 105°C -40°C ~ 110°C -40°C ~ 125°C -40°C ~ 60°C -40°C ~ 70°C -40°C ~ 80°C -40°C ~ 85°C -45°C ~ 85°C -50°C ~ 150°C 0°C ~ 55°C 0°C ~ 60°C 0°C ~ 70°C 0°C ~ 85°C 10°C ~ 55°C 125°C 85°C	- Automotive	- AEC-Q200	- AEC-Q200	- Holder Surface Mount Through Hole User Defined	- 0.024" L x 0.018" W (0.60mm x 0.45mm) 0.039" L x 0.020" W (1.00mm x 0.50mm) 0.045" L x 0.026" W (1.15mm x 0.65mm) 0.063" L x 0.029" W (1.60mm x 0.73mm) 0.063" L x 0.031" W (1.60mm x 0.80mm) 0.063" L x 0.032" W (1.60mm x 0.80mm) 0.065" L x 0.031" W (1.65mm x 0.80mm) 0.065" L x 0.033" W (1.65mm x 0.85mm) 0.065" L x 0.035" W (1.60mm x 0.90mm) 0.071" L x 0.039" W (1.80mm x 1.00mm) 0.079" L x 0.049" W (2.00mm x 1.25mm) 0.079" L x 0.052" W (2.01mm x 1.31mm) 0.083" L x 0.053" W (2.10mm x 1.35mm) 0.083" L x 0.055" W (2.10mm x 1.40mm) 0.085" L x 0.053" W (2.15mm x 1.35mm) 0.087" L x 0.053" W (2.20mm x 1.35mm) 0.089" L x 0.059" W (2.25mm x 1.50mm) 0.098" L x 0.063" W (2.50mm x 1.60mm) 0.118" Dia x 0.551" T (3.00mm x 14.00mm) 0.118" L x 0.118" W (3.00mm x 3.00mm) 0.126" L x 0.062" W (3.20mm x 1.58mm) 0.126" L x 0.063" W (3.20mm x 1.59mm) 0.126" L x 0.063" W (3.20mm x 1.60mm) 0.126" L x 0.065" W (3.20mm x 1.64mm) 0.126" L x 0.065" W (3.20mm x 1.65mm) 0.126" L x 0.098" W (3.20mm x 2.50mm) 0.126" L x 0.100" W (3.20mm x 2.55mm) 0.127" L x 0.063" W (3.22mm x 1.60mm) 0.127" L x 0.063" W (3.22mm x 1.61mm) 0.127" L x 0.093" W (3.22mm x 2.35mm) 0.127" L x 0.101" W (3.22mm x 2.56mm) 0.127" L x 0.101" W (3.22mm x 2.58mm) 0.127" L x 0.102" W (3.22mm x 2.58mm) 0.128" L x 0.063" W (3.25mm x 1.60mm) 0.128" L x 0.065" W (3.25mm x 1.65mm) 0.128" L x 0.098" W (3.25mm x 2.50mm) 0.132" L x 0.067" W (3.35mm x 1.70mm) 0.134" L x 0.071" W (3.40mm x 1.80mm) 0.135" L x 0.110" W (3.43mm x 2.80mm) 0.138" L x 0.071" W (3.50mm x 1.80mm) 0.138" L x 0.138" W (3.50mm x 3.50mm) 0.157" Dia x 0.138" T (4.00mm x 3.50mm) 0.157" Dia x 0.157" T (4.00mm x 4.00mm) 0.157" Dia x 0.177" T (4.00mm x 4.50mm) 0.157" Dia x 0.197" T (4.00mm x 5.00mm) 0.177" Dia x 0.138" T (4.50mm x 3.50mm) 0.177" Dia x 0.157" T (4.50mm x 4.00mm) 0.177" Dia x 0.177" T (4.50mm x 4.50mm) 0.177" Dia x 0.197" T (4.50mm x 5.00mm) 0.178" L x 0.126" W (4.53mm x 3.20mm) 0.179" L x 0.015" W (4.55mm x 0.39mm) 0.179" L x 0.020" W (4.55mm x 0.50mm) 0.179" L x 0.027" W (4.55mm x 0.68mm) 0.179" L x 0.121" W (4.55mm x 3.07mm) 0.179" L x 0.128" W (4.55mm x 3.24mm) 0.181" L x 0.128" W (4.60mm x 3.24mm) 0.181" L x 0.181" W (4.60mm x 4.60mm) 0.186" L x 0.131" W (4.72mm x 3.33mm) 0.187" L x 0.187" W (4.75mm x 4.75mm) 0.189" Dia x 0.150" T (4.80mm x 3.80mm) 0.197" Dia x 0.118" T (5.00mm x 3.00mm) 0.197" Dia x 0.157" T (5.00mm x 4.00mm) 0.197" Dia x 0.177" T (5.00mm x 4.50mm) 0.197" Dia x 0.197" T (5.00mm x 5.00mm) 0.197" Dia x 0.217" T (5.00mm x 5.50mm) 0.197" L x 0.177" W (5.01mm x 4.50mm) 0.200" L x 0.160" W (5.08mm x 4.07mm) 0.200" L x 0.180" W (5.08mm x 4.58mm) 0.201" Dia x 0.118" T (5.10mm x 3.00mm) 0.205" L x 0.138" W (5.20mm x 3.50mm) 0.209" Dia x 0.150" T (5.30mm x 3.80mm) 0.209" L x 0.197" W (5.30mm x 5.00mm) 0.213" Dia x 0.177" T (5.40mm x 4.50mm) 0.217" Dia x 0.138" T (5.50mm x 3.50mm) 0.217" Dia x 0.157" W (5.50mm x 4.00mm) 0.217" Dia x 0.177" T (5.50mm x 4.50mm) 0.217" Dia x 0.197" T (5.50mm x 5.00mm) 0.217" L x 0.217" W (5.50mm x 5.50mm) 0.228" Dia x 0.181" T (5.80mm x 4.60mm) 0.228" Dia x 0.354" T (5.80mm x 9.00mm) 0.228" L x 0.201" W (5.80mm x 5.10mm) 0.236" Dia x 0.122" T (6.00mm x 3.10mm) 0.236" Dia x 0.138" T (6.00mm x 3.50mm) 0.236" Dia x 0.177" T (6.00mm x 4.50mm) 0.236" Dia x 0.181" T (6.00mm x 4.60mm) 0.236" Dia x 0.197" T (6.00mm x 5.00mm) 0.236" Dia x 0.201" T (6.00mm x 5.10mm) 0.236" Dia x 0.236" T (6.00mm x 6.00mm) 0.236" L x 0.150" W (6.00mm x 3.80mm) 0.236" L x 0.197" W (6.00mm x 5.00mm) 0.240" Dia x 0.170" T (6.09mm x 4.31mm) 0.240" L x 0.272" W (6.10mm x 6.90mm) 0.256" Dia x 0.118" T (6.50mm x 3.00mm) 0.256" Dia x 0.138" T (6.50mm x 3.50mm) 0.256" Dia x 0.157" T (6.50mm x 4.00mm) 0.256" Dia x 0.197" T (6.50mm x 5.00mm) 0.256" Dia x 0.256" T (6.50mm x 6.50mm) 0.256" Dia x 0.256" W (6.50mm x 6.50mm) 0.256" L x 0.181" W (6.50mm x 4.60mm) 0.260" L x 0.098" W (6.60mm x 2.50mm) 0.268" Dia x 0.201" T (6.80mm x 5.10mm) 0.268" L x 0.181" W (6.80mm x 4.60mm) 0.270" Dia x 0.170" T (6.86mm x 4.32mm) 0.270" L x 0.118" W (6.86mm x 3.00mm) 0.272" Dia x 0.118" T (6.90mm x 3.00mm) 0.272" Dia x 0.122" T (6.90mm x 3.10mm) 0.272" Dia x 0.181" T (6.90mm x 4.60mm) 0.272" L x 0.118" W (6.90mm x 3.00mm) 0.272" L x 0.122" W (6.90mm x 3.10mm) 0.272" L x 0.130" W (6.90mm x 3.30mm) 0.276" Dia x 0.157" T (7.00mm x 4.00mm) 0.276" Dia x 0.177" T (7.00mm x 4.50mm) 0.276" Dia x 0.197" T (7.00mm x 5.00mm) 0.276" Dia x 0.217" T (7.00mm x 5.50mm) 0.276" L x 0.181" W (7.00mm x 4.60mm) 0.276" L x 0.276" W (7.00mm x 7.00mm) 0.280" L x 0.118" W (7.10mm x 3.00mm) 0.280" L x 0.122" W (7.10mm x 3.10mm) 0.280" L x 0.140" W (7.10mm x 3.56mm) 0.280" L x 0.140" W (7.11mm x 3.56mm) 0.280" L x 0.142" W (7.10mm x 3.60mm) 0.283" Dia x 0.181" T (7.20mm x 4.60mm) 0.283" L x 0.394" W (7.20mm x 10.00mm) 0.287" Dia x 0.138" T (7.30mm x 3.50mm) 0.287" Dia x 0.138" W (7.30mm x 3.50mm) 0.287" Dia x 0.177" T (7.30mm x 4.50mm) 0.287" L x 0.199" W (7.30mm x 5.05mm) 0.287" L x 0.201" W (7.30mm x 5.10mm) 0.287" L x 0.214" W (7.31mm x 5.44mm) 0.288" L x 0.181" W (5.80mm x 4.60mm) 0.289" L x 0.202" W (7.35mm x 5.12mm) 0.289" L x 0.202" W (7.36mm x 5.12mm) 0.289" L x 0.214" W (7.36mm x 5.44mm) 0.290" L x 0.202" W (7.36mm x 5.12mm) 0.291" Dia (7.40mm) 0.291" Dia x 0.118" T (7.40mm x 3.00mm) 0.291" Dia x 0.122" T (7.40mm x 3.10mm) 0.291" Dia x 0.122" W (7.40mm x 3.10mm) 0.291" Dia x 0.130" T (7.40mm x 3.30mm) 0.291" Dia x 0.150" T (7.40mm x 3.80mm) 0.291" Dia x 0.157" T (7.40mm x 4.00mm) 0.291" Dia x 0.181" T (7.40mm x 4.60mm) 0.291" Dia x 0.236" T (7.40mm x 6.00mm) 0.291" L x 0.118" W (7.40mm x 3.00mm) 0.291" L x 0.122" W (7.40mm x 3.10mm) 0.291" L x 0.150" W (7.40mm x 3.80mm) 0.295" Dia x 0.122" T (7.50mm x 3.10mm) 0.295" Dia x 0.138" T (7.50mm x 3.50mm) 0.295" Dia x 0.150" T (7.50mm x 3.80mm) 0.295" Dia x 0.161" T (7.50mm x 4.10mm) 0.295" Dia x 0.177" T (7.50mm x 4.50mm) 0.295" L x 0.181" W (7.50mm x 4.60mm) 0.295" L x 0.201" W (7.50mm x 5.10mm) 0.295" L x 0.220" W (7.50mm x 5.60mm) 0.299" Dia (7.60mm) 0.299" Dia x 0.118" T (7.60mm x 3.00mm) 0.299" Dia x 0.122" T (7.60mm x 3.10mm) 0.299" L x 0.110" W (7.60mm x 2.80mm) 0.299" L x 0.122" W (7.60mm x 3.10mm) 0.299" L x 0.142" W (7.60mm x 3.60mm) 0.299" L x 0.161" W (7.60mm x 4.10mm) 0.300" Dia x 0.200" T (7.62mm x 5.08mm) 0.300" L x 0.300" W (7.62mm x 7.62mm) 0.303" Dia x 0.181" T (7.70mm x 4.60mm) 0.310" L x 0.140" W (7.87mm x 3.56mm) 0.310" L x 0.142" W (7.87mm x 3.60mm) 0.311" Dia (7.90mm) 0.311" Dia x 0.118" T (7.90mm x 3.00mm) 0.311" Dia x 0.122" T (7.90mm x 3.10mm) 0.311" Dia x 0.122" W (7.90mm x 3.10mm) 0.311" Dia x 0.150" T (7.90mm x 3.80mm) 0.311" L x 0.122" W (7.90mm x 3.10mm) 0.311" L x 0.209" W (7.90mm x 5.30mm) 0.314" L x 0.264" W (7.98mm x 6.71mm) 0.315" Dia x 0.059" T (8.00mm x 1.50mm) 0.315" Dia x 0.118" T (8.00mm x 3.00mm) 0.315" Dia x 0.122" T (8.00mm x 3.10mm) 0.315" Dia x 0.157" T (8.00mm x 4.00mm) 0.315" Dia x 0.197" T (8.00mm x 5.00mm) 0.315" Dia x 0.236" T (8.00mm x 6.00mm) 0.315" L x 0.248" W (8.00mm x 6.30mm) 0.319" L x 0.150" W (8.10mm x 3.80mm) 0.319" L x 0.282" W (8.10mm x 7.15mm) 0.323" Dia x 0.150" T (8.20mm x 3.80mm) 0.323" Dia x 0.256" T (8.20mm x 6.50mm) 0.327" Dia (8.30mm) 0.327" Dia x 0.150" T (8.30mm x 3.80mm) 0.327" Dia x 0.157" T (8.30mm x 4.00mm) 0.327" L x 0.150" W (8.30mm x 3.80mm) 0.331" L x 0.098" W (8.40mm x 2.50mm) 0.331" L x 0.118" W (8.40mm x 3.00mm) 0.335" Dia x 0.150" T (8.50mm x 3.80mm) 0.335" Dia x 0.157" T (8.50mm x 4.00mm) 0.335" Dia x 0.177" T (8.50mm x 4.50mm) 0.335" Dia x 0.197" T (8.50mm x 5.00mm) 0.335" Dia x 0.217" T (8.50mm x 5.50mm) 0.335" Dia x 0.276" T (8.50mm x 7.00mm) 0.337" L x 0.323" W (8.55mm x 8.20mm) 0.341" L x 0.250" W (8.65mm x 6.35mm) 0.343" L x 0.250" W (8.70mm x 6.36mm) 0.344" L x 0.118" W (8.75mm x 3.00mm) 0.344" L x 0.264" W (8.75mm x 6.71mm) 0.344" L x 0.283" W (8.75mm x 7.20mm) 0.346" L x 0.118" W (8.80mm x 3.00mm) 0.350" Dia x 0.118" T (8.90mm x 3.00mm) 0.350" Dia x 0.150" T (8.90mm x 3.80mm) 0.350" Dia x 0.150" W (8.89mm x 3.81mm) 0.350" Dia x 0.300" T (8.89mm x 7.62mm) 0.350" Dia x 0.310" T (8.89mm x 7.87mm) 0.350" L x 0.118" W (8.90mm x 3.00mm) 0.350" L x 0.122" W (8.90mm x 3.10mm) 0.350" L x 0.150" W (8.90mm x 3.80mm) 0.350" L x 0.283" W (8.90mm x 7.20mm) 0.352" L x 0.291" W (8.95mm x 7.40mm) 0.353" L x 0.290" W (8.95mm x 7.40mm) 0.354" Dia x 0.138" T (9.00mm x 3.50mm) 0.354" Dia x 0.150" T (9.00mm x 3.80mm) 0.354" Dia x 0.197" T (9.00mm x 5.00mm) 0.354" L x 0.122" W (9.00mm x 3.10mm) 0.354" L x 0.177" W (9.00mm x 4.50mm) 0.354" L x 0.181" W (9.00mm x 4.60mm) 0.354" L x 0.283" W (9.00mm x 7.20mm) 0.362" Dia x 0.150" T (9.20mm x 3.80mm) 0.362" L x 0.118" W (9.20mm x 3.00mm) 0.362" L x 0.122" W (9.20mm x 3.10mm) 0.366" Dia x 0.138" T (9.30mm x 3.50mm) 0.366" Dia x 0.177" T (9.30mm x 4.50mm) 0.366" L x 0.118" W (9.30mm x 3.00mm) 0.366" L x 0.181" W (9.30mm x 4.60mm) 0.370" Dia x 0.118" T (9.40mm x 3.00mm) 0.370" Dia x 0.122" T (9.40mm x 3.10mm) 0.370" L x 0.118" W (9.40mm x 3.00mm) 0.370" L x 0.291" W (9.40mm x 7.40mm) 0.374" Dia x 0.157" T (9.50mm x 4.00mm) 0.374" Dia x 0.177" T (9.50mm x 4.50mm) 0.374" Dia x 0.181" T (9.50mm x 4.60mm) 0.374" L x 0.118" W (9.50mm x 3.00mm) 0.374" L x 0.122" W (9.50mm x 3.10mm) 0.374" L x 0.177" W (9.50mm x 4.50mm) 0.374" L x 0.234" W (9.50mm x 5.94mm) 0.378" Dia x 0.236" T (9.60mm x 6.00mm) 0.378" L x 0.150" W (9.60mm x 3.80mm) 0.382" Dia (9.70mm) 0.382" Dia x 0.118" T (9.70mm x 3.00mm) 0.382" Dia x 0.122" T (9.70mm x 3.10mm) 0.382" Dia x 0.122" W (9.70mm x 3.10mm) 0.382" Dia x 0.150" T (9.70mm x 3.80mm) 0.382" L x 0.118" W (9.70mm x 3.00mm) 0.382" L x 0.122" W (9.70mm x 3.10mm) 0.386" L x 0.122" W (9.80mm x 3.10mm) 0.386" L x 0.197" W (9.80mm x 5.00mm) 0.390" Dia (9.90mm) 0.390" Dia x 0.150" T (9.90mm x 3.80mm) 0.390" L x 0.098" W (9.90mm x 2.50mm) 0.390" L x 0.118" W (9.90mm x 3.00mm) 0.390" L x 0.150" W (9.90mm x 3.80mm) 0.394" Dia x 0.217" W (10.00mm x 5.50mm) 0.394" Dia x 0.236" T (10.00mm x 6.00mm) 0.394" Dia x 0.256" T (10.00mm x 6.50mm) 0.394" L x 0.118" W (10.00mm x 3.00mm) 0.394" L x 0.122" W (10.00mm x 3.10mm) 0.394" L x 0.122" W (10.00mm x 3.11mm) 0.394" L x 0.150" W (10.00mm x 3.80mm) 0.394" L x 0.283" W (10.00mm x 7.20mm) 0.394" L x 0.315" W (10.00mm x 8.00mm) 0.398" Dia x 0.138" T (10.10mm x 3.50mm) 0.398" L x 0.138" W (10.10mm x 3.50mm) 0.400" Dia x 0.230" T (10.16mm x 5.84mm) 0.402" Dia x 0.118" T (10.20mm x 3.00mm) 0.402" Dia x 0.122" T (10.20mm x 3.10mm) 0.402" Dia x 0.201" T (10.20mm x 5.10mm) 0.402" L x 0.098" W (10.20mm x 2.50mm) 0.402" L x 0.118" W (10.20mm x 3.00mm) 0.402" L x 0.122" W (10.20mm x 3.10mm) 0.402" L x 0.142" W (10.20mm x 3.60mm) 0.402" L x 0.150" W (10.20mm x 3.80mm) 0.402" L x 0.150" W (10.20mm x 3.81mm) 0.402" L x 0.354" W (10.20mm x 9.00mm) 0.409" Dia (10.40mm) 0.409" Dia x 0.122" T (10.40mm x 3.10mm) 0.409" Dia x 0.122" W (10.40mm x 3.10mm) 0.409" Dia x 0.150" T (10.40mm x 3.80mm) 0.409" L x 0.118" W (10.40mm x 3.00mm) 0.409" L x 0.122" W (10.40mm x 3.10mm) 0.409" L x 0.142" W (10.40mm x 3.60mm) 0.409" L x 0.201" W (10.40mm x 5.10mm) 0.413" Dia x 0.157" T (10.50mm x 4.00mm) 0.413" Dia x 0.181" T (10.50mm x 4.60mm) 0.413" Dia x 0.197" T (10.50mm x 5.00mm) 0.413" Dia x 0.217" T (10.50mm x 5.50mm) 0.413" L x 0.181" W (10.50mm x 4.60mm) 0.413" L x 0.335" W (10.50mm x 8.50mm) 0.417" Dia x 0.150" T (10.60mm x 3.80mm) 0.421" Dia x 0.201" T (10.70mm x 5.10mm) 0.421" L x 0.098" W (10.70mm x 2.50mm) 0.421" L x 0.118" W (10.70mm x 3.00mm) 0.421" L x 0.122" W (10.70mm x 3.10mm) 0.427" L x 0.118" W (10.84mm x 3.00mm) 0.427" L x 0.122" W (10.84mm x 3.10mm) 0.429" Dia x 0.142" T (10.90mm x 3.60mm) 0.429" Dia x 0.161" T (10.90mm x 4.10mm) 0.429" L x 0.122" W (10.90mm x 3.11mm) 0.429" L x 0.161" W (10.90mm x 4.10mm) 0.429" L x 0.181" W (10.90mm x 4.60mm) 0.430" L x 0.160" W (10.90mm x 4.10mm) 0.433" Dia x 0.138" T (11.00mm x 3.50mm) 0.433" Dia x 0.157" T (11.00mm x 4.00mm) 0.433" Dia x 0.177" T (11.00mm x 4.50mm) 0.433" Dia x 0.197" T (11.00mm x 5.00mm) 0.433" Dia x 0.236" T (11.00mm x 6.00mm) 0.433" L x 0.122" W (11.00mm x 3.10mm) 0.433" L x 0.181" W (11.00mm x 4.60mm) 0.433" L x 0.354" W (11.00mm x 9.00mm) 0.441" Dia x 0.118" T (11.20mm x 3.00mm) 0.441" Dia x 0.122" T (11.20mm x 3.10mm) 0.441" L x 0.118" W (11.20mm x 3.00mm) 0.441" L x 0.122" W (11.20mm x 3.10mm) 0.441" L x 0.181" W (11.20mm x 4.60mm) 0.445" Dia x 0.138" T (11.30mm x 3.50mm) 0.446" L x 0.200" W (11.33mm x 5.08mm) 0.449" Dia x 0.150" T (11.40mm x 3.80mm) 0.449" Dia x 0.169" T (11.40mm x 4.30mm) 0.449" Dia x 0.201" T (11.40mm x 5.10mm) 0.449" L x 0.118" W (11.40mm x 3.00mm) 0.449" L x 0.122" W (11.40mm x 3.10mm) 0.449" L x 0.138" W (11.40mm x 3.50mm) 0.449" L x 0.150" W (11.40mm x 3.80mm) 0.450" L x 0.189" W (11.43mm x 4.80mm) 0.453" Dia x 0.138" T (11.50mm x 3.50mm) 0.453" Dia x 0.150" T (11.50mm x 3.80mm) 0.453" Dia x 0.161" T (11.50mm x 4.10mm) 0.453" Dia x 0.177" T (11.50mm x 4.50mm) 0.453" L x 0.150" W (11.50mm x 3.80mm) 0.453" L x 0.161" W (11.50mm x 4.10mm) 0.453" L x 0.189" W (11.50mm x 4.80mm) 0.461" Dia (11.70mm) 0.461" Dia x 0.118" T (11.70mm x 3.00mm) 0.461" Dia x 0.122" T (11.70mm x 3.10mm) 0.461" Dia x 0.122" W (11.70mm x 3.10mm) 0.461" L x 0.122" W (11.70mm x 3.10mm) 0.465" L x 0.118" W (11.80mm x 3.00mm) 0.469" Dia x 0.142" T (11.90mm x 3.60mm) 0.469" Dia x 0.150" T (11.90mm x 3.80mm) 0.472" Dia x 0.118" T (12.00mm x 3.00mm) 0.472" Dia x 0.122" T (12.00mm x 3.10mm) 0.472" Dia x 0.157" W (12.00mm x 4.00mm) 0.472" Dia x 0.177" W (12.00mm x 4.50mm) 0.472" L x 0.118" W (12.00mm x 3.00mm) 0.472" L x 0.201" W (12.00mm x 5.10mm) 0.480" L x 0.098" W (12.20mm x 2.50mm) 0.480" L x 0.142" W (12.20mm x 3.60mm) 0.480" L x 0.150" W (12.20mm x 3.81mm) 0.483" L x 0.118" W (12.26mm x 3.00mm) 0.483" L x 0.122" W (12.26mm x 3.10mm) 0.492" Dia x 0.157" T (12.50mm x 4.00mm) 0.492" Dia x 0.197" T (12.50mm x 5.00mm) 0.492" Dia x 0.217" T (12.50mm x 5.50mm) 0.492" Dia x 0.236" T (12.50mm x 6.00mm) 0.492" Dia x 0.276" T (12.50mm x 7.00mm) 0.496" L x 0.150" W (12.60mm x 3.80mm) 0.496" L x 0.161" W (12.60mm x 4.10mm) 0.500" Dia x 0.181" T (12.70mm x 4.60mm) 0.500" Dia x 0.200" T (12.70mm x 5.08mm) 0.500" Dia x 0.201" T (12.70mm x 5.10mm) 0.500" L x 0.118" W (12.70mm x 3.00mm) 0.500" L x 0.122" W (12.70mm x 3.10mm) 0.504" Dia x 0.118" T (12.80mm x 3.00mm) 0.504" L x 0.142" W (12.80mm x 3.60mm) 0.512" Dia (13.00mm) 0.512" Dia x 0.118" T (13.00mm x 3.00mm) 0.512" Dia x 0.122" T (13.00mm x 3.10mm) 0.512" Dia x 0.217" T (13.00mm x 5.50mm) 0.512" Dia x 0.236" W (13.00mm x 6.00mm) 0.512" Dia x 0.295" T (13.00mm x 7.50mm) 0.512" L x 0.122" W (13.00mm x 3.10mm) 0.512" L x 0.142" W (13.00mm x 3.60mm) 0.512" L x 0.150" W (13.00mm x 3.81mm) 0.520" L x 0.122" W (13.20mm x 3.10mm) 0.520" L x 0.150" W (13.20mm x 3.80mm) 0.524" Dia x 0.161" T (13.30mm x 4.10mm) 0.530" L x 0.100" W (13.50mm x 2.50mm) 0.531" Dia x 0.138" T (13.50mm x 3.50mm) 0.531" L x 0.100" W (13.50mm x 2.50mm) 0.531" L x 0.122" W (13.50mm x 3.10mm) 0.531" L x 0.236" W (13.50mm x 6.00mm) 0.532" Dia x 0.138" T (13.50mm x 3.50mm) 0.532" Dia x 0.157" T (13.50mm x 4.00mm) 0.532" Dia x 0.197" T (13.50mm x 5.00mm) 0.532" Dia x 0.201" T (13.50mm x 5.10mm) 0.532" Dia x 0.236" T (13.50mm x 6.00mm) 0.532" L x 0.100" W (13.50mm x 2.50mm) 0.532" L x 0.236" W (13.50mm x 6.00mm) 0.535" Dia x 0.118" T (13.58mm x 3.00mm) 0.535" Dia x 0.122" T (13.58mm x 3.10mm) 0.535" Dia x 0.236" T (13.60mm x 6.00mm) 0.549" L x 0.118" W (13.94mm x 3.00mm) 0.549" L x 0.122" W (13.94mm x 3.10mm) 0.550" Dia x 0.320" T (13.97mm x 8.13mm) 0.551" Dia x 0.150" T (14.00mm x 3.80mm) 0.551" Dia x 0.181" T (14.00mm x 4.60mm) 0.551" Dia x 0.236" T (14.00mm x 6.00mm) 0.551" Dia x 0.256" T (14.00mm x 6.50mm) 0.551" L x 0.118" W (14.00mm x 3.00mm) 0.551" L x 0.120" W (14.00mm x 3.00mm) 0.551" L x 0.122" W (14.00mm x 3.10mm) 0.551" L x 0.142" W (14.00mm x 3.60mm) 0.551" L x 0.150" W (14.00mm x 3.80mm) 0.551" L x 0.161" W (14.00mm x 4.10mm) 0.567" L x 0.118" W (14.40mm x 3.00mm) 0.567" L x 0.142" W (14.40mm x 3.60mm) 0.570" Dia x 0.160" T (14.48mm x 4.06mm) 0.571" Dia (14.50mm) 0.571" Dia x 0.118" T (14.50mm x 3.00mm) 0.571" Dia x 0.122" T (14.50mm x 3.10mm) 0.571" Dia x 0.157" T (14.50mm x 4.00mm) 0.571" Dia x 0.177" T (14.50mm x 4.50mm) 0.571" L x 0.122" W (14.50mm x 3.10mm) 0.583" L x 0.181" W (14.80mm x 4.60mm) 0.591" Dia x 0.217" T (15.00mm x 5.50mm) 0.591" L x 0.122" W (15.00mm x 3.10mm) 0.591" L x 0.122" W (15.00mm x 3.11mm) 0.591" L x 0.181" W (15.00mm x 4.60mm) 0.591" L x 0.256" W (15.00mm x 6.50mm) 0.598" L x 0.118" W (15.18mm x 3.00mm) 0.598" L x 0.122" W (15.18mm x 3.10mm) 0.600" Dia x 0.122" T (15.24mm x 3.10mm) 0.600" Dia x 0.160" T (15.24mm x 4.06mm) 0.600" Dia x 0.161" T (15.24mm x 4.10mm) 0.600" Dia x 0.180" T (15.24mm x 4.57mm) 0.600" Dia x 0.220" T (15.24mm x 5.59mm) 0.600" Dia x 0.270" T (15.24mm x 6.86mm) 0.610" Dia x 0.161" T (15.50mm x 4.10mm) 0.610" L x 0.161" W (15.50mm x 4.10mm) 0.618" Dia x 0.256" T (15.70mm x 6.50mm) 0.622" L x 0.189" W (15.80mm x 4.80mm) 0.630" Dia x 0.256" T (16.00mm x 6.50mm) 0.630" L x 0.098" W (16.00mm x 2.50mm) 0.630" L x 0.118" W (16.00mm x 3.00mm) 0.630" L x 0.181" W (16.00mm x 4.60mm) 0.630" L x 0.236" W (16.00mm x 6.00mm) 0.640" L x 0.160" W (16.30mm x 4.10mm) 0.641" L x 0.122" W (16.30mm x 3.10mm) 0.642" Dia (16.30mm) 0.642" Dia x 0.118" T (16.30mm x 3.00mm) 0.642" Dia x 0.122" T (16.30mm x 3.10mm) 0.642" L x 0.122" W (16.30mm x 3.10mm) 0.642" L x 0.201" W (16.30mm x 5.10mm) 0.648" L x 0.280" W (16.45mm x 7.10mm) 0.648" L x 0.283" W (16.45mm x 7.20mm) 0.650" Dia x 0.197" T (16.50mm x 5.00mm) 0.650" Dia x 0.217" T (16.50mm x 5.50mm) 0.650" Dia x 0.228" T (16.50mm x 5.80mm) 0.650" Dia x 0.230" T (16.51mm x 5.84mm) 0.650" Dia x 0.270" T (16.51mm x 6.86mm) 0.650" Dia x 0.272" T (16.50mm x 6.90mm) 0.650" L x 0.098" W (16.50mm x 2.50mm) 0.650" L x 0.118" W (16.50mm x 3.00mm) 0.650" L x 0.122" W (16.50mm x 3.10mm) 0.650" L x 0.142" W (16.50mm x 3.60mm) 0.650" L x 0.157" W (16.50mm x 4.00mm) 0.660" Dia x 0.118" T (16.76mm x 3.00mm) 0.660" Dia x 0.122" T (16.76mm x 3.10mm) 0.669" Dia x 0.236" W (17.00mm x 6.00mm) 0.669" L x 0.098" W (17.00mm x 2.50mm) 0.669" L x 0.205" W (17.00mm x 5.20mm) 0.670" L x 0.115" W (16.95mm x 2.90mm) 0.670" L x 0.520" W (16.95mm x 2.90mm) 0.679" L x 0.201" W (17.25mm x 5.10mm) 0.681" L x 0.425" W (17.30mm x 10.80mm) 0.685" L x 0.118" W (17.40mm x 3.00mm) 0.685" L x 0.142" W (17.40mm x 3.60mm) 0.689" Dia x 0.118" T (17.50mm x 3.00mm) 0.689" Dia x 0.122" T (17.50mm x 3.10mm) 0.689" Dia x 0.138" T (17.50mm x 3.50mm) 0.689" Dia x 0.157" T (17.50mm x 4.00mm) 0.689" Dia x 0.161" T (17.50mm x 4.10mm) 0.689" Dia x 0.177" T (17.50mm x 4.50mm) 0.689" Dia x 0.197" T (17.50mm x 5.00mm) 0.689" L x 0.118" W (17.50mm x 3.00mm) 0.689" L x 0.120" W (17.50mm x 3.00mm) 0.689" L x 0.122" W (17.50mm x 3.10mm) 0.689" L x 0.138" W (17.50mm x 3.50mm) 0.689" L x 0.142" W (17.50mm x 3.60mm) 0.701" Dia (17.80mm) 0.701" Dia x 0.118" T (17.80mm x 3.00mm) 0.701" Dia x 0.122" T (17.80mm x 3.10mm) 0.701" L x 0.122" W (17.80mm x 3.10mm) 0.702" L x 0.118" W (17.84mm x 3.00mm) 0.702" L x 0.122" W (17.84mm x 3.10mm) 0.709" L x 0.122" W (18.00mm x 3.10mm) 0.724" L x 0.142" W (18.40mm x 3.60mm) 0.728" Dia x 0.217" T (18.50mm x 5.50mm) 0.736" Dia (18.70mm) 0.736" Dia x 0.201" T (18.70mm x 5.10mm) 0.740" Dia x 0.209" T (18.80mm x 5.30mm) 0.742" L x 0.297" W (18.85mm x 7.55mm) 0.742" L x 0.305" W (18.85mm x 7.75mm) 0.748" Dia x 0.354" T (19.00mm x 9.00mm) 0.750" Dia x 0.320" T (19.05mm x 8.13mm) 0.752" Dia x 0.181" T (19.10mm x 4.60mm) 0.752" L x 0.118" W (19.10mm x 3.00mm) 0.760" L x 0.118" W (19.30mm x 3.00mm) 0.783" Dia x 0.161" T (19.90mm x 4.10mm) 0.785" Dia x 0.118" T (19.93mm x 3.00mm) 0.785" Dia x 0.122" T (19.93mm x 3.10mm) 0.787" L x 0.156" W (20.00mm x 3.95mm) 0.787" L x 0.181" W (20.00mm x 4.60mm) 0.787" L x 0.205" W (20.00mm x 5.20mm) 0.787" L x 0.354" W (20.00mm x 9.00mm) 0.787" L x 0.402" W (20.00mm x 10.20mm) 0.799" Dia x 0.228" T (20.30mm x 5.80mm) 0.800" Dia x 0.230" T (20.32mm x 5.84mm) 0.807" Dia x 0.197" T (20.50mm x 5.00mm) 0.807" Dia x 0.217" T (20.50mm x 5.50mm) 0.814" L x 0.118" W (20.67mm x 3.00mm) 0.814" L x 0.122" W (20.67mm x 3.10mm) 0.819" Dia x 0.118" T (20.80mm x 3.00mm) 0.827" Dia x 0.236" T (21.00mm x 6.00mm) 0.827" L x 0.118" W (21.00mm x 3.00mm) 0.827" L x 0.142" W (21.00mm x 3.60mm) 0.827" L x 0.181" W (21.00mm x 4.60mm) 0.827" L x 0.199" W (21.00mm x 5.05mm) 0.827" L x 0.205" W (21.00mm x 5.20mm) 0.830" L x 0.150" W (21.10mm x 3.80mm) 0.831" Dia x 0.181" T (21.10mm x 4.60mm) 0.831" L x 0.150" W (21.10mm x 3.80mm) 0.835" Dia (21.20mm) 0.835" Dia x 0.209" T (21.20mm x 5.30mm) 0.839" Dia (21.30mm) 0.839" Dia x 0.118" T (21.30mm x 3.00mm) 0.839" Dia x 0.122" T (21.30mm x 3.10mm) 0.839" L x 0.122" W (21.30mm x 3.10mm) 0.850" Dia x 0.122" T (21.60mm x 3.10mm) 0.850" L x 0.118" W (21.60mm x 3.00mm) 0.850" L x 0.122" W (21.60mm x 3.10mm) 0.862" L x 0.201" W (21.90mm x 5.10mm) 0.865" Dia x 0.300" T (21.97mm x 7.62mm) 0.866" Dia x 0.138" T (22.00mm x 3.50mm) 0.866" Dia x 0.197" T (22.00mm x 5.00mm) 0.866" Dia x 0.217" T (22.00mm x 5.50mm) 0.866" Dia x 0.236" T (22.00mm x 6.00mm) 0.866" Dia x 0.256" T (22.00mm x 6.50mm) 0.866" L x 0.142" W (22.00mm x 3.60mm) 0.866" L x 0.146" W (22.00mm x 3.70mm) 0.866" L x 0.199" W (22.00mm x 5.05mm) 0.866" L x 0.201" W (22.00mm x 5.10mm) 0.866" L x 0.205" W (22.00mm x 5.20mm) 0.870" L x 0.118" W (22.10mm x 3.00mm) 0.874" L x 0.146" W (22.20mm x 3.70mm) 0.878" L x 0.201" W (22.30mm x 5.10mm) 0.880" L x 0.417" W (22.35mm x 10.60mm) 0.886" Dia x 0.161" T (22.50mm x 4.10mm) 0.886" L x 0.122" W (22.50mm x 3.10mm) 0.904" L x 0.114" W (22.96mm x 2.90mm) 0.906" L x 0.148" W (23.00mm x 3.75mm) 0.909" L x 0.177" W (23.10mm x 4.50mm) 0.909" L x 0.209" W (23.10mm x 5.30mm) 0.910" Dia x 0.118" T (23.11mm x 3.00mm) 0.910" Dia x 0.122" T (23.11mm x 3.10mm) 0.917" L x 0.154" W (23.30mm x 3.90mm) 0.921" Dia (23.40mm) 0.921" Dia x 0.210" T (23.40mm x 5.30mm) 0.925" L x 0.114" W (23.50mm x 2.90mm) 0.925" L x 0.122" W (23.50mm x 3.10mm) 0.925" L x 0.138" W (23.50mm x 3.50mm) 0.925" L x 0.142" W (23.50mm x 3.60mm) 0.925" L x 0.157" W (23.50mm x 4.00mm) 0.925" L x 0.161" W (23.50mm x 4.10mm) 0.926" L x 0.118" W (23.51mm x 3.00mm) 0.926" L x 0.122" W (23.51mm x 3.10mm) 0.935" L x 0.118" W (23.75mm x 3.00mm) 0.935" L x 0.122" W (23.75mm x 3.10mm) 0.937" Dia x 0.209" T (23.80mm x 5.30mm) 0.941" Dia x 0.118" T (23.90mm x 3.00mm) 0.945" L x 0.122" W (24.00mm x 3.10mm) 0.949" L x 0.118" W (24.10mm x 3.00mm) 0.949" L x 0.120" W (24.10mm x 3.00mm) 0.949" L x 0.142" W (24.10mm x 3.60mm) 0.950" L x 0.120" W (24.10mm x 3.00mm) 0.953" L x 0.118" W (24.20mm x 3.00mm) 0.957" L x 0.122" W (24.30mm x 3.10mm) 0.976" Dia x 0.122" T (24.80mm x 3.10mm) 0.980" Dia (24.90mm) 0.980" Dia x 0.118" T (24.90mm x 3.00mm) 0.980" Dia x 0.122" T (24.90mm x 3.10mm) 0.980" L x 0.122" W (24.90mm x 3.10mm) 0.980" L x 0.161" W (24.90mm x 4.10mm) 0.980" L x 0.240" W (24.90mm x 6.10mm) 0.984" L x 0.175" W (25.00mm x 4.40mm) 0.984" L x 0.199" W (25.00mm x 5.05mm) 0.984" L x 0.201" W (25.00mm x 5.10mm) 0.984" L x 0.205" W (25.00mm x 5.20mm) 0.984" L x 0.283" W (25.00mm x 7.20mm) 0.984" L x 0.402" W (25.00mm x 10.20mm) 0.984" L x 0.402" W (25.00mm x 10.21mm) 0.984" L x 0.413" W (25.00mm x 10.50mm) 0.984" L x 0.447" W (25.00mm x 11.35mm) 0.984" L x 0.559" W (25.00mm x 14.20mm) 0.984" L x 0.587" W (25.00mm x 14.90mm) 0.984" L x 0.604" W (25.00mm x 15.35mm) 0.987" L x 0.384" W (25.08mm x 9.75mm) 0.989" L x 0.122" W (25.10mm x 3.10mm) 0.992" L x 0.201" W (25.20mm x 5.10mm) 0.992" L x 0.240" W (25.20mm x 6.10mm) 1.004" Dia x 0.161" T (25.50mm x 4.10mm) 1.004" L x 0.906" W (25.50mm x 23.00mm) 1.008" L x 0.114" W (25.60mm x 2.90mm) 1.024" L x 0.209" W (26.00mm x 5.30mm) 1.024" L x 0.370" W (26.00mm x 9.40mm) 1.031" L x 0.181" W (26.20mm x 4.60mm) 1.035" Dia x 0.118" T (26.30mm x 3.00mm) 1.035" Dia x 0.122" T (26.30mm x 3.10mm) 1.057" L x 0.146" W (26.85mm x 3.70mm) 1.063" L x 0.146" W (27.00mm x 3.70mm) 1.063" L x 0.148" W (27.00mm x 3.75mm) 1.071" Dia x 0.118" T (27.20mm x 3.00mm) 1.071" Dia x 0.122" T (27.20mm x 3.10mm) 1.083" L x 0.756" W (27.50mm x 19.20mm) 1.085" L x 0.559" W (27.55mm x 14.20mm) 1.098" L x 0.142" W (27.90mm x 3.60mm) 1.106" L x 0.559" W (28.10mm x 14.20mm) 1.118" Dia x 0.118" T (28.40mm x 3.00mm) 1.118" Dia x 0.122" T (28.40mm x 3.10mm) 1.118" L x 0.122" W (28.40mm x 3.10mm) 1.122" Dia (28.50mm) 1.122" Dia x 0.122" T (28.50mm x 3.10mm) 1.122" L x 0.122" W (28.50mm x 3.10mm) 1.140" L x 0.120" W (29.00mm x 3.00mm) 1.161" Dia x 0.161" T (29.50mm x 4.10mm) 1.161" L x 0.205" W (29.50mm x 5.20mm) 1.163" L x 0.569" W (29.55mm x 14.45mm) 1.185" L x 0.522" W (30.10mm x 13.25mm) 1.185" L x 0.532" W (30.10mm x 13.50mm) 1.193" L x 0.433" W (30.30mm x 11.00mm) 1.201" L x 0.122" W (30.50mm x 3.10mm) 1.220" L x 0.148" W (31.00mm x 3.75mm) 1.240" L x 0.522" W (31.50mm x 13.25mm) 1.339" L x 0.205" W (34.00mm x 5.20mm) 1.417" L x 0.199" W (36.00mm x 5.05mm) 1.417" L x 0.283" W (36.00mm x 7.20mm) 1.437" L x 0.199" W (36.50mm x 5.05mm) 1.638" L x 0.283" W (41.60mm x 7.20mm) 1.831" L x 0.323" W (46.50mm x 8.20mm) 2.520" L x 0.382" W (64.00mm x 9.70mm)	- 0.028" (0.70mm) 0.037" (0.95mm) 0.039" (1.00mm) 0.043" (1.10mm) 0.057" (1.45mm) 0.059" (1.50mm) 0.118" (3.00mm) 0.146" (3.70mm) 0.197" (5.00mm) 0.201" (5.10mm) 0.205" (5.20mm) 0.217" (5.50mm) 0.256" (6.50mm) 0.262" (6.65mm) 0.270" (6.86mm) 0.295" (7.50mm) 0.300" (7.62mm) 0.315" (8.00mm) 0.327" (8.30mm) 0.335" (8.50mm) 0.350" (8.89mm) 0.350" (8.90mm) 0.354" (9.00mm) 0.366" (9.30mm) 0.370" (9.40mm) 0.374" (9.50mm) 0.378" (9.60mm) 0.386" (9.80mm) 0.390" (9.90mm) 0.394" (10.00mm) 0.398" (10.10mm) 0.400" (10.16mm) 0.402" (10.20mm) 0.409" (10.40mm) 0.413" (10.50mm) 0.421" (10.70mm) 0.425" (10.80mm) 0.429" (10.90mm) 0.430" (10.70mm) 0.433" (11.00mm) 0.441" (11.20mm) 0.449" (11.40mm) 0.450" (11.43mm) 0.453" (11.50mm) 0.457" (11.60mm) 0.461" (11.70mm) 0.470" (12.00mm) 0.472" (12.00mm) 0.476" (12.10mm) 0.480" (12.20mm) 0.484" (12.30mm) 0.488" (12.40mm) 0.492" (12.50mm) 0.496" (12.60mm) 0.500" (12.70mm) 0.504" (12.80mm) 0.508" (12.90mm) 0.512" (13.00mm) 0.516" (13.10mm) 0.520" (13.20mm) 0.528" (13.40mm) 0.531" (13.50mm) 0.532" (13.50mm) 0.535" (13.60mm) 0.539" (13.70mm) 0.543" (13.80mm) 0.550" (13.97mm) 0.551" (14.00mm) 0.555" (14.10mm) 0.559" (14.20mm) 0.563" (14.30mm) 0.567" (14.40mm) 0.570" (14.48mm) 0.571" (14.50mm) 0.583" (14.80mm) 0.587" (14.90mm) 0.591" (15.00mm) 0.598" (15.20mm) 0.600" (15.24mm) 0.606" (15.40mm) 0.610" (15.50mm) 0.614" (15.60mm) 0.618" (15.70mm) 0.622" (15.80mm) 0.626" (15.90mm) 0.630" (16.00mm) 0.634" (16.10mm) 0.638" (16.20mm) 0.642" (16.30mm) 0.650" (16.50mm) 0.650" (16.51mm) 0.657" (16.70mm) 0.661" (16.80mm) 0.662" (16.84mm) 0.663" (16.84mm) 0.665" (16.90mm) 0.669" (17.00mm) 0.673" (17.10mm) 0.681" (17.30mm) 0.685" (17.40mm) 0.689" (17.50mm) 0.701" (17.80mm) 0.705" (17.90mm) 0.709" (18.00mm) 0.710" (18.03mm) 0.717" (18.20mm) 0.718" (18.26mm) 0.720" (18.30mm) 0.724" (18.40mm) 0.728" (18.50mm) 0.732" (18.60mm) 0.740" (18.80mm) 0.744" (18.90mm) 0.748" (19.00mm) 0.750" (19.05mm) 0.752" (19.10mm) 0.756" (19.20mm) 0.760" (19.30mm) 0.768" (16.50mm) 0.768" (19.50mm) 0.772" (19.60mm) 0.776" (19.70mm) 0.780" (19.80mm) 0.783" (19.90mm) 0.785" (19.94mm) 0.787" (20.00mm) 0.791" (20.10mm) 0.799" (20.30mm) 0.803" (20.40mm) 0.807" (20.50mm) 0.811" (20.60mm) 0.819" (20.80mm) 0.822" (20.87mm) 0.823" (20.90mm) 0.827" (21.00mm) 0.831" (21.10mm) 0.834" (21.18mm) 0.835" (21.20mm) 0.839" (21.30mm) 0.843" (21.40mm) 0.846" (21.50mm) 0.850" (21.60mm) 0.854" (21.70mm) 0.858" (21.80mm) 0.862" (21.90mm) 0.866" (22.00mm) 0.874" (22.20mm) 0.880" (22.36mm) 0.882" (22.40mm) 0.886" (22.50mm) 0.900" (22.86mm) 0.902" (22.90mm) 0.906" (23.00mm) 0.913" (23.20mm) 0.917" (23.30mm) 0.921" (23.40mm) 0.925" (23.50mm) 0.929" (23.60mm) 0.937" (23.80mm) 0.939" (23.84mm) 0.945" (24.00mm) 0.949" (24.10mm) 0.957" (24.30mm) 0.961" (24.40mm) 0.965" (24.50mm) 0.969" (24.60mm) 0.972" (24.70mm) 0.976" (24.80mm) 0.980" (24.90mm) 0.984" (25.00mm) 0.988" (25.10mm) 0.990" (25.15mm) 0.992" (25.20mm) 1.000" (25.40mm) 1.004" (25.50mm) 1.008" (25.60mm) 1.012" (25.70mm) 1.020" (25.90mm) 1.024" (26.00mm) 1.028" (26.10mm) 1.032" (26.20mm) 1.039" (26.40mm) 1.043" (26.50mm) 1.047" (26.60mm) 1.050" (26.67mm) 1.051" (26.70mm) 1.055" (26.80mm) 1.071" (27.20mm) 1.079" (27.40mm) 1.083" (27.50mm) 1.091" (27.70mm) 1.098" (27.90mm) 1.102" (28.00mm) 1.118" (28.40mm) 1.122" (28.50mm) 1.126" (28.60mm) 1.130" (28.70mm) 1.134" (28.80mm) 1.138" (28.90mm) 1.142" (29.00mm) 1.150" (29.20mm) 1.154" (29.30mm) 1.161" (29.50mm) 1.162" (29.51mm) 1.165" (29.60mm) 1.169" (29.70mm) 1.173" (29.80mm) 1.181" (30.00mm) 1.189" (30.20mm) 1.205" (30.60mm) 1.217" (30.90mm) 1.220" (31.00mm) 1.224" (31.10mm) 1.228" (31.20mm) 1.240" (31.50mm) 1.244" (31.60mm) 1.252" (31.80mm) 1.256" (31.90mm) 1.260" (32.00mm) 1.291" (32.80mm) 1.295" (32.90mm) 1.319" (33.50mm) 1.327" (33.70mm) 1.331" (33.80mm) 1.339" (34.00mm) 1.346" (34.20mm) 1.370" (34.80mm)	- 0.016" (0.40mm) 0.017" (0.43mm) 0.019" (0.48mm) 0.021" (0.53mm) 0.022" (0.55mm) 0.024" (0.60mm) 0.024" (0.62mm) 0.025" (0.63mm) 0.025" (0.64mm) 0.026" (0.65mm) 0.026" (0.67mm) 0.027" (0.68mm) 0.028" (0.70mm) 0.028" (0.71mm) 0.029" (0.74mm) 0.030" (0.75mm) 0.030" (0.76mm) 0.031" (0.78mm) 0.031" (0.80mm) 0.032" (0.80mm) 0.032" (0.81mm) 0.032" (0.82mm) 0.033" (0.85mm) 0.035" (0.88mm) 0.035" (0.89mm) 0.035" (0.90mm) 0.037" (0.93mm) 0.037" (0.95mm) 0.038" (0.97mm) 0.039" (0.98mm) 0.039" (1.00mm) 0.040" (1.02mm) 0.041" (1.05mm) 0.042" (1.06mm) 0.042" (1.07mm) 0.043" (1.09mm) 0.043" (1.10mm) 0.045" (1.14mm) 0.045" (1.15mm) 0.046" (1.17mm) 0.047" (1.20mm) 0.048" (1.22mm) 0.049" (1.25mm) 0.051" (1.30mm) 0.053" (1.34mm) 0.053" (1.35mm) 0.055" (1.40mm) 0.057" (1.45mm) 0.057" (1.46mm) 0.059" (1.50mm) 0.060" (1.52mm) 0.061" (1.55mm) 0.063" (1.60mm) 0.067" (1.70mm) 0.070" (1.78mm) 0.071" (1.80mm) 0.076" (1.94mm) 0.077" (1.95mm) 0.079" (2.00mm) 0.083" (2.10mm) 0.089" (2.25mm) 0.091" (2.30mm) 0.102" (2.60mm) 0.118" (3.00mm) 0.125" (3.18mm) 0.126" (3.20mm) 0.134" (3.40mm) 0.134" (3.41mm) 0.142" (3.60mm) 0.146" (3.70mm) 0.150" (3.80mm) 0.185" (4.70mm) 0.272" (6.90mm) 0.276" (7.00mm) 0.335" (8.50mm) 0.354" (9.00mm) 0.402" (10.20mm) 0.413" (10.50mm) 0.425" (10.80mm) 0.451" (11.45mm) 0.453" (11.50mm) 0.461" (11.70mm) 0.484" (12.30mm) 0.485" (12.32mm)	- 0.099" (2.51mm) 0.114" (2.90mm) 0.118" (3.00mm) 0.142" (3.60mm) 0.150" (3.81mm) 0.197" (5.00mm) 0.199" (5.05mm) 0.200" (5.08mm) 0.201" (5.10mm) 0.215" (5.45mm) 0.217" (5.50mm) 0.228" (5.80mm) 0.236" (6.00mm) 0.250" (6.35mm) 0.252" (6.40mm) 0.256" (6.50mm) 0.295" (7.50mm) 0.307" (7.80mm) 0.320" (8.12mm) 0.328" (8.33mm) 0.330" (8.38mm) 0.331" (8.40mm) 0.348" (8.83mm) 0.374" (9.50mm) 0.392" (9.95mm) 0.394" (10.00mm) 0.400" (10.15mm) 0.402" (10.20mm) 0.413" (10.50mm)

Reset All

Apply All

Result

PTC Resettable Fuses

PTC Resettable Fuses are circuit protection components used to protect electronic systems from overcurrent, short-circuit and fault conditions. Unlike one-time fuses, PTC resettable fuses increase resistance during a fault and can return to a low-resistance state after the fault is removed and the device cools down.

This category includes polymer PTC resettable fuses, PPTC fuses, radial leaded PTC fuses, surface-mount PTC fuses and related overcurrent protection components. These devices are commonly selected based on hold current, trip current, rated voltage, resistance, response time, package type, operating temperature and application requirements.

TomatoElec supplies original PTC Resettable Fuses from recognized manufacturers such as Littelfuse, Bourns, Eaton, Bel Fuse, TE Connectivity, Murata, TDK, Panasonic and other major brands. As an in-stock electronic components supplier and independent distributor, TomatoElec provides inventory support, original component sourcing and BOM sourcing services for global customers.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Series	Packaging	Product Status	Type	Voltage - Max	Current - Hold (Ih) (Max)	Current - Trip (It)	Current - Max	Time to Trip	Resistance - Initial (Ri) (Min)	Resistance - Post Trip (R1) (Max)	Resistance - 25°C (Typ)	Operating Temperature	Grade	Qualification	Ratings	Mounting Type	Size / Dimension	Height - Seated (Max)	Thickness (Max)	Lead Spacing
RUEF250 PTC RESET FUSE 30V 2.5A RADIAL Littelfuse Inc.	18,917	-	RFQ	Datasheet	Radial, Disc	PolySwitch®, RUEF	Bag	Active	Polymeric	30V	2.5 A	5 A	100 A	10.3 s	20 mOhms	70 mOhms	-	-	-	-	-	Through Hole	0.449" L x 0.118" W (11.40mm x 3.00mm)	0.720" (18.30mm)	-	0.199" (5.05mm)
MICROSMD050F-2 PTC RESET FUSE 13.2V 500MA 1210 Littelfuse Inc.	17,296	-	RFQ	Datasheet	1210 (3225 Metric), Concave	PolySwitch®, microSMD	Tape & Reel (TR)	Active	Polymeric	13.2V	500 mA	1 A	40 A	50 ms	250 mOhms	900 mOhms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.127" L x 0.102" W (3.22mm x 2.58mm)	-	0.024" (0.62mm)	-
MINISMDC200F-2 PTC RESET FUSE 8V 2A 1812 Littelfuse Inc.	14,067	-	RFQ	Datasheet	1812 (4532 Metric), Concave	PolySwitch®, miniSMD	Tape & Reel (TR)	Active	Polymeric	8V	2 A	4 A	100 A	5 s	20 mOhms	70 mOhms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.179" L x 0.128" W (4.55mm x 3.24mm)	-	0.048" (1.22mm)	-
MINIASMDC030F-2 PTC RESET FUSE 30V 300MA 1812 Littelfuse Inc.	1,951	-	RFQ	Datasheet	1812 (4532 Metric), Concave	PolySwitch®, miniASMD	Tape & Reel (TR)	Active	Polymeric	30V	300 mA	600 mA	40 A	100 ms	200 mOhms	1.75 Ohms	-	-40°C ~ 85°C	Automotive	AEC-Q200	-	Surface Mount	0.179" L x 0.128" W (4.55mm x 3.24mm)	-	0.035" (0.89mm)	-
MINISMDC110F/16-2 PTC RESET FUSE 16V 1.1A 1812 Littelfuse Inc.	17,302	-	RFQ	Datasheet	1812 (4532 Metric), Concave	PolySwitch®, miniSMD	Tape & Reel (TR)	Active	Polymeric	16V	1.1 A	2.2 A	100 A	300 ms	60 mOhms	180 mOhms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.181" L x 0.128" W (4.60mm x 3.24mm)	-	0.019" (0.48mm)	-
2920L250DR PTC RESET FUSE 15V 2.5A 2920 Littelfuse Inc.	155,317	-	RFQ	Datasheet	2920 (7351 Metric), Concave	POLY-FUSE®, 2920L	Tape & Reel (TR)	Active	Polymeric	15V	2.5 A	5 A	40 A	10 s	35 mOhms	85 mOhms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.289" L x 0.202" W (7.35mm x 5.12mm)	-	0.049" (1.25mm)	-
MF-NSHT035KX-2 PTC RESET FUSE 30V 350MA 1206 Bourns Inc.	3,555	-	RFQ	Datasheet	1206 (3216 Metric), Concave	Multifuse®, MF-NSHT	Tape & Reel (TR)	Active	Polymeric	30V	350 mA	1.75 A	20 A	100 ms	400 mOhms	2.6 Ohms	-	-40°C ~ 125°C	Automotive	AEC-Q200	-	Surface Mount	0.126" L x 0.063" W (3.20mm x 1.60mm)	-	0.033" (0.85mm)	-
MINISMDC150F/16-2 PTC RESET FUSE 16V 1.5A 1812 Littelfuse Inc.	2,947	-	RFQ	Datasheet	1812 (4532 Metric), Concave	PolySwitch®, miniSMD	Tape & Reel (TR)	Active	Polymeric	16V	1.5 A	2.8 A	100 A	500 ms	40 mOhms	110 mOhms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.181" L x 0.128" W (4.60mm x 3.24mm)	-	0.019" (0.48mm)	-
1206L005/60WR PTC RESET FUSE 60V 50MA 1206 Littelfuse Inc.	12,313	-	RFQ	Datasheet	1206 (3216 Metric), Concave	POLY-FUSE®, 1206L	Tape & Reel (TR)	Active	Polymeric	60V	50 mA	150 mA	10 A	1.5 s	3.6 Ohms	20 Ohms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.126" L x 0.065" W (3.20mm x 1.65mm)	-	0.049" (1.25mm)	-
1206L020/30YR PTC RESET FUSE 30V 20MA 1206 Littelfuse Inc.	11,430	-	RFQ	Datasheet	1206 (3216 Metric), Concave	POLY-FUSE®, 1206L	Tape & Reel (TR)	Active	Polymeric	30V	200 mA	420 mA	100 A	100 ms	650 mOhms	2.6 Ohms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.126" L x 0.065" W (3.20mm x 1.65mm)	-	0.039" (1.00mm)	-
RXEF110 PTC RESET FUSE 72V 1.1A RADIAL Littelfuse Inc.	8,627	-	RFQ	Datasheet	Radial, Disc	PolySwitch®, RXEF	Bag	Active	Polymeric	72V	1.1 A	2.2 A	40 A	8.2 s	150 mOhms	380 mOhms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.504" Dia x 0.118" T (12.80mm x 3.00mm)	0.689" (17.50mm)	-	0.200" (5.08mm)

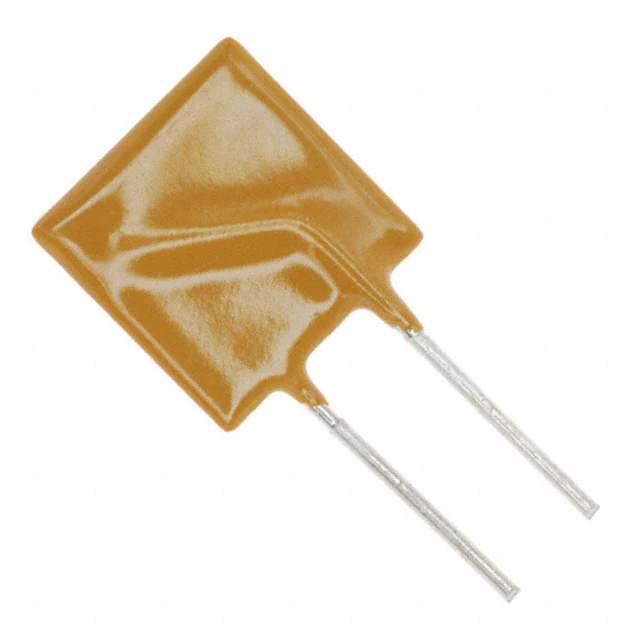

MF-R250 PTC RESET FUSE 30V 2.5A RADIAL Bourns Inc.	8,420	-	RFQ	Datasheet	Radial, Disc	Multifuse®, MF-R	Bulk	Active	Polymeric	30V	2.5 A	5 A	40 A	10.3 s	25 mOhms	70 mOhms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.472" L x 0.118" W (12.00mm x 3.00mm)	0.720" (18.30mm)	-	0.201" (5.10mm)
MICROSMD075F-2 PTC RESET FUSE 6V 750MA 1210 Littelfuse Inc.	7,618	-	RFQ	Datasheet	1210 (3225 Metric), Concave	PolySwitch®, microSMD	Tape & Reel (TR)	Active	Polymeric	6V	750 mA	1.5 A	40 A	100 ms	110 mOhms	400 mOhms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.127" L x 0.102" W (3.22mm x 2.58mm)	-	0.024" (0.62mm)	-
MICROSMD035F-2 PTC RESET FUSE 6V 350MA 1210 Littelfuse Inc.	7,592	-	RFQ	Datasheet	1210 (3225 Metric), Concave	PolySwitch®, microSMD	Tape & Reel (TR)	Active	Polymeric	6V	350 mA	750 mA	40 A	200 ms	320 mOhms	1.3 Ohms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.127" L x 0.102" W (3.22mm x 2.58mm)	-	0.024" (0.62mm)	-
PRG21BC4R7MM1RA PTC RESET FUSE 30V 155MA 0805 Murata Electronics	5,448	-	RFQ	Datasheet	0805 (2012 Metric)	POSISTOR®, PRG	Tape & Reel (TR)	Active	Ceramic	30V	155 mA	330 mA	8 A	-	-	-	4.7 Ohms	-20°C ~ 85°C	-	-	-	Surface Mount	0.079" L x 0.049" W (2.00mm x 1.25mm)	-	0.043" (1.10mm)	-
PRG21BC6R8MM1RA PTC RESET FUSE 30V 120MA 0805 Murata Electronics	2,183	-	RFQ	Datasheet	0805 (2012 Metric)	POSISTOR®, PRG	Tape & Reel (TR)	Active	Ceramic	30V	120 mA	260 mA	5.5 A	-	-	-	6.8 Ohms	-20°C ~ 85°C	-	-	-	Surface Mount	0.079" L x 0.049" W (2.00mm x 1.25mm)	-	0.043" (1.10mm)	-
RUEF300 PTC RESET FUSE 30V 3A RADIAL Littelfuse Inc.	14,064	-	RFQ	Datasheet	Radial, Disc	PolySwitch®, RUEF	Bag	Active	Polymeric	30V	3 A	6 A	100 A	10.8 s	20 mOhms	80 mOhms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.449" L x 0.118" W (11.40mm x 3.00mm)	0.650" (16.50mm)	-	0.199" (5.05mm)
SMD200F/24-2920-2 PTC RESET FUSE 24V 2A 2SMD Littelfuse Inc.	11,076	-	RFQ	Datasheet	2-SMD	PolySwitch®, SMD	Tape & Reel (TR)	Active	Polymeric	24V	2 A	4 A	40 A	5 s	50 mOhms	125 mOhms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.290" L x 0.202" W (7.36mm x 5.12mm)	-	0.118" (3.00mm)	-
1812L110/33MR PTC RESET FUSE 33V 1.1A 1812 Littelfuse Inc.	33,085	-	RFQ	Datasheet	1812 (4532 Metric), Concave	POLY-FUSE®, 1812L	Tape & Reel (TR)	Active	Polymeric	33V	1.1 A	1.95 A	20 A	500 ms	60 mOhms	200 mOhms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.179" L x 0.128" W (4.55mm x 3.24mm)	-	0.079" (2.00mm)	-
RGEF300K-2 PTC RESET FUSE 16V 3A RADIAL Littelfuse Inc.	18,220	-	RFQ	Datasheet	Radial, Disc	PolySwitch®, RGEF	Tape & Reel (TR)	Active	Polymeric	16V	3 A	5.1 A	100 A	1 s	38 mOhms	97.5 mOhms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.260" L x 0.098" W (6.60mm x 2.50mm)	0.535" (13.60mm)	-	0.199" (5.05mm)

Total 4956 Record«Prev 1... 4 5 6 789 10 11...248 Next»
