PTC Resettable Fuses

PTC Resettable Fuses are circuit protection components used to protect electronic systems from overcurrent, short-circuit and fault conditions. Unlike one-time fuses, PTC resettable fuses increase resistance during a fault and can return to a low-resistance state after the fault is removed and the device cools down.

This category includes polymer PTC resettable fuses, PPTC fuses, radial leaded PTC fuses, surface-mount PTC fuses and related overcurrent protection components. These devices are commonly selected based on hold current, trip current, rated voltage, resistance, response time, package type, operating temperature and application requirements.

TomatoElec supplies original PTC Resettable Fuses from recognized manufacturers such as Littelfuse, Bourns, Eaton, Bel Fuse, TE Connectivity, Murata, TDK, Panasonic and other major brands. As an in-stock electronic components supplier and independent distributor, TomatoElec provides inventory support, original component sourcing and BOM sourcing services for global customers.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Series	Packaging	Product Status	Type	Voltage - Max	Current - Hold (Ih) (Max)	Current - Trip (It)	Current - Max	Time to Trip	Resistance - Initial (Ri) (Min)	Resistance - Post Trip (R1) (Max)	Resistance - 25°C (Typ)	Operating Temperature	Grade	Qualification	Ratings	Mounting Type	Size / Dimension	Height - Seated (Max)	Thickness (Max)	Lead Spacing
MF-RX075/72-0 PTC RESET FUSE 72V 750MA RADIAL Bourns Inc.	1,332	-	RFQ	Datasheet	Radial, Disc	Multifuse®, MF-RX/72	Bulk	Active	Polymeric	72V	750 mA	1.5 A	40 A	6.3 s	180 mOhms	600 mOhms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.409" Dia x 0.122" T (10.40mm x 3.10mm)	0.630" (16.00mm)	-	0.201" (5.10mm)
RKEF065-AP PTC RESET FUSE 60V 650MA RADIAL Littelfuse Inc.	1,224	-	RFQ	Datasheet	Radial, Disc	PolySwitch®, RKEF	Cut Tape (CT)	Active	Polymeric	60V	650 mA	1.3 A	40 A	1 s	250 mOhms	720 mOhms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.280" L x 0.140" W (7.10mm x 3.56mm)	0.480" (12.20mm)	-	0.199" (5.05mm)
RUEF185-AP PTC RESET FUSE 30V 1.85A RADIAL Littelfuse Inc.	3,914	-	RFQ	Datasheet	Radial, Disc	PolySwitch®, RUEF	Cut Tape (CT)	Active	Polymeric	30V	1.85 A	3.7 A	100 A	8.7 s	30 mOhms	90 mOhms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.402" Dia x 0.118" T (10.20mm x 3.00mm)	0.618" (15.70mm)	-	0.199" (5.05mm)
PTSA120624V020 PTC RESET FUSE 200MA 24V 1206 Eaton - Electronics Division	3,807	-	RFQ	Datasheet	1206 (3216 Metric), Concave	PTSA1206	Tape & Reel (TR)	Active	-	24V	200 mA	420 mA	40 A	100 ms	300 mOhms	3.1 Ohms	-	-40°C ~ 85°C	Automotive	AEC-Q200	-	Surface Mount	0.132" L x 0.067" W (3.35mm x 1.70mm)	-	0.039" (1.00mm)	-
PTSA120648V016 PTC RESET FUSE 160MA 48V 1206 Eaton - Electronics Division	3,742	-	RFQ	Datasheet	1206 (3216 Metric), Concave	PTSA1206	Tape & Reel (TR)	Active	-	48V	160 mA	450 mA	10 A	400 ms	1.1 Ohms	5 Ohms	-	-40°C ~ 85°C	Automotive	AEC-Q200	-	Surface Mount	0.132" L x 0.067" W (3.35mm x 1.70mm)	-	0.039" (1.00mm)	-
MF-FSML175/8-2 PTC RESET FUSE 8V 1.75A 0603 Bourns Inc.	2,979	-	RFQ	Datasheet	0603 (1608 Metric), Concave	Multifuse®, MF-FSML	Tape & Reel (TR)	Active	Polymeric	8V	1.75 A	3.5 A	50 A	5 s	8 mOhms	70 mOhms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.065" L x 0.033" W (1.65mm x 0.85mm)	-	0.055" (1.40mm)	-
PTSA120648V012 PTC RESET FUSE 120MA 48V 1206 Eaton - Electronics Division	2,123	-	RFQ	Datasheet	1206 (3216 Metric), Concave	PTSA1206	Tape & Reel (TR)	Active	-	48V	120 mA	390 mA	10 A	300 ms	1.2 Ohms	15 Ohms	-	-40°C ~ 85°C	Automotive	AEC-Q200	-	Surface Mount	0.132" L x 0.067" W (3.35mm x 1.70mm)	-	0.039" (1.00mm)	-
0ZRG0250FF1E PTC RESET FUSE 30V 2.5A RADIAL Bel Fuse Inc.	1,004	-	RFQ	Datasheet	Radial, Disc	0ZRG	Bulk	Active	Polymeric	30V	2.5 A	5 A	40 A	40 s	20 mOhms	70 mOhms	-	-40°C ~ 85°C	Automotive	AEC-Q200	-	Through Hole	0.449" L x 0.118" W (11.40mm x 3.00mm)	0.720" (18.30mm)	-	0.201" (5.10mm)
RKEF075-2 PTC RESET FUSE 60V 750MA RADIAL Littelfuse Inc.	14,074	-	RFQ	Datasheet	Radial, Disc	PolySwitch®, RKEF	Tape & Reel (TR)	Active	Polymeric	60V	750 mA	1.5 A	40 A	1.5 s	200 mOhms	640 mOhms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.402" L x 0.118" W (10.20mm x 3.00mm)	0.598" (15.20mm)	-	0.199" (5.05mm)
PFSM.125.2 PTC RESET FUSE 15V 1.25A 2SMD SCHURTER Inc.	1,990	-	RFQ	Datasheet	2-SMD	PFSM	Tape & Reel (TR)	Active	Polymeric	15V	1.25 A	2.5 A	100 A	2 s	70 mOhms	250 mOhms	-	-40°C ~ 85°C	Automotive	AEC-Q200	-	Surface Mount	0.289" L x 0.214" W (7.36mm x 5.44mm)	-	0.118" (3.00mm)	-
RUSBF185-2 PTC RESET FUSE 16V 1.85A RADIAL Littelfuse Inc.	2,970	-	RFQ	Datasheet	Radial, Disc	PolySwitch®, RUSBF	Tape & Reel (TR)	Active	Polymeric	16V	1.85 A	3.7 A	40 A	10 s	30 mOhms	90 mOhms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.402" L x 0.118" W (10.20mm x 3.00mm)	0.618" (15.70mm)	-	0.199" (5.05mm)
MF-R185-0-17 PTC RESETTABLE 1.85A 30V RADIAL Bourns Inc.	5,000	-	RFQ	Datasheet	Radial, Disc	Multifuse®, MF-R	Bulk	Active	Polymeric	30V	1.85 A	3.7 A	40 A	8.7 s	40 mOhms	110 mOhms	-	-40°C ~ 85°C	Automotive	AEC-Q200	-	Through Hole	0.472" Dia x 0.118" T (12.00mm x 3.00mm)	0.724" (18.40mm)	-	0.201" (5.10mm)
PTSLR08058V350 PTC RESET FUSE 3.5A 8V 0805 Eaton - Electronics Division	3,902	-	RFQ	Datasheet	0805 (2012 Metric), Concave	PTSLR0805	Tape & Reel (TR)	Active	-	8V	3.5 A	7 A	50 A	5 s	4 mOhms	18 mOhms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.098" L x 0.063" W (2.50mm x 1.60mm)	-	0.039" (1.00mm)	-
MINIASMDC125F/16-2 PTC RESET FUSE 16V 1.25A 1812 Littelfuse Inc.	1,500	-	RFQ	Datasheet	1812 (4532 Metric), Concave	PolySwitch®, miniASMD	Tape & Reel (TR)	Active	Polymeric	16V	1.25 A	2.5 A	100 A	400 ms	50 mOhms	140 mOhms	-	-40°C ~ 85°C	Automotive	AEC-Q200	-	Surface Mount	0.181" L x 0.128" W (4.60mm x 3.24mm)	-	0.019" (0.48mm)	-
MF-S175 PTC RESET FUSE 15V 1.75A STRAP Bourns Inc.	5,530	-	RFQ	Datasheet	Strap	Multifuse®, MF-S	Bulk	Active	Polymeric	15V	1.75 A	3.8 A	100 A	4 s	50 mOhms	120 mOhms	-	-40°C ~ 85°C	-	-	-	User Defined	0.827" L x 0.199" W (21.00mm x 5.05mm)	-	0.039" (1.00mm)	-
TCF250-100T-B-0.5 PTC RESET FUSE 60V 90MA SMD Littelfuse Inc.	1,961	-	RFQ	Datasheet	Nonstandard SMD	PolySwitch®, TCF250	Bag	Active	Polymeric	60V (250V Int)	90 mA	150 mA	3 A	200 ms	14 Ohms	24 Ohms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.187" L x 0.187" W (4.75mm x 4.75mm)	-	0.091" (2.30mm)	-
72R020XPR PTC RESET FUSE 72V 200MA RADIAL Littelfuse Inc.	1,864	-	RFQ	Datasheet	Radial, Disc	POLY-FUSE®, 72R	Cut Tape (CT)	Active	Polymeric	72V	200 mA	400 mA	40 A	2.2 s	1.83 Ohms	4.4 Ohms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.291" Dia x 0.122" T (7.40mm x 3.10mm)	0.461" (11.70mm)	-	0.201" (5.10mm)
PTR060V0030-TR PTC RESET FUSE 60V 300MA RADIAL Eaton - Electronics Division	5,909	-	RFQ	Datasheet	Radial, Disc	PTR060V	Tape & Reel (TR)	Active	Polymeric	60V	300 mA	600 mA	40 A	3 s	880 mOhms	2.1 Ohms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.291" Dia x 0.118" T (7.40mm x 3.00mm)	0.512" (13.00mm)	-	0.197" (5.00mm)
RUSBF135-2 PTC RESET FUSE 16V 1.35A RADIAL Littelfuse Inc.	2,406	-	RFQ	Datasheet	Radial, Disc	PolySwitch®, RUSBF	Tape & Reel (TR)	Active	Polymeric	16V	1.35 A	2.7 A	40 A	4.5 s	40 mOhms	112 mOhms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.350" L x 0.118" W (8.90mm x 3.00mm)	0.532" (13.50mm)	-	0.199" (5.05mm)

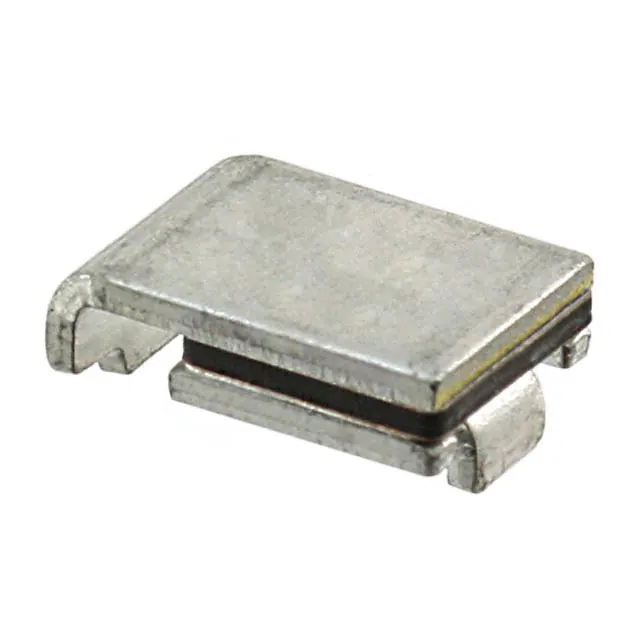

ASMD185F-2 PTC RESET FUSE 16V 1.85A 2SMD Littelfuse Inc.	1,917	-	RFQ	Datasheet	2-SMD	PolySwitch®, ASMD	Tape & Reel (TR)	Active	Polymeric	16V	1.85 A	3.7 A	40 A	11.3 s	32 mOhms	126 mOhms	-	-40°C ~ 85°C	Automotive	AEC-Q200	-	Surface Mount	0.343" L x 0.250" W (8.70mm x 6.36mm)	-	0.118" (3.00mm)	-

Total 4956 Record«Prev 1... 64 65 66 676869 70 71...248 Next»
