PTC Resettable Fuses

PTC Resettable Fuses are circuit protection components used to protect electronic systems from overcurrent, short-circuit and fault conditions. Unlike one-time fuses, PTC resettable fuses increase resistance during a fault and can return to a low-resistance state after the fault is removed and the device cools down.

This category includes polymer PTC resettable fuses, PPTC fuses, radial leaded PTC fuses, surface-mount PTC fuses and related overcurrent protection components. These devices are commonly selected based on hold current, trip current, rated voltage, resistance, response time, package type, operating temperature and application requirements.

TomatoElec supplies original PTC Resettable Fuses from recognized manufacturers such as Littelfuse, Bourns, Eaton, Bel Fuse, TE Connectivity, Murata, TDK, Panasonic and other major brands. As an in-stock electronic components supplier and independent distributor, TomatoElec provides inventory support, original component sourcing and BOM sourcing services for global customers.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Series	Packaging	Product Status	Type	Voltage - Max	Current - Hold (Ih) (Max)	Current - Trip (It)	Current - Max	Time to Trip	Resistance - Initial (Ri) (Min)	Resistance - Post Trip (R1) (Max)	Resistance - 25°C (Typ)	Operating Temperature	Grade	Qualification	Ratings	Mounting Type	Size / Dimension	Height - Seated (Max)	Thickness (Max)	Lead Spacing
PTSLR06038V100 PTC RESET FUSE 1A 8V 0603 Eaton - Electronics Division	5,131	-	RFQ	Datasheet	0603 (1608 Metric), Concave	PTSLR0603	Tape & Reel (TR)	Active	-	8V	1 A	2 A	25 A	2 s	30 mOhms	150 mOhms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.071" L x 0.039" W (1.80mm x 1.00mm)	-	0.039" (1.00mm)	-
MINIASMDC050F-2 PTC RESET FUSE 24V 500MA 1812 Littelfuse Inc.	4,943	-	RFQ	Datasheet	1812 (4532 Metric), Concave	PolySwitch®, miniASMD	Tape & Reel (TR)	Active	Polymeric	24V	500 mA	1 A	100 A	150 ms	150 mOhms	1 Ohms	-	-40°C ~ 85°C	Automotive	AEC-Q200	-	Surface Mount	0.179" L x 0.128" W (4.55mm x 3.24mm)	-	0.024" (0.62mm)	-
RUEF110-2 PTC RESET FUSE 30V 1.1A RADIAL Littelfuse Inc.	4,391	-	RFQ	Datasheet	Radial, Disc	PolySwitch®, RUEF	Tape & Reel (TR)	Active	Polymeric	30V	1.1 A	2.2 A	100 A	6.6 s	70 mOhms	170 mOhms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.291" Dia x 0.118" T (7.40mm x 3.00mm)	0.559" (14.20mm)	-	0.199" (5.05mm)
RKEF075 PTC RESET FUSE 60V 750MA RADIAL Littelfuse Inc.	2,967	-	RFQ	Datasheet	Radial, Disc	PolySwitch®, RKEF	Bag	Active	Polymeric	60V	750 mA	1.5 A	40 A	1.5 s	200 mOhms	640 mOhms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.310" L x 0.140" W (7.87mm x 3.56mm)	0.480" (12.20mm)	-	0.199" (5.05mm)

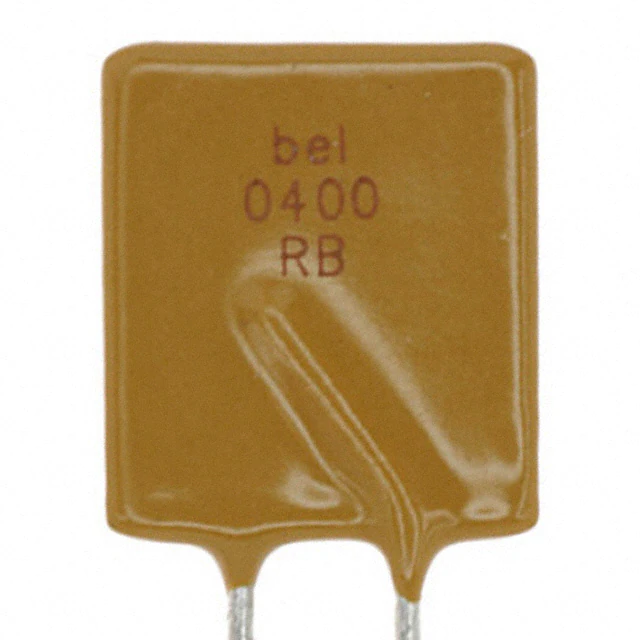

0ZRB0400FF1A PTC RESET FUSE 30V 4A RADIAL Bel Fuse Inc.	2,270	-	RFQ	Datasheet	Radial, Disc	0ZRB	Box	Active	Polymeric	30V	4 A	8 A	40 A	12.7 s	10 mOhms	50 mOhms	-	-40°C ~ 85°C	Automotive	AEC-Q200	-	Through Hole	0.551" L x 0.118" W (14.00mm x 3.00mm)	0.791" (20.10mm)	-	0.201" (5.10mm)
MF-RM005/240-2 PTC RESET FUSE 240V 50MA RADIAL Bourns Inc.	12,719	-	RFQ	Datasheet	Radial, Disc	Multifuse®, MF-RM	Tape & Reel (TR)	Active	Polymeric	240V (265V Int)	50 mA	120 mA	1 A	10 s	18.5 Ohms	65 Ohms	-	-20°C ~ 85°C	-	-	-	Through Hole	0.327" Dia x 0.150" T (8.30mm x 3.80mm)	0.508" (12.90mm)	-	0.114" (2.90mm)
PRG21AR420MB1RA PTC RESET FUSE 20V 54MA 0805 Murata Electronics	9,991	-	RFQ	Datasheet	0805 (2012 Metric)	POSISTOR®, PRG	Tape & Reel (TR)	Active	Ceramic	20V	54 mA	100 mA	590 mA	-	-	-	42 Ohms	-10°C ~ 60°C	-	-	-	Surface Mount	0.079" L x 0.049" W (2.00mm x 1.25mm)	-	0.043" (1.10mm)	-
1210L110THYR PTC RESET FUSE 8V 1.1A 1210 Littelfuse Inc.	5,787	-	RFQ	Datasheet	1210 (3225 Metric), Concave	POLY-FUSE®, 1210L	Tape & Reel (TR)	Active	Polymeric	8V	1.1 A	2.2 A	100 A	100 ms	60 mOhms	210 mOhms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.127" L x 0.102" W (3.22mm x 2.58mm)	-	0.028" (0.71mm)	-
MINIASMDC014F-2 PTC RESET FUSE 60V 140MA 1812 Littelfuse Inc.	5,483	-	RFQ	Datasheet	1812 (4532 Metric), Concave	PolySwitch®, miniASMD	Tape & Reel (TR)	Active	Polymeric	60V	140 mA	280 mA	10 A	8 ms	1.5 Ohms	6 Ohms	-	-40°C ~ 85°C	Automotive	AEC-Q200	-	Surface Mount	0.179" L x 0.128" W (4.55mm x 3.24mm)	-	0.035" (0.89mm)	-
MF-R160-2 PTC RESET FUSE 30V 1.6A RADIAL Bourns Inc.	5,087	-	RFQ	Datasheet	Radial, Disc	Multifuse®, MF-R	Tape & Reel (TR)	Active	Polymeric	30V	1.6 A	3.2 A	40 A	8 s	55 mOhms	150 mOhms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.402" Dia x 0.118" T (10.20mm x 3.00mm)	0.661" (16.80mm)	-	0.201" (5.10mm)
MF-R185-2 PTC RESET FUSE 30V 1.85A RADIAL Bourns Inc.	4,684	-	RFQ	Datasheet	Radial, Disc	Multifuse®, MF-R	Tape & Reel (TR)	Active	Polymeric	30V	1.85 A	3.7 A	40 A	8.7 s	40 mOhms	110 mOhms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.472" Dia x 0.118" T (12.00mm x 3.00mm)	0.724" (18.40mm)	-	0.201" (5.10mm)
MINISMDC125F/16-2 PTC RESET FUSE 16V 1.25A 1812 Littelfuse Inc.	3,308	-	RFQ	Datasheet	1812 (4532 Metric), Concave	PolySwitch®, miniSMD	Tape & Reel (TR)	Active	Polymeric	16V	1.25 A	2.5 A	100 A	400 ms	50 mOhms	140 mOhms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.181" L x 0.128" W (4.60mm x 3.24mm)	-	0.019" (0.48mm)	-
0ZRM0010FF1E PTC RESET FUSE 120V 100MA RADIAL Bel Fuse Inc.	3,098	-	RFQ	Datasheet	Radial, Disc	0ZRM	Box	Active	Polymeric	120V	100 mA	200 mA	2 A	10 s	3 Ohms	7.5 Ohms	-	-40°C ~ 85°C	Automotive	AEC-Q200	-	Through Hole	0.311" Dia x 0.150" T (7.90mm x 3.80mm)	0.512" (13.00mm)	-	0.201" (5.10mm)

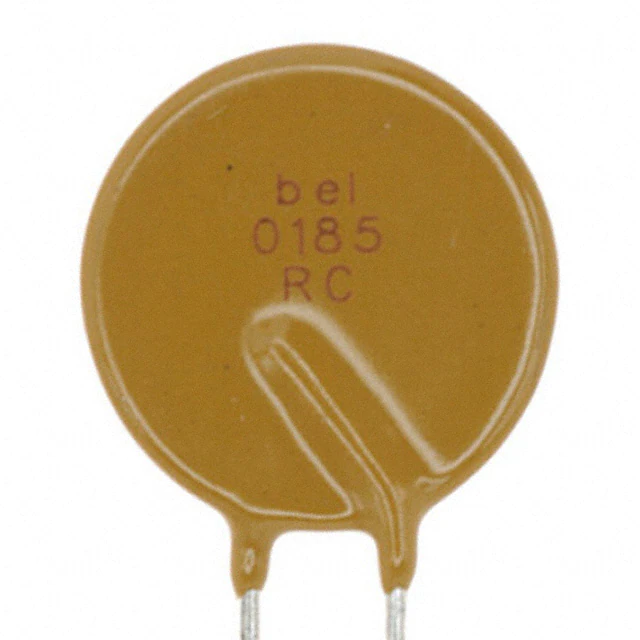

0ZRC0185FF1A PTC RESET FUSE 90V 1.85A RADIAL Bel Fuse Inc.	2,405	-	RFQ	Datasheet	Radial, Disc	0ZRC	Box	Active	Polymeric	90V	1.85 A	3.7 A	40 A	12.6 s	80 mOhms	190 mOhms	-	-40°C ~ 85°C	Automotive	AEC-Q200	-	Through Hole	0.701" L x 0.122" W (17.80mm x 3.10mm)	0.902" (22.90mm)	-	0.201" (5.10mm)
MF-MSMF050/30X-2 PTC RESETTABLE 0.5A 30V SMD 1812 Bourns Inc.	1,597	-	RFQ	Datasheet	1812 (4532 Metric), Concave	Multifuse®, MF-MSMF	Tape & Reel (TR)	Active	Polymeric	30V	500 mA	1 A	40 A	200 ms	150 mOhms	1.3 Ohms	-	-40°C ~ 85°C	Automotive	AEC-Q200	-	Surface Mount	0.181" L x 0.128" W (4.60mm x 3.24mm)	-	0.033" (0.85mm)	-
MINISMDC150F/12-2 PTC RESET FUSE 12V 1.5A 1812 Littelfuse Inc.	16,472	-	RFQ	Datasheet	1812 (4532 Metric), Concave	PolySwitch®, miniSMD	Tape & Reel (TR)	Active	Polymeric	12V	1.5 A	2.8 A	100 A	500 ms	40 mOhms	110 mOhms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.181" L x 0.128" W (4.60mm x 3.24mm)	-	0.019" (0.48mm)	-
MICROSMD150F-2 PTC RESET FUSE 6V 1.5A 1210 Littelfuse Inc.	7,723	-	RFQ	Datasheet	1210 (3225 Metric), Concave	PolySwitch®, microSMD	Tape & Reel (TR)	Active	Polymeric	6V	1.5 A	3 A	40 A	1 s	40 mOhms	110 mOhms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.127" L x 0.102" W (3.22mm x 2.58mm)	-	0.048" (1.22mm)	-
1210L150THWR PTC RESET FUSE 6V 1.5A 1210 Littelfuse Inc.	5,347	-	RFQ	Datasheet	1210 (3225 Metric), Concave	POLY-FUSE®, 1210L	Tape & Reel (TR)	Active	Polymeric	6V	1.5 A	3 A	100 A	300 ms	40 mOhms	110 mOhms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.127" L x 0.102" W (3.22mm x 2.58mm)	-	0.042" (1.07mm)	-
0ZRP0250FF1A PTC RESET FUSE 60V 2.5A RADIAL Bel Fuse Inc.	41,365	-	RFQ	Datasheet	Radial, Disc	0ZRP	Bulk	Active	Polymeric	60V	2.5 A	5 A	40 A	15.6 s	40 mOhms	140 mOhms	-	-40°C ~ 85°C	Automotive	AEC-Q200	-	Through Hole	0.551" L x 0.142" W (14.00mm x 3.60mm)	0.811" (20.60mm)	-	0.201" (5.10mm)
FEMTOSMDC010F-2 PTC RESET FUSE 12V 100MA 0603 Littelfuse Inc.	31,479	-	RFQ	Datasheet	0603 (1608 Metric), Concave	PolySwitch®, femtoSMD	Tape & Reel (TR)	Active	Polymeric	12V	100 mA	250 mA	40 A	100 ms	1.7 Ohms	8 Ohms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.063" L x 0.032" W (1.60mm x 0.80mm)	-	0.033" (0.85mm)	-

Total 4956 Record«Prev 1... 24 25 26 272829 30 31...248 Next»
