PTC Resettable Fuses

PTC Resettable Fuses are circuit protection components used to protect electronic systems from overcurrent, short-circuit and fault conditions. Unlike one-time fuses, PTC resettable fuses increase resistance during a fault and can return to a low-resistance state after the fault is removed and the device cools down.

This category includes polymer PTC resettable fuses, PPTC fuses, radial leaded PTC fuses, surface-mount PTC fuses and related overcurrent protection components. These devices are commonly selected based on hold current, trip current, rated voltage, resistance, response time, package type, operating temperature and application requirements.

TomatoElec supplies original PTC Resettable Fuses from recognized manufacturers such as Littelfuse, Bourns, Eaton, Bel Fuse, TE Connectivity, Murata, TDK, Panasonic and other major brands. As an in-stock electronic components supplier and independent distributor, TomatoElec provides inventory support, original component sourcing and BOM sourcing services for global customers.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Series	Packaging	Product Status	Type	Voltage - Max	Current - Hold (Ih) (Max)	Current - Trip (It)	Current - Max	Time to Trip	Resistance - Initial (Ri) (Min)	Resistance - Post Trip (R1) (Max)	Resistance - 25°C (Typ)	Operating Temperature	Grade	Qualification	Ratings	Mounting Type	Size / Dimension	Height - Seated (Max)	Thickness (Max)	Lead Spacing
MF-SM260-2-99 PTC RESET FUSE 6V 2.6A 2SMD Bourns Inc.	7,090	-	RFQ	Datasheet	2-SMD	Multifuse®, MF-SM	Tape & Reel (TR)	Obsolete	Polymeric	6V	2.6 A	5.2 A	100 A	20 s	25 mOhms	75 mOhms	-	-40°C ~ 85°C	Automotive	AEC-Q200	-	Surface Mount	0.287" L x 0.214" W (7.31mm x 5.44mm)	-	0.118" (3.00mm)	-
MF-SM300-2-99 PTC RESET FUSE 6V 3A 2SMD Bourns Inc.	5,880	-	RFQ	Datasheet	2-SMD	Multifuse®, MF-SM	Tape & Reel (TR)	Obsolete	Polymeric	6V	3 A	6 A	100 A	35 s	15 mOhms	48 mOhms	-	-40°C ~ 85°C	Automotive	AEC-Q200	-	Surface Mount	0.287" L x 0.214" W (7.31mm x 5.44mm)	-	0.118" (3.00mm)	-
MF-SMHT136-2-6 PTC RESET FUSE 16V 1.36A 2SMD Bourns Inc.	6,130	-	RFQ	Datasheet	2-SMD	Multifuse®, MF-SMHT	Tape & Reel (TR)	Active	Polymeric	16V	1.36 A	2.72 A	100 A	10 s	85 mOhms	330 mOhms	-	-40°C ~ 125°C	Automotive	AEC-Q200	-	Surface Mount	0.314" L x 0.264" W (7.98mm x 6.71mm)	-	0.118" (3.00mm)	-
MF-SMHT160-2-6 PTC RESET FUSE 16V 1.6A 2SMD Bourns Inc.	3,012	-	RFQ	Datasheet	2-SMD	Multifuse®, MF-SMHT	Tape & Reel (TR)	Active	Polymeric	16V	1.6 A	3.2 A	100 A	10 s	50 mOhms	150 mOhms	-	-40°C ~ 125°C	Automotive	AEC-Q200	-	Surface Mount	0.374" L x 0.234" W (9.50mm x 5.94mm)	-	0.118" (3.00mm)	-
PTGL04AR130H2B51B0 PTC RESET FUSE 30V 180MA RADIAL Murata Electronics	2,670	-	RFQ	Datasheet	Radial, Disc	POSISTOR®, PTGL	Bulk	Obsolete	Ceramic	30V	180 mA	350 mA	700 mA	-	-	-	13 Ohms	-10°C ~ 60°C	-	-	-	Through Hole	0.217" Dia x 0.157" W (5.50mm x 4.00mm)	0.453" (11.50mm)	-	0.197" (5.00mm)
PTGL05AR121M9N51B0 PTC RESET FUSE 265V 47MA RADIAL Murata Electronics	2,312	-	RFQ	Datasheet	Radial, Disc	POSISTOR®, PTGL	Bulk	Obsolete	Ceramic	265V	47 mA	75 mA	300 mA	-	-	-	120 Ohms	-10°C ~ 60°C	-	-	-	Through Hole	0.256" Dia x 0.256" T (6.50mm x 6.50mm)	0.512" (13.00mm)	-	0.197" (5.00mm)
PTGL05AR550H4P51B0 PTC RESET FUSE 80V 62MA RADIAL Murata Electronics	9,553	-	RFQ	Datasheet	Radial, Disc	POSISTOR®, PTGL	Bulk	Obsolete	Ceramic	80V	62 mA	115 mA	700 mA	-	-	-	55 Ohms	-10°C ~ 60°C	-	-	-	Through Hole	0.217" Dia x 0.177" T (5.50mm x 4.50mm)	0.453" (11.50mm)	-	0.197" (5.00mm)
PTGL07AR220M3P51B0 PTC RESET FUSE 56V 115MA RADIAL Murata Electronics	6,828	-	RFQ	Datasheet	Radial, Disc	POSISTOR®, PTGL	Bulk	Obsolete	Ceramic	56V	115 mA	205 mA	1 A	-	-	-	22 Ohms	-10°C ~ 60°C	-	-	-	Through Hole	0.291" Dia x 0.157" T (7.40mm x 4.00mm)	0.528" (13.40mm)	-	0.197" (5.00mm)
PTGL07AR330M6A51B0 PTC RESET FUSE 140V 130MA RADIAL Murata Electronics	3,480	-	RFQ	Datasheet	Radial, Disc	POSISTOR®, PTGL	Bulk	Obsolete	-	140V	130 mA	200 mA	500 mA	-	-	-	-	-	-	-	-	Through Hole	0.291" Dia x 0.236" T (7.40mm x 6.00mm)	0.528" (13.40mm)	-	0.197" (5.00mm)
PTGL07AR4R6H2B51B0 PTC RESET FUSE 30V 340MA RADIAL Murata Electronics	2,918	-	RFQ	Datasheet	Radial, Disc	POSISTOR®, PTGL	Bulk	Obsolete	Ceramic	30V	340 mA	610 mA	2 A	-	-	-	4.6 Ohms	-10°C ~ 60°C	-	-	-	Through Hole	0.291" Dia x 0.157" T (7.40mm x 4.00mm)	0.528" (13.40mm)	-	0.197" (5.00mm)
PTGL07AR560M9A51B0 PTC RESET FUSE 265V 95MA RADIAL Murata Electronics	2,152	-	RFQ	Datasheet	Radial, Disc	POSISTOR®, PTGL	Bulk	Obsolete	Ceramic	265V	95 mA	165 mA	800 mA	-	-	-	56 Ohms	-10°C ~ 60°C	-	-	-	Through Hole	0.323" Dia x 0.256" T (8.20mm x 6.50mm)	0.559" (14.20mm)	-	0.197" (5.00mm)
PTGL07BD100N2B51A0 PTC RESET FUSE 24V 124MA RADIAL Murata Electronics	8,004	-	RFQ	Datasheet	Radial, Disc	POSISTOR®, PTGL	Tape & Box (TB)	Obsolete	Ceramic	24V	124 mA	251 mA	2 A	-	-	-	10 Ohms	-10°C ~ 60°C	-	-	-	Through Hole	0.291" Dia x 0.157" T (7.40mm x 4.00mm)	0.528" (13.40mm)	-	0.197" (5.00mm)
PTGL07BD100N2B51B0 PTC RESET FUSE 24V 124MA RADIAL Murata Electronics	7,567	-	RFQ	Datasheet	Radial, Disc	POSISTOR®, PTGL	Bulk	Obsolete	Ceramic	24V	124 mA	251 mA	2 A	-	-	-	10 Ohms	-10°C ~ 60°C	-	-	-	Through Hole	0.291" Dia x 0.157" T (7.40mm x 4.00mm)	0.528" (13.40mm)	-	0.197" (5.00mm)
PTGL07BD150N3B51B0 PTC RESET FUSE 32V 100MA RADIAL Murata Electronics	3,822	-	RFQ	Datasheet	Radial, Disc	POSISTOR®, PTGL	Bulk	Obsolete	Ceramic	32V	100 mA	195 mA	1.5 A	-	-	-	15 Ohms	-10°C ~ 60°C	-	-	-	Through Hole	0.291" Dia x 0.157" T (7.40mm x 4.00mm)	0.528" (13.40mm)	-	0.197" (5.00mm)
PTGL07BD220N3B51B0 PTC RESET FUSE 32V 75MA RADIAL Murata Electronics	2,409	-	RFQ	Datasheet	Radial, Disc	POSISTOR®, PTGL	Bulk	Obsolete	Ceramic	32V	75 mA	160 mA	1.5 A	-	-	-	22 Ohms	-30°C ~ 85°C	-	-	-	Through Hole	0.291" Dia x 0.157" T (7.40mm x 4.00mm)	0.528" (13.40mm)	-	0.197" (5.00mm)
PTGL07BD470N3B51B0 PTC RESET FUSE 32V 55MA RADIAL Murata Electronics	6,580	-	RFQ	Datasheet	Radial, Disc	POSISTOR®, PTGL	Bulk	Obsolete	Ceramic	32V	55 mA	115 mA	1.5 A	-	-	-	47 Ohms	-30°C ~ 85°C	-	-	-	Through Hole	0.291" Dia x 0.157" T (7.40mm x 4.00mm)	0.528" (13.40mm)	-	0.197" (5.00mm)
PTGL09AR390M9C61B0 PTC RESET FUSE 265V 130MA RADIAL Murata Electronics	7,672	-	RFQ	Datasheet	Radial, Disc	POSISTOR®, PTGL	Bulk	Obsolete	Ceramic	265V	130 mA	210 mA	1.2 A	-	-	-	39 Ohms	-10°C ~ 60°C	-	-	-	Through Hole	0.394" Dia x 0.256" T (10.00mm x 6.50mm)	0.630" (16.00mm)	-	0.256" (6.50mm)
PTGL09AR9R4H4B51B0 PTC RESET FUSE 80V 240MA RADIAL Murata Electronics	8,620	-	RFQ	Datasheet	Radial, Disc	POSISTOR®, PTGL	Bulk	Obsolete	Ceramic	80V	240 mA	450 mA	3 A	-	-	-	9.4 Ohms	-10°C ~ 60°C	-	-	-	Through Hole	0.374" Dia x 0.177" T (9.50mm x 4.50mm)	0.610" (15.50mm)	-	0.197" (5.00mm)

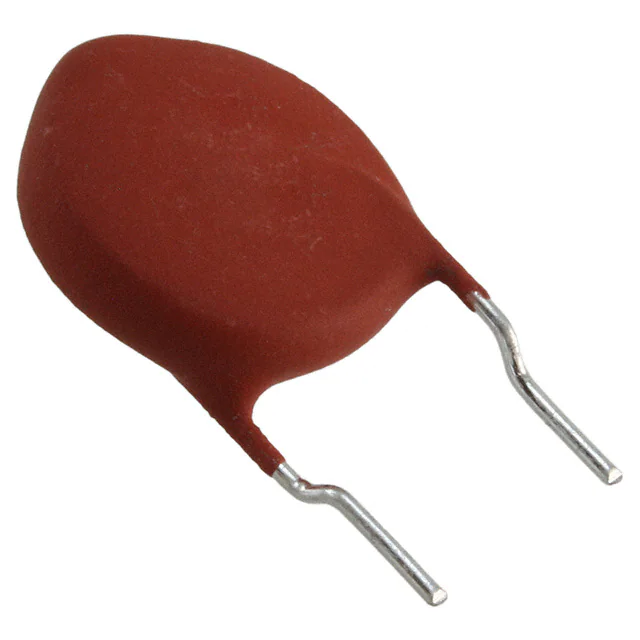

PTGL12AR150H8B72B0 PTC RESET FUSE 265V 210MA RADIAL Murata Electronics	2,087	-	RFQ	Datasheet	Radial, Disc	POSISTOR®, PTGL	Bulk	Obsolete	Ceramic	265V	210 mA	400 mA	1.5 A	-	-	-	15 Ohms	-40°C ~ 85°C	-	-	-	Through Hole	0.492" Dia x 0.236" T (12.50mm x 6.00mm)	0.728" (18.50mm)	-	0.295" (7.50mm)

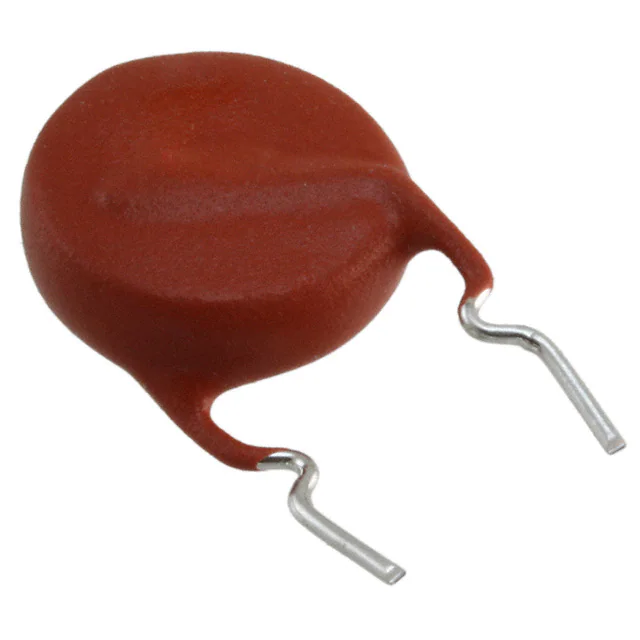

PTGL12AR270M9C01B0 PTC RESET FUSE 265V 200MA RADIAL Murata Electronics	6,573	-	RFQ	Datasheet	Radial, Disc	POSISTOR®, PTGL	Bulk	Obsolete	Ceramic	265V	200 mA	310 mA	1.5 A	-	-	-	27 Ohms	-10°C ~ 60°C	-	-	-	Through Hole	0.551" Dia x 0.256" T (14.00mm x 6.50mm)	0.787" (20.00mm)	-	0.394" (10.00mm)

Total 4956 Record«Prev 1... 234 235 236 237238239 240 241...248 Next»
