PTC Resettable Fuses

PTC Resettable Fuses are circuit protection components used to protect electronic systems from overcurrent, short-circuit and fault conditions. Unlike one-time fuses, PTC resettable fuses increase resistance during a fault and can return to a low-resistance state after the fault is removed and the device cools down.

This category includes polymer PTC resettable fuses, PPTC fuses, radial leaded PTC fuses, surface-mount PTC fuses and related overcurrent protection components. These devices are commonly selected based on hold current, trip current, rated voltage, resistance, response time, package type, operating temperature and application requirements.

TomatoElec supplies original PTC Resettable Fuses from recognized manufacturers such as Littelfuse, Bourns, Eaton, Bel Fuse, TE Connectivity, Murata, TDK, Panasonic and other major brands. As an in-stock electronic components supplier and independent distributor, TomatoElec provides inventory support, original component sourcing and BOM sourcing services for global customers.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Series	Packaging	Product Status	Type	Voltage - Max	Current - Hold (Ih) (Max)	Current - Trip (It)	Current - Max	Time to Trip	Resistance - Initial (Ri) (Min)	Resistance - Post Trip (R1) (Max)	Resistance - 25°C (Typ)	Operating Temperature	Grade	Qualification	Ratings	Mounting Type	Size / Dimension	Height - Seated (Max)	Thickness (Max)	Lead Spacing
0ZCC0110AF2C PTC RESET FUSE 16V 1.1A 1812 Bel Fuse Inc.	3,625	-	RFQ	Datasheet	1812 (4532 Metric)	0ZCC	Tape & Reel (TR)	Obsolete	Polymeric	16V	1.1 A	2.2 A	100 A	500 ms	40 mOhms	180 mOhms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.179" L x 0.128" W (4.55mm x 3.24mm)	-	0.035" (0.90mm)	-
0ZCC0260AF2B PTC RESET FUSE 13.2V 2.6A 1812 Bel Fuse Inc.	2,968	-	RFQ	Datasheet	1812 (4532 Metric), Concave	0ZCC	Tape & Reel (TR)	Obsolete	Polymeric	13.2V	2.6 A	5 A	100 A	5 s	15 mOhms	50 mOhms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.179" L x 0.128" W (4.55mm x 3.24mm)	-	0.061" (1.55mm)	-
0ZCC0260BF2B PTC RESET FUSE 16V 2.6A 1812 Bel Fuse Inc.	9,965	-	RFQ	Datasheet	1812 (4532 Metric), Concave	0ZCC	Tape & Reel (TR)	Obsolete	Polymeric	16V	2.6 A	5 A	100 A	5 s	15 mOhms	50 mOhms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.179" L x 0.128" W (4.55mm x 3.24mm)	-	0.061" (1.55mm)	-
0ZCC0300FF2B PTC RESET FUSE 6V 3A 1812 Bel Fuse Inc.	6,921	-	RFQ	Datasheet	1812 (4532 Metric), Concave	0ZCC	Tape & Reel (TR)	Obsolete	Polymeric	6V	3 A	5 A	100 A	4 s	12 mOhms	40 mOhms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.179" L x 0.128" W (4.55mm x 3.24mm)	-	0.061" (1.55mm)	-
PTR016V0185-TR1 PTC RESET FUSE 16V 1.85A RADIAL Eaton - Electronics Division	2,710	-	RFQ	Datasheet	Radial, Disc	PTR016V	Tape & Reel (TR)	Active	Polymeric	16V	1.85 A	3.7 A	40 A	10 s	30 mOhms	90 mOhms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.402" L x 0.122" W (10.20mm x 3.10mm)	0.618" (15.70mm)	-	0.197" (5.00mm)
PTGL07AR4R6H2B51A0 PTC RESET FUSE 30V 340MA RADIAL Murata Electronics	6,787	-	RFQ	Datasheet	Radial, Disc	POSISTOR®, PTGL	Bulk	Obsolete	Ceramic	30V	340 mA	610 mA	2 A	-	-	-	4.6 Ohms	-10°C ~ 60°C	-	-	-	Through Hole	0.291" Dia x 0.157" T (7.40mm x 4.00mm)	0.528" (13.40mm)	-	0.197" (5.00mm)
2920L125PR-A PTC 15V POLYFUSE SURF MOUNT 2920 Littelfuse Inc.	7,807	-	RFQ	Datasheet	2920 (7351 Metric), Concave	POLY-FUSE®, 2920L	Tape & Reel (TR)	Active	Polymeric	15V	1.25 A	2.5 A	40 A	2 s	70 mOhms	250 mOhms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.290" L x 0.202" W (7.36mm x 5.12mm)	-	0.039" (1.00mm)	-
0ZRS0050FF2D PTC RESET FUSE 32V 500MA RADIAL Bel Fuse Inc.	8,673	-	RFQ	Datasheet	Radial, Disc	0ZRS	Tape & Reel (TR)	Active	Ceramic	32V	500 mA	1 A	100 A	3 s	350 mOhms	1.1 Ohms	-	-40°C ~ 125°C	Automotive	AEC-Q200	-	Through Hole	0.291" Dia x 0.118" T (7.40mm x 3.00mm)	0.500" (12.70mm)	-	0.201" (5.10mm)
0ZRS0070FF2D PTC RESET FUSE 32V 700MA RADIAL Bel Fuse Inc.	9,947	-	RFQ	Datasheet	Radial, Disc	0ZRS	Tape & Reel (TR)	Active	Ceramic	32V	700 mA	1.4 A	100 A	3.2 s	230 mOhms	800 mOhms	-	-40°C ~ 125°C	Automotive	AEC-Q200	-	Through Hole	0.272" L x 0.118" W (6.90mm x 3.00mm)	0.425" (10.80mm)	-	0.201" (5.10mm)
PTGL07AS1R8K2B51A0 PTC RESET FUSE 30V 532MA RADIAL Murata Electronics	5,715	-	RFQ	Datasheet	Radial, Disc	POSISTOR®, PTGL	Tape & Box (TB)	Obsolete	Ceramic	30V	532 mA	708 mA	5 A	-	-	-	1.8 Ohms	-30°C ~ 85°C	-	-	-	Through Hole	0.287" Dia x 0.138" T (7.30mm x 3.50mm)	0.484" (12.30mm)	-	0.197" (5.00mm)
PTGL09AR4R7M3B51A0 PTC RESET FUSE 56V 350MA RADIAL Murata Electronics	4,736	-	RFQ	Datasheet	Radial, Disc	POSISTOR®, PTGL	Bulk	Obsolete	Ceramic	56V	350 mA	600 mA	2 A	-	-	-	4.7 Ohms	-10°C ~ 60°C	-	-	-	Through Hole	0.374" Dia x 0.157" T (9.50mm x 4.00mm)	0.610" (15.50mm)	-	0.197" (5.00mm)

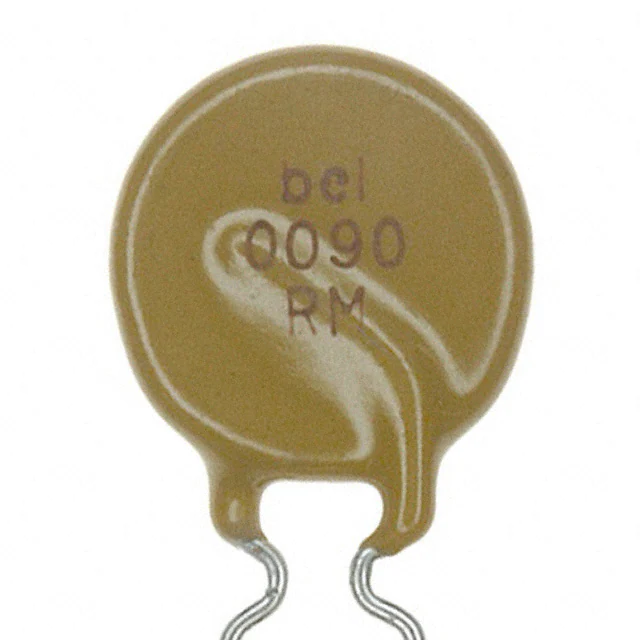

0ZRM0090FF2B PTC RESET FUSE 120V 900MA RADIAL Bel Fuse Inc.	4,535	-	RFQ	Datasheet	Radial, Disc	0ZRM	Tape & Reel (TR)	Active	Polymeric	120V	900 mA	1.8 A	5 A	7.2 s	200 mOhms	470 mOhms	-	-40°C ~ 85°C	Automotive	AEC-Q200	-	Through Hole	0.469" Dia x 0.150" T (11.90mm x 3.80mm)	0.626" (15.90mm)	-	0.201" (5.10mm)
MF-RX012/250U-0 PTC RESET FUSE 60V 120MA RADIAL Bourns Inc.	6,468	-	RFQ	Datasheet	Radial, Disc	Multifuse®, MF-RX/250	Bulk	Active	Polymeric	60V (250V Int)	120 mA	-	3 A	-	6 Ohms	16 Ohms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.236" L x 0.150" W (6.00mm x 3.80mm)	0.394" (10.00mm)	-	0.201" (5.10mm)
MF-RX014/250U-0 PTC RESET FUSE 60V 145MA RADIAL Bourns Inc.	8,734	-	RFQ	Datasheet	Radial, Disc	Multifuse®, MF-RX/250	Bulk	Active	Polymeric	60V (250V Int)	145 mA	-	3 A	-	3.5 Ohms	12 Ohms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.236" L x 0.150" W (6.00mm x 3.80mm)	0.394" (10.00mm)	-	0.201" (5.10mm)
MF-RX018/250U-0 PTC RESET FUSE 60V 180MA RADIAL Bourns Inc.	6,266	-	RFQ	Datasheet	Radial, Disc	Multifuse®, MF-RX/250	Bulk	Active	Polymeric	60V (250V Int)	180 mA	-	10 A	-	800 mOhms	4 Ohms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.409" Dia x 0.150" T (10.40mm x 3.80mm)	0.496" (12.60mm)	-	0.201" (5.10mm)
MF-R400-AP PTC RESET FUSE 30V 4A RADIAL Bourns Inc.	3,128	-	RFQ	Datasheet	Radial, Disc	Multifuse®, MF-R	Tape & Box (TB)	Active	Polymeric	30V	4 A	8 A	40 A	12.7 s	10 mOhms	50 mOhms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.567" L x 0.118" W (14.40mm x 3.00mm)	0.976" (24.80mm)	-	0.201" (5.10mm)

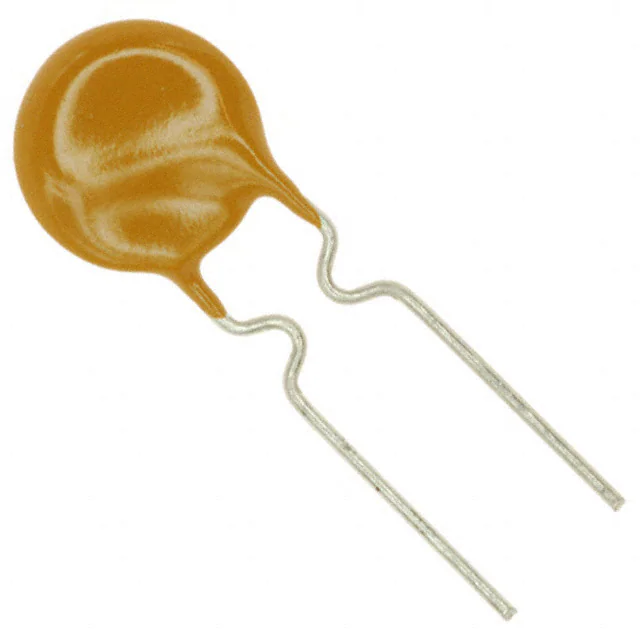

MF-RHT200-AP PTC RESET FUSE 16V 2A RADIAL Bourns Inc.	2,845	-	RFQ	Datasheet	Radial, Disc	Multifuse®, MF-RHT	Tape & Box (TB)	Active	Polymeric	16V	2 A	3.8 A	100 A	3 s	45 mOhms	110 mOhms	-	-40°C ~ 125°C	Automotive	AEC-Q200	-	Through Hole	0.370" Dia x 0.118" T (9.40mm x 3.00mm)	0.551" (14.00mm)	-	0.114" (2.90mm)
MF-RHT100-AP PTC RESET FUSE 30V 1A RADIAL Bourns Inc.	2,841	-	RFQ	Datasheet	Radial, Disc	Multifuse®, MF-RHT	Bulk	Active	Polymeric	30V	1 A	1.8 A	40 A	5.2 s	180 mOhms	430 mOhms	-	-40°C ~ 125°C	Automotive	AEC-Q200	-	Through Hole	0.382" L x 0.118" W (9.70mm x 3.00mm)	0.535" (13.60mm)	-	0.201" (5.10mm)
MF-RX250/72-AP-14 PTC RESET FUSE 72V 2.5A RADIAL Bourns Inc.	3,669	-	RFQ	Datasheet	Radial, Disc	Multifuse®, MF-RX/72	Tape & Box (TB)	Active	Polymeric	72V	2.5 A	5 A	40 A	15.6 s	50 mOhms	130 mOhms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.702" L x 0.122" W (17.84mm x 3.10mm)	0.839" (21.30mm)	-	0.201" (5.10mm)
MF-R300-AP-14 PTC RESETTABLE 3.0A 30V RADIAL L Bourns Inc.	7,825	-	RFQ	Datasheet	Radial, Disc	Multifuse®, MF-R	Tape & Box (TB)	Active	Polymeric	30V	3 A	6 A	40 A	10.8 s	20 mOhms	80 mOhms	-	-40°C ~ 85°C	Automotive	AEC-Q200	-	Through Hole	0.472" L x 0.118" W (12.00mm x 3.00mm)	0.720" (18.30mm)	-	0.201" (5.10mm)

Total 4956 Record«Prev 1... 166 167 168 169170171 172 173...248 Next»
