PTC Resettable Fuses

PTC Resettable Fuses are circuit protection components used to protect electronic systems from overcurrent, short-circuit and fault conditions. Unlike one-time fuses, PTC resettable fuses increase resistance during a fault and can return to a low-resistance state after the fault is removed and the device cools down.

This category includes polymer PTC resettable fuses, PPTC fuses, radial leaded PTC fuses, surface-mount PTC fuses and related overcurrent protection components. These devices are commonly selected based on hold current, trip current, rated voltage, resistance, response time, package type, operating temperature and application requirements.

TomatoElec supplies original PTC Resettable Fuses from recognized manufacturers such as Littelfuse, Bourns, Eaton, Bel Fuse, TE Connectivity, Murata, TDK, Panasonic and other major brands. As an in-stock electronic components supplier and independent distributor, TomatoElec provides inventory support, original component sourcing and BOM sourcing services for global customers.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Series	Packaging	Product Status	Type	Voltage - Max	Current - Hold (Ih) (Max)	Current - Trip (It)	Current - Max	Time to Trip	Resistance - Initial (Ri) (Min)	Resistance - Post Trip (R1) (Max)	Resistance - 25°C (Typ)	Operating Temperature	Grade	Qualification	Ratings	Mounting Type	Size / Dimension	Height - Seated (Max)	Thickness (Max)	Lead Spacing
BK130-250-SZ PTC RESET FUSE 130V 250MA RAD YAGEO	9,812	-	RFQ	Datasheet	Radial, Disc	BK130	Bulk	Active	Polymeric	130V	250 mA	500 mA	20 A	5 s	1.9 Ohms	3.8 Ohms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.378" L x 0.150" W (9.60mm x 3.80mm)	0.685" (17.40mm)	-	0.201" (5.10mm)
BK130-120-DZ PTC RESET FUSE 130V 120MA RAD YAGEO	4,639	-	RFQ	Datasheet	Radial, Disc	BK130	Bulk	Active	Polymeric	130V	120 mA	240 mA	20 A	6 s	6 Ohms	12 Ohms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.327" Dia (8.30mm)	0.421" (10.70mm)	-	0.201" (5.10mm)
BK130-200-SZ PTC RESET FUSE 130V 200MA RAD YAGEO	7,762	-	RFQ	Datasheet	Radial, Disc	BK130	Bulk	Active	Polymeric	130V	200 mA	400 mA	20 A	5 s	2.5 Ohms	5 Ohms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.378" L x 0.150" W (9.60mm x 3.80mm)	0.685" (17.40mm)	-	0.201" (5.10mm)
SMD2920B075TF PTC RESET FUSE 30V 750MA 2920 YAGEO	6,893	-	RFQ	Datasheet	2920 (7351 Metric), Concave	SMD2920	Tape & Reel (TR)	Active	Polymeric	30V	750 mA	1.5 A	40 A	300 ms	100 mOhms	1 Ohms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.290" L x 0.202" W (7.36mm x 5.12mm)	-	0.041" (1.05mm)	-
0ZRR0010FF2E PTC RESET FUSE 60V 100MA RADIAL Bel Fuse Inc.	9,179	-	RFQ	Datasheet	Radial, Disc	0ZRR	Tape & Reel (TR)	Active	Polymeric	60V	100 mA	200 mA	40 A	4 s	2.5 Ohms	7.5 Ohms	-	-40°C ~ 85°C	Automotive	AEC-Q200	-	Through Hole	0.291" Dia x 0.122" T (7.40mm x 3.10mm)	0.500" (12.70mm)	-	0.201" (5.10mm)
0ZRR0017FF2E PTC RESET FUSE 60V 170MA RADIAL Bel Fuse Inc.	7,217	-	RFQ	Datasheet	Radial, Disc	0ZRR	Tape & Reel (TR)	Active	Polymeric	60V	170 mA	340 mA	40 A	3 s	2 Ohms	8 Ohms	-	-40°C ~ 85°C	Automotive	AEC-Q200	-	Through Hole	0.291" Dia x 0.122" T (7.40mm x 3.10mm)	0.500" (12.70mm)	-	0.201" (5.10mm)
0ZRR0025FF2E PTC RESET FUSE 60V 250MA RADIAL Bel Fuse Inc.	6,548	-	RFQ	Datasheet	Radial, Disc	0ZRR	Tape & Reel (TR)	Active	Polymeric	60V	250 mA	500 mA	40 A	2.5 s	1.25 Ohms	3 Ohms	-	-40°C ~ 85°C	Automotive	AEC-Q200	-	Through Hole	0.291" Dia x 0.122" T (7.40mm x 3.10mm)	0.500" (12.70mm)	-	0.201" (5.10mm)
0ZRR0030FF2E PTC RESET FUSE 60V 300MA RADIAL Bel Fuse Inc.	9,092	-	RFQ	Datasheet	Radial, Disc	0ZRR	Tape & Reel (TR)	Active	Polymeric	60V	300 mA	600 mA	40 A	3 s	880 mOhms	2.1 Ohms	-	-40°C ~ 85°C	Automotive	AEC-Q200	-	Through Hole	0.291" Dia x 0.122" T (7.40mm x 3.10mm)	0.512" (13.00mm)	-	0.201" (5.10mm)
SMD1210P005TSA PTC RESET FUSE 30V 50MA 1210 Littelfuse Inc.	7,813	-	RFQ	Datasheet	1210 (3225 Metric), Concave	POLY-FUSE®, SMD1210	Tape & Reel (TR)	Obsolete	Polymeric	30V	50 mA	150 mA	10 A	1.5 s	3.6 Ohms	50 Ohms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.127" L x 0.102" W (3.22mm x 2.58mm)	-	0.039" (1.00mm)	-
SMD1210P010TSA PTC RESET FUSE 30V 100MA 1210 Littelfuse Inc.	9,792	-	RFQ	Datasheet	1210 (3225 Metric), Concave	POLY-FUSE®, SMD1210	Tape & Reel (TR)	Obsolete	Polymeric	30V	100 mA	300 mA	10 A	1.5 s	1.6 Ohms	15 Ohms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.127" L x 0.102" W (3.22mm x 2.58mm)	-	0.039" (1.00mm)	-
SMD1210P020TSA PTC RESET FUSE 30V 200MA 1210 Littelfuse Inc.	7,519	-	RFQ	Datasheet	1210 (3225 Metric), Concave	POLY-FUSE®, SMD1210	Tape & Reel (TR)	Obsolete	Polymeric	30V	200 mA	400 mA	10 A	20 ms	800 mOhms	5 Ohms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.127" L x 0.102" W (3.22mm x 2.58mm)	-	0.032" (0.80mm)	-
MF-MSMF260/16X-2 PTC RESETTABLE 2.6A 16V SMD 1812 Bourns Inc.	6,219	-	RFQ	Datasheet	1812 (4532 Metric), Concave	Multifuse®, MF-MSMF	Tape & Reel (TR)	Active	Polymeric	16V	2.6 A	5 A	100 A	5 s	15 mOhms	50 mOhms	-	-40°C ~ 85°C	Automotive	AEC-Q200	-	Surface Mount	0.181" L x 0.128" W (4.60mm x 3.24mm)	-	0.063" (1.60mm)	-
SMD1812P160TSA/8 PTC RESET FUSE 8V 1.6A 1812 Littelfuse Inc.	6,538	-	RFQ	Datasheet	1812 (4532 Metric), Concave	POLY-FUSE®, SMD1812	Tape & Reel (TR)	Obsolete	Polymeric	8V	1.6 A	2.8 A	40 A	1 s	30 mOhms	100 mOhms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.179" L x 0.128" W (4.55mm x 3.24mm)	-	0.039" (1.00mm)	-

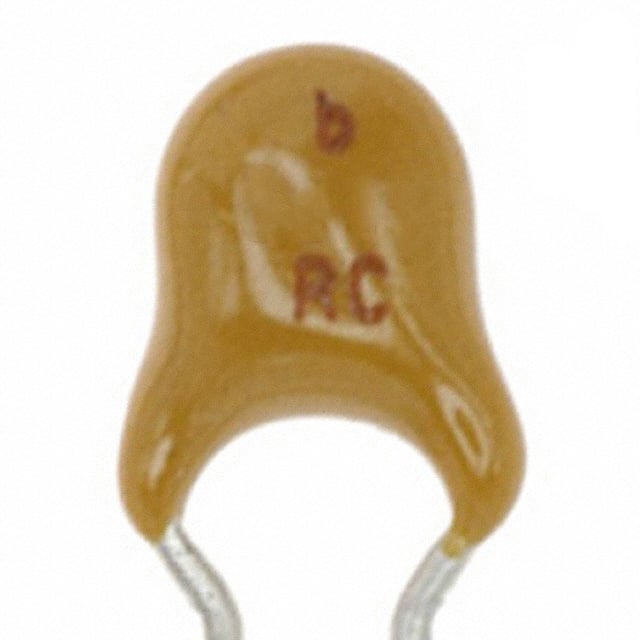

0ZRC0065FF2E PTC RESET FUSE 90V 650MA RADIAL Bel Fuse Inc.	4,035	-	RFQ	Datasheet	Radial, Disc	0ZRC	Tape & Reel (TR)	Active	Polymeric	90V	650 mA	1.3 A	40 A	5.3 s	310 mOhms	720 mOhms	-	-40°C ~ 85°C	Automotive	AEC-Q200	-	Through Hole	0.382" L x 0.122" W (9.70mm x 3.10mm)	0.571" (14.50mm)	-	0.201" (5.10mm)
SMD1812P050TSA PTC RESET FUSE 15V 500MA 1812 Littelfuse Inc.	6,563	-	RFQ	Datasheet	1812 (4532 Metric), Concave	POLY-FUSE®, SMD1812	Tape & Reel (TR)	Obsolete	Polymeric	15V	500 mA	1 A	40 A	150 ms	150 mOhms	1 Ohms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.179" L x 0.128" W (4.55mm x 3.24mm)	-	0.025" (0.63mm)	-
SMD1812P020TSA PTC RESET FUSE 30V 200MA 1812 Littelfuse Inc.	2,707	-	RFQ	Datasheet	1812 (4532 Metric), Concave	POLY-FUSE®, SMD1812	Tape & Reel (TR)	Obsolete	Polymeric	30V	200 mA	400 mA	10 A	20 ms	800 mOhms	5 Ohms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.179" L x 0.128" W (4.55mm x 3.24mm)	-	0.031" (0.78mm)	-

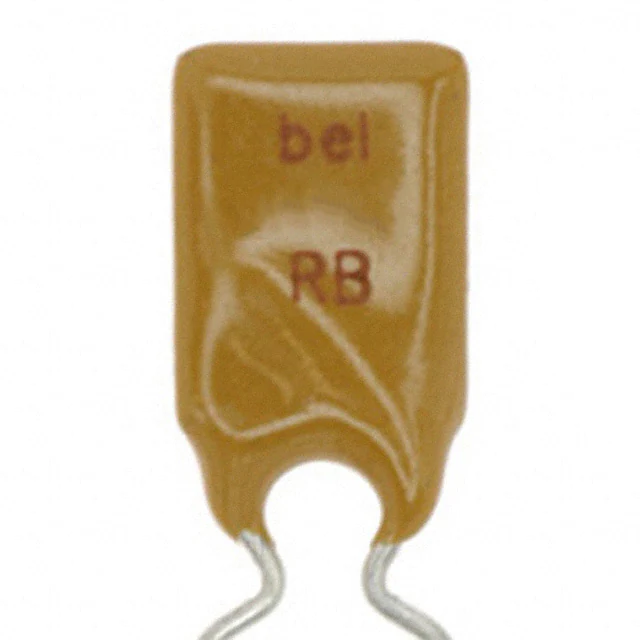

0ZRB0135FF2E PTC RESET FUSE 30V 1.35A RADIAL Bel Fuse Inc.	7,849	-	RFQ	Datasheet	Radial, Disc	0ZRB	Tape & Reel (TR)	Active	Polymeric	30V	1.35 A	2.7 A	40 A	7.3 s	40 mOhms	130 mOhms	-	-40°C ~ 85°C	Automotive	AEC-Q200	-	Through Hole	0.350" L x 0.118" W (8.90mm x 3.00mm)	0.532" (13.50mm)	-	0.201" (5.10mm)
BK16-400-SZ PTC RESET FUSE 16V 4A RAD YAGEO	5,123	-	RFQ	Datasheet	Radial, Disc	BK16	Bulk	Active	Polymeric	16V	4 A	8 A	100 A	1.7 s	18 mOhms	43 mOhms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.394" L x 0.122" W (10.00mm x 3.10mm)	0.689" (17.50mm)	-	0.201" (5.10mm)
PFMD.010.2 PTC RESET FUSE 60V 100MA 1812 SCHURTER Inc.	8,070	-	RFQ	Datasheet	1812 (4532 Metric)	PFMD	Tape & Reel (TR)	Obsolete	Polymeric	60V	100 mA	300 mA	40 A	1.5 s	700 mOhms	15 Ohms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.179" L x 0.121" W (4.55mm x 3.07mm)	-	0.043" (1.10mm)	-
SMD1812P110TSA/16 PTC RESET FUSE 16V 1.1A 1812 Littelfuse Inc.	6,982	-	RFQ	Datasheet	1812 (4532 Metric), Concave	POLY-FUSE®, SMD1812	Tape & Reel (TR)	Obsolete	Polymeric	16V	1.1 A	1.95 A	40 A	500 ms	60 mOhms	180 mOhms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.179" L x 0.128" W (4.55mm x 3.24mm)	-	0.039" (1.00mm)	-

Total 4956 Record«Prev 1... 139 140 141 142143144 145 146...248 Next»
