PTC Resettable Fuses

PTC Resettable Fuses are circuit protection components used to protect electronic systems from overcurrent, short-circuit and fault conditions. Unlike one-time fuses, PTC resettable fuses increase resistance during a fault and can return to a low-resistance state after the fault is removed and the device cools down.

This category includes polymer PTC resettable fuses, PPTC fuses, radial leaded PTC fuses, surface-mount PTC fuses and related overcurrent protection components. These devices are commonly selected based on hold current, trip current, rated voltage, resistance, response time, package type, operating temperature and application requirements.

TomatoElec supplies original PTC Resettable Fuses from recognized manufacturers such as Littelfuse, Bourns, Eaton, Bel Fuse, TE Connectivity, Murata, TDK, Panasonic and other major brands. As an in-stock electronic components supplier and independent distributor, TomatoElec provides inventory support, original component sourcing and BOM sourcing services for global customers.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Series	Packaging	Product Status	Type	Voltage - Max	Current - Hold (Ih) (Max)	Current - Trip (It)	Current - Max	Time to Trip	Resistance - Initial (Ri) (Min)	Resistance - Post Trip (R1) (Max)	Resistance - 25°C (Typ)	Operating Temperature	Grade	Qualification	Ratings	Mounting Type	Size / Dimension	Height - Seated (Max)	Thickness (Max)	Lead Spacing
RUEF400-1 PTC RESET FUSE 30V 4A RADIAL Littelfuse Inc.	362	-	RFQ	Datasheet	Radial, Disc	PolySwitch®, RUEF	Bag	Active	Polymeric	30V	4 A	8 A	100 A	12.7 s	10 mOhms	50 mOhms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.551" L x 0.118" W (14.00mm x 3.00mm)	0.760" (19.30mm)	-	0.199" (5.05mm)
0ZCN0150FF2C PTC RESET FUSE 15V 1.5A 2016 Bel Fuse Inc.	600	-	RFQ	Datasheet	2016 (5041 Metric), Concave	0ZCN	Tape & Reel (TR)	Active	Polymeric	15V	1.5 A	3 A	100 A	800 ms	70 mOhms	180 mOhms	-	-40°C ~ 85°C	Automotive	AEC-Q200	-	Surface Mount	0.200" L x 0.160" W (5.08mm x 4.07mm)	-	0.026" (0.65mm)	-
AHRF070 PTC RESET FUSE 30V 700MA RADIAL Littelfuse Inc.	472	-	RFQ	Datasheet	Radial, Disc	PolySwitch®, AHRF	Bag	Active	Polymeric	30V	700 mA	1.4 A	40 A	3.2 s	230 mOhms	800 mOhms	-	-40°C ~ 125°C	Automotive	AEC-Q200	-	Through Hole	0.272" L x 0.130" W (6.90mm x 3.30mm)	0.425" (10.80mm)	-	0.199" (5.05mm)
AHRF100 PTC RESET FUSE 30V 1A RADIAL Littelfuse Inc.	500	-	RFQ	Datasheet	Radial, Disc	PolySwitch®, AHRF	Bag	Active	Polymeric	30V	1 A	1.9 A	40 A	6.2 s	150 mOhms	430 mOhms	-	-40°C ~ 125°C	Automotive	AEC-Q200	-	Through Hole	0.382" Dia x 0.118" T (9.70mm x 3.00mm)	0.535" (13.60mm)	-	0.199" (5.05mm)
MINIASMDC260F/12-2 PTC RESET FUSE 12V 2.6A 1812 Littelfuse Inc.	347	-	RFQ	Datasheet	1812 (4532 Metric), Concave	PolySwitch®, miniASMD	Bulk	Active	Polymeric	12V	2.6 A	5 A	100 A	5 s	15 mOhms	47 mOhms	-	-40°C ~ 85°C	Automotive	AEC-Q200	-	Surface Mount	0.181" L x 0.128" W (4.60mm x 3.24mm)	-	0.060" (1.52mm)	-
PICOSMDC075S-2 PTC RESET FUSE 6V 750MA 0805 Littelfuse Inc.	73	-	RFQ	Datasheet	0805 (2012 Metric), Concave	PolySwitch®, miniSMD	Tape & Reel (TR)	Active	Polymeric	6V	750 mA	1.5 A	40 A	200 ms	100 mOhms	350 mOhms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.083" L x 0.055" W (2.10mm x 1.40mm)	-	0.037" (0.93mm)	-
MF-R090-2-9 PTC RESET FUSE 60V 900MA RADIAL Bourns Inc.	231	-	RFQ	Datasheet	Radial, Disc	Multifuse®, MF-R	Tape & Reel (TR)	Active	Polymeric	60V	900 mA	1.8 A	40 A	7.2 s	140 mOhms	470 mOhms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.461" L x 0.122" W (11.70mm x 3.10mm)	0.657" (16.70mm)	-	0.201" (5.10mm)

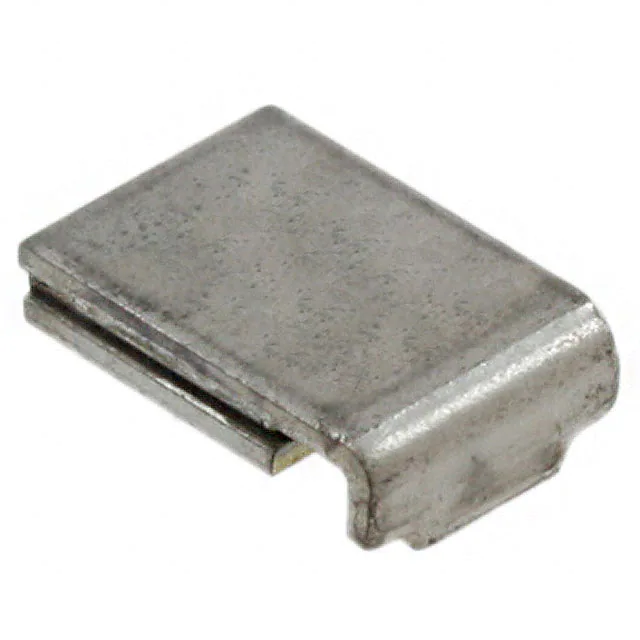

AHS120-2 PTC RESET FUSE 16V 1.2A 2SMD Littelfuse Inc.	81	-	RFQ	Datasheet	2-SMD	PolySwitch®, AHS	Tape & Reel (TR)	Active	Polymeric	16V	1.2 A	2.3 A	50 A	2 s	150 mOhms	340 mOhms	-	-40°C ~ 125°C	Automotive	AEC-Q200	-	Surface Mount	0.290" L x 0.202" W (7.36mm x 5.12mm)	-	0.118" (3.00mm)	-
AGRF1400 PTC RESET FUSE 16V 14A RADIAL Littelfuse Inc.	250	-	RFQ	Datasheet	Radial, Disc	PolySwitch®, AGRF	Bag	Active	Polymeric	16V	14 A	27.3 A	100 A	9 s	2.2 mOhms	6.4 mOhms	-	-40°C ~ 85°C	Automotive	AEC-Q200	-	Through Hole	0.925" L x 0.138" W (23.50mm x 3.50mm)	1.130" (28.70mm)	-	0.400" (10.15mm)
PICOASMDC050S-2 PPTC-MINI-PSW Littelfuse Inc.	990	-	RFQ	Datasheet	0805 (2012 Metric), Concave	PolySwitch® picoASMDC	Tape & Reel (TR)	Active	Polymeric	6V	500 mA	1 A	100 A	100 ms	150 mOhms	800 mOhms	-	-40°C ~ 85°C	Automotive	AEC-Q200	-	Surface Mount	0.083" L x 0.055" W (2.10mm x 1.40mm)	-	0.037" (0.93mm)	-
PICOASMDC020S-2 PPTC-MINI-PSW Littelfuse Inc.	873	-	RFQ	Datasheet	0805 (2012 Metric), Concave	PolySwitch® picoASMDC	Tape & Reel (TR)	Active	Polymeric	9V	200 mA	470 mA	100 A	100 ms	750 mOhms	3.2 Ohms	-	-40°C ~ 85°C	Automotive	AEC-Q200	-	Surface Mount	0.083" L x 0.055" W (2.10mm x 1.40mm)	-	0.027" (0.68mm)	-

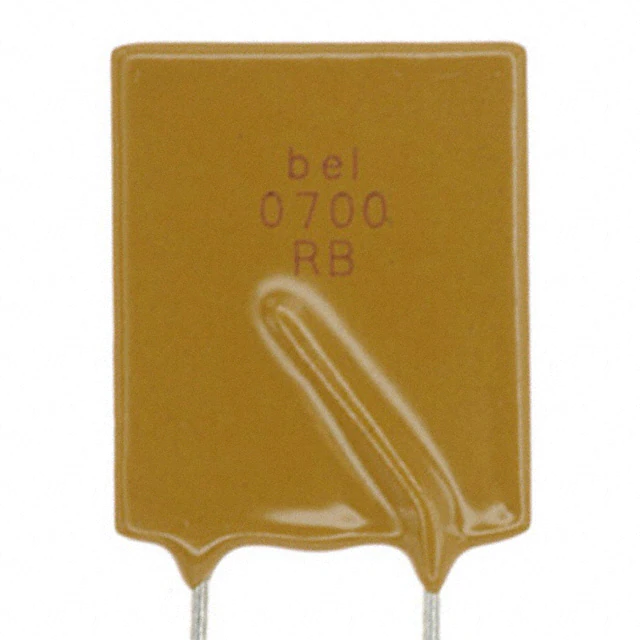

0ZRB0700FF1A PTC RESET FUSE 30V 7A RADIAL Bel Fuse Inc.	563	-	RFQ	Datasheet	Radial, Disc	0ZRB	Box	Active	Polymeric	30V	7 A	14 A	40 A	17.5 s	5 mOhms	30 mOhms	-	-40°C ~ 85°C	Automotive	AEC-Q200	-	Through Hole	0.752" L x 0.118" W (19.10mm x 3.00mm)	1.051" (26.70mm)	-	0.402" (10.20mm)
TRF250-120T PTC RESET FUSE 60V 120MA RADIAL Littelfuse Inc.	499	-	RFQ	Datasheet	Radial, Disc	PolySwitch®, TRF250	Bag	Active	Polymeric	60V (250V Int)	120 mA	240 mA	3 A	1.2 s	7 Ohms	16 Ohms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.256" L x 0.181" W (6.50mm x 4.60mm)	0.433" (11.00mm)	-	0.197" (5.00mm)
MF-LS100 PTC RESET FUSE 24V 1A STRAP Bourns Inc.	560	-	RFQ	Datasheet	Strap	Multifuse®, MF-LS	Bulk	Active	Polymeric	24V	1 A	2.5 A	100 A	7 s	70 mOhms	260 mOhms	-	-40°C ~ 85°C	-	-	-	User Defined	0.866" L x 0.199" W (22.00mm x 5.05mm)	-	0.039" (1.00mm)	-
LVR016S-1 PTC RESET FUSE 240V 160MA RADIAL Littelfuse Inc.	490	-	RFQ	Datasheet	Radial, Disc	PolySwitch®, LVR	Bag	Active	Polymeric	240V (265V Int)	160 mA	370 mA	2 A	15 s	2.5 Ohms	7.8 Ohms	-	-20°C ~ 85°C	-	-	-	Through Hole	0.390" Dia x 0.150" T (9.90mm x 3.80mm)	0.492" (12.50mm)	-	0.200" (5.08mm)
TRF250-183U PTC RESET FUSE 100V 183MA RADIAL Littelfuse Inc.	375	-	RFQ	Datasheet	Radial, Disc	PolySwitch®, TRF250	Bag	Active	Polymeric	100V (250V Int)	183 mA	685 mA	10 A	1.8 s	800 mOhms	3.4 Ohms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.256" Dia x 0.118" T (6.50mm x 3.00mm)	0.394" (10.00mm)	-	0.197" (5.00mm)
MF-RHT050-0 PTC RESET FUSE 30V 500MA RADIAL Bourns Inc.	49	-	RFQ	Datasheet	Radial, Disc	Multifuse®, MF-RHT	Bulk	Active	Polymeric	30V	500 mA	920 mA	40 A	2.5 s	480 mOhms	1.1 Ohms	-	-40°C ~ 125°C	Automotive	AEC-Q200	-	Through Hole	0.291" Dia x 0.118" T (7.40mm x 3.00mm)	0.500" (12.70mm)	-	0.201" (5.10mm)
16R300GPR PTC RESET FUSE 16V 3A RADIAL Littelfuse Inc.	46	-	RFQ	Datasheet	Radial, Disc	POLY-FUSE®, 16R	Cut Tape (CT)	Active	Polymeric	16V	3 A	5.1 A	100 A	1 s	38 mOhms	97.5 mOhms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.280" L x 0.118" W (7.10mm x 3.00mm)	0.433" (11.00mm)	-	0.201" (5.10mm)
AHS160-2 PTC RESET FUSE 16V 1.6A 2SMD Littelfuse Inc.	807	-	RFQ	Datasheet	2-SMD	PolySwitch®, AHS	Tape & Reel (TR)	Active	Polymeric	16V	1.6 A	3.2 A	70 A	15 s	50 mOhms	150 mOhms	-	-40°C ~ 125°C	Automotive	AEC-Q200	-	Surface Mount	0.343" L x 0.250" W (8.70mm x 6.36mm)	-	0.118" (3.00mm)	-
TRF250-110U PTC RESET FUSE 60V 110MA RADIAL Littelfuse Inc.	500	-	RFQ	Datasheet	Radial, Disc	PolySwitch®, TRF250	Bag	Active	Polymeric	60V (250V Int)	110 mA	220 mA	3 A	1.2 s	5 Ohms	16 Ohms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.209" Dia x 0.150" T (5.30mm x 3.80mm)	0.370" (9.40mm)	-	0.197" (5.00mm)

Total 4956 Record«Prev 1... 109 110 111 112113114 115 116...248 Next»
