Gate Drivers

Gate drivers are power management ICs used to control the gate of power switches such as MOSFETs, IGBTs, and GaN or SiC devices. They provide fast switching, level shifting, isolation, protection, and drive current control for motor drives, power supplies, inverters, industrial automation, automotive electronics, renewable energy systems, and high-efficiency power conversion designs.

TomatoElec is an independent electronic components distributor supplying gate driver ICs from mainstream manufacturers such as Texas Instruments, Analog Devices, STMicroelectronics, onsemi, Infineon, Microchip, Renesas, NXP, Diodes Incorporated, and Monolithic Power Systems. Customers can check inventory, price, package, specifications, parameters and PDF datasheets in the product list below, and submit a BOM or RFQ for gate driver sourcing support.

Mfr. Part #	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Programmable	Driven Configuration	Channel Type	Number of Drivers	Gate Type	Voltage - Supply	Logic Voltage - VIL, VIH	Current - Peak Output (Source, Sink)	Input Type	High Side Voltage - Max (Bootstrap)	Rise / Fall Time (Typ)	Operating Temperature	Grade	Qualification	Mounting Type	Supplier Device Package
1SP0635V2M1-5SNA1200E330100 IC GATE DRVR HI/LOW SIDE MODULE Power Integrations	-	RFQ	-	SCALE™-2	Module	Box	Active	Not Verified	High-Side or Low-Side	Single	1	IGBT	14.5V ~ 15.5V	-	35A, 35A	-	-	9ns, 30ns	-40°C ~ 85°C (TA)	-	-	Chassis Mount	Module
1SP0635V2M1-5SNA1500E330300 IC GATE DRVR HI/LOW SIDE MODULE Power Integrations	-	RFQ	-	SCALE™-2	Module	Box	Active	Not Verified	High-Side or Low-Side	Single	1	IGBT	14.5V ~ 15.5V	-	35A, 35A	-	-	9ns, 30ns	-40°C ~ 85°C (TA)	-	-	Chassis Mount	Module
1SP0635V2M1-CM1200HC-66H IC GATE DRVR HI/LOW SIDE MODULE Power Integrations	-	RFQ	-	SCALE™-2	Module	Box	Active	Not Verified	High-Side or Low-Side	-	1	IGBT	14.5V ~ 15.5V	-	35A, 35A	-	-	9ns, 30ns	-40°C ~ 85°C (TA)	-	-	Chassis Mount	Module
VLA553-01R IC GATE DRVR HALF-BRIDGE OCTAPAK Powerex Inc.	-	RFQ	Datasheet	-	Module	Bulk	Discontinued at Digi-Key	Not Verified	Half-Bridge	Independent	2	IGBT	14.2V ~ 15.8V	-	24A, 24A	Non-Inverting	-	-	-25°C ~ 70°C (TA)	-	-	Chassis Mount	OctaPAK 7+1
VLA553-02R IC GATE DRVR HALF-BRIDGE MODULE Powerex Inc.	-	RFQ	Datasheet	-	Module	Bulk	Discontinued at Digi-Key	Not Verified	Half-Bridge	Independent	2	IGBT	14.2V ~ 15.8V	-	24A, 24A	Non-Inverting	-	-	-25°C ~ 70°C (TA)	-	-	Chassis Mount	Module

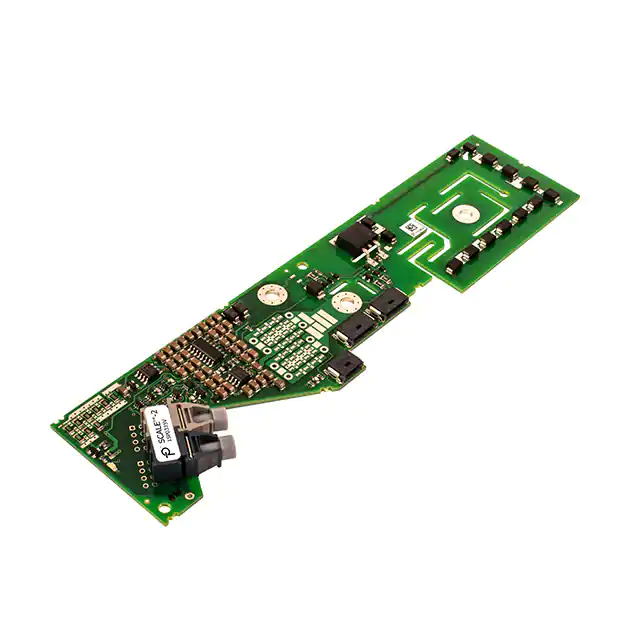

1SP0335V2M1-33 IC GATE DRVR HI/LOW SIDE MODULE Power Integrations	-	RFQ	Datasheet	SCALE™-2	Module	Bulk	Active	Not Verified	High-Side or Low-Side	Single	1	IGBT	23.5V ~ 26.5V	-	35A, 35A	-	3300 V	9ns, 30ns	-40°C ~ 85°C (TA)	-	-	Surface Mount	Module

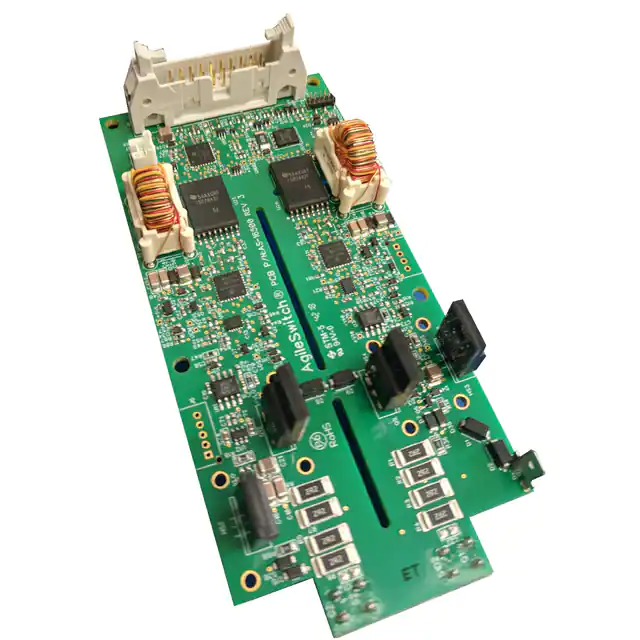

62EM1-00001 IC GATE DRVR HALF-BRIDGE MODULE Microchip Technology	-	RFQ	Datasheet	-	Module	Bulk	Obsolete	Verified	Half-Bridge	Single	2	N-Channel MOSFET	14V ~ 16V	4V, 1.25V, 10V, 3.5V	20A, 20A	Non-Inverting	-	80ns, 90ns	-40°C ~ 85°C (TA)	-	-	Chassis Mount	Module

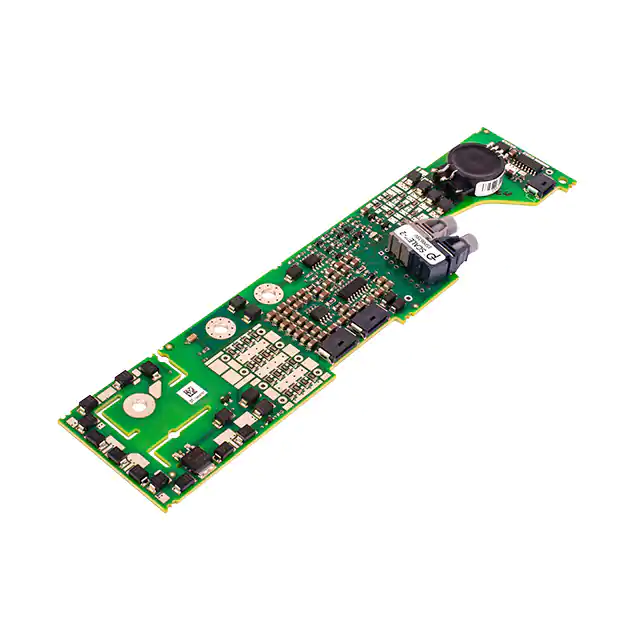

1SP0635V2M1-25 IC GATE DRVR HI/LOW SIDE MODULE Power Integrations	-	RFQ	Datasheet	SCALE™-2	Module	Box	Active	Not Verified	High-Side or Low-Side	Single	1	IGBT	14.5V ~ 15.5V	-	35A, 35A	-	2500 V	9ns, 30ns	-40°C ~ 85°C (TA)	-	-	Surface Mount	Module

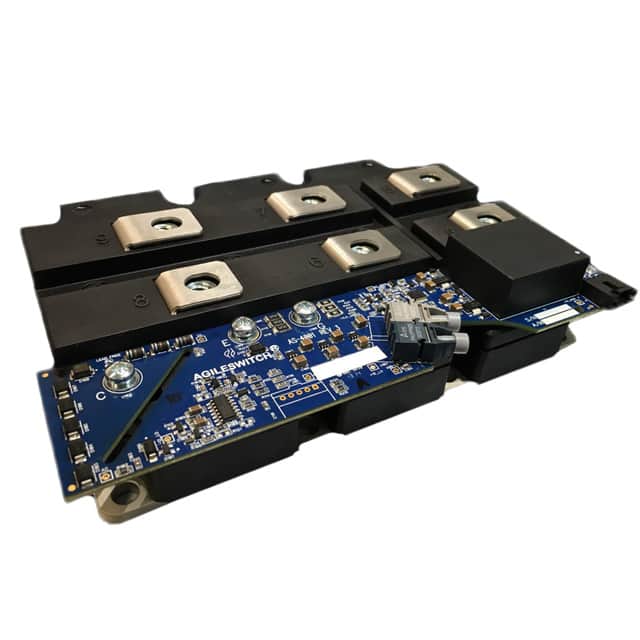

HPFM-00117 IC GATE DRVR HALF-BRIDGE MODULE Microchip Technology	-	RFQ	Datasheet	-	Module	Bulk	Active	Not Verified	Half-Bridge	Independent	1	IGBT	14.5V ~ 16V	-	30A, 30A	Non-Inverting	-	600ns, 350ns	-40°C ~ 85°C	-	-	Chassis Mount	Module

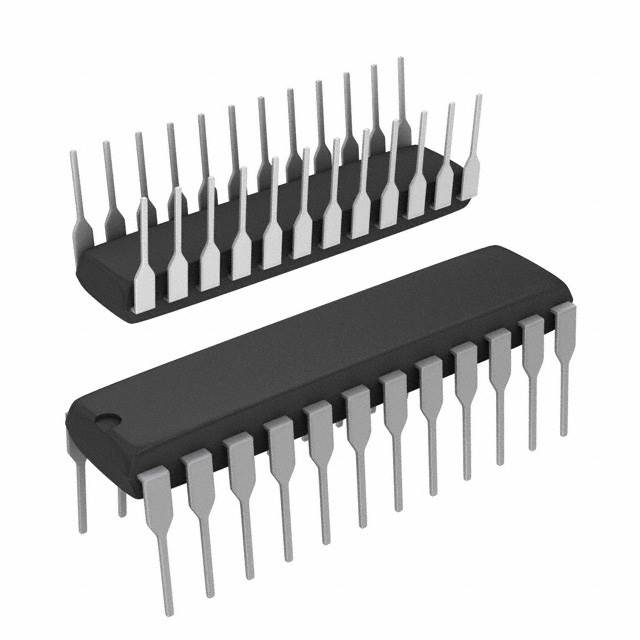

LT1162CN IC GATE DRVR HALF-BRIDGE 24DIP Analog Devices Inc.	-	RFQ	Datasheet	-	24-DIP (0.300", 7.62mm)	Tube	Obsolete	Not Verified	Half-Bridge	Independent	4	N-Channel MOSFET	10V ~ 15V	0.8V, 2V	1.5A, 1.5A	Non-Inverting	60 V	130ns, 60ns	0°C ~ 125°C (TJ)	-	-	Through Hole	24-PDIP
LT1162IN IC GATE DRVR HALF-BRIDGE 24DIP Analog Devices Inc.	-	RFQ	Datasheet	-	24-DIP (0.300", 7.62mm)	Tube	Obsolete	Not Verified	Half-Bridge	Independent	4	N-Channel MOSFET	10V ~ 15V	0.8V, 2V	1.5A, 1.5A	Non-Inverting	60 V	130ns, 60ns	-40°C ~ 125°C (TJ)	-	-	Through Hole	24-PDIP
ICL7667CPA IC GATE DRVR HALF-BRIDGE 8DIP Renesas Electronics Corporation	-	RFQ	Datasheet	-	8-DIP (0.300", 7.62mm)	Tube	Obsolete	Not Verified	Half-Bridge	Independent	2	N-Channel MOSFET	4.5V ~ 15V	0.8V, 2V	-	Inverting	-	20ns, 20ns	0°C ~ 70°C (TA)	-	-	Through Hole	8-PDIP
IR2104S IC GATE DRVR HALF-BRIDGE 8SOIC Infineon Technologies	-	RFQ	Datasheet	-	8-SOIC (0.154", 3.90mm Width)	Tube	Obsolete	Not Verified	Half-Bridge	Synchronous	2	IGBT, N-Channel MOSFET	10V ~ 20V	0.8V, 3V	210mA, 360mA	Non-Inverting	600 V	100ns, 50ns	-40°C ~ 150°C (TJ)	-	-	Surface Mount	8-SOIC
LTC1154CN8 IC GATE DRVR HIGH-SIDE 8DIP Analog Devices Inc.	-	RFQ	Datasheet	-	8-DIP (0.300", 7.62mm)	Tube	Active	Not Verified	High-Side	Single	1	N-Channel MOSFET	4.5V ~ 18V	0.8V, 2V	-	Non-Inverting	-	-	0°C ~ 70°C (TA)	-	-	Through Hole	8-PDIP
LMD18400N/NOPB IC GATE DRVR HIGH-SIDE 20DIP Texas Instruments	-	RFQ	Datasheet	-	20-DIP (0.300", 7.62mm)	Tube	Obsolete	Not Verified	High-Side	Independent	4	N-Channel MOSFET	7V ~ 28V	0.8V, 2V	3A, 3A	Non-Inverting	-	-	-25°C ~ 150°C (TJ)	-	-	Through Hole	20-PDIP
98-0247 IC GATE DRVR HALF-BRIDGE 16SOIC Infineon Technologies	-	RFQ	Datasheet	-	16-SOIC (0.295", 7.50mm Width)	Tube	Obsolete	Not Verified	Half-Bridge	Independent	2	IGBT, N-Channel MOSFET	3.3V ~ 20V	6V, 9.5V	2A, 2A	Non-Inverting	600 V	25ns, 17ns	-40°C ~ 150°C (TJ)	-	-	Surface Mount	16-SOIC
IXBD4410PI IC GATE DRVR LOW-SIDE 16DIP IXYS	-	RFQ	-	ISOSMART™	16-DIP (0.300", 7.62mm)	Tube	Obsolete	Not Verified	Low-Side	Single	1	IGBT, N-Channel, P-Channel MOSFET	10V ~ 20V	1V, 3.65V	2A, 2A	Non-Inverting	1200 V	15ns, 15ns	-40°C ~ 150°C (TJ)	-	-	Through Hole	16-DIP
IR2101 IC GATE DRVR HALF-BRIDGE 8DIP Infineon Technologies	-	RFQ	Datasheet	-	8-DIP (0.300", 7.62mm)	Tube	Obsolete	Not Verified	Half-Bridge	Independent	2	IGBT, N-Channel MOSFET	10V ~ 20V	0.8V, 3V	210mA, 360mA	Non-Inverting	600 V	100ns, 50ns	-40°C ~ 150°C (TJ)	-	-	Through Hole	8-PDIP
IR2104 IC GATE DRVR HALF-BRIDGE 8DIP Infineon Technologies	-	RFQ	Datasheet	-	8-DIP (0.300", 7.62mm)	Tube	Obsolete	Not Verified	Half-Bridge	Synchronous	2	IGBT, N-Channel MOSFET	10V ~ 20V	0.8V, 3V	210mA, 360mA	Non-Inverting	600 V	100ns, 50ns	-40°C ~ 150°C (TJ)	-	-	Through Hole	8-PDIP
IR2106 IC GATE DRVR HALF-BRIDGE 8DIP Infineon Technologies	-	RFQ	Datasheet	-	8-DIP (0.300", 7.62mm)	Tube	Obsolete	Not Verified	Half-Bridge	Independent	2	IGBT, N-Channel MOSFET	10V ~ 20V	0.8V, 2.9V	200mA, 350mA	Non-Inverting	600 V	150ns, 50ns	-40°C ~ 150°C (TJ)	-	-	Through Hole	8-PDIP

Total 6255 Record«Prev 1... 244 245 246 247248249 250 251...313 Next»
