Home > Products > Capacitors > Niobium Oxide Capacitors

Niobium Oxide Capacitors

Manufacturer	Series	Package/Case	Packaging	Product Status	Capacitance	Tolerance	Voltage - Rated	ESR (Equivalent Series Resistance)	Current - Leakage	Dissipation Factor	Mounting Type	Manufacturer Size Code	Height - Seated (Max)	Features	Operating Temperature	Supplier Device Package	Size / Dimension
KYOCERA AVX	CoreCap® NPV OxiCap® NLJ OxiCap® NOJ OxiCap® NOM OxiCap® NOS	0805 (2012 Metric) 1206 (3216 Metric) 1411 (3528 Metric), 1210 2312 (6032 Metric) 2917 (7343 Metric) 2924 (7361 Metric)	Bulk Tape & Reel (TR)	Active Discontinued at Key Obsolete	10 µF 100 µF 1000 µF 15 µF 150 µF 2.2 µF 22 µF 220 µF 3.3 µF 33 µF 330 µF 4.7 µF 47 µF 470 µF 560 µF 6.8 µF 68 µF 680 µF	±10% ±20%	1.8 V 10 V 2.5 V 4 V 6.3 V 8 V	1 Ohms 1.4 Ohms 1.5 Ohms 1.6 Ohms 1.7 Ohms 1.8 Ohms 1.9 Ohms 100 mOhms 125 mOhms 150 mOhms 2 Ohms 2.2 Ohms 2.6 Ohms 200 mOhms 23 mOhms 250 mOhms 3 mOhms 3.1 Ohms 3.2 Ohms 3.8 Ohms 30 mOhms 300 mOhms 35 mOhms 350 mOhms 4.5 Ohms 40 mOhms 400 mOhms 45 mOhms 5.3 Ohms 50 mOhms 500 mOhms 55 mOhms 6.1 Ohms 60 mOhms 600 mOhms 65 mOhms 7 Ohms 70 mOhms 700 mOhms 75 mOhms 8.3 Ohms 80 mOhms 800 mOhms 90 mOhms	- 1 µA 1.1 µA 1.2 µA 1.4 µA 1.6 µA 1.7 µA 1.8 µA 11 µA 12 µA 12.6 µA 13.6 µA 16 µA 16.5 µA 17.6 µA 18 µA 2 µA 2.4 µA 2.5 µA 2.6 µA 20 µA 23.5 µA 24.5 µA 26.4 µA 28 µA 28.2 µA 3 µA 3.4 µA 3.52 µA 3.6 µA 3.8 µA 34 µA 37.6 µA 39.6 µA 4 µA 4.4 µA 5 µA 5.4 µA 5.6 µA 5.7 µA 5.922 µA 50 µA 54.4 µA 56.4 µA 6.6 µA 60 µA 7.6 µA 8 µA 8.2 µA 80 µA 9.4 µA	- 10% 12% 14% 16% 18% 20% 6% 8%	Surface Mount	A B C D E F P T V W X Y	0.047" (1.20mm) 0.059" (1.50mm) 0.067" (1.70mm) 0.071" (1.80mm) 0.079" (2.00mm) 0.083" (2.10mm) 0.110" (2.80mm) 0.122" (3.10mm) 0.148" (3.75mm) 0.169" (4.30mm)	- Low ESR Low ESR Multi-anode	-55°C ~ 105°C -55°C ~ 125°C	0805 (2012 Metric) 1206 (3216 Metric) 1210 (3528 Metric) 2312 (6032 Metric) 2917 (7343 Metric) 2924 (7361 Metric)	0.081" L x 0.053" W (2.05mm x 1.35mm) 0.126" L x 0.063" W (3.20mm x 1.60mm) 0.138" L x 0.110" W (3.50mm x 2.80mm) 0.236" L x 0.126" W (6.00mm x 3.20mm) 0.287" L x 0.169" W (7.30mm x 4.30mm) 0.287" L x 0.240" W (7.30mm x 6.10mm)

Reset All

Apply All

Result

Niobium Oxide Capacitors

Niobium oxide capacitors are passive components that use niobium oxide-based anode technology to provide stable capacitance, low leakage current, and reliable performance in compact electronic designs. They are commonly used for filtering, decoupling, voltage stabilization, and energy storage in power supplies, portable devices, industrial electronics, communication equipment, automotive systems, and embedded applications.

TomatoElec is an independent electronic components distributor supplying niobium oxide capacitors and related capacitor products from mainstream manufacturers such as KYOCERA AVX, KEMET, Vishay, Panasonic, and Yageo. Customers can check inventory, price, package, specifications, parameters and PDF datasheets in the product list below, and submit a BOM or RFQ for niobium oxide capacitor sourcing support.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Capacitance	Tolerance	Voltage - Rated	ESR (Equivalent Series Resistance)	Current - Leakage	Dissipation Factor	Mounting Type	Manufacturer Size Code	Height - Seated (Max)	Features	Operating Temperature	Supplier Device Package	Size / Dimension
NOME337M006S0023 CAP NIOB OXI 330UF 20% 6.3V 2917 KYOCERA AVX	7,951	-	RFQ	Datasheet	OxiCap® NOM	2917 (7343 Metric)	Tape & Reel (TR)	Obsolete	330 µF	±20%	6.3 V	23 mOhms	39.6 µA	6%	Surface Mount	E	0.169" (4.30mm)	Low ESR Multi-anode	-55°C ~ 125°C	2917 (7343 Metric)	0.287" L x 0.169" W (7.30mm x 4.30mm)
NOME227M006R0040 CAP NIOB OXI 220UF 20% 6.3V 2917 KYOCERA AVX	7,552	-	RFQ	Datasheet	OxiCap® NOM	2917 (7343 Metric)	Tape & Reel (TR)	Obsolete	220 µF	±20%	6.3 V	40 mOhms	26.4 µA	12%	Surface Mount	E	0.169" (4.30mm)	Low ESR Multi-anode	-55°C ~ 125°C	2917 (7343 Metric)	0.287" L x 0.169" W (7.30mm x 4.30mm)
NOME337M004R0035 CAP NIOB OXIDE 330UF 20% 4V 2917 KYOCERA AVX	3,910	-	RFQ	Datasheet	OxiCap® NOM	2917 (7343 Metric)	Tape & Reel (TR)	Obsolete	330 µF	±20%	4 V	35 mOhms	26.4 µA	8%	Surface Mount	E	0.169" (4.30mm)	Low ESR Multi-anode	-55°C ~ 125°C	2917 (7343 Metric)	0.287" L x 0.169" W (7.30mm x 4.30mm)
NOME337M006R0023 CAP NIOB OXI 330UF 20% 6.3V 2917 KYOCERA AVX	2,892	-	RFQ	Datasheet	OxiCap® NOM	2917 (7343 Metric)	Tape & Reel (TR)	Obsolete	330 µF	±20%	6.3 V	23 mOhms	39.6 µA	6%	Surface Mount	E	0.169" (4.30mm)	Low ESR Multi-anode	-55°C ~ 125°C	2917 (7343 Metric)	0.287" L x 0.169" W (7.30mm x 4.30mm)
NOME337M006R0035 CAP NIOB OXI 330UF 20% 6.3V 2917 KYOCERA AVX	8,732	-	RFQ	Datasheet	OxiCap® NOM	2917 (7343 Metric)	Tape & Reel (TR)	Obsolete	330 µF	±20%	6.3 V	35 mOhms	39.6 µA	6%	Surface Mount	E	0.169" (4.30mm)	Low ESR Multi-anode	-55°C ~ 125°C	2917 (7343 Metric)	0.287" L x 0.169" W (7.30mm x 4.30mm)
NOME477M002R0030 CAP NIOB OXI 470UF 20% 2.5V 2917 KYOCERA AVX	8,985	-	RFQ	Datasheet	OxiCap® NOM	2917 (7343 Metric)	Tape & Reel (TR)	Obsolete	470 µF	±20%	2.5 V	30 mOhms	23.5 µA	10%	Surface Mount	E	0.169" (4.30mm)	Low ESR Multi-anode	-55°C ~ 125°C	2917 (7343 Metric)	0.287" L x 0.169" W (7.30mm x 4.30mm)
NOME687M001R0023 CAP NIOB OXI 680UF 20% 1.8V 2917 KYOCERA AVX	8,727	-	RFQ	Datasheet	OxiCap® NOM	2917 (7343 Metric)	Tape & Reel (TR)	Obsolete	680 µF	±20%	1.8 V	23 mOhms	24.5 µA	6%	Surface Mount	E	0.169" (4.30mm)	Low ESR Multi-anode	-55°C ~ 125°C	2917 (7343 Metric)	0.287" L x 0.169" W (7.30mm x 4.30mm)
NOME687M002R0023 CAP NIOB OXI 680UF 20% 2.5V 2917 KYOCERA AVX	6,681	-	RFQ	Datasheet	OxiCap® NOM	2917 (7343 Metric)	Tape & Reel (TR)	Obsolete	680 µF	±20%	2.5 V	23 mOhms	34 µA	6%	Surface Mount	E	0.169" (4.30mm)	Low ESR Multi-anode	-55°C ~ 125°C	2917 (7343 Metric)	0.287" L x 0.169" W (7.30mm x 4.30mm)

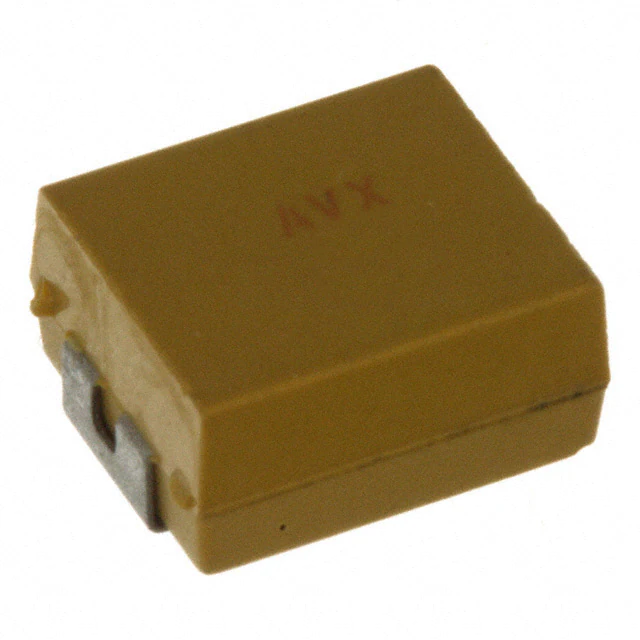

NOSV477M006R0075 CAP NIOB OXI 470UF 20% 6.3V 2924 KYOCERA AVX	5,227	-	RFQ	Datasheet	OxiCap® NOS	2924 (7361 Metric)	Tape & Reel (TR)	Obsolete	470 µF	±20%	6.3 V	75 mOhms	56.4 µA	12%	Surface Mount	V	0.148" (3.75mm)	Low ESR	-55°C ~ 125°C	2924 (7361 Metric)	0.287" L x 0.240" W (7.30mm x 6.10mm)
NPVV337M004R0003 CAP NIOB OXIDE 330UF 20% 4V 2924 KYOCERA AVX	4,090	-	RFQ	Datasheet	CoreCap® NPV	2924 (7361 Metric)	Tape & Reel (TR)	Active	330 µF	±20%	4 V	3 mOhms	26.4 µA	6%	Surface Mount	V	0.148" (3.75mm)	Low ESR Multi-anode	-55°C ~ 105°C	2924 (7361 Metric)	0.287" L x 0.240" W (7.30mm x 6.10mm)
NPVV477M004R0003 CAP NIOB OXIDE 470UF 20% 4V 2924 KYOCERA AVX	2,771	-	RFQ	Datasheet	CoreCap® NPV	2924 (7361 Metric)	Tape & Reel (TR)	Active	470 µF	±20%	4 V	3 mOhms	37.6 µA	6%	Surface Mount	V	0.148" (3.75mm)	Low ESR Multi-anode	-55°C ~ 105°C	2924 (7361 Metric)	0.287" L x 0.240" W (7.30mm x 6.10mm)
NOJA106K006RWJ CAP NIOB OXID 10UF 10% 6.3V 1206 KYOCERA AVX	7,583	-	RFQ	Datasheet	OxiCap® NOJ	1206 (3216 Metric)	Tape & Reel (TR)	Active	10 µF	±10%	6.3 V	2.2 Ohms	1.2 µA	6%	Surface Mount	A	0.071" (1.80mm)	-	-55°C ~ 105°C	1206 (3216 Metric)	0.126" L x 0.063" W (3.20mm x 1.60mm)
NOJD107K006RWJ CAP NIOB OXI 100UF 10% 6.3V 2917 KYOCERA AVX	3,606	-	RFQ	Datasheet	OxiCap® NOJ	2917 (7343 Metric)	Tape & Reel (TR)	Active	100 µF	±10%	6.3 V	400 mOhms	12 µA	6%	Surface Mount	D	0.122" (3.10mm)	-	-55°C ~ 105°C	2917 (7343 Metric)	0.287" L x 0.169" W (7.30mm x 4.30mm)
NOSC227M001R0150 CAP NIOB OXI 220UF 20% 1.8V 2312 KYOCERA AVX	9,278	-	RFQ	Datasheet	OxiCap® NOS	2312 (6032 Metric)	Tape & Reel (TR)	Active	220 µF	±20%	1.8 V	150 mOhms	-	-	Surface Mount	C	0.110" (2.80mm)	Low ESR	-55°C ~ 125°C	2312 (6032 Metric)	0.236" L x 0.126" W (6.00mm x 3.20mm)
NOJY227M006RWJ CAP NIOB OXI 220UF 20% 6.3V 2917 KYOCERA AVX	9,574	-	RFQ	Datasheet	OxiCap® NOJ	2917 (7343 Metric)	Tape & Reel (TR)	Active	220 µF	±20%	6.3 V	400 mOhms	26.4 µA	10%	Surface Mount	Y	0.079" (2.00mm)	-	-55°C ~ 105°C	2917 (7343 Metric)	0.287" L x 0.169" W (7.30mm x 4.30mm)
NPVV567M002R0003 CAP NIOB OXI 560UF 20% 2.5V 2924 KYOCERA AVX	2,036	-	RFQ	Datasheet	CoreCap® NPV	2924 (7361 Metric)	Tape & Reel (TR)	Active	560 µF	±20%	2.5 V	3 mOhms	28 µA	6%	Surface Mount	V	0.148" (3.75mm)	Low ESR Multi-anode	-55°C ~ 105°C	2924 (7361 Metric)	0.287" L x 0.240" W (7.30mm x 6.10mm)
NOSD337M002S0035 NOSD337M002S0035 KYOCERA AVX	3,461	-	RFQ	-	OxiCap® NOS	2917 (7343 Metric)	Bulk	Obsolete	330 µF	±20%	2.5 V	35 mOhms	16.5 µA	10%	Surface Mount	D	0.122" (3.10mm)	Low ESR	-55°C ~ 125°C	2917 (7343 Metric)	0.287" L x 0.169" W (7.30mm x 4.30mm)

Total 217 Record«Prev 1... 7 8 9 1011Next»
