Gates and Inverters - Multi-Function, Configurable

Multi-function and configurable gates and inverters are logic ICs that provide flexible digital signal processing functions within a single device. They can support selectable logic configurations, signal inversion, buffering, switching, and basic control functions, making them suitable for embedded systems, industrial control boards, communication equipment, consumer electronics, automotive electronics, and compact logic designs.

TomatoElec is an independent electronic components distributor supplying multi-function and configurable gate and inverter ICs from mainstream manufacturers such as Texas Instruments, Nexperia, onsemi, STMicroelectronics, NXP, Diodes Incorporated, Toshiba, Renesas, Microchip, and Analog Devices. Customers can check inventory, price, package, specifications, parameters and PDF datasheets in the product list below, and submit a BOM or RFQ for configurable logic gate and inverter sourcing support.

Mfr. Part #	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Logic Type	Number of Circuits	Number of Inputs	Schmitt Trigger Input	Output Type	Current - Output High, Low	Voltage - Supply	Operating Temperature	Grade	Qualification	Mounting Type	Supplier Device Package
74AXP1T57GTX DUAL SUPPLY GATE 8XSON Nexperia USA Inc.	-	RFQ	Datasheet	74AXP	8-XFDFN	Tape & Reel (TR)	Obsolete	Configurable Multiple Function	1	3	Yes	Single-Ended	12mA, 12mA	0.7V ~ 2.75V, 1.2V ~ 5.5V	-40°C ~ 85°C	-	-	Surface Mount	8-XSON, SOT833-1 (1.95x1)
74AXP1G57GXZ IC GATE MULTI-FUNCTION X2SON6 Nexperia USA Inc.	-	RFQ	Datasheet	74AXP	6-XFDFN	Tape & Reel (TR)	Obsolete	Configurable Multiple Function	1	3	No	Single-Ended	8mA, 8mA	0.7V ~ 2.75V	-40°C ~ 85°C	-	-	Surface Mount	6-X2SON (1.0x0.8)
74AXP2G3404GNH IC BUFFER INVERTER SGL X2SON6Q Nexperia USA Inc.	-	RFQ	Datasheet	74AXP	6-XFDFN	Tape & Reel (TR)	Obsolete	Buffer/Inverter	2	2 Input (1, 1)	No	Single-Ended	8mA, 8mA	0.7V ~ 2.75V	-40°C ~ 85°C	-	-	Surface Mount	6-XSON (0.9x1)
74AXP1T57DC-Q100H 74AXP1T57DC-Q100/SOT765/VSSOP8 Nexperia USA Inc.	-	RFQ	Datasheet	74AXP	8-VFSOP (0.091", 2.30mm Width)	Tape & Reel (TR)	Obsolete	Configurable Multiple Function	1	3	Yes	Single-Ended	-	1.2V ~ 5.5V	-40°C ~ 125°C	Automotive	AEC-Q100	Surface Mount	8-VSSOP
74AUP1G57GW/S711125 74AUP1G57GW - LOGIC CIRCUIT NXP USA Inc.	-	RFQ	Datasheet	74AUP	6-TSSOP, SC-88, SOT-363	Bulk	Active	Configurable Multiple Function	1	3	No	Single-Ended	4mA, 4mA	0.8V ~ 3.6V	-40°C ~ 125°C	-	-	Surface Mount	SOT-363

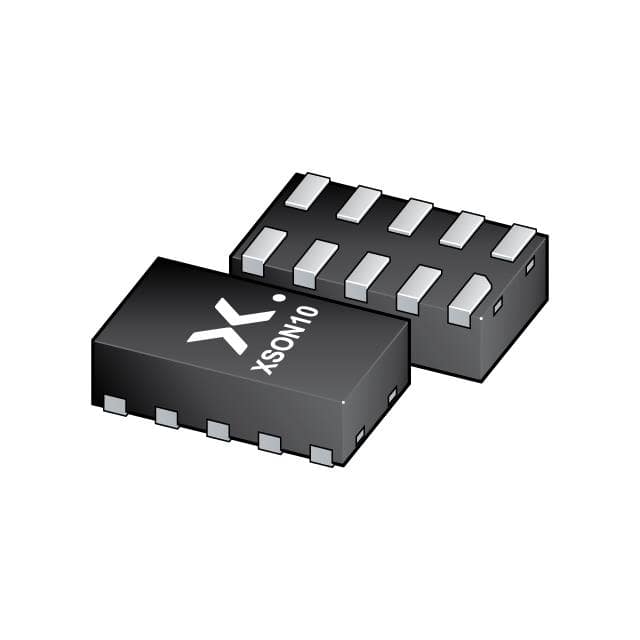

74AUP2G97GF115 MAJORITY LOGIC GATE NXP USA Inc.	-	RFQ	Datasheet	74AUP	10-XFDFN	Bulk	Active	Configurable Multiple Function	2	3	Yes	Single-Ended	4mA, 4mA	0.8V ~ 3.6V	-40°C ~ 125°C	-	-	Surface Mount	10-XSON (1.7x1)
CD4019BK3 CMOS QUAD 2-INPUT AND-OR GATE Harris Corporation	-	RFQ	Datasheet	-	16-CFlatPack	Bulk	Active	AND/OR Gate	4	2	No	Single-Ended	6.8mA, 6.8mA	3V ~ 18V	-55°C ~ 125°C	-	-	Surface Mount	16-CFP
74LV1GW98ACME-E IC GATE MULTIFUNCTION CMPAK6 Renesas Electronics Corporation	-	RFQ	-	74LV	6-TSSOP, SC-88, SOT-363	Tape & Reel (TR)	Obsolete	Configurable Multiple Function	3	3	No	Single-Ended	12mA, 12mA	1.65V ~ 5.5V	-40°C ~ 85°C	-	-	Surface Mount	CMPAK-6
74AUP1G59L6X TINYLOGIC LOW-POWER UNIVERSAL CO Fairchild Semiconductor	-	RFQ	Datasheet	74AUP	6-UFDFN	Bulk	Active	Configurable Multiple Function	1	3	Yes	Single-Ended	-, 4mA	0.8V ~ 3.6V	-40°C ~ 85°C	-	-	Surface Mount	6-MicroPak
NC7SZ58L6X TINYLOGIC UHS UNIVERSAL CONFIGUR Fairchild Semiconductor	-	RFQ	Datasheet	7SZ	6-UFDFN	Bulk	Active	Configurable Multiple Function	1	3	No	Single-Ended	32mA, 32mA	1.65V ~ 5.5V	-40°C ~ 85°C	-	-	Surface Mount	6-MicroPak
NC7SP57P6X TINYLOGIC ULP UNIVERSAL CONFIGUR Fairchild Semiconductor	-	RFQ	Datasheet	7SP	6-TSSOP, SC-88, SOT-363	Bulk	Active	Configurable Multiple Function	1	3	No	Single-Ended	2.6mA, 2.6mA	0.9V ~ 3.6V	-40°C ~ 85°C	-	-	Surface Mount	SC-88 (SC-70-6)
LV1G08ACME-E-P IC PRECISION TIMER SMD Renesas Electronics Corporation	-	RFQ	-	-	-	Tape & Reel (TR)	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-
NC7SV57FHX-L22780 IC GATE UNIVERSAL 2INP 6-MICRPAK onsemi	-	RFQ	Datasheet	7SV	6-UFDFN	Tape & Reel (TR)	Obsolete	Configurable Multiple Function	1	3	Yes	Single-Ended	24mA, 24mA	0.9V ~ 3.6V	-40°C ~ 85°C	-	-	Surface Mount	6-UDFN (1x1)
NC7SZ58FHX-L22175 IC GATE AND 2INPUT 6-MICROPAK onsemi	-	RFQ	Datasheet	7SZ	6-UFDFN	Tape & Reel (TR)	Obsolete	Configurable Multiple Function	1	3	Yes	Single-Ended	32mA, 32mA	1.65V ~ 5.5V	-40°C ~ 85°C	-	-	Surface Mount	6-UDFN (1x1)
M38510/07402BCA 4-2-3-2 INPUT AND-OR-INVERT GATE Texas Instruments	-	RFQ	Datasheet	54S	14-CDIP (0.300", 7.62mm)	Tube	Active	AND/OR/INVERT Gate	1	11 Input (4, 2, 3, 2)	No	Single-Ended	20mA, 1mA	4.5V ~ 5.5V	-55°C ~ 125°C	-	-	Through Hole	14-CDIP
CD4048BF3A CMOS MULTIFUNCTION EXPANDABLE 8- Texas Instruments	-	RFQ	Datasheet	4000B	16-CDIP (0.300", 7.62mm)	Tube	Active	Multifunction	1	8	No	Single-Ended	6.8mA, 6.8mA	3V ~ 18V	-55°C ~ 125°C	-	-	Through Hole	16-CDIP
SN5454J 4-WIDE AND-OR-INVERT GATES 14-CD Texas Instruments	-	RFQ	-	-	14-CDIP (0.300", 7.62mm)	Tube	Active	AND/OR/INVERT Gate	1	8 Input (2, 2, 2, 2)	No	Single-Ended	16mA, 400µA	4.5V ~ 5.5V	-55°C ~ 125°C	-	-	Through Hole	14-CDIP
CD4085BF3A CMOS DUAL 2-WIDE 2-INPUT AND-OR- Texas Instruments	-	RFQ	Datasheet	-	14-CDIP (0.300", 7.62mm)	Tube	Active	AND/OR/INVERT Gate	2	8 Input (2, 2, 2, 2)	No	Single-Ended	6.8mA, 6.8mA	3V ~ 18V	-55°C ~ 125°C	-	-	Through Hole	14-CDIP

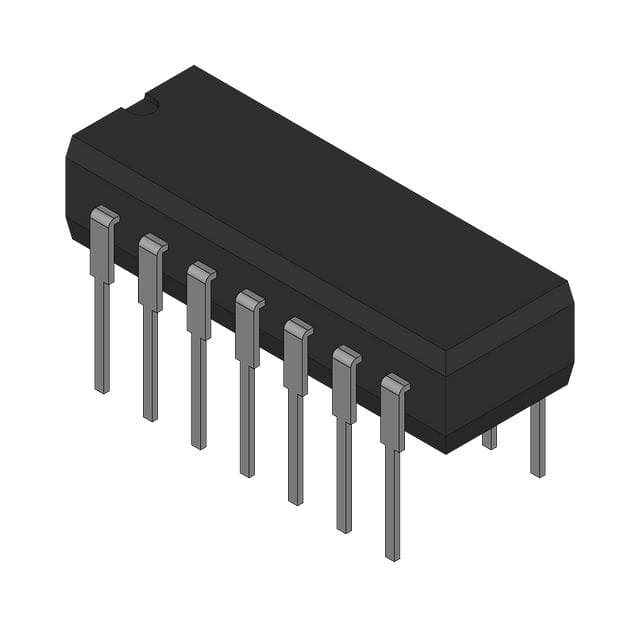

CD4078BF3A CMOS 8-INPUT NOR/OR GATE 14-CDIP Texas Instruments	-	RFQ	Datasheet	-	14-CDIP (0.300", 7.62mm)	Tube	Active	NOR/OR Gate	1	8	No	Single-Ended	6.8mA, 6.8mA	3V ~ 18V	-55°C ~ 125°C	-	-	Through Hole	14-CDIP
JM38510/07402BCA 4-2-3-2 INPUT AND-OR-INVERT GATE Texas Instruments	-	RFQ	Datasheet	54S	14-CDIP (0.300", 7.62mm)	Tube	Active	AND/OR/INVERT Gate	1	11 Input (4, 2, 3, 2)	No	Single-Ended	20mA, 1mA	4.5V ~ 5.5V	-55°C ~ 125°C	-	-	Through Hole	14-CDIP
