Analog Switches, Multiplexers, Demultiplexers
Analog Switches, Multiplexers and Demultiplexers are interface and signal routing ICs used to switch, select and route analog or mixed-signal paths in electronic systems. They are widely used in industrial control, communication equipment, test instruments, medical devices, consumer electronics, automotive electronics, embedded systems and data acquisition applications.
This category includes analog switch ICs, analog multiplexers, analog demultiplexers, signal routing ICs, low-resistance switches, precision switches and related interface components. These devices are commonly selected based on channel count, on-resistance, bandwidth, leakage current, supply voltage, signal range, package type and system compatibility.
TomatoElec supplies original Analog Switches, Multiplexers and Demultiplexers from recognized semiconductor manufacturers such as Texas Instruments, Analog Devices, STMicroelectronics, NXP, Microchip, onsemi, Diodes Incorporated, Renesas and other major brands. As an in-stock electronic components supplier and independent distributor, TomatoElec provides inventory support, original component sourcing and BOM sourcing services for global customers.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ISL84051IVZ-TIC MUX 8:1 100OHM 16TSSOP |
9,560 | - |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 8:1 | 1 | 100Ohm | 6Ohm (Max) | 2V ~ 12V | ±2V ~ 6V | 50ns, 40ns | - | 2pC | 3pF, 21pF | 2pA (Typ) | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
MAX4595EXK+TIC SWITCH SPST-NCX1 10OHM SC70-5 |
309 | - |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 1 | 10Ohm | - | 2V ~ 5.5V | - | 35ns, 40ns | 300MHz | 2pC | 8pF, 8pF | 500pA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-70-5 |
|
ADG842YKSZ-REEL7IC SW SPST-NCX1 370MOHM SC70-6 |
4,347 | - |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 1 | 370mOhm | - | 1.65V ~ 3.6V | - | 14ns, 7.8ns | 21MHz | 200pC | 160pF, 160pF | 200pA (Typ) | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SC-70-6 |
|
MAX4515CUK+TIC SWITCH SPST-NCX1 20OHM SOT23 |
2,238 | - |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 1 | 20Ohm | - | 2V ~ 12V | - | 150ns, 100ns | - | 2pC | 14pF, 14pF | 1nA | - | 0°C ~ 70°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
DG409DQ-E3IC SWITCH SP4TX2 100OHM 16TSSOP |
530 | - |
|
Datasheet |
- | Tube | Active | SP4T | 4:1 | 2 | 100Ohm | 15Ohm (Max) | 5V ~ 36V | ±5V ~ 20V | 150ns, 150ns | - | 20pC | 14pF, 25pF | 500pA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
DG408DQ-E3IC MUX 8:1 100OHM 16TSSOP |
463 | - |
|
Datasheet |
- | Tube | Active | - | 8:1 | 1 | 100Ohm | 15Ohm (Max) | 5V ~ 36V | ±5V ~ 20V | 150ns, 150ns | - | 20pC | 3pF, 26pF | 500pA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
ADG701BRJZ-500RL7IC SWITCH SPST-NOX1 3OHM SOT23-5 |
2,134 | - |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 1 | 3Ohm | - | 1.8V ~ 5V | - | 12ns, 8ns (Typ) | 200MHz | 5pC | 17pF, 17pF | 10pA (Typ) | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
MAX4521CSE+IC SW SPST-NCX4 100OHM 16SOIC |
1,390 | - |
|
Datasheet |
- | Tube | Active | SPST - NC | 1:1 | 4 | 100Ohm | 1Ohm | 2V ~ 12V | ±2V ~ 6V | 80ns, 30ns | - | 1pC | 2pF, 2pF | 1nA | -90dB @ 100kHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
ISL43144IVZ-TIC SW SPST-NOX4 25OHM 16TSSOP |
1,570 | - |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 4 | 25Ohm | 500mOhm | 2.7V ~ 12V | ±2.6V ~ 6V | 65ns, 50ns | - | 5pC (Max) | 10pF, 26pF | 100pA | -89dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
DG412DJ-E3IC SWITCH SPST-NOX4 35OHM 16DIP |
488 | - |
|
Datasheet |
- | Tube | Last Time Buy | SPST - NO | 1:1 | 4 | 35Ohm | - | 5V ~ 44V | ±5V ~ 20V | 175ns, 145ns | - | 5pC | 9pF, 9pF | 250pA | -85dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Through Hole | 16-PDIP |
|
|
MAX4501EUK+TIC SW SPST-NOX1 250OHM SOT23-5 |
9,502 | - |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 1 | 250Ohm | - | 2V ~ 12V | - | 75ns, 50ns | - | 1pC | 3pF | 1nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
ADG794BRQZ-REEL7IC SWITCH SPDT X 4 7OHM 16QSOP |
1,588 | - |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 4 | 7Ohm | 400mOhm | 3.3V, 5V | - | 7ns, 5ns (Typ) | 300MHz | 7.5pC | 8pF, 14pF | 1pA (Typ) | -70dB @ 10MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-QSOP |
|
|
MAX4582CUE+IC SWITCH SP4T X 2 80OHM 16TSSOP |
6,922 | - |
|
Datasheet |
- | Tube | Active | SP4T | 4:1 | 2 | 80Ohm | 1Ohm | 2V ~ 12V | ±2V ~ 6V | 200ns, 100ns | - | 0.5pC | 4pF, 10pF | 1nA | -96dB @ 1MHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-TSSOP |
|

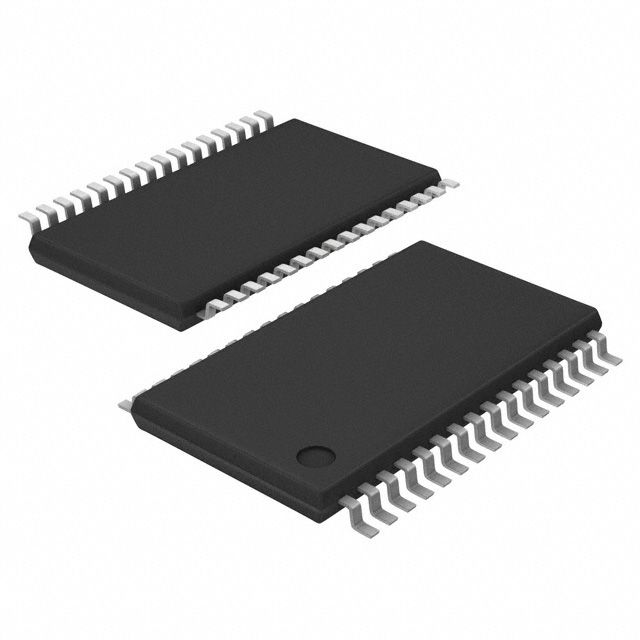

NJU72750AV-TE1IC MUX DUAL 7:3 40OHM 32SSOP |
17,860 | - |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 7:3 | 2 | 40Ohm | - | 9V ~ 15V | ±4.5V ~ 7.5V | - | - | - | - | - | -110dB @ 1MHz | -40°C ~ 85°C | - | - | Surface Mount | 32-SSOP |
|
ADG701BRMZ-REEL7IC SWITCH SPST-NO X 1 3OHM 8MSOP |
1,000 | - |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 1 | 3Ohm | - | 1.8V ~ 5V | - | 12ns, 8ns (Typ) | 200MHz | 5pC | 17pF, 17pF | 10pA (Typ) | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MSOP |
|
|
ADG701BRMZIC SWITCH SPST-NO X 1 3OHM 8MSOP |
172 | - |
|
Datasheet |
- | Tube | Active | SPST - NO | 1:1 | 1 | 3Ohm | - | 1.8V ~ 5V | - | 12ns, 8ns (Typ) | 200MHz | 5pC | 17pF, 17pF | 10pA (Typ) | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MSOP |
|
|
DG452EQ-T1-E3IC SW SPST-NOX4 5.3OHM 16TSSOP |
9,272 | - |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 4 | 5.3Ohm | 120mOhm | 12V ~ 36V | ±5V ~ 15V | 118ns, 97ns | - | 22pC | 31pf, 34pF | 500pA | -85dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
DG451EY-T1-E3IC SW SPST-NCX4 5.3OHM 16SOIC |
7,139 | - |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 4 | 5.3Ohm | 120mOhm | 12V ~ 36V | ±5V ~ 15V | 118ns, 97ns | - | 22pC | 31pf, 34pF | 500pA | -85dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
DG456EQ-T1-E3IC SW SPST-NO/NC 5.3OHM 16TSSOP |
3,605 | - |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NO/NC | 1:1 | 4 | 5.3Ohm | 120mOhm | 12V ~ 36V | ±5V ~ 15V | 118ns, 97ns | - | 22pC | 31pf, 34pF | 500pA | -85dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
DG455EY-T1-E3IC SW SPST-NOX4 5.3OHM 16SOIC |
1,682 | - |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 4 | 5.3Ohm | 120mOhm | 12V ~ 36V | ±5V ~ 15V | 118ns, 97ns | - | 22pC | 31pf, 34pF | 500pA | -85dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-SOIC |
