Analog Switches, Multiplexers, Demultiplexers
Analog Switches, Multiplexers and Demultiplexers are interface and signal routing ICs used to switch, select and route analog or mixed-signal paths in electronic systems. They are widely used in industrial control, communication equipment, test instruments, medical devices, consumer electronics, automotive electronics, embedded systems and data acquisition applications.
This category includes analog switch ICs, analog multiplexers, analog demultiplexers, signal routing ICs, low-resistance switches, precision switches and related interface components. These devices are commonly selected based on channel count, on-resistance, bandwidth, leakage current, supply voltage, signal range, package type and system compatibility.
TomatoElec supplies original Analog Switches, Multiplexers and Demultiplexers from recognized semiconductor manufacturers such as Texas Instruments, Analog Devices, STMicroelectronics, NXP, Microchip, onsemi, Diodes Incorporated, Renesas and other major brands. As an in-stock electronic components supplier and independent distributor, TomatoElec provides inventory support, original component sourcing and BOM sourcing services for global customers.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7705302EAIC SWITCH SPST-NCX4 50OHM 16CDIP |
0 | - |
|
- |
- | Tube | Active | SPST - NC | 1:1 | 4 | 50Ohm | - | 12V ~ 20V | ±5V ~ 20V | 50ns, 50ns | - | 10pC | 10pF, 10pF | 1nA | -90dB @ 100kHz | -55°C ~ 125°C (TA) | - | - | Through Hole | 16-CDIP |
|
8100603EAIC SW ANLG CMOS SPDT |
0 | - |
|
- |
- | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
8100612EAIC SW ANLG CMOS SPDT |
0 | - |
|
- |
- | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MAX14560EWC+TIC ANALOG SWITCH 12WLP |
0 | - |
|
- |
* | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MAX3997ETM+IC MULTIPLEXER 4CH 48TQFN |
0 | - |
|
- |
* | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
NLAS5223CLMUTAGIC SWITCH SPDTX2 350MOHM 10UQFN |
0 | - |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 350mOhm | 50mOhm (Max) | 1.65V ~ 4.5V | - | 50ns, 30ns | 24MHz | 38pC | 60pF | 5nA | -70dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UQFN (1.4x1.8) |
|
MP2735DQG-LF-PIC SWITCH SPDT X 2 450MOHM 10QFN |
0 | - |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 450mOhm | 10mOhm | 1.65V ~ 5.5V | - | 36ns, 30ns | 50MHz | - | 55pF | 40nA | -70dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-QFN (1.4x1.8) |
|
|
MP2735DQG-LF-ZIC SWITCH SPDT X 2 450MOHM 10QFN |
0 | - |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 450mOhm | 10mOhm | 1.65V ~ 5.5V | - | 36ns, 30ns | 50MHz | - | 55pF | 40nA | -70dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-QFN (1.4x1.8) |
|
MAX14803CCM+TG5EIC SW SPST-NOX16 48OHM 48LQFP |
0 | - |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 16 | 48Ohm | 2.4Ohm | 40V ~ 250V | ±160V | 3.5µs, 3.5µs | 20MHz | 820pC | 11pF | 2µA | -80dB @ 5MHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 48-LQFP (7x7) |
|
MAX4523EGE+IC SW QUAD ANLG LV SPST 16QFN |
0 | - |
|
Datasheet |
* | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
DG445CY+IC SWITCH SPST-NOX4 85OHM 16SOIC |
0 | - |
|
Datasheet |
- | Tube | Obsolete | SPST - NO | 1:1 | 4 | 85Ohm | 4Ohm (Max) | 10V ~ 30V | ±4.5V ~ 20V | 250ns, 170ns | - | 5pC | 4pF, 4pF | 500pA | -100dB @ 1MHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-SOIC |
|
MAX364EPE+IC SWITCH SPST-NCX4 85OHM 16DIP |
0 | - |
|
Datasheet |
- | Tube | Obsolete | SPST - NC | 1:1 | 4 | 85Ohm | 2Ohm (Max) | 10V ~ 30V | ±4.5V ~ 20V | 250ns, 120ns | - | 5pC | 4pF, 4pF | 500pA | -100dB @ 1MHz | -40°C ~ 85°C | - | - | Through Hole | 16-PDIP |
|
|
MAX365EPE+IC SWITCH SPST-NOX4 85OHM 16DIP |
0 | - |
|
Datasheet |
- | Tube | Obsolete | SPST - NO | 1:1 | 4 | 85Ohm | 2Ohm (Max) | 10V ~ 30V | ±4.5V ~ 20V | 250ns, 170ns | - | 5pC | 4pF, 4pF | 500pA | -100dB @ 1MHz | -40°C ~ 85°C | - | - | Through Hole | 16-PDIP |
|
MAX4610EPD+IC SWITCH SPST-NOX4 100OHM 14DIP |
0 | - |
|
Datasheet |
- | Tube | Obsolete | SPST - NO | 1:1 | 4 | 100Ohm | 1Ohm (Typ) | 2V ~ 12V | - | 65ns, 28ns | 300MHz | 1pC | 16pF, 16pF | 100pA | -80dB @ 1MHz | -40°C ~ 85°C | - | - | Through Hole | 14-PDIP |
|
|
MAX4612EPD+IC SW SPST-NO/NCX4 100OHM 14DIP |
0 | - |
|
Datasheet |
- | Tube | Obsolete | SPST - NO/NC | 1:1 | 4 | 100Ohm | 1Ohm (Typ) | 2V ~ 12V | - | 65ns, 28ns | 300MHz | 1pC | 16pF, 16pF | 100pA | -80dB @ 1MHz | -40°C ~ 85°C | - | - | Through Hole | 14-PDIP |
|
|
MAX4712CPE+IC SWITCH SPST-NOX4 25OHM 16DIP |
0 | - |
|
Datasheet |
- | Tube | Obsolete | SPST - NO | 1:1 | 4 | 25Ohm | 200mOhm (Typ) | 2.7V ~ 11V | ±2.7V ~ 5.5V | 125ns, 80ns | - | 25pC | 8pF, 8pF | 500pA | -87dB @ 1MHz | 0°C ~ 70°C | - | - | Through Hole | 16-PDIP |
|
|
DG3535DB-T1-E1IC SW SPDTX2 400MOHM 10MICRO FT |
0 | - |
|
- |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 400mOhm | 50mOhm (Max) | 2.7V ~ 3.3V | - | 82ns, 73ns | - | 21pC | 145pF | 2nA | -69dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-Micro Foot® (2x1.5) |
|

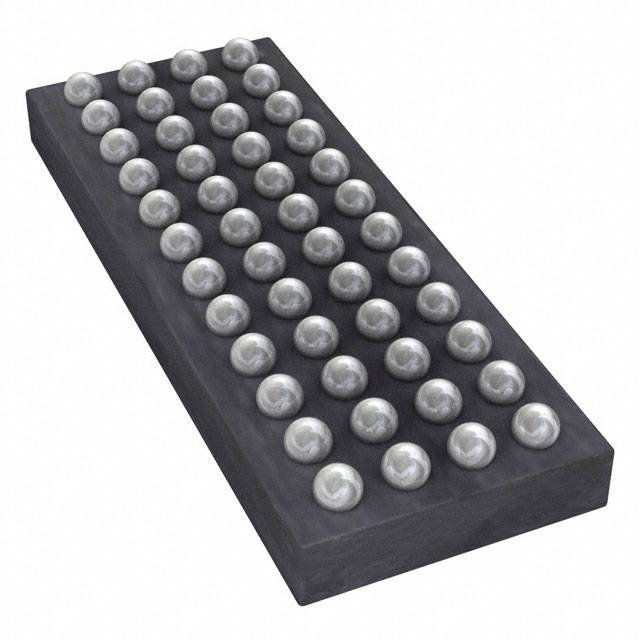

CBTV24DD12ETYIC SWITCH SPDT X 12 9OHM 48TFBGA |
0 | - |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 12 | 9Ohm | 400mOhm | 1.62V ~ 3.63V | - | - | 7.4GHz | - | - | - | - | -10°C ~ 85°C (TA) | - | - | Surface Mount | 48-TFBGA (3x8) |
|
PS320CUAEIC SWITCH SPST-NOX2 35OHM 8MSOP |
0 | - |
|
Datasheet |
- | Tube | Obsolete | SPST - NO | 1:1 | 2 | 35Ohm | 300mOhm | - | ±2.7V ~ 8V | 150ns, 100ns | - | 8pC | 9pF, 9pF | 100pA | -85dB @ 1MHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-MSOP |
|
DG417AK/883BIC SW SPST-NCX1 35OHM 8CERDIP |
0 | - |
|
- |
- | Bag | Active | SPST - NC | 1:1 | 1 | 35Ohm | 3Ohm (Max) | 10V ~ 30V | ±4.5V ~ 20V | 175ns, 145ns | - | 3pC | 8pF, 8pF | 250pA | -85dB @ 1MHz | 0°C ~ 70°C (TA) | - | - | Through Hole | 8-CERDIP |
