Home > Products > Circuit Protection > Inrush Current Limiters (ICL)

Inrush Current Limiters (ICL)

Manufacturer	Series	Packaging	Product Status	R @ 25°C	Tolerance	Current - Steady State Max	R @ Current	Diameter	Lead Spacing	Grade	Qualification	Approval Agency
Ametherm Amphenol Advanced Sensors (Thermometrics) Cantherm Eaton - Electronics Division EPCOS - TDK Electronics Honeywell Sensing and Productivity Solutions KYOCERA AVX Littelfuse Inc. MEAN WELL USA Inc. Murata Electronics SETsafe \| SETfuse Songtian Electronics Co., Ltd Vishay Beyschlag/Draloric/BC Components YAGEO	* - AS B57234 B5920 B59201 B59213 B59215 B59217 B59219 B59412 B59451 B59750 B59755 BigAMP CL D-13 D-7 ICL MegaSurge™ MF72 MF73T-1 miniAMP MM35 NF08 NF10 NF13 NF15 NF20 NT NTPA5 NTPA7 NTPA9 NTPAA NTPAD NTPAJ NTPAN P11 P13 P27 POSISTOR®, PTGL PS PTCEL S153 S234 S235 S236 S237 S238 S364 S464 SL03 SL05 SL08 SL10 SL12 SL15 SL18 SL22 SP ST SURGE-GARD™	- Bag Box Bulk Cut Tape (CT) Tape & Box (TB) Tape & Reel (TR) Tray	Active Discontinued at Key Obsolete	- 1 kOhms 1 Ohms 1.3 Ohms 1.5 kOhms 1.5 Ohms 10 Ohms 100 Ohms 11 Ohms 12 Ohms 120 Ohms 13 Ohms 14 Ohms 15 Ohms 150 Ohms 16 Ohms 160 mOhms 17 Ohms 17.5 Ohms 18 Ohms 19 Ohms 2 Ohms 2.2 Ohms 2.5 Ohms 20 Ohms 200 mOhms 200 Ohms 21 Ohms 22 Ohms 220 Ohms 25 Ohms 250 Ohms 3 Ohms 3.7 Ohms 3.9 Ohms 30 Ohms 300 mOhms 33 Ohms 4 Ohms 4.7 Ohms 40 Ohms 400 Ohms 45 Ohms 47 Ohms 5 Ohms 5.1 Ohms 50 Ohms 500 mOhms 500 Ohms 55 Ohms 56 Ohms 6 Ohms 6.8 Ohms 60 Ohms 7 Ohms 700 mOhms 75 Ohms 8 Ohms 8.2 Ohms 80 Ohms 9 Ohms 900 Ohms	- ±10% ±15% ±20% ±25% ±30% ±5%	- 1 A 1.1 A 1.2 A 1.3 A 1.4 A 1.5 A 1.6 A 1.7 A 1.75 A 1.8 A 1.9 A 10 A 10.5 A 100 mA 11 A 11.5 A 12 A 12.5 A 13 A 13.5 A 14 A 15 A 16 A 17 A 18 A 19 A 2 A 2.1 A 2.2 A 2.3 A 2.4 A 2.5 A 2.6 A 2.7 A 2.8 A 2.9 A 20 A 200 mA 22 A 23 A 24 A 25 A 250 mA 27 A 3 A 3.1 A 3.2 A 3.3 A 3.4 A 3.5 A 3.6 A 3.7 A 3.8 A 3.9 A 30 A 300 mA 32 A 35 A 36 A 39 A 4 A 4.1 A 4.2 A 4.3 A 4.4 A 4.5 A 4.6 A 4.7 A 4.9 A 40 A 5 A 5.1 A 5.2 A 5.4 A 5.5 A 5.7 A 5.9 A 50 A 500 mA 6 A 6.1 A 6.4 A 6.5 A 6.6 A 60 A 600 mA 7 A 7.5 A 7.8 A 700 mA 8 A 8.3 A 8.4 A 8.5 A 8.9 A 80 A 800 mA 9 A 9.5 A	- 0.528 Ohms 1 mOhms 1 Ohms 1.003 Ohms 1.021 Ohms 1.022 Ohms 1.04 Ohms 1.07 Ohms 1.075 Ohms 1.1 Ohms 1.108 Ohms 1.124 Ohms 1.152 Ohms 1.159 Ohms 1.18 Ohms 1.19 Ohms 1.215 Ohms 1.22 Ohms 1.222 Ohms 1.25 Ohms 1.252 Ohms 1.28 Ohms 1.4 Ohms 1.485 Ohms 1.502 Ohms 1.6 Ohms 1.652 Ohms 1.656 Ohms 1.742 Ohms 1.78 Ohms 1.807 Ohms 1.85 Ohms 1.878 Ohms 1.9 Ohms 10 mOhms 100 mOhms 102 mOhms 106 mOhms 107 mOhms 108 mOhms 11 mOhms 11.65 Ohms 110 mOhms 112 mOhms 113 mOhms 114 mOhms 115 mOhms 118 mOhms 12 mOhms 12 Ohms 120 mOhms 122 mOhms 125 mOhms 13 mOhms 130 mOhms 131 mOhms 132 mOhms 135 mOhms 139 mOhms 14 mOhms 140 mOhms 142 mOhms 143 mOhms 145 mOhms 148 mOhms 149 mOhms 15 mOhms 150 mOhms 150 Ohms 152 mOhms 155 mOhms 156 mOhms 157 mOhms 158 mOhms 159 mOhms 160 mOhms 162 mOhms 163 mOhms 165 mOhms 166 mOhms 168 mOhms 170 mOhms 171 mOhms 173 mOhms 178 mOhms 18 mOhms 18.5 mOhms 18.7 Ohms 180 mOhms 182 mOhms 186 mOhms 188 mOhms 189 mOhms 190 mOhms 191 mOhms 194 mOhms 195 mOhms 196 mOhms 197 mOhms 2 Ohms 2.01 Ohms 2.124 Ohms 2.2 Ohms 2.34 Ohms 2.355 Ohms 2.5 Ohms 20 mOhms 200 mOhms 203 mOhms 205 mOhms 206 mOhms 207 mOhms 21 mOhms 210 mOhms 211 mOhms 212 mOhms 215 mOhms 218 mOhms 22 mOhms 220 mOhms 227 mOhms 230 mOhms 237 mOhms 240 mOhms 241 mOhms 243 mOhms 244 mOhms 245 mOhms 247 mOhms 25 mOhms 250 mOhms 252 mOhms 255 mOhms 258 mOhms 26 mOhms 260 mOhms 262 mOhms 265 mOhms 268 mOhms 27 mOhms 270 mOhms 273 mOhms 275 mOhms 276 mOhms 278 mOhms 279 mOhms 280 mOhms 283 mOhms 285 mOhms 288 mOhms 292 mOhms 293 mOhms 296 mOhms 299 mOhms 3.015 Ohms 30 mOhms 30.3 Ohms 300 mOhms 302 mOhms 305 mOhms 308 mOhms 311 mOhms 314 mOhms 315 mOhms 316 mOhms 317 mOhms 319 mOhms 320 mOhms 323 mOhms 325 mOhms 326 mOhms 33 mOhms 330 mOhms 335 mOhms 338 mOhms 340 mOhms 346 mOhms 350 mOhms 353 mOhms 354 mOhms 359 mOhms 36 mOhms 360 mOhms 367 mOhms 37 mOhms 370 mOhms 372 mOhms 375 mOhms 380 mOhms 39 mOhms 390 mOhms 391 mOhms 4 mOhms 4.2 Ohms 4.7 Ohms 40 mOhms 400 mOhms 404 mOhms 41 mOhms 410 mOhms 420 mOhms 425 mOhms 43 mOhms 430 mOhms 438 mOhms 44 mOhms 440 mOhms 45 mOhms 450 mOhms 458 mOhms 46 mOhms 460 mOhms 462 mOhms 47 mOhms 470 mOhms 48 mOhms 480 mOhms 482 mOhms 487 mOhms 49 mOhms 490 mOhms 496 mOhms 5 Ohms 5.007 Ohms 5.83 Ohms 50 mOhms 500 mOhms 501 mOhms 504 mOhms 51 mOhms 512 mOhms 517 mOhms 52 mOhms 520 mOhms 530 mOhms 534 mOhms 539 mOhms 54 mOhms 546 mOhms 55 mOhms 550 mOhms 555 mOhms 557 mOhms 56 mOhms 563 mOhms 57 mOhms 58 mOhms 59 mOhms 590 mOhms 594 mOhms 6.3 Ohms 60 mOhms 600 mOhms 61 mOhms 610 mOhms 615 mOhms 616 mOhms 62 mOhms 624 mOhms 63 mOhms 64 mOhms 640 mOhms 65 mOhms 650 mOhms 652 mOhms 66 mOhms 660 mOhms 667 mOhms 67 mOhms 68 mOhms 680 mOhms 690 mOhms 693 mOhms 7 mOhms 7.72 Ohms 70 mOhms 700 mOhms 72 mOhms 720 mOhms 723 mOhms 73 mOhms 730 mOhms 734 mOhms 74 mOhms 740 mOhms 748 mOhms 75 mOhms 750 mOhms 77 mOhms 771 mOhms 79 mOhms 8 mOhms 80 mOhms 800 mOhms 802 mOhms 810 mOhms 816 mOhms 82 mOhms 820 mOhms 83 mOhms 830 mOhms 84 mOhms 85 mOhms 850 mOhms 861 mOhms 864 mOhms 87 mOhms 88 mOhms 880 mOhms 89 mOhms 890 mOhms 90 mOhms 900 mOhms 92 mOhms 930 mOhms 94 mOhms 95 mOhms 950 mOhms 960 mOhms 97 mOhms 970 mOhms 98 mOhms 99 mOhms 990 mOhms	- 0.098" (2.50mm) 0.118" (3.00mm) 0.197" (5.00mm) 0.217" (5.50mm) 0.236" (6.00mm) 0.275" (6.99mm) 0.276" (7.00mm) 0.295" (7.50mm) 0.315" (8.00mm) 0.335" (8.50mm) 0.350" (8.89mm) 0.354" (9.00mm) 0.370" (9.40mm) 0.374" (9.50mm) 0.394" (10.00mm) 0.400" (10.16mm) 0.430" (10.92mm) 0.433" (11.00mm) 0.449" (11.40mm) 0.450" (11.43mm) 0.453" (11.50mm) 0.472" (12.00mm) 0.500" (12.70mm) 0.510" (12.95mm) 0.512" (13.00mm) 0.531" (13.50mm) 0.550" (13.97mm) 0.571" (14.50mm) 0.575" (14.60mm) 0.591" (15.00mm) 0.600" (15.24mm) 0.610" (15.50mm) 0.625" (15.88mm) 0.630" (16.00mm) 0.650" (16.51mm) 0.670" (17.00mm) 0.675" (17.14mm) 0.689" (17.50mm) 0.700" (17.78mm) 0.709" (18.00mm) 0.725" (18.42mm) 0.748" (19.00mm) 0.750" (19.05mm) 0.770" (19.56mm) 0.775" (19.68mm) 0.780" (19.81mm) 0.787" (20.00mm) 0.827" (21.00mm) 0.866" (22.00mm) 0.886" (22.50mm) 0.900" (22.86mm) 0.906" (23.00mm) 0.925" (23.50mm) 0.930" (23.62mm) 0.945" (24.00mm) 0.950" (24.13mm) 0.975" (24.76mm) 0.984" (25.00mm) 1.024" (26.00mm) 1.063" (27.00mm) 1.083" (27.50mm) 1.102" (28.00mm) 1.142" (29.00mm) 1.150" (29.21mm) 1.175" (29.85mm) 1.181" (30.00mm) 1.201" (30.50mm) 1.220" (31.00mm) 1.250" (31.75mm) 1.260" (32.00mm) 1.339" (34.00mm) 1.378" (35.00mm) 1.417" (36.00mm) 1.460" (37.00mm) 1.475" (37.47mm) 1.575" (40.00mm) 2.677" (68.00mm)	- 0.098" (2.50mm) 0.100" (2.54mm) 0.118" (3.00mm) 0.157" (4.00mm) 0.160" (4.06mm) 0.197" (5.00mm) 0.200" (5.08mm) 0.201" (5.10mm) 0.217" (5.50mm) 0.236" (6.00mm) 0.248" (6.30mm) 0.250" (6.35mm) 0.251" (6.40mm) 0.295" (7.50mm) 0.300" (7.62mm) 0.307" (7.80mm) 0.310" (7.87mm) 0.328" (8.33mm) 0.350" (8.89mm) 0.374" (9.50mm) 0.394" (10.00mm) 0.395" (10.03mm) 0.400" (10.16mm) 0.511" (13.00mm) 0.551" (14.00mm) 0.673" (17.10mm) 0.709" (18.00mm) 0.748" (19.00mm) 0.906" (23.00mm) 1.339" (34.00mm) 1.378" (35.00mm)	- Automotive	- AEC-Q200	- CE, EAC, UKCA CQC, cURus, TUV CQC, IEC, UL CQC, IEC, UL, VDE CQC, UL, VDE CSA CSA, UL CSA, UR cURus TUV, UL UL UR UR, VDE

Reset All

Apply All

Result

Inrush Current Limiters (ICL)

Inrush Current Limiters (ICL) are circuit protection components used to reduce high startup current when electronic equipment is first powered on. They help protect power supplies, rectifiers, capacitors, switches and downstream circuits from excessive current stress. They are widely used in power adapters, industrial power supplies, motor drives, chargers, LED lighting, consumer electronics, automation equipment and embedded systems.

This category includes NTC inrush current limiters, thermistor-based ICL components, power supply inrush limiters, motor startup current limiters and related overcurrent protection devices. These components are commonly selected based on resistance value, maximum steady-state current, energy rating, operating temperature, response behavior, package type and application requirements.

TomatoElec supplies original Inrush Current Limiters from recognized manufacturers such as TDK, EPCOS, Vishay, Murata, Amphenol, Ametherm, Littelfuse, Bourns, Panasonic and other major brands. As an in-stock electronic components supplier and independent distributor, TomatoElec provides inventory support, original component sourcing and BOM sourcing services for global customers.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	R @ 25°C	Tolerance	Current - Steady State Max	R @ Current	Diameter	Lead Spacing	Grade	Qualification	Approval Agency
SG110 ICL 2 OHM 15% 18A 22.86MM Ametherm	176	-	RFQ	Datasheet	SURGE-GARD™	Bulk	Active	2 Ohms	±15%	18 A	30 mOhms	0.900" (22.86mm)	0.310" (7.87mm)	-	-	CSA, UR
SL32 0R536 ICL 500 MOHM 20% 36A 31MM Ametherm	1,125	-	RFQ	Datasheet	BigAMP	Bulk	Active	500 mOhms	±20%	36 A	10 mOhms	1.220" (31.00mm)	0.307" (7.80mm)	-	-	CSA
MS22 12104 ICL 120 OHM 25% 4A 23MM Ametherm	30,450	-	RFQ	Datasheet	MegaSurge™	Bulk	Active	120 Ohms	±25%	4 A	750 mOhms	0.906" (23.00mm)	0.307" (7.80mm)	-	-	UL
MS22 22103 ICL 220 OHM 25% 3.5A 23MM Ametherm	7,079	-	RFQ	Datasheet	MegaSurge™	Bulk	Active	220 Ohms	±25%	3.5 A	1.4 Ohms	0.906" (23.00mm)	0.307" (7.80mm)	-	-	UL

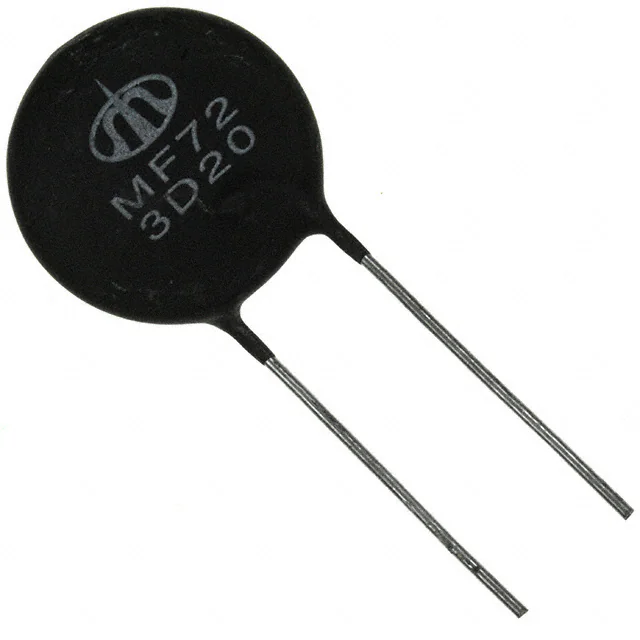

MF72-003D20 ICL 3 OHM 20% 8A 22.5MM Cantherm	926	-	RFQ	Datasheet	MF72	Bulk	Active	3 Ohms	±20%	8 A	55 mOhms	0.886" (22.50mm)	0.394" (10.00mm)	-	-	-

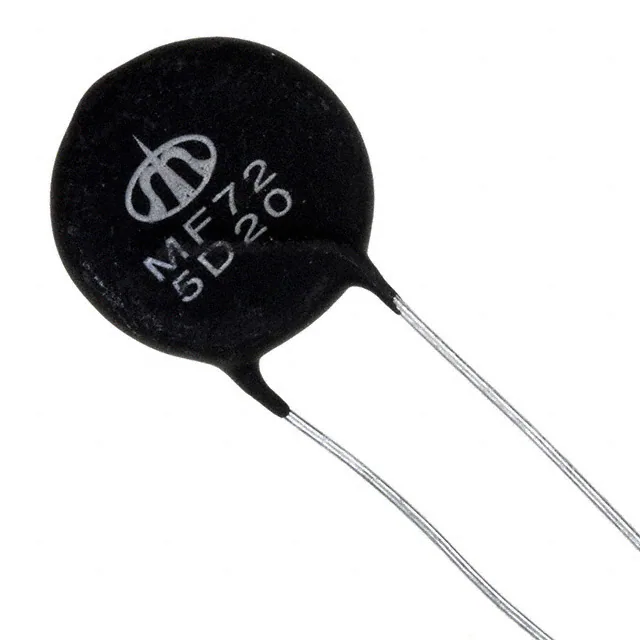

MF72-005D20 ICL 5 OHM 20% 7A 22.5MM Cantherm	168	-	RFQ	Datasheet	MF72	Bulk	Active	5 Ohms	±20%	7 A	87 mOhms	0.886" (22.50mm)	0.394" (10.00mm)	-	-	-

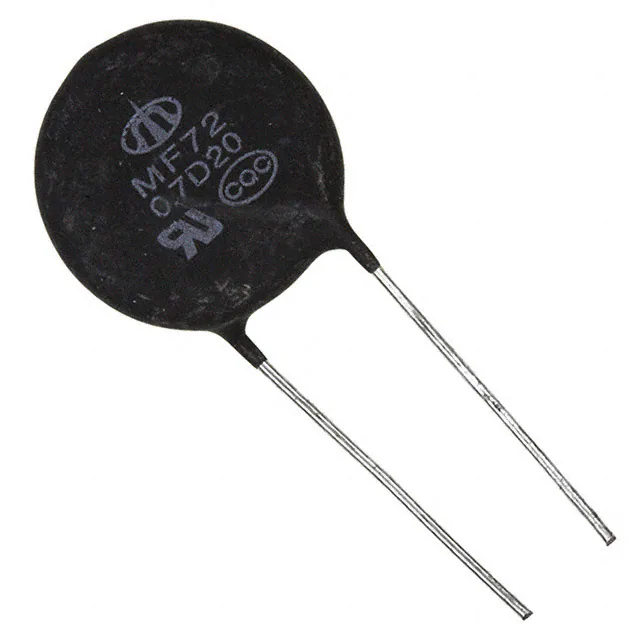

MF72-000.7D20 ICL 700 MOHM 20% 11A 22.5MM Cantherm	139	-	RFQ	Datasheet	MF72	Bulk	Active	700 mOhms	±20%	11 A	18 mOhms	0.886" (22.50mm)	0.394" (10.00mm)	-	-	-
PTCEL17R600MBE ICL 60 OHM 30% 17MM Vishay Beyschlag/Draloric/BC Components	811	-	RFQ	Datasheet	PTCEL	Tray	Active	60 Ohms	±30%	-	-	0.670" (17.00mm)	0.197" (5.00mm)	Automotive	AEC-Q200	cURus
MF73T-1 10/10 ICL 10 OHM 20% 10A 25MM Cantherm	228	-	RFQ	Datasheet	MF73T-1	Bulk	Active	10 Ohms	±20%	10 A	84 mOhms	0.984" (25.00mm)	0.394" (10.00mm)	-	-	-
PTCEL67R151NTE ICL 150 OHM 30% 16.51MM Vishay Beyschlag/Draloric/BC Components	494	-	RFQ	Datasheet	PTCEL	Tape & Reel (TR)	Active	150 Ohms	±30%	-	-	0.650" (16.51mm)	0.295" (7.50mm)	Automotive	AEC-Q200	cURus
PTCEL17R251SBE ICL 250 OHM 30% 17MM Vishay Beyschlag/Draloric/BC Components	444	-	RFQ	Datasheet	PTCEL	Tray	Active	250 Ohms	±30%	-	-	0.670" (17.00mm)	0.197" (5.00mm)	Automotive	AEC-Q200	cURus
PTCEL17R102UBE404 ICL 1 KOHM 30% 17MM Vishay Beyschlag/Draloric/BC Components	1,546	-	RFQ	Datasheet	PTCEL	Tray	Active	1 kOhms	±30%	-	-	0.670" (17.00mm)	0.394" (10.00mm)	Automotive	AEC-Q200	cURus
MS22 12103 ICL 120 OHM 25% 3A 23MM Ametherm	11,339	-	RFQ	Datasheet	MegaSurge™	Bulk	Active	120 Ohms	±25%	3 A	1.28 Ohms	0.906" (23.00mm)	0.307" (7.80mm)	-	-	UR
MS22 75004 ICL 75 OHM 25% 4A 23MM Ametherm	767	-	RFQ	Datasheet	MegaSurge™	Bulk	Active	75 Ohms	±25%	4 A	410 mOhms	0.906" (23.00mm)	0.307" (7.80mm)	-	-	UR
SG405 ICL 1 OHM 25% 30A 31.75MM Ametherm	903	-	RFQ	Datasheet	SURGE-GARD™	Bulk	Active	1 Ohms	±25%	30 A	15 mOhms	1.250" (31.75mm)	0.310" (7.87mm)	-	-	CSA, UR
SG379 ICL 1 OHM 25% 30A 31.75MM Ametherm	435	-	RFQ	Datasheet	SURGE-GARD™	Bulk	Active	1 Ohms	±25%	30 A	15 mOhms	1.250" (31.75mm)	0.350" (8.89mm)	-	-	CSA, UR
B57464S0509M000 ICL 5 OHM 20% 9.5A 26MM EPCOS - TDK Electronics	6,174	-	RFQ	Datasheet	S464	Bulk	Active	5 Ohms	±20%	9.5 A	-	1.024" (26.00mm)	0.295" (7.50mm)	-	-	-
B57464S0100M000 ICL 10 OHM 20% 8A 26MM EPCOS - TDK Electronics	1,531	-	RFQ	Datasheet	S464	Bulk	Active	10 Ohms	±20%	8 A	-	1.024" (26.00mm)	0.295" (7.50mm)	-	-	-
MF73T-1 2/18 L3-4.1MM ICL 2 OHM 20% 18A 25MM Cantherm	225	-	RFQ	Datasheet	MF73T-1	Bulk	Active	2 Ohms	±20%	18 A	26 mOhms	0.984" (25.00mm)	0.394" (10.00mm)	-	-	-
B57464S0109M000 ICL 1 OHM 20% 20A 26MM EPCOS - TDK Electronics	139	-	RFQ	Datasheet	S464	Bulk	Active	1 Ohms	±20%	20 A	-	1.024" (26.00mm)	0.295" (7.50mm)	-	-	-

Total 1986 Record«Prev 1... 9 10 11 121314 15 16...100 Next»
