IGBT Modules

TomatoElec supplies IGBT modules for industrial, automotive, power control, motor drive and energy applications. Our sourcing support covers insulated gate bipolar transistor modules used in switching, power conversion and high-efficiency control circuit designs.

We support flexible RFQ service for IGBT module sourcing and help customers improve procurement efficiency for regular demand, urgent requirements and selected hard-to-find parts.

With access to multiple supply channels, TomatoElec aims to provide customers with reliable IGBT module sourcing support, responsive quotation and global delivery service.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	IGBT Type	Configuration	Voltage - Collector Emitter Breakdown (Max)	Current - Collector (Ic) (Max)	Power - Max	Vce(on) (Max) @ Vge, Ic	Current - Collector Cutoff (Max)	Input Capacitance (Cies) @ Vce	Input	NTC Thermistor	Operating Temperature	Mounting Type	Supplier Device Package
BSM35GD120DN2E3224BOSA1 IGBT MOD 1200V 50A 280W Infineon Technologies	7,659	-	RFQ	-	-	Module	Tray	Obsolete	-	Three Phase Inverter	1200 V	50 A	280 W	3.2V @ 15V, 35A	1 mA	2 nF @ 25 V	Standard	No	150°C (TJ)	Chassis Mount	Module
MG1250H-XN2MM IGBT MOD 1200V 75A 260W Littelfuse Inc.	2,077	-	RFQ	-	-	Module	Bulk	Obsolete	Trench Field Stop	Three Phase Inverter	1200 V	75 A	260 W	1.7V @ 15V, 50A (Typ)	1 mA	3.6 nF @ 25 V	Standard	Yes	-40°C ~ 125°C (TJ)	Chassis Mount	Module
VS-GT200TP065U MODULES IGBT - IAP IGBT Vishay General Semiconductor - Diodes Division	9,407	-	RFQ	-	FRED Pt®	Module	Bulk	Active	Trench Field Stop	Half Bridge	650 V	177 A	429 W	2.12V @ 15V, 200A	200 µA	-	Standard	No	-40°C ~ 175°C (TJ)	Chassis Mount	INT-A-PAK
IRGTI090U06 IGBT MOD 600V 90A 298W INT-A-PAK Infineon Technologies	6,805	-	RFQ	-	-	INT-A-PAK (3 + 4)	-	Obsolete	-	Half Bridge	600 V	90 A	298 W	3V @ 15V, 90A	1 mA	5.8 nF @ 30 V	Standard	No	-	Chassis Mount	INT-A-PAK
MG12150S-DEN2MM IGBT MODULE 1200V 200A 625W S3 Littelfuse Inc.	3,805	-	RFQ	-	-	S-3 Module	Bulk	Obsolete	Trench Field Stop	2 Independent	1200 V	200 A	625 W	1.7V @ 15V, 150A (Typ)	1 mA	10.5 nF @ 25 V	Standard	No	-40°C ~ 125°C (TJ)	Chassis Mount	S3
MIXA61WB1200TEH IGBT MODULE - CBI E3-PACK-PFP IXYS	4,609	-	RFQ	-	-	-	Box	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-
MG06200S-BN4MM IGBT MODULE 600V 200A 600W S3 Littelfuse Inc.	9,631	-	RFQ	-	-	S-3 Module	Bulk	Obsolete	-	Half Bridge	600 V	300 A	600 W	1.45V @ 15V, 200A (Typ)	1 mA	13 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	S3
CM75BU-12H IGBT MODULE 600V 75A 310W Powerex Inc.	8,331	-	RFQ	-	IGBTMOD™	Module	Bulk	Discontinued at Digi-Key	-	Full Bridge Inverter	600 V	75 A	310 W	3V @ 15V, 75A	1 mA	6.6 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	Module
MIXA81H1200EH IGBT MODULE 1200V 120A 390W E3 IXYS	2,759	-	RFQ	-	-	E3	Box	Active	PT	Full Bridge Inverter	1200 V	120 A	390 W	2.2V @ 15V, 77A	200 µA	-	Standard	No	-40°C ~ 125°C (TJ)	Chassis Mount	E3
APT50GF120JRDQ3 IGBT MOD 1200V 120A 521W ISOTOP Microchip Technology	2,806	-	RFQ	-	-	ISOTOP	Tube	Active	NPT	Single	1200 V	120 A	521 W	3V @ 15V, 75A	750 µA	5.32 nF @ 25 V	Standard	No	-55°C ~ 150°C (TJ)	Chassis Mount	ISOTOP®
FF225R12ME4B11BPSA2 MEDIUM POWER ECONO AG-ECONOD-411 Infineon Technologies	3,750	-	RFQ	-	EconoDUAL™ 3	Module	Tray	Active	Trench Field Stop	2 Independent	1200 V	320 A	1050 W	2.15V @ 15V, 225A	3 mA	13 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount	AG-ECONOD
MIXG70W1200TED IGBT MODULE - SIXPACK E2-PACK-PF IXYS	8,334	-	RFQ	-	-	E2	Box	Obsolete	PT	Single	-	-	-	-	-	-	Standard	No	-	Chassis Mount	E2

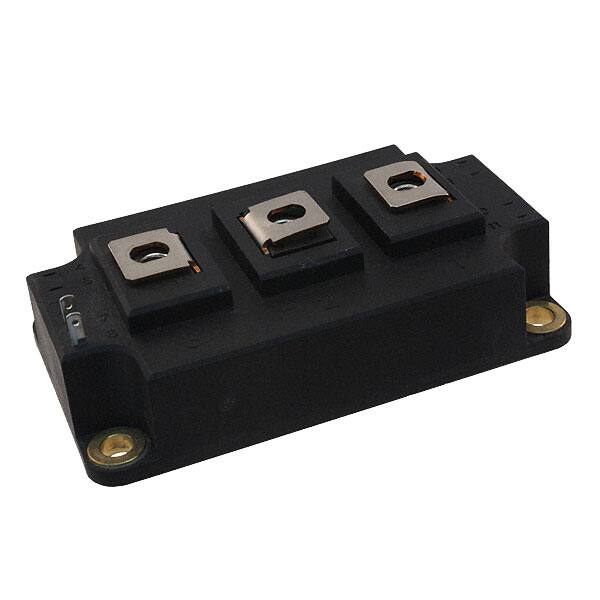

APTGF330DA60D3G IGBT MODULE 600V 460A 1400W D3 Microsemi Corporation	4,419	-	RFQ	-	-	D-3 Module	Bulk	Obsolete	NPT	Single	600 V	460 A	1400 W	2.5V @ 15V, 400A	750 µA	18 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	D3
APTGT50DA120TG IGBT MODULE 1200V 75A 277W SP4 Microchip Technology	3,094	-	RFQ	-	-	SP4	Bulk	Active	Trench Field Stop	Single	1200 V	75 A	277 W	2.1V @ 15V, 50A	250 µA	3.6 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount	SP4
APTGT50SK120TG IGBT MODULE 1200V 75A 277W SP4 Microchip Technology	8,212	-	RFQ	-	-	SP4	Bulk	Active	Trench Field Stop	Single	1200 V	75 A	277 W	2.1V @ 15V, 50A	250 µA	3.6 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount	SP4

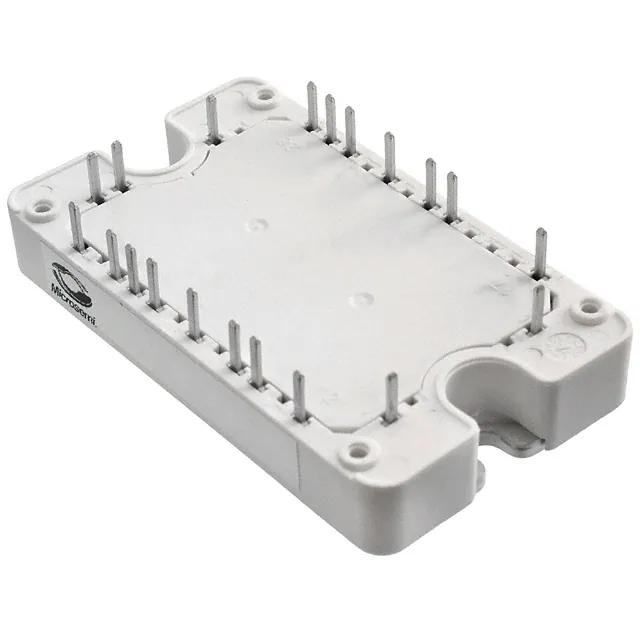

APTGT50H60RT3G IGBT MODULE 600V 80A 176W SP3 Microchip Technology	5,780	-	RFQ	-	-	SP3	Bulk	Active	Trench Field Stop	Full Bridge Inverter	600 V	80 A	176 W	1.9V @ 15V, 50A	250 µA	3.15 nF @ 25 V	Single Phase Bridge Rectifier	Yes	-	Chassis Mount	SP3
APTGLQ40HR120CT3G IGBT MODULE 1200V 75A 250W SP3 Microchip Technology	2,264	-	RFQ	-	-	SP3	Bulk	Active	Trench Field Stop	-	1200 V	75 A	250 W	2.4V @ 15V, 40A	100 µA	2.3 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Through Hole	SP3
APTGLQ75H65T1G IGBT MODULE 650V 150A 250W SP1 Microchip Technology	7,979	-	RFQ	-	-	SP1	Bulk	Active	Trench Field Stop	Full Bridge	650 V	150 A	250 W	2.3V @ 15V, 75A	100 µA	4.62 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Through Hole	SP1
CM100DU-24H IGBT MOD 1200V 100A 600W Powerex Inc.	7,104	-	RFQ	-	IGBTMOD™	Module	Bulk	Discontinued at Digi-Key	-	Half Bridge	1200 V	100 A	600 W	3.7V @ 15V, 100A	1 mA	15 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	Module
FMG2G300LS60E IGBT MODULE 600V 300A 892W 7PMHA onsemi	9,583	-	RFQ	-	-	7PM-HA	-	Obsolete	-	Half Bridge	600 V	300 A	892 W	1.8V @ 15V, 300A	250 µA	-	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	7PM-HA
