IGBT Modules

TomatoElec supplies IGBT modules for industrial, automotive, power control, motor drive and energy applications. Our sourcing support covers insulated gate bipolar transistor modules used in switching, power conversion and high-efficiency control circuit designs.

We support flexible RFQ service for IGBT module sourcing and help customers improve procurement efficiency for regular demand, urgent requirements and selected hard-to-find parts.

With access to multiple supply channels, TomatoElec aims to provide customers with reliable IGBT module sourcing support, responsive quotation and global delivery service.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	IGBT Type	Configuration	Voltage - Collector Emitter Breakdown (Max)	Current - Collector (Ic) (Max)	Power - Max	Vce(on) (Max) @ Vge, Ic	Current - Collector Cutoff (Max)	Input Capacitance (Cies) @ Vce	Input	NTC Thermistor	Operating Temperature	Mounting Type	Supplier Device Package
APTCV40H60CT1G IGBT MODULE 600V 80A 176W SP1 Microchip Technology	5,673	-	RFQ	-	-	SP1	Bulk	Active	Trench Field Stop	Full Bridge	600 V	80 A	176 W	1.9V @ 15V, 50A	250 µA	3.15 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount	SP1

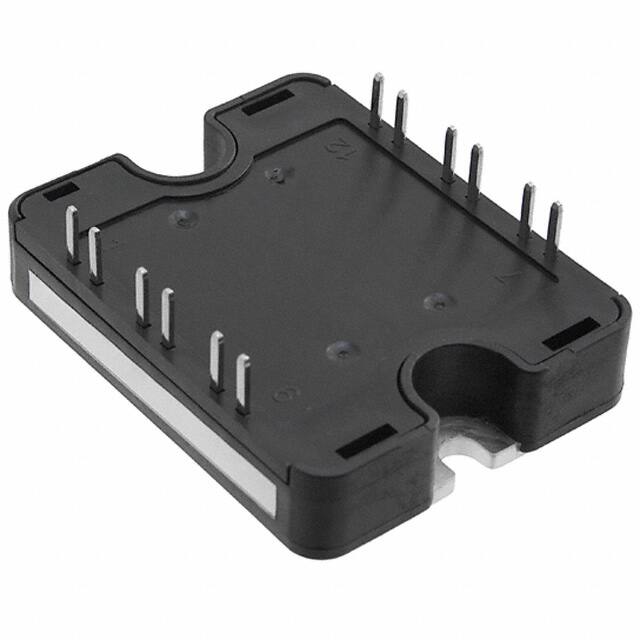

APTGT75H60T1G IGBT MODULE 600V 100A 250W SP1 Microchip Technology	7,312	-	RFQ	-	-	SP1	Bulk	Active	Trench Field Stop	Full Bridge Inverter	600 V	100 A	250 W	1.9V @ 15V, 75A	250 µA	4.62 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount	SP1
APTGT30X60T3G IGBT MODULE 600V 50A 90W SP3 Microchip Technology	9,541	-	RFQ	-	-	SP3	Bulk	Active	Trench Field Stop	Three Phase Inverter	600 V	50 A	90 W	1.9V @ 15V, 30A	250 µA	1.6 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount	SP3
FP30R06YE3B4BOMA1 IGBT MODULE LOW PWR EASY2-1 Infineon Technologies	7,768	-	RFQ	-	-	-	Tray	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-
FS150R12N2T7BPSA2 LOW POWER ECONO Infineon Technologies	8,218	-	RFQ	-	EconoPACK™ 2	Module	Tray	Active	Trench Field Stop	Three Phase Inverter	1200 V	150 A	-	1.8V @ 15V, 150A	1.2 µA	30.1 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount	AG-ECONO2
APTGT50DDA120T3G IGBT MODULE 1200V 75A 270W SP3 Microchip Technology	7,788	-	RFQ	-	-	SP3	Bulk	Active	Trench Field Stop	Dual Boost Chopper	1200 V	75 A	270 W	2.1V @ 15V, 50A	250 µA	3.6 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount	SP3
MKI75-12E8 IGBT MODULE 1200V 130A 500W E3 IXYS	4,285	-	RFQ	-	-	E3	Box	Obsolete	NPT	Full Bridge Inverter	1200 V	130 A	500 W	2.5V @ 15V, 75A	1.1 mA	5.7 nF @ 25 V	Standard	No	-40°C ~ 125°C (TJ)	Chassis Mount	E3
APTGL325DA120D3G IGBT MODULE 1200V 420A 1500W D3 Microsemi Corporation	4,060	-	RFQ	-	-	D-3 Module	Bulk	Obsolete	Trench Field Stop	Single	1200 V	420 A	1500 W	2.2V @ 15V, 300A	5 mA	18.6 nF @ 25 V	Standard	No	-40°C ~ 175°C (TJ)	Chassis Mount	D3
APTGL325SK120D3G IGBT MODULE 1200V 420A 1500W D3 Microsemi Corporation	5,447	-	RFQ	-	-	D-3 Module	Bulk	Obsolete	Trench Field Stop	Single	1200 V	420 A	1500 W	2.2V @ 15V, 300A	5 mA	18.6 nF @ 25 V	Standard	No	-40°C ~ 175°C (TJ)	Chassis Mount	D3
MIXG360RF1200P-PC IGBT MODULE MIXG360RF1200PTED-PC IXYS	5,057	-	RFQ	-	-	-	Box	Active	-	-	-	-	-	-	-	-	-	-	-	-	-
FS150R12N2T7B15BPSA1 LOW POWER ECONO Infineon Technologies	6,943	-	RFQ	-	EconoPACK™ 2	Module	Tray	Active	Trench Field Stop	Full Bridge Inverter	1200 V	150 A	-	1.8V @ 15V, 150A	12 µA	30.1 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount	AG-ECONO2B
APTGF360U60D4G IGBT MODULE 600V 450A 1560W D4 Microsemi Corporation	9,544	-	RFQ	-	-	D4	Bulk	Obsolete	NPT	Single	600 V	450 A	1560 W	2.45V @ 15V, 360A	500 µA	17 nF @ 25 V	Standard	No	-	Chassis Mount	D4
APTGF150DU120TG IGBT MODULE 1200V 200A 961W SP4 Microsemi Corporation	8,894	-	RFQ	-	-	SP4	Bulk	Obsolete	NPT	Dual, Common Source	1200 V	200 A	961 W	3.7V @ 15V, 150A	350 µA	10.2 nF @ 25 V	Standard	Yes	-	Chassis Mount	SP4
APTGT300DA120D3G IGBT MODULE 1200V 440A 1250W D3 Microsemi Corporation	5,836	-	RFQ	-	-	D-3 Module	Bulk	Obsolete	Trench Field Stop	Single	1200 V	440 A	1250 W	2.1V @ 15V, 300A	8 mA	20 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	D3
APTGT300SK120D3G IGBT MODULE 1200V 440A 1250W D3 Microsemi Corporation	8,500	-	RFQ	-	-	D-3 Module	Bulk	Obsolete	Trench Field Stop	Single	1200 V	440 A	1250 W	2.1V @ 15V, 300A	8 mA	20 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	D3
APTGT50TL60T3G IGBT MODULE 600V 80A 176W SP3 Microchip Technology	6,992	-	RFQ	-	-	SP3	Bulk	Active	Trench Field Stop	Three Level Inverter	600 V	80 A	176 W	1.9V @ 15V, 50A	250 µA	3.15 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount	SP3
APTGF150A120TG IGBT MODULE 1200V 200A 961W SP4 Microchip Technology	7,459	-	RFQ	-	-	SP4	Bulk	Obsolete	NPT	Half Bridge	1200 V	200 A	961 W	3.7V @ 15V, 150A	350 µA	10.2 nF @ 25 V	Standard	Yes	-	Chassis Mount	SP4
FP50R12N2T7B76BPSA1 LOW POWER ECONO Infineon Technologies	6,319	-	RFQ	-	-	Module	Tray	Active	Trench Field Stop	Three Phase Inverter	1200 V	50 A	-	1.5V @ 15V, 50A	10 µA	11100 pF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 175°C (TJ)	Chassis Mount	AG-ECONO2B
APTGT75A120T1G IGBT MODULE 1200V 110A 357W SP1 Microchip Technology	7,219	-	RFQ	-	-	SP1	Bulk	Active	Trench Field Stop	Half Bridge	1200 V	110 A	357 W	2.1V @ 15V, 75A	250 µA	5.34 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount	SP1
CM150DX-24A IGBT MOD 1200V 150A 960W Powerex Inc.	7,138	-	RFQ	-	IGBTMOD™	Module	Bulk	Obsolete	-	Half Bridge	1200 V	150 A	960 W	2.6V @ 15V, 150A	1 mA	23 nF @ 10 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount	Module
