IGBT Modules

TomatoElec supplies IGBT modules for industrial, automotive, power control, motor drive and energy applications. Our sourcing support covers insulated gate bipolar transistor modules used in switching, power conversion and high-efficiency control circuit designs.

We support flexible RFQ service for IGBT module sourcing and help customers improve procurement efficiency for regular demand, urgent requirements and selected hard-to-find parts.

With access to multiple supply channels, TomatoElec aims to provide customers with reliable IGBT module sourcing support, responsive quotation and global delivery service.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	IGBT Type	Configuration	Voltage - Collector Emitter Breakdown (Max)	Current - Collector (Ic) (Max)	Power - Max	Vce(on) (Max) @ Vge, Ic	Current - Collector Cutoff (Max)	Input Capacitance (Cies) @ Vce	Input	NTC Thermistor	Operating Temperature	Mounting Type	Supplier Device Package
APT150GT120JR IGBT MOD 1200V 170A 830W ISOTOP Microchip Technology	7,695	-	RFQ	-	Thunderbolt IGBT®	ISOTOP	Tube	Active	NPT	Single	1200 V	170 A	830 W	3.7V @ 15V, 150A	150 µA	9.3 nF @ 25 V	Standard	No	-55°C ~ 150°C (TJ)	Chassis Mount	ISOTOP®
MIXA41W1200ED NPT IGBT MODULE IXYS	9,019	-	RFQ	-	-	-	Box	Active	-	-	-	-	-	-	-	-	-	-	-	-	-
APTGT50H120TG IGBT MODULE 1200V 75A 277W SP4 Microsemi Corporation	4,014	-	RFQ	-	-	SP4	Bulk	Obsolete	Trench Field Stop	Full Bridge Inverter	1200 V	75 A	277 W	2.1V @ 15V, 50A	250 µA	3.6 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount	SP4
NXH40T120L3Q1PTG PIM Q1 3 CHANNEL T-TYPE NPC 40A onsemi	7,012	-	RFQ	-	-	Module	Tray	Active	-	Three Phase Inverter	1200 V	42 A	146 W	2.2V @ 15V, 40A	400 µA	7.753 nF @ 20 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount	44-PIM (71x37.4)
VS-ETF150Y65N IGBT MOD 650V 201A 600W Vishay General Semiconductor - Diodes Division	5,017	-	RFQ	-	FRED Pt®	Module	Box	Obsolete	NPT	Half Bridge Inverter	650 V	201 A	600 W	2.17V @ 15V, 150A	-	-	Standard	Yes	175°C (TJ)	-	Module
A2C25S12M3 IGBT MOD 1200V 25A 197W ACEPACK2 STMicroelectronics	2	-	RFQ	-	-	Module	Tray	Active	Trench Field Stop	Three Phase Inverter with Brake	1200 V	25 A	197 W	2.45V @ 15V, 25A	100 µA	1.55 nF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 150°C (TJ)	Chassis Mount	ACEPACK™ 2
APTGT75A120TG IGBT MODULE 1200V 100A 350W SP4 Microsemi Corporation	2,050	-	RFQ	-	-	SP4	Bulk	Obsolete	Trench Field Stop	Half Bridge	1200 V	100 A	350 W	2.1V @ 15V, 75A	250 µA	5.34 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount	SP4
APTGT100A60T1G IGBT MODULE 600V 150A 340W SP1 Microchip Technology	9,200	-	RFQ	-	-	SP1	Bulk	Active	Trench Field Stop	Half Bridge	600 V	150 A	340 W	1.9V @ 15V, 100A	250 µA	6.1 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount	SP1
FS75R12N2T4B85BPSA1 LOW POWER ECONO Infineon Technologies	5,849	-	RFQ	-	-	-	Tray	Active	-	-	-	-	-	-	-	-	-	-	-	-	-
IRG5U50HH12E IGBT MOD 1200V 85A POWIR ECO 2 Infineon Technologies	7,646	-	RFQ	-	-	POWIR ECO 2™ Module	Box	Obsolete	-	Full Bridge Inverter	1200 V	85 A	390 W	3.5V @ 15V, 50A	1 mA	6 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount	POWIR ECO 2™
FP25R12N2T7BPSA1 LOW POWER ECONO Infineon Technologies	2,686	-	RFQ	-	-	-	Tray	Active	-	-	-	-	-	-	-	-	-	-	-	-	-
FP75R07N2E4B11BPSA1 LOW POWER ECONO AG-ECONO2B-411 Infineon Technologies	4,489	-	RFQ	-	EconoPIM™ 2	Module	Tray	Active	Trench Field Stop	Three Phase Inverter	650 V	95 A	-	1.95V @ 15V, 75A	1 mA	4.6 nF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 150°C (TJ)	Chassis Mount	AG-ECONO2B
CM75DU-24F IGBT MOD 1200V 75A 450W Powerex Inc.	4,390	-	RFQ	-	IGBTMOD™	Module	Bulk	Discontinued at Digi-Key	Trench	Half Bridge	1200 V	75 A	450 W	2.4V @ 15V, 75A	1 mA	29 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	Module
APTGT100DA120T1G IGBT MODULE 1200V 140A 480W SP1 Microchip Technology	6,485	-	RFQ	-	-	SP1	Bulk	Active	Trench Field Stop	Single	1200 V	140 A	480 W	2.1V @ 15V, 100A	250 µA	7.2 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount	SP1
MG06100S-BN4MM IGBT MODULE 600V 100A 330W S3 Littelfuse Inc.	9,253	-	RFQ	-	-	S-3 Module	Bulk	Obsolete	-	Half Bridge	600 V	125 A	330 W	1.9V @ 15V, 100A	1 mA	6.2 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	S3

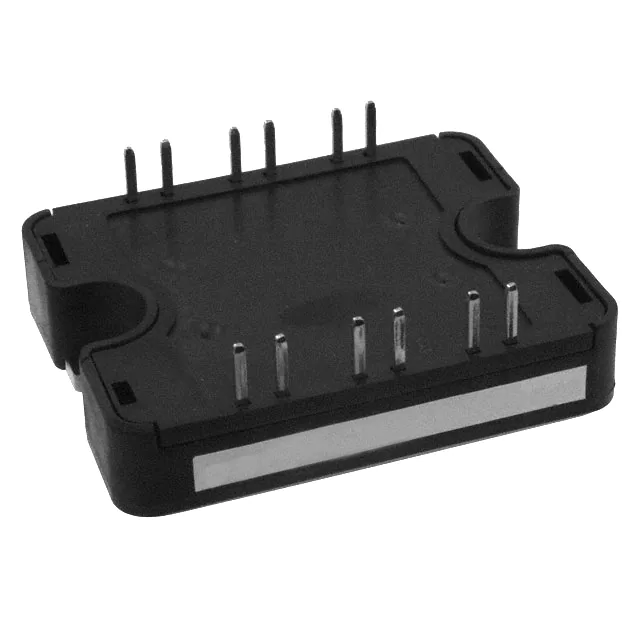

APTGT50SK170T1G IGBT MODULE 1700V 75A 312W SP1 Microchip Technology	8,812	-	RFQ	-	-	SP1	Bulk	Active	Trench Field Stop	Single	1700 V	75 A	312 W	2.4V @ 15V, 50A	250 µA	4.4 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount	SP1
MUBW10-12A7 IGBT MODULE 1200V 20A 105W E2 IXYS	6,302	-	RFQ	-	-	E2	Bulk	Obsolete	NPT	Three Phase Inverter with Brake	1200 V	20 A	105 W	2.7V @ 15V, 10A	600 µA	600 pF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 125°C (TJ)	Chassis Mount	E2
MWI15-12A7 IGBT MODULE 1200V 30A 140W E2 IXYS	3,072	-	RFQ	-	-	E2	Box	Obsolete	NPT	Three Phase Inverter	1200 V	30 A	140 W	2.6V @ 15V, 15A	900 µA	1 nF @ 25 V	Standard	No	-40°C ~ 125°C (TJ)	Chassis Mount	E2
MWI50-06A7 IGBT MODULE 600V 72A 225W E2 IXYS	2,456	-	RFQ	-	-	E2	Box	Obsolete	NPT	Three Phase Inverter	600 V	72 A	225 W	2.4V @ 15V, 50A	600 µA	2.8 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	E2
MG12100S-BN2MM IGBT MODULE 1200V 140A 450W S3 Littelfuse Inc.	9,065	-	RFQ	-	-	S-3 Module	Bulk	Obsolete	Trench Field Stop	Half Bridge	1200 V	140 A	450 W	1.7V @ 15V, 100A (Typ)	1 mA	7.1 nF @ 25 V	Standard	No	-40°C ~ 125°C (TJ)	Chassis Mount	S3
