IGBT Modules

TomatoElec supplies IGBT modules for industrial, automotive, power control, motor drive and energy applications. Our sourcing support covers insulated gate bipolar transistor modules used in switching, power conversion and high-efficiency control circuit designs.

We support flexible RFQ service for IGBT module sourcing and help customers improve procurement efficiency for regular demand, urgent requirements and selected hard-to-find parts.

With access to multiple supply channels, TomatoElec aims to provide customers with reliable IGBT module sourcing support, responsive quotation and global delivery service.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	IGBT Type	Configuration	Voltage - Collector Emitter Breakdown (Max)	Current - Collector (Ic) (Max)	Power - Max	Vce(on) (Max) @ Vge, Ic	Current - Collector Cutoff (Max)	Input Capacitance (Cies) @ Vce	Input	NTC Thermistor	Operating Temperature	Mounting Type	Supplier Device Package

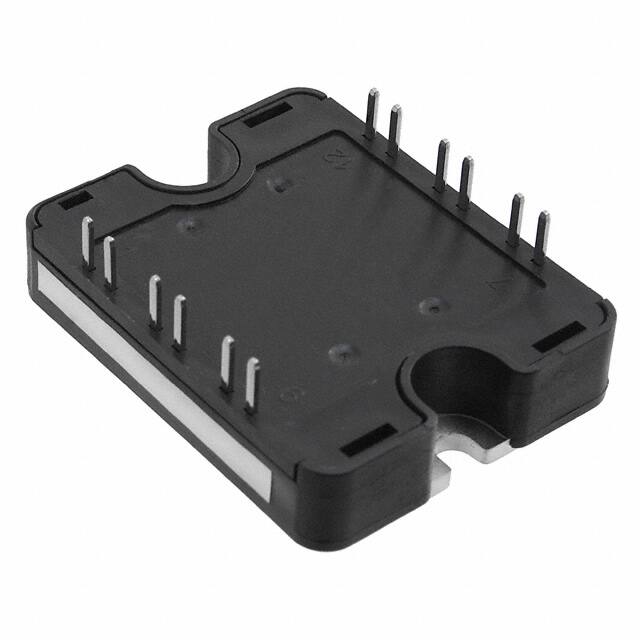

APTGT75DA60T1G IGBT MODULE 600V 100A 250W SP1 Microchip Technology	7,765	-	RFQ	-	-	SP1	Bulk	Active	Trench Field Stop	Single	600 V	100 A	250 W	1.9V @ 15V, 75A	250 µA	4.62 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount	SP1
MDI145-12A3 IGBT MODULE 1200V 160A 700W Y4M5 IXYS	9,490	-	RFQ	-	-	Y4-M5	Box	Obsolete	NPT	Single	1200 V	160 A	700 W	2.7V @ 15V, 100A	6 mA	6.5 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	Y4-M5
MID145-12A3 IGBT MODULE 1200V 160A 700W Y4M5 IXYS	6,154	-	RFQ	-	-	Y4-M5	Box	Obsolete	NPT	Single	1200 V	160 A	700 W	2.7V @ 15V, 100A	6 mA	6.5 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	Y4-M5
MWI50-06A7T IGBT MODULE 600V 72A 225W E2 IXYS	8,303	-	RFQ	-	-	E2	Box	Obsolete	NPT	Three Phase Inverter	600 V	72 A	225 W	2.4V @ 15V, 50A	600 µA	2.8 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount	E2
MIF100R12C1TF-BP GBT MODULES Micro Commercial Co	5,052	-	RFQ	-	-	Module	Tape & Reel (TR)	Active	Trench	Half Bridge Inverter	1200 V	100 A	789 W	2V @ 15V, 100A	1 mA	6450 pF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	C1
MG1275S-BA1MM IGBT MODULE 1200V 105A 630W S3 Littelfuse Inc.	6,354	-	RFQ	-	-	S-3 Module	Bulk	Obsolete	-	Half Bridge	1200 V	105 A	630 W	1.8V @ 15V, 75A (Typ)	500 µA	5.52 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	S3
MKI75-06A7T IGBT MODULE 600V 90A 280W E2 IXYS	6,614	-	RFQ	-	-	E2	Tube	Obsolete	NPT	Full Bridge Inverter	600 V	90 A	280 W	2.6V @ 15V, 75A	1.3 mA	3.2 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount	E2
MUBW30-12A6 IGBT MODULE 1200V 31A 104W E1 IXYS	4,006	-	RFQ	-	-	E1	Box	Obsolete	NPT	Three Phase Inverter with Brake	1200 V	31 A	104 W	2.6V @ 15V, 15A	1 mA	1 nF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 125°C (TJ)	Chassis Mount	E1
APTGT100A60TG IGBT MODULE 600V 150A 340W SP4 Microsemi Corporation	6,189	-	RFQ	-	-	SP4	Bulk	Discontinued at Digi-Key	Trench Field Stop	Half Bridge	600 V	150 A	340 W	1.9V @ 15V, 100A	250 µA	6.1 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount	SP4
MIXA10WB1200TED IGBT MODULE 1200V 17A 60W E2 IXYS	8,928	-	RFQ	-	-	E2	Box	Active	PT	Three Phase Inverter with Brake	1200 V	17 A	60 W	2.1V @ 15V, 9A	700 µA	-	Three Phase Bridge Rectifier	Yes	-40°C ~ 125°C (TJ)	Chassis Mount	E2
APT50GF120JRD IGBT NPT COMBI 1200V 50A ISOTOP Microchip Technology	8,072	-	RFQ	-	-	SOT-227-4, miniBLOC	Tube	Active	-	Single	1200 V	75 A	460 W	3.4V @ 15V, 50A	750 µA	3.45 nF @ 25 V	Standard	No	-55°C ~ 150°C (TJ)	Chassis Mount	SOT-227 (ISOTOP®)
IRG5K100HF12A IGBT MOD 1200V 200A POWIR 34 Infineon Technologies	3,576	-	RFQ	-	-	POWIR® 34 Module	Box	Obsolete	-	Half Bridge	1200 V	200 A	620 W	2.6V @ 15V, 100A	1 mA	12.9 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	POWIR® 34
APTGF50DH60TG IGBT MODULE 600V 65A 250W SP4 Microsemi Corporation	7,665	-	RFQ	-	-	SP4	Bulk	Discontinued at Digi-Key	NPT	Asymmetrical Bridge	600 V	65 A	250 W	2.45V @ 15V, 50A	250 µA	2.2 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount	SP4
APTGT75DH60TG IGBT MODULE 600V 100A 250W SP4 Microsemi Corporation	9,598	-	RFQ	-	-	SP4	Bulk	Discontinued at Digi-Key	Trench Field Stop	Asymmetrical Bridge	600 V	100 A	250 W	1.9V @ 15V, 75A	250 µA	4.62 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount	SP4
FS75R12W2T4PBPSA1 LOW POWER EASY AG-EASY2B-411 Infineon Technologies	6,997	-	RFQ	-	EasyPACK™	Module	Tray	Active	Trench Field Stop	Full Bridge Inverter	1200 V	107 A	375 W	2.15V @ 15V, 75A	1 mA	4.3 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount	AG-EASY2B
FS75R12W2T4PB11BPSA1 LOW POWER EASY Infineon Technologies	4,189	-	RFQ	-	*	-	Tray	Active	-	-	-	-	-	-	-	-	-	-	-	-	-
MIXG240RF1200PTED IGBT MODULE - BRAKE E2-PACK-PFP IXYS	5,956	-	RFQ	-	-	E2	Box	Active	PT	Single Chopper	1200 V	335 A	1250 W	2V @ 15V, 200A	200 µA	-	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount	E2
DDB6U134N16RRB38BPSA1 LOW POWER ECONO Infineon Technologies	7,211	-	RFQ	-	-	Module	Tray	Active	-	Single Chopper	1200 V	70 A	500 W	2.75V @ 15V, 70A	500 µA	5.1 nF @ 25 V	Standard	Yes	150°C (TJ)	Chassis Mount	AG-ECONO2B
APTGT200DA60TG IGBT MODULE 600V 290A 625W SP4 Microsemi Corporation	8,189	-	RFQ	-	-	SP4	Bulk	Discontinued at Digi-Key	Trench Field Stop	Single	600 V	290 A	625 W	1.9V @ 15V, 200A	250 µA	12.3 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount	SP4
PRHMB75W12 IGBT MODULE, 1IN1, BRAKE CHOPPER KYOCERA AVX	9,314	-	RFQ	-	-	Module	Bulk	Obsolete	-	Single	1200 V	75 A	290 W	2V @ 15V, 75A	1 mA	8000 pF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	Module
