IGBT Modules

TomatoElec supplies IGBT modules for industrial, automotive, power control, motor drive and energy applications. Our sourcing support covers insulated gate bipolar transistor modules used in switching, power conversion and high-efficiency control circuit designs.

We support flexible RFQ service for IGBT module sourcing and help customers improve procurement efficiency for regular demand, urgent requirements and selected hard-to-find parts.

With access to multiple supply channels, TomatoElec aims to provide customers with reliable IGBT module sourcing support, responsive quotation and global delivery service.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	IGBT Type	Configuration	Voltage - Collector Emitter Breakdown (Max)	Current - Collector (Ic) (Max)	Power - Max	Vce(on) (Max) @ Vge, Ic	Current - Collector Cutoff (Max)	Input Capacitance (Cies) @ Vce	Input	NTC Thermistor	Operating Temperature	Mounting Type	Supplier Device Package
FF400R17KE4EHOSA1 IGBT MODULE 1700V 400A Infineon Technologies	2,950	-	RFQ	-	C	Module	Tray	Active	Trench Field Stop	Half Bridge	1700 V	400 A	-	2.3V @ 15V, 400A	1 mA	36 nF @ 25 V	Standard	No	-40°C ~ 150°C	Chassis Mount	Module
FF400R12KT3HOSA1 IGBT MOD 1200V 580A 2000W Infineon Technologies	2,722	-	RFQ	-	C	Module	Tray	Not For New Designs	Trench Field Stop	2 Independent	1200 V	580 A	2000 W	2.15V @ 15V, 400A	5 mA	28 nF @ 25 V	Standard	No	-40°C ~ 125°C	Chassis Mount	Module
FS3L200R10W3S7FB94BPSA1 LOW POWER EASY AG-EASY3B-7011 Infineon Technologies	2,759	-	RFQ	-	EasyPACK™, TRENCHSTOP™	Module	Tray	Active	Trench Field Stop	Three Level Inverter	950 V	70 A	-	1.53V @ 15V, 30A	31 µA	6.48 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount	AG-EASY3B
MSCGLQ50H120CTBL2NG PM-IGBT-SBD-BL2 Microchip Technology	3,630	-	RFQ	-	-	Module	Bulk	Active	-	Full Bridge	1200 V	110 A	375 W	2.4V @ 15V, 50A	25 µA	2.77 nF @ 25 V	Standard	Yes	-55°C ~ 175°C (TJ)	Chassis Mount	-
MSCGLQ50DDU120CTBL2NG PM-IGBT-SBD-BL2 Microchip Technology	7,874	-	RFQ	-	-	Module	Bulk	Active	-	Full Bridge	1200 V	110 A	375 W	2.4V @ 15V, 50A	25 µA	2.77 nF @ 25 V	Standard	Yes	-55°C ~ 175°C (TJ)	Chassis Mount	-
FF500R17KE4BOSA1 IGBT MODULE 1700V 500A Infineon Technologies	2,481	-	RFQ	-	C	Module	Tray	Active	Trench Field Stop	Half Bridge Inverter	1700 V	500 A	-	2.3V @ 15V, 500A	1 mA	45 nF @ 25 V	Standard	No	-40°C ~ 150°C	Chassis Mount	Module
F3L400R10W3S7FB11BPSA1 IGBT MODULE LOW POWER EASY Infineon Technologies	2,784	-	RFQ	-	EasyPACK™	Module	Tray	Active	Trench Field Stop	Three Level Inverter	950 V	220 A	-	2V @ 15V, 150A	71 µA	49.2 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount	AG-EASY3B
NXH400N100H4Q2F2SG MASS MARKET 250KW 1500V Q2 PACK onsemi	4,479	-	RFQ	-	-	Module	Tray	Active	Trench Field Stop	Three Level Inverter	1000 V	409 A	959 W	2.3V @ 15V, 400A	500 µA	26.093 nF @ 20 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount	42-PIM/Q2PACK (93x47)
FF600R12ME4WB73BPSA1 MEDIUM POWER ECONO Infineon Technologies	1	-	RFQ	-	EconoDUAL™ 3	Module	Tray	Active	Trench Field Stop	2 Independent	1200 V	600 A	-	2.1V @ 15V, 600A	3 mA	37 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount	AG-ECONOD
FF600R17ME4BOSA1 IGBT MODULE VCES 1700V 600A Infineon Technologies	4,041	-	RFQ	-	EconoDUAL™ 3	Module	Tray	Active	Trench Field Stop	2 Independent	1700 V	-	-	2.3V @ 15V, 600A	1 mA	48 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount	Module

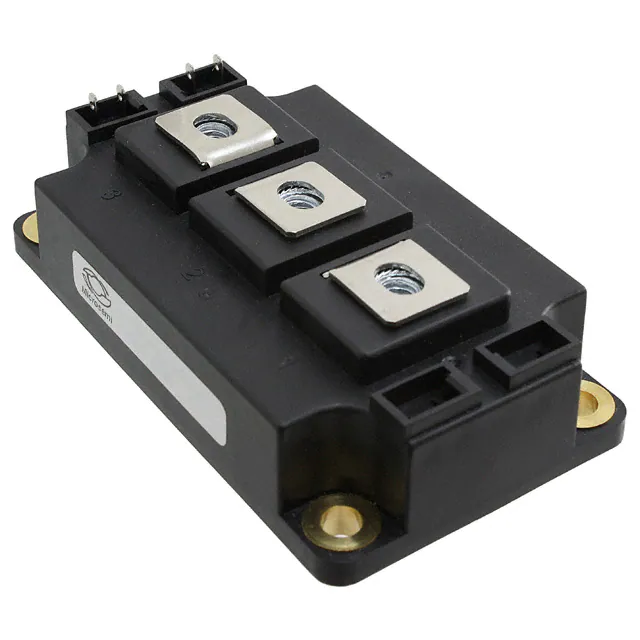

APTGT400A60D3G IGBT MODULE 600V 500A 1250W D3 Microchip Technology	1	-	RFQ	-	-	D-3 Module	Bulk	Active	Trench Field Stop	Half Bridge	600 V	500 A	1250 W	1.9V @ 15V, 400A	500 µA	24 nF @ 25 V	Standard	No	-40°C ~ 175°C (TJ)	Chassis Mount	D3
FS300R12OE4BOSA1 IGBT MOD 1200V 460A 1650W Infineon Technologies	4,771	-	RFQ	-	-	Module	Tray	Active	Trench Field Stop	Three Phase Inverter	1200 V	460 A	1650 W	2.1V @ 15V, 300A	3 mA	18.5 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount	Module
FF1500R12IE5BPSA1 IGBT MOD 1200V 1500A 20MW Infineon Technologies	9,730	-	RFQ	-	PrimePACK™3+ B	Module	Tray	Active	Trench Field Stop	2 Independent	1200 V	1500 A	-	2.15V @ 15V, 1500A	5 mA	82 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount	Module
FF1200R12IE5PBPSA1 IGBT MOD 1200V 2400A 20MW Infineon Technologies	8,340	-	RFQ	-	PrimePACK™2	Module	Tray	Active	Trench Field Stop	Half Bridge	1200 V	2400 A	-	2.15V @ 15V, 1200A	5 mA	65.5 nF @ 25 V	Standard	Yes	-40°C ~ 175°C	Chassis Mount	Module
FF1800R12IE5PBPSA1 IGBT MOD 1200V 1800A 20MW Infineon Technologies	2,508	-	RFQ	-	PrimePACK™3+	Module	Tray	Active	Trench Field Stop	2 Independent	1200 V	1800 A	-	2.15V @ 15V, 1800A	5 mA	98.5 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount	Module
FF2400RB12IP7PBPSA1 PP IHM I XHP 1 7KV AG-PRIME3+-71 Infineon Technologies	1	-	RFQ	-	PrimePACK™3	-	Tray	Active	-	2 Independent	750 V	2400 A	-	-	-	-	Standard	No	-	-	-

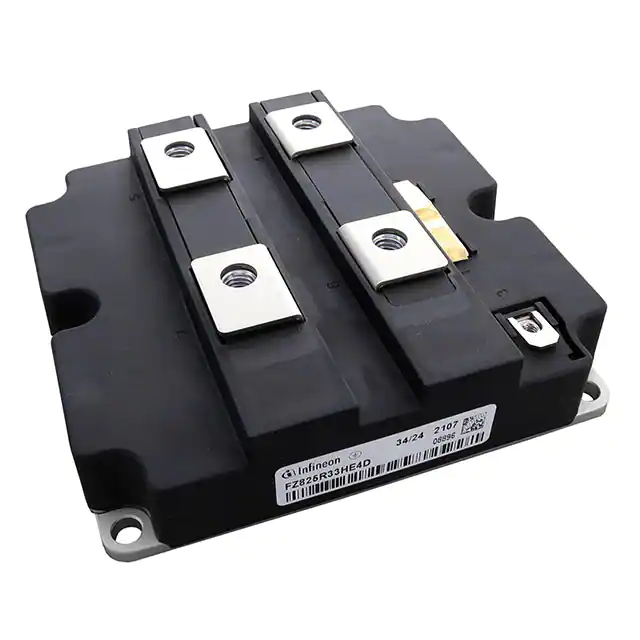

FZ825R33HE4DBPSA1 HV B SINGLE SWITCH POWER MODULES Infineon Technologies	9,522	-	RFQ	-	IHM-B	Module	Tray	Active	Trench Field Stop	Single Switch	3300 V	825 A	2400000 W	2.65V @ 15V, 825A	5 mA	93.5 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	AG-IHVB130-3
FZ2400R17HP4B29BOSA2 IGBT MODULE 1700V 4800A Infineon Technologies	1	-	RFQ	-	IHM-B	Module	Tray	Active	Trench Field Stop	Single Switch	1700 V	4800 A	15500 W	2.25V @ 15V, 2400A	5 mA	195 nF @ 25 V	Standard	No	-40°C ~ 150°C	Chassis Mount	Module
FZ750R65KE3NOSA1 IGBT MOD 6500V 750A A-IHV190-6 Infineon Technologies	1	-	RFQ	-	-	Module	Tray	Active	-	Single	6500 V	750 A	14500 W	3.4V @ 15V, 750A	5 mA	205 nF @ 25 V	Standard	No	-50°C ~ 125°C	Chassis Mount	Module
P2000DL45X168HPSA1 PRESS PACK IGBT Infineon Technologies	1	-	RFQ	-	-	TO-200AF	Tray	Active	Trench	Single	4500 V	2000 A	-	2.5V @ 15V, 2000A	200 µA	420 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	BG-P16826K-1
