IGBT Modules

TomatoElec supplies IGBT modules for industrial, automotive, power control, motor drive and energy applications. Our sourcing support covers insulated gate bipolar transistor modules used in switching, power conversion and high-efficiency control circuit designs.

We support flexible RFQ service for IGBT module sourcing and help customers improve procurement efficiency for regular demand, urgent requirements and selected hard-to-find parts.

With access to multiple supply channels, TomatoElec aims to provide customers with reliable IGBT module sourcing support, responsive quotation and global delivery service.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	IGBT Type	Configuration	Voltage - Collector Emitter Breakdown (Max)	Current - Collector (Ic) (Max)	Power - Max	Vce(on) (Max) @ Vge, Ic	Current - Collector Cutoff (Max)	Input Capacitance (Cies) @ Vce	Input	NTC Thermistor	Operating Temperature	Mounting Type	Supplier Device Package
FF600R12ME4PB72BPSA1 MEDIUM POWER ECONO Infineon Technologies	9,989	-	RFQ	-	EconoDUAL™ 3	Module	Bulk	Active	Trench Field Stop	2 Independent	1200 V	600 A	-	2.1V @ 15V, 600A	3 mA	37 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount	AG-ECONOD-5
FS150R07PE4BOSA1 IGBT MOD 650V 150A 430W Infineon Technologies	3,339	-	RFQ	-	EconoPACK™ 4	Module	Bulk	Obsolete	Trench Field Stop	Three Phase Inverter	650 V	150 A	430 W	1.95V @ 15V, 150A	1 mA	9.3 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount	Module
FF450R17ME4PB11BOSA1 IGBT MODULE 1700V 450A Infineon Technologies	8,728	-	RFQ	-	EconoDUAL™ 3	Module	Bulk	Active	Trench Field Stop	2 Independent	1700 V	450 A	-	2.3V @ 15V, 450A	3 mA	36 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount	Module
IFS150B12N3E4B31BOSA1 IGBT MOD 1200V 300A 750W Infineon Technologies	7,624	-	RFQ	-	-	Module	Bulk	Active	-	Full Bridge	1200 V	300 A	750 W	2.15V @ 15V, 150A	1 mA	9.35 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount	Module
F3L300R12MT4PB23BPSA1 IGBT MOD 1200V 300A 20MW Infineon Technologies	9,935	-	RFQ	-	EconoDUAL™ 3	Module	Bulk	Discontinued at Digi-Key	Trench Field Stop	Half Bridge	1200 V	300 A	-	2.1V @ 15V, 300A	1 mA	19 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount	Module
F3L300R12MT4PB22BPSA1 IGBT MODULE MED POWER ECONO Infineon Technologies	8,803	-	RFQ	-	EconoDUAL™ 3	-	Bulk	Discontinued at Digi-Key	-	-	-	-	-	-	-	-	-	-	-	-	-

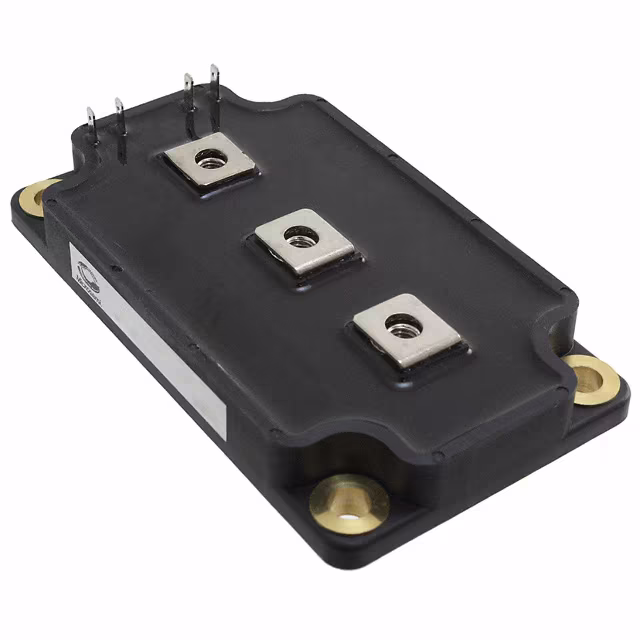

APTGT200DU120G IGBT MODULE 1200V 280A 890W SP6 Microchip Technology	16	-	RFQ	-	-	SP6	Bulk	Active	Trench Field Stop	Dual, Common Source	1200 V	280 A	890 W	2.1V @ 15V, 200A	350 µA	14 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	SP6
BSM200GB170DLCHOSA1 BSM200GB170DL - IGBT MODULE Infineon Technologies	23	-	RFQ	-	*	-	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-
FS215R04A1E3DBOMA1 IGBT MODULE Infineon Technologies	4,211	-	RFQ	-	*	-	Bulk	Discontinued at Digi-Key	-	-	-	-	-	-	-	-	-	-	-	-	-
FF600R12ME4AB11BOSA1 IGBT MODULE 1200V 3350W Infineon Technologies	5	-	RFQ	-	EconoDUAL™ 3	Module	Bulk	Discontinued at Digi-Key	Trench Field Stop	2 Independent	1200 V	-	3350 W	2.1V @ 15V, 600A	3 mA	37 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount	Module
FF600R17ME4PB11BOSA1 IGBT MODULE VCES 1200V 600A Infineon Technologies	8,648	-	RFQ	-	EconoDUAL™ 3	Module	Bulk	Active	Trench Field Stop	Half Bridge Inverter	1700 V	600 A	-	2.3V @ 15V, 600A	1 mA	48 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount	Module
MSCGLQ75H120CTBL3NG PM-IGBT-SBD-BL3 Microchip Technology	8	-	RFQ	-	-	Module	Bulk	Active	-	Full Bridge	1200 V	160 A	470 W	2.4V @ 15V, 75A	50 µA	4.4 nF @ 25 V	Standard	Yes	-55°C ~ 175°C (TJ)	Chassis Mount	-
MSCGLQ75DDU120CTBL3NG PM-IGBT-SBD-BL3 Microchip Technology	7	-	RFQ	-	-	Module	Bulk	Active	-	Full Bridge	1200 V	160 A	470 W	2.4V @ 15V, 75A	50 µA	4.4 nF @ 25 V	Standard	Yes	-55°C ~ 175°C (TJ)	Chassis Mount	-
FS150R12KE3GBOSA1 IGBT MOD 1200V 200A 695W Infineon Technologies	4,606	-	RFQ	-	EconoPACK™+	Module	Bulk	Not For New Designs	Trench Field Stop	Three Phase Inverter	1200 V	200 A	695 W	2.15V @ 15V, 150A	5 mA	10.5 nF @ 25 V	Standard	Yes	-40°C ~ 125°C	Chassis Mount	Module
BSM300GB120DLCHOSA1 IGBT MOD 1200V 625A 2500W Infineon Technologies	3,088	-	RFQ	-	-	Module	Bulk	Obsolete	-	Half Bridge	1200 V	625 A	2500 W	2.6V @ 15V, 300A	5 mA	21 nF @ 25 V	Standard	No	-40°C ~ 125°C	Chassis Mount	Module
DF600R12IP4DBOSA1 IGBT MOD 1200V 600A 3350W Infineon Technologies	7,623	-	RFQ	-	PrimePACK™2	Module	Bulk	Active	Trench Field Stop	Single	1200 V	600 A	3350 W	2.05V @ 15V, 600A	5 mA	37 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount	Module
FS225R17OE4PBOSA1 IGBT MODULE MED PWR ECONOPP-2 Infineon Technologies	2,853	-	RFQ	-	EconoPACK™+	-	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-
BSM100GD120DLCBOSA1 LOW POWER ECONO Infineon Technologies	4	-	RFQ	-	*	-	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-
FS300R17OE4PBOSA1 MOD IGBT MED PWR ECONOPP-2 Infineon Technologies	5,393	-	RFQ	-	EconoPACK™+	-	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-
FS770R08A6P2LBBPSA1 FS770R08 - IGBT MODULE Infineon Technologies	6	-	RFQ	-	*	-	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-
