IGBT Modules

TomatoElec supplies IGBT modules for industrial, automotive, power control, motor drive and energy applications. Our sourcing support covers insulated gate bipolar transistor modules used in switching, power conversion and high-efficiency control circuit designs.

We support flexible RFQ service for IGBT module sourcing and help customers improve procurement efficiency for regular demand, urgent requirements and selected hard-to-find parts.

With access to multiple supply channels, TomatoElec aims to provide customers with reliable IGBT module sourcing support, responsive quotation and global delivery service.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	IGBT Type	Configuration	Voltage - Collector Emitter Breakdown (Max)	Current - Collector (Ic) (Max)	Power - Max	Vce(on) (Max) @ Vge, Ic	Current - Collector Cutoff (Max)	Input Capacitance (Cies) @ Vce	Input	NTC Thermistor	Operating Temperature	Mounting Type	Supplier Device Package
FB50R07W2E3C36BPSA1 LOW POWER EASY Infineon Technologies	15	-	RFQ	-	-	-	Tray	Active	-	-	-	-	-	-	-	-	-	-	-	-	-
FS50R12W2T4B11BOMA1 IGBT MOD 1200V 83A 335W Infineon Technologies	7	-	RFQ	-	EasyPACK™	Module	Tray	Active	Trench Field Stop	Three Phase Inverter	1200 V	83 A	335 W	2.15V @ 15V, 50A	1 mA	2.8 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount	Module
PCHMB50W6 IGBT MODULE, 1IN1, CHOPPER CIRCU KYOCERA AVX	12	-	RFQ	-	-	Module	Bulk	Active	-	Single	650 V	50 A	181 W	1.95V @ 15V, 50A	1 mA	4500 pF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	Module
PRHMB50W12 IGBT MODULE, 1IN1, BRAKE CHOPPER KYOCERA AVX	12	-	RFQ	-	-	Module	Bulk	Active	-	Single	1200 V	50 A	231 W	2V @ 15V, 50A	1 mA	5300 pF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	Module
PCFMB50W6 IGBT MODULE, 1IN1, CHOPPER CIRCU KYOCERA AVX	12	-	RFQ	-	-	Module	Bulk	Active	-	Single	650 V	50 A	181 W	1.95V @ 15V, 50A	1 mA	4500 pF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	Module
PRFMB50W6 IGBT MODULE, 1IN1, BRAKE CHOPPER KYOCERA AVX	12	-	RFQ	-	-	Module	Bulk	Active	-	Single	650 V	50 A	181 W	1.95V @ 15V, 50A	1 mA	4500 pF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	Module
PRHMB100W6 IGBT MODULE, 1IN1, BRAKE CHOPPER KYOCERA AVX	10	-	RFQ	-	-	Module	Bulk	Active	-	Single	650 V	100 A	320 W	1.95V @ 15V, 100A	1 mA	8500 pF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	Module
PRFMB50W12 IGBT MODULE, 1IN1, BRAKE CHOPPER KYOCERA AVX	12	-	RFQ	-	-	Module	Bulk	Active	-	Single	1200 V	50 A	230 W	2V @ 15V, 50A	1 mA	5300 pF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	Module
PRFMB75W6 IGBT MODULE, 1IN1, BRAKE CHOPPER KYOCERA AVX	12	-	RFQ	-	-	Module	Bulk	Active	-	Single	650 V	75 A	255 W	1.95V @ 15V, 75A	1 mA	6600 pF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	Module
FB50R07W2E3B23BOMA1 LOW POWER EASY AG-EASY2B-2 Infineon Technologies	13	-	RFQ	-	-	-	Tray	Active	-	-	-	-	-	-	-	-	-	-	-	-	-
FS50R12W2T7PBPSA1 LOW POWER EASY Infineon Technologies	15	-	RFQ	-	-	-	Tray	Active	-	-	-	-	-	-	-	-	-	-	-	-	-
PRFMB75W12 IGBT MODULE, 1IN1, BRAKE CHOPPER KYOCERA AVX	12	-	RFQ	-	-	Module	Bulk	Active	-	Single	1200 V	75 A	290 W	2V @ 15V, 75A	1 mA	8000 pF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	Module
PRHMB100W12 IGBT MODULE, 1IN1, BRAKE CHOPPER KYOCERA AVX	12	-	RFQ	-	-	Module	Bulk	Active	-	Single	1200 V	100 A	403 W	2V @ 15V, 100A	1 mA	10000 pF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	Module
FS50R12W2T7PB11BPSA1 LOW POWER EASY Infineon Technologies	18	-	RFQ	-	-	-	Tray	Active	-	-	-	-	-	-	-	-	-	-	-	-	-
FP35R12N2T7BPSA2 LOW POWER ECONO Infineon Technologies	15	-	RFQ	-	EconoPIM™ 2	Module	Tray	Active	Trench Field Stop	Three Phase Inverter	1200 V	35 A	-	1.6V @ 15V, 35A	7 µA	6.62 nF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 175°C (TJ)	Chassis Mount	AG-ECONO2B
PDMB50W12 IGBT MODULE, 2IN1, 1200V/50A KYOCERA AVX	9	-	RFQ	-	-	Module	Bulk	Active	-	Dual, Common Source	1200 V	50 A	231 W	2V @ 15V, 50A	1 mA	5300 pF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	Module
PRFMB100W6 IGBT MODULE, 1IN1, BRAKE CHOPPER KYOCERA AVX	9	-	RFQ	-	-	Module	Bulk	Active	-	Single	650 V	100 A	320 W	1.95V @ 15V, 100A	1 mA	8500 pF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	Module
NXH50M65L4Q1SG Q1PACK 50A 650V onsemi	21	-	RFQ	-	-	Module	Tray	Active	Trench Field Stop	Full Bridge	650 V	48 A	86 W	2.22V @ 15V, 50A	300 µA	3.137 nF @ 20 V	Standard	Yes	175°C (TJ)	Chassis Mount	56-PIM (93x47)
PDMB75W12 IGBT MODULE, 2IN1, 1200V/75A KYOCERA AVX	6	-	RFQ	-	-	Module	Bulk	Active	-	Dual, Common Source	1200 V	75 A	290 W	2V @ 15V, 75A	1 mA	8000 pF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	Module

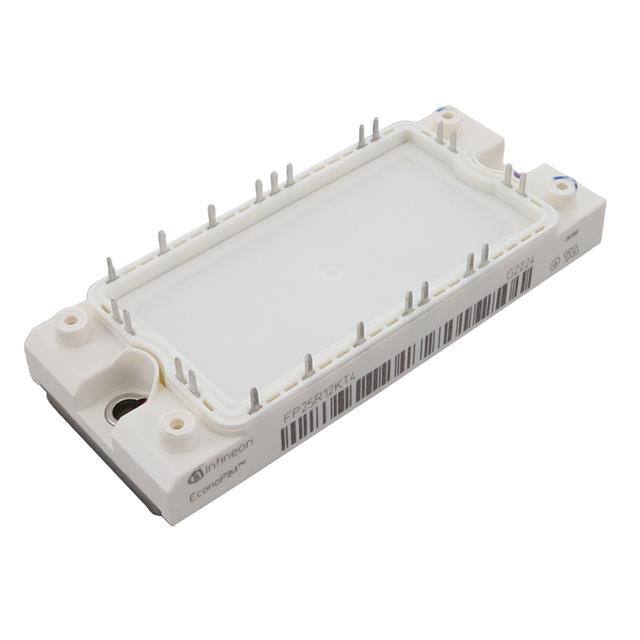

FP25R12KT4BPSA1 LOW POWER ECONO AG-ECONO2B-411 Infineon Technologies	15	-	RFQ	-	EconoPIM™ 2	Module	Tray	Active	Trench Field Stop	Three Phase Inverter	1200 V	25 A	160 W	2.15V @ 15V, 25A	1 mA	1.45 nF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 150°C (TJ)	Chassis Mount	AG-ECONO2B
