IGBT Modules

TomatoElec supplies IGBT modules for industrial, automotive, power control, motor drive and energy applications. Our sourcing support covers insulated gate bipolar transistor modules used in switching, power conversion and high-efficiency control circuit designs.

We support flexible RFQ service for IGBT module sourcing and help customers improve procurement efficiency for regular demand, urgent requirements and selected hard-to-find parts.

With access to multiple supply channels, TomatoElec aims to provide customers with reliable IGBT module sourcing support, responsive quotation and global delivery service.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	IGBT Type	Configuration	Voltage - Collector Emitter Breakdown (Max)	Current - Collector (Ic) (Max)	Power - Max	Vce(on) (Max) @ Vge, Ic	Current - Collector Cutoff (Max)	Input Capacitance (Cies) @ Vce	Input	NTC Thermistor	Operating Temperature	Mounting Type	Supplier Device Package
IXSN55N120AU1 IGBT MOD 1200V 110A 500W SOT227B IXYS	7,052	-	RFQ	-	-	SOT-227-4, miniBLOC	Tube	Obsolete	-	Single	1200 V	110 A	500 W	4V @ 15V, 55A	1 mA	8 nF @ 25 V	Standard	No	-55°C ~ 150°C (TJ)	Chassis Mount	SOT-227B
IXSN62N60U1 IGBT MOD 600V 90A 250W SOT227B IXYS	4,513	-	RFQ	-	-	SOT-227-4, miniBLOC	Tube	Obsolete	PT	Single	600 V	90 A	250 W	2.5V @ 15V, 50A	750 µA	4.5 nF @ 25 V	Standard	No	-55°C ~ 150°C (TJ)	Chassis Mount	SOT-227B
IXSN80N60AU1 IGBT MOD 600V 160A 500W SOT227B IXYS	7,408	-	RFQ	-	-	SOT-227-4, miniBLOC	Tube	Obsolete	-	Single	600 V	160 A	500 W	3V @ 15V, 80A	1 mA	8.5 nF @ 25 V	Standard	No	-55°C ~ 150°C (TJ)	Chassis Mount	SOT-227B
APTGFQ25H120T2G IGBT MODULE 1200V 40A 227W SP2 Microsemi Corporation	5,500	-	RFQ	-	-	SP2	Bulk	Active	NPT and Fieldstop	Full Bridge	1200 V	40 A	227 W	2.1V @ 15V, 25A	250 µA	2.02 nF @ 25 V	Standard	Yes	-	Through Hole	SP2
CM1400E3U-24NF IGBT MOD 1200V 1400A 3900W Powerex Inc.	3,279	-	RFQ	-	IGBTMOD™	Module	Bulk	Obsolete	-	Single	1200 V	1400 A	3900 W	2.5V @ 15V, 1400A	1 mA	220 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	-	Module
CM150DX-24S IGBT MOD 1200V 150A 1150W Powerex Inc.	5,894	-	RFQ	-	IGBTMOD™	Module	Bulk	Obsolete	-	Half Bridge	1200 V	150 A	1150 W	2.25V @ 15V, 150A	1 mA	15 nF @ 10 V	Standard	Yes	-40°C ~ 150°C (TJ)	-	Module
CM400DY-34A IGBT MOD 1700V 400A 3780W Powerex Inc.	9,635	-	RFQ	-	IGBTMOD™	Module	Bulk	Obsolete	-	Half Bridge	1700 V	400 A	3780 W	2.8V @ 15V, 400A	1 mA	98.8 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	-	Module
CM600DU-12NFH IGBT MOD 600V 600A 1130W Powerex Inc.	4,492	-	RFQ	-	IGBTMOD™	Module	Bulk	Obsolete	-	Half Bridge	600 V	600 A	1130 W	2.7V @ 15V, 600A	1 mA	166 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	-	Module
VS-GA250SA60S IGBT MOD 600V 400A 961W SOT227 Vishay General Semiconductor - Diodes Division	7,557	-	RFQ	-	-	SOT-227-4	Tube	Obsolete	-	Single	600 V	400 A	961 W	1.66V @ 15V, 200A	1 mA	16.25 nF @ 30 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	SOT-227

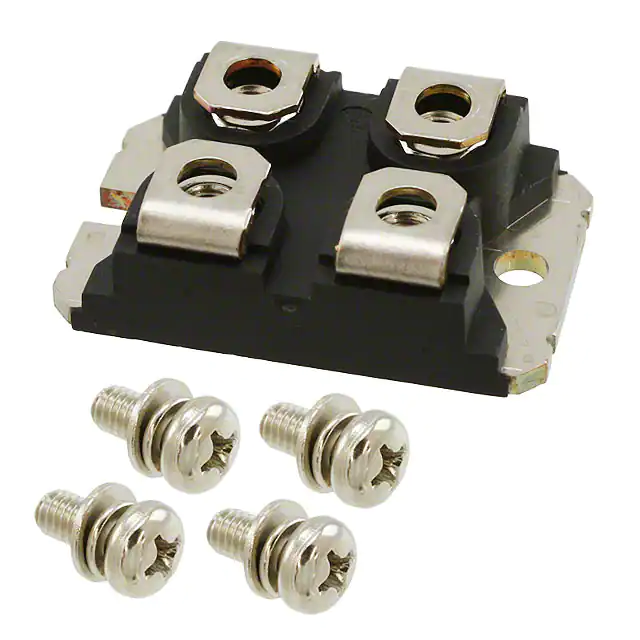

VS-GB90SA120U IGBT MOD 1200V 149A 862W SOT227 Vishay General Semiconductor - Diodes Division	6,310	-	RFQ	-	-	SOT-227-4	Tube	Obsolete	NPT	Single	1200 V	149 A	862 W	3.9V @ 15V, 75A	250 µA	-	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	SOT-227
VS-GB90DA60U IGBT MOD 600V 147A 625W SOT227 Vishay General Semiconductor - Diodes Division	6,881	-	RFQ	-	-	SOT-227-4	Tube	Obsolete	NPT	Single	600 V	147 A	625 W	2.8V @ 15V, 100A	100 µA	-	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	SOT-227
VS-CPV362M4KPBF IGBT MODULE 600V 3PHASE IMS-2 Vishay General Semiconductor - Diodes Division	5,472	-	RFQ	-	-	19-SIP (13 Leads), IMS-2	Bulk	Obsolete	-	-	-	-	-	-	-	-	-	No	-40°C ~ 150°C (TJ)	Through Hole	IMS-2
VS-CPV362M4UPBF IGBT MODULE 600V 7.2A 23W IMS-2 Vishay General Semiconductor - Diodes Division	4,719	-	RFQ	-	-	19-SIP (13 Leads), IMS-2	Bulk	Obsolete	-	-	600 V	7.2 A	23 W	2.2V @ 15V, 3.9A	250 µA	530 pF @ 30 V	Standard	No	-40°C ~ 150°C (TJ)	Through Hole	IMS-2
VS-CPV363M4FPBF IGBT MODULE 600V 3PHASE IMS-2 Vishay General Semiconductor - Diodes Division	5,179	-	RFQ	-	-	19-SIP (13 Leads), IMS-2	Bulk	Obsolete	-	-	-	-	-	-	-	-	-	No	-40°C ~ 150°C (TJ)	Through Hole	IMS-2
VS-CPV363M4KPBF IGBT MODULE 600V 11A 36W IMS-2 Vishay General Semiconductor - Diodes Division	9,738	-	RFQ	-	-	19-SIP (13 Leads), IMS-2	Bulk	Obsolete	-	-	600 V	11 A	36 W	2.1V @ 15V, 6A	250 µA	740 pF @ 30 V	Standard	No	-40°C ~ 150°C (TJ)	Through Hole	IMS-2
VS-CPV364M4FPBF IGBT MODULE 600V 27A 63W IMS-2 Vishay General Semiconductor - Diodes Division	7,152	-	RFQ	-	-	19-SIP (13 Leads), IMS-2	Bulk	Obsolete	-	-	600 V	27 A	63 W	1.5V @ 15V, 15A	250 µA	2.2 nF @ 30 V	Standard	No	-40°C ~ 150°C (TJ)	Through Hole	IMS-2
VS-CPV364M4UPBF IGBT MODULE 600V 20A 63W IMS-2 Vishay General Semiconductor - Diodes Division	4,550	-	RFQ	-	-	19-SIP (13 Leads), IMS-2	Bulk	Obsolete	-	-	600 V	20 A	63 W	2.1V @ 15V, 10A	250 µA	2.1 nF @ 30 V	Standard	No	-40°C ~ 150°C (TJ)	Through Hole	IMS-2
MIXA101W1200EH IGBT MODULE 1200V 155A 500W E3 IXYS	7,292	-	RFQ	-	-	E3	Box	Active	PT	Three Phase Inverter	1200 V	155 A	500 W	2.1V @ 15V, 100A	300 µA	-	Standard	No	-40°C ~ 125°C (TJ)	Chassis Mount	E3
MIXA10W1200TML IGBT MODULE 1200V 17A 65W E1 IXYS	4,812	-	RFQ	-	-	E1	Box	Active	PT	Three Phase Inverter	1200 V	17 A	65 W	2.1V @ 15V, 9A	150 µA	-	Standard	Yes	-40°C ~ 125°C (TJ)	Chassis Mount	E1
MIXA10WB1200TML IGBT MODULE 1200V 17A 63W E1 IXYS	8,182	-	RFQ	-	-	E1	Box	Active	PT	Three Phase Inverter with Brake	1200 V	17 A	63 W	2.1V @ 15V, 9A	100 µA	-	Three Phase Bridge Rectifier	Yes	-40°C ~ 125°C (TJ)	Chassis Mount	E1
