IGBT Modules

TomatoElec supplies IGBT modules for industrial, automotive, power control, motor drive and energy applications. Our sourcing support covers insulated gate bipolar transistor modules used in switching, power conversion and high-efficiency control circuit designs.

We support flexible RFQ service for IGBT module sourcing and help customers improve procurement efficiency for regular demand, urgent requirements and selected hard-to-find parts.

With access to multiple supply channels, TomatoElec aims to provide customers with reliable IGBT module sourcing support, responsive quotation and global delivery service.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	IGBT Type	Configuration	Voltage - Collector Emitter Breakdown (Max)	Current - Collector (Ic) (Max)	Power - Max	Vce(on) (Max) @ Vge, Ic	Current - Collector Cutoff (Max)	Input Capacitance (Cies) @ Vce	Input	NTC Thermistor	Operating Temperature	Mounting Type	Supplier Device Package
APTGLQ75H120TG IGBT MODULE 1200V 130A 385W SP4 Microchip Technology	5,530	-	RFQ	-	-	Module	Bulk	Active	Trench Field Stop	Full Bridge	1200 V	130 A	385 W	2.4V @ 15V, 75A	50 µA	4.4 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount	SP4

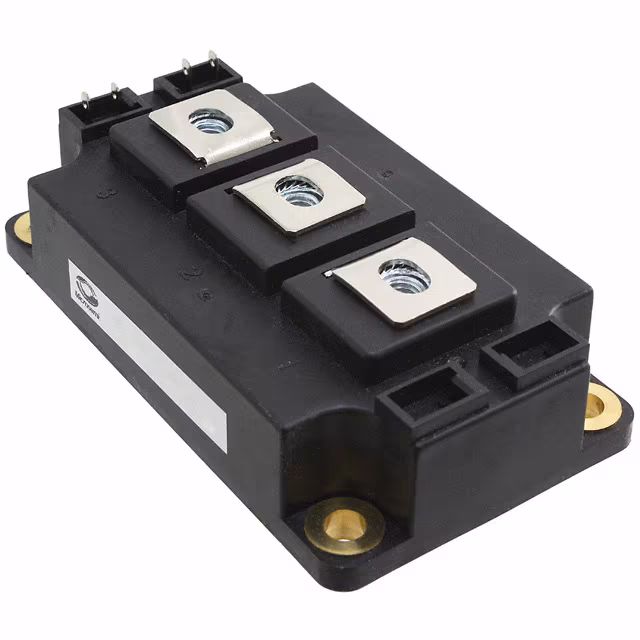

APTGF300A120D3G IGBT MODULE 1200V 420A 2100W D3 Microsemi Corporation	9,097	-	RFQ	-	-	D-3 Module	Bulk	Obsolete	NPT	Half Bridge	1200 V	420 A	2100 W	3.7V @ 15V, 300A	5 mA	19 nF @ 25 V	Standard	No	-	Chassis Mount	D3
CM400DY-12NF IGBT MOD 600V 400A 1130W Powerex Inc.	2,897	-	RFQ	-	IGBTMOD™	Module	Bulk	Discontinued at Digi-Key	-	Half Bridge	600 V	400 A	1130 W	2.2V @ 15V, 400A	1 mA	60 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	Module
MIXG180W1200PTEH IGBT MODULE - SIXPACK E3-PACK-PF IXYS	9,194	-	RFQ	-	-	-	Box	Active	-	-	-	-	-	-	-	-	-	-	-	-	-
MIXG180W1200TEH IGBT MODULE - SIXPACK E3-PACK-PF IXYS	3,279	-	RFQ	-	-	Module	Box	Active	-	Three Phase Inverter	1200 V	280 A	935 W	2V @ 15V, 150A	500 µA	8.5 nF @ 100 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount	E3
APTGT150A120T3AG IGBT MODULE 1200V 220A 833W SP3 Microchip Technology	2,813	-	RFQ	-	-	SP3	Bulk	Active	Trench Field Stop	Half Bridge	1200 V	220 A	833 W	2.1V @ 15V, 150A	250 µA	10.7 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount	SP3
FF600R12ME4B73BPSA2 MEDIUM POWER ECONO AG-ECONOD-411 Infineon Technologies	2,231	-	RFQ	-	EconoDUAL™ 3	Module	Tray	Active	Trench Field Stop	2 Independent	1200 V	600 A	-	2.1V @ 15V, 600A	3 mA	37 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount	AG-ECONOD
CM400HU-24F IGBT MOD 1200V 400A 1600W Powerex Inc.	8,713	-	RFQ	-	IGBTMOD™	Module	Bulk	Discontinued at Digi-Key	Trench	Single	1200 V	400 A	1600 W	2.4V @ 15V, 400A	2 mA	160 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	Module
MIXG490PF1200TSF IGBT MODULE - PHASELEG SIMBUS F- IXYS	2,875	-	RFQ	-	-	-	Box	Active	-	-	-	-	-	-	-	-	-	-	-	-	-
MIXG180W1200PT-PC IGBT MODULE MIXG180W1200PTEH-PC IXYS	2,236	-	RFQ	-	-	-	Box	Active	-	-	-	-	-	-	-	-	-	-	-	-	-
MG200Q2YS60A IGBT MOD 1200V 200A 2000W Powerex Inc.	8,555	-	RFQ	-	IGBTMOD™	Module	Bulk	Obsolete	-	Half Bridge	1200 V	200 A	2000 W	2.8V @ 15V, 200A	1 mA	15 nF @ 10 V	Standard	No	-20°C ~ 150°C (TJ)	Chassis Mount	Module
APTGT150DA120G IGBT MODULE 1200V 220A 690W SP6 Microchip Technology	2,069	-	RFQ	-	-	SP6	Bulk	Active	Trench Field Stop	Single	1200 V	220 A	690 W	2.1V @ 15V, 150A	350 µA	10.7 nF @ 25 V	Standard	No	-	Chassis Mount	SP6
APTGT150SK120G IGBT MODULE 1200V 220A 690W SP6 Microchip Technology	6,679	-	RFQ	-	-	SP6	Bulk	Active	Trench Field Stop	Single	1200 V	220 A	690 W	2.1V @ 15V, 150A	350 µA	10.7 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	SP6
CM150RL-12NF IGBT MOD 600V 150A 730W Powerex Inc.	9,189	-	RFQ	-	IGBTMOD™	Module	Bulk	Obsolete	-	Three Phase Inverter with Brake	600 V	150 A	730 W	2.2V @ 15V, 150A	1 mA	23 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	Module
BSM25GD120DN2BOSA1 IGBT MOD 1200V 35A 200W Infineon Technologies	7,909	-	RFQ	-	-	Module	Tray	Obsolete	-	Full Bridge	1200 V	35 A	200 W	3V @ 15V, 25A	800 µA	1.65 nF @ 25 V	Standard	No	150°C (TJ)	Chassis Mount	Module
MIXG300PF1700TSF IGBT MODULE - PHASELEG SIMBUS F- IXYS	9,976	-	RFQ	-	-	SimBus F	Box	Active	PT	Single	-	-	-	-	-	-	Standard	No	-	Chassis Mount	SimBus F
CM150RX-12A IGBT MOD 600V 150A 520W Powerex Inc.	8,156	-	RFQ	-	IGBTMOD™	Module	Bulk	Discontinued at Digi-Key	-	Three Phase Inverter with Brake	600 V	150 A	520 W	2.1V @ 15V, 150A	1 mA	18 nF @ 10 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount	Module
APTGT300DA60D3G IGBT MODULE 600V 400A 940W D3 Microchip Technology	8,850	-	RFQ	-	-	D-3 Module	Bulk	Active	Trench Field Stop	Single	600 V	400 A	940 W	1.9V @ 15V, 300A	500 µA	18.5 nF @ 25 V	Standard	No	-40°C ~ 175°C (TJ)	Chassis Mount	D3
APTGT300SK60D3G IGBT MODULE 600V 400A 940W D3 Microchip Technology	9,784	-	RFQ	-	-	D-3 Module	Bulk	Active	Trench Field Stop	Single	600 V	400 A	940 W	1.9V @ 15V, 300A	500 µA	18.5 nF @ 25 V	Standard	No	-	Chassis Mount	D3
MIF600R12E3TL-BP IGBT MODULES,E3 Micro Commercial Co	4,371	-	RFQ	-	-	Module	Bulk	Active	-	Half Bridge	1200 V	600 A	3.26 kW	1.5V @ 15V, 600A	1 mA	44000 pF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount	E3
