Electric Double Layer Capacitors (EDLC), Supercapacitors

Electric double layer capacitors (EDLC), also known as supercapacitors, are energy storage components that provide high capacitance, fast charge and discharge capability, and long cycle life. They are commonly used for backup power, peak current support, energy buffering, regenerative energy storage, memory backup, industrial controls, smart meters, automotive electronics, and renewable energy systems.

TomatoElec is an independent electronic components distributor supplying EDLC and supercapacitor products from mainstream manufacturers such as KYOCERA AVX, KEMET, Eaton, Cornell Dubilier, Panasonic, Nichicon, Vishay, and Maxwell Technologies. Customers can check inventory, price, package, specifications, parameters and PDF datasheets in the product list below, and submit a BOM or RFQ for supercapacitor sourcing support.

Mfr. Part #	Price	Quantity	Datasheet	Series	Packaging	Product Status	Capacitance	Tolerance	Voltage - Rated	ESR (Equivalent Series Resistance)	Lifetime @ Temp.	Termination	Mounting Type	Package / Case	Lead Spacing	Size / Dimension	Height - Seated (Max)	Operating Temperature
ADCM-S05R5SA126QB CAPACITOR 12F 5.5V TH Abracon LLC	-	RFQ	Datasheet	ADCM-S05R5S	Bulk	Active	12 F	-10%, +20%	5.5 V	90mOhm @ 1kHz	-	PC Pins	Through Hole	Radial	0.701" (17.80mm)	1.004" L x 0.512" W (25.50mm x 13.00mm)	1.457" (37.00mm)	-40°C ~ 70°C
B1325-2R5106-R CAP 10F -20% +80% 2.5V T/H Eaton - Electronics Division	-	RFQ	Datasheet	B	Bulk	Obsolete	10 F	-20%, +80%	2.5 V	60mOhm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.531" Dia (13.50mm)	1.118" (28.40mm)	-25°C ~ 70°C
MAL223531008E3 CAP ALUM 50F 3V 2000H Vishay Beyschlag/Draloric/BC Components	-	RFQ	Datasheet	ENYCAP™ 235 EDLC-HVR, Automotive, AEC-Q200	Box	Active	50 F	-20%, +50%	3 V	14mOhm @ 1kHz	2000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.709" Dia (18.00mm)	1.476" (37.50mm)	-40°C ~ 85°C

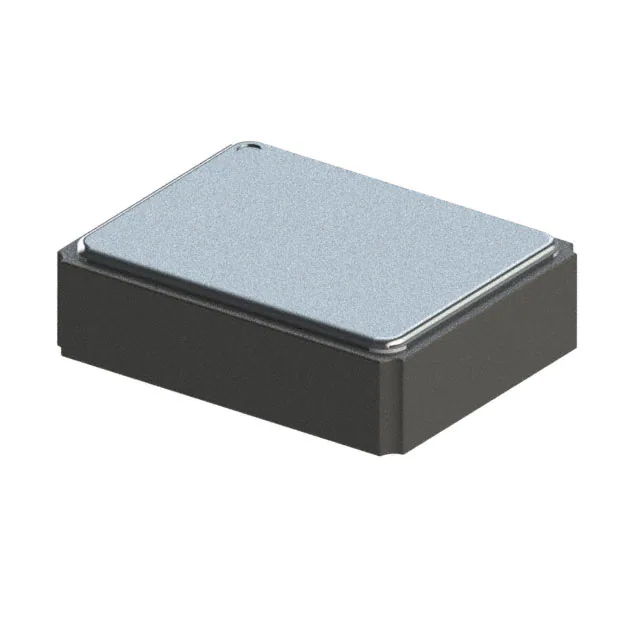

CPX3225A752D CAP 7.5MF 2.6V SURFACE MNT Seiko Instruments	-	RFQ	Datasheet	CPX	Tape & Reel (TR)	Obsolete	7.5 mF	-	2.6 V	25Ohm @ 1kHz	-	SMD (SMT) Tabs	Surface Mount	1210 (3225 Metric)	-	0.126" L x 0.098" W (3.20mm x 2.50mm)	0.035" (0.90mm)	-30°C ~ 70°C
MAL219642474E3 CAP 470MF -20% +80% 5.5V T/H Vishay Beyschlag/Draloric/BC Components	-	RFQ	Datasheet	196 DLC	Bulk	Active	470 mF	-20%, +80%	5.5 V	50Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.512" Dia (13.00mm)	0.295" (7.50mm)	-25°C ~ 70°C
MAL222050007E3 CAP ALUM 25F 2.7V 1000H Vishay Beyschlag/Draloric/BC Components	-	RFQ	Datasheet	ENYCAP™ 220 EDLC, Automotive, AEC-Q200	Box	Active	25 F	-20%, +50%	2.7 V	26mOhm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.709" Dia (18.00mm)	1.063" (27.00mm)	-40°C ~ 85°C
TV1020-3R0605-AP CAP 6.0F 3.0V TV SERIES CYL Eaton - Electronics Division	-	RFQ	-	TV	Tape & Box (TB)	Active	6 F	-10%, +30%	3 V	35mOhm	1000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.413" Dia (10.50mm)	0.878" (22.30mm)	-40°C ~ 65°C
ADCM-S06R0SA126RB CAPACITOR 12F 6V TH Abracon LLC	-	RFQ	Datasheet	ADCM-S06R0S	Bulk	Active	12 F	0%, +30%	6 V	90mOhm @ 1kHz	-	PC Pins	Through Hole	Radial	0.945" (24.00mm)	1.280" L x 0.650" W (32.50mm x 16.50mm)	1.142" (29.00mm)	-40°C ~ 65°C
MAL222030007E3 CAP ALUM 25F 2.7V 1000H Vishay Beyschlag/Draloric/BC Components	-	RFQ	Datasheet	ENYCAP™ 220 EDLC, Automotive, AEC-Q200	Box	Active	25 F	-20%, +50%	2.7 V	26mOhm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.709" Dia (18.00mm)	1.063" (27.00mm)	-40°C ~ 85°C
CHT-5R4L105R-TW 5.4V 1F 16818 T/DA EDLC CDA (Zhifengwei Technology)	-	RFQ	Datasheet	CHT		Active	1 F	-10%, +30%	5.4 V	240mOhm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	-	0.630" L x 0.315" W (16.00mm x 8.00mm)	0.768" (19.50mm)	-40°C ~ 85°C
SCCV40E506MRB SUPERCAP CYLINDRICAL KYOCERA AVX	-	RFQ	-	SCC	Bulk	Active	50 F	±20%	3 V	-	2000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can	0.315" (8.00mm)	0.709" Dia (18.00mm)	1.634" (41.50mm)	-40°C ~ 65°C
CHZ-2R5336R-TW 2.5V 33F 16*35 EDLC CDA (Zhifengwei Technology)	-	RFQ	Datasheet	CHZ		Active	33 F	-10%, +30%	2.5 V	19mOhm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.630" Dia (16.00mm)	1.437" (36.50mm)	-40°C ~ 85°C
MAL222030002E3 CAP ALUM 30F 2.7V 1000H Vishay Beyschlag/Draloric/BC Components	-	RFQ	Datasheet	ENYCAP™ 220 EDLC, Automotive, AEC-Q200	Box	Active	30 F	-20%, +50%	2.7 V	26mOhm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.630" Dia (16.00mm)	1.319" (33.50mm)	-40°C ~ 85°C
PB-5R0V474 CAP 470MF -20% +80% 5V T/H Eaton - Electronics Division	-	RFQ	Datasheet	PB	Bulk	Obsolete	470 mF	-20%, +80%	5 V	1Ohm @ 100Hz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.465" (11.80mm)	0.681" L x 0.354" W (17.30mm x 9.00mm)	0.571" (14.50mm)	-25°C ~ 70°C
JJD0E408MSEGBB CAP 4000F 20% 2.5V CHASSIS MOUNT Nichicon	-	RFQ	Datasheet	EVerCAP® JJD	Bulk	Obsolete	4000 F	±20%	2.5 V	2.2mOhm	2000 Hrs @ 60°C	Screw Terminals	Chassis Mount	Radial, Can - Screw Terminals	1.126" (28.60mm)	2.500" Dia (63.50mm)	6.024" (153.00mm)	-25°C ~ 60°C
CHT-5R4L255R-TW 5.4V 2.5F 201022 T/DA EDLC CDA (Zhifengwei Technology)	-	RFQ	Datasheet	CHT		Active	2.5 F	-10%, +30%	5.4 V	150mOhm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	-	0.787" L x 0.394" W (20.00mm x 10.00mm)	0.925" (23.50mm)	-40°C ~ 85°C
MAL222050002E3 CAP ALUM 30F 2.7V 1000H Vishay Beyschlag/Draloric/BC Components	-	RFQ	Datasheet	ENYCAP™ 220 EDLC, Automotive, AEC-Q200	Box	Active	30 F	-20%, +50%	2.7 V	26mOhm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.630" Dia (16.00mm)	1.319" (33.50mm)	-40°C ~ 85°C
SCCV40B506SRBLE SUPERCAP CYLINDRICAL KYOCERA AVX	-	RFQ	Datasheet	SCC LE	Bulk	Active	50 F	-10%, +30%	2.7 V	9mOhm @ 1kHz	2000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can	0.315" (8.00mm)	0.709" Dia (18.00mm)	1.634" (41.50mm)	-40°C ~ 65°C
SCAP,PBLL-1.0/5.4 CAP 1F -10% +20% 5.4V UCAP PACK Tecate Group	-	RFQ	Datasheet	PBLL	Bulk	Active	1 F	-10%, +20%	5.4 V	425mOhm @ 1kHz	1000 Hrs @ 85°C	Wire Leads with Connector	User Defined	Radial, Can	-	0.768" L x 0.709" W (19.50mm x 18.00mm)	0.374" (9.50mm)	-40°C ~ 85°C
SCMR18D105PSBB0H CAP 1F 0% +100% 5.4V T/H KYOCERA AVX	-	RFQ	Datasheet	SCM, High Reliability	Bulk	Last Time Buy	1 F	0%, +100%	5.4 V	250mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can	0.453" (11.50mm)	0.728" L x 0.374" W (18.50mm x 9.50mm)	0.866" (22.00mm)	-40°C ~ 65°C

Total 2853 Record«Prev 1... 94 95 96 979899 100 101...143 Next»
