Electric Double Layer Capacitors (EDLC), Supercapacitors

Electric double layer capacitors (EDLC), also known as supercapacitors, are energy storage components that provide high capacitance, fast charge and discharge capability, and long cycle life. They are commonly used for backup power, peak current support, energy buffering, regenerative energy storage, memory backup, industrial controls, smart meters, automotive electronics, and renewable energy systems.

TomatoElec is an independent electronic components distributor supplying EDLC and supercapacitor products from mainstream manufacturers such as KYOCERA AVX, KEMET, Eaton, Cornell Dubilier, Panasonic, Nichicon, Vishay, and Maxwell Technologies. Customers can check inventory, price, package, specifications, parameters and PDF datasheets in the product list below, and submit a BOM or RFQ for supercapacitor sourcing support.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Capacitance	Tolerance	Voltage - Rated	ESR (Equivalent Series Resistance)	Lifetime @ Temp.	Termination	Mounting Type	Package / Case	Lead Spacing	Size / Dimension	Height - Seated (Max)	Operating Temperature
SCMT32D755SRBB0 CAP 7.5F -10% +30% 5.4V T/H KYOCERA AVX	0	-	RFQ	Datasheet	SCM	Bulk	Active	7.5 F	-10%, +30%	5.4 V	70mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can	0.709" (18.00mm)	0.984" L x 0.492" W (25.00mm x 12.50mm)	1.339" (34.00mm)	-40°C ~ 65°C
SCCV40B506SRB CAP 50F -10% +30% 2.7V T/H KYOCERA AVX	0	-	RFQ	Datasheet	SCC	Bulk	Active	50 F	-10%, +30%	2.7 V	18mOhm @ 1kHz	1000 Hrs @ 60°C	PC Pins	Through Hole	Radial, Can	0.315" (8.00mm)	0.709" Dia (18.00mm)	1.654" (42.00mm)	-40°C ~ 65°C
SCMR22L105SRBB0 CAP 1F -10% +30% 9V T/H KYOCERA AVX	0	-	RFQ	Datasheet	SCM	Bulk	Active	1 F	-10%, +30%	9 V	350mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can	0.531" (13.50mm)	0.945" L x 0.315" W (24.00mm x 8.00mm)	0.945" (24.00mm)	-40°C ~ 65°C
SCMR18L604SRBB0 CAP 600MF -10% +30% 9V T/H KYOCERA AVX	0	-	RFQ	Datasheet	SCM	Bulk	Active	600 mF	-10%, +30%	9 V	400mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can	0.531" (13.50mm)	0.945" L x 0.315" W (24.00mm x 8.00mm)	0.787" (20.00mm)	-40°C ~ 65°C
PM-5R0H104-R CAP 100MF -20% +80% 5V T/H Eaton - Electronics Division	0	-	RFQ	Datasheet	PM	Bulk	Active	100 mF	-20%, +80%	5 V	1.25Ohm @ 1kHz	1000 Hrs @ 60°C	PC Pins	Through Hole	Radial, Can, Horizontal	0.287" (7.30mm)	0.512" L x 0.445" W (13.00mm x 11.30mm)	0.236" (6.00mm)	-40°C ~ 60°C
PHV-5R4V474-R CAP 470MF -10% +30% 5.4V T/H Eaton - Electronics Division	0	-	RFQ	Datasheet	PHV	Bulk	Active	470 mF	-10%, +30%	5.4 V	400mOhm @ 100Hz	1000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can	0.465" (11.80mm)	0.681" L x 0.354" W (17.30mm x 9.00mm)	0.571" (14.50mm)	-40°C ~ 65°C
SCCV60B107SRB CAP 100F -10% +30% 2.7V T/H KYOCERA AVX	0	-	RFQ	Datasheet	SCC	Bulk	Active	100 F	-10%, +30%	2.7 V	15mOhm @ 1kHz	1000 Hrs @ 60°C	PC Pins	Through Hole	Radial, Can	0.315" (8.00mm)	0.709" Dia (18.00mm)	2.441" (62.00mm)	-40°C ~ 65°C
HB1840-2R5606-R CAP 60F -10% +30% 2.5V T/H Eaton - Electronics Division	0	-	RFQ	Datasheet	HB	Bulk	Active	60 F	-10%, +30%	2.5 V	25mOhm @ 100Hz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.728" Dia (18.50mm)	1.654" (42.00mm)	-25°C ~ 70°C
XV3560-2R7407-R CAP 400F -5% +10% 2.7V T/H Eaton - Electronics Division	0	-	RFQ	Datasheet	XV	Bulk	Active	400 F	-5%, +10%	2.7 V	3.2mOhm	1500 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can - Snap-In	0.886" (22.50mm)	1.378" Dia (35.00mm)	2.480" (63.00mm)	-40°C ~ 65°C
FT0H225ZF CAP 2.2F -20% +80% 5.5V T/H KEMET	0	-	RFQ	Datasheet	FT	Bulk	Active	2.2 F	-20%, +80%	5.5 V	1.8Ohm @ 1kHz	-	PC Pins	Through Hole	Radial, Can	0.400" (10.16mm)	1.122" Dia (28.50mm)	0.551" (14.00mm)	-40°C ~ 85°C

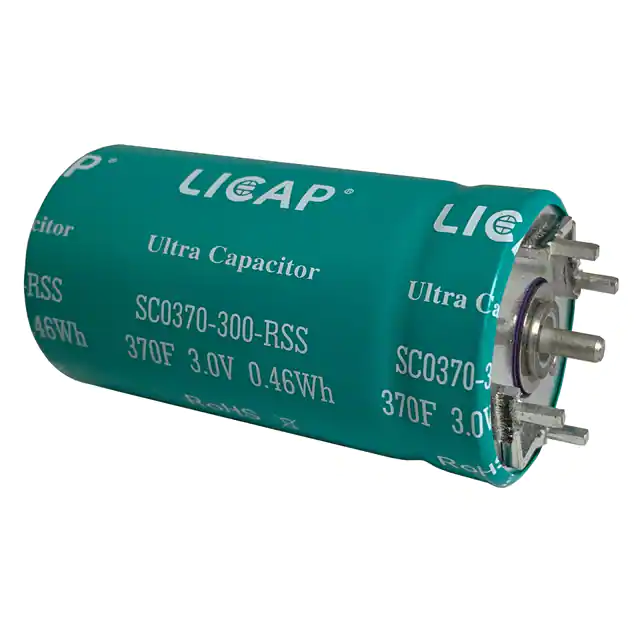

SC0370-300-RSS CAPACITOR 370F 0%/20% 3V TH LICAP Technologies, Inc.	0	-	RFQ	Datasheet	-	Box	Active	370 F	0%, +20%	3 V	2.4mOhm	1500 Hrs @ 65°C	Solder Lug	Through Hole	Radial, Can - Solder Lug - 4 Lead	-	1.254" Dia (31.85mm)	2.402" (61.00mm)	-50°C ~ 65°C
TPLH-2R7/800PS35X71 CAP 800F 2.7V T/H Tecate Group	0	-	RFQ	Datasheet	TPLH-2.7V Snap-In	Bulk	Active	800 F	-	2.7 V	2.8mOhm	1500 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can - Snap-In - 4 Lead	0.902" (22.90mm)	1.378" Dia (35.00mm)	2.874" (73.00mm)	-40°C ~ 65°C

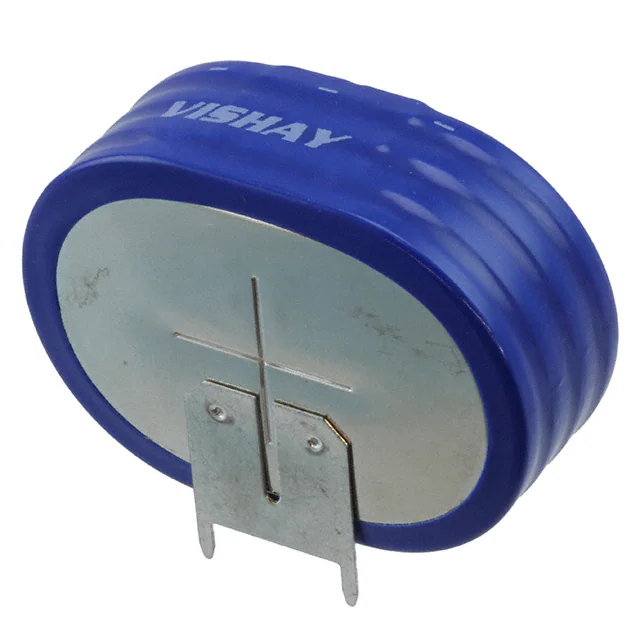

MAL219690102E3 CAP 90F -20% +80% 5.6V T/H Vishay Beyschlag/Draloric/BC Components	0	-	RFQ	Datasheet	ENYCAP™ 196HVC	Tray	Last Time Buy	90 F	-20%, +80%	5.6 V	60mOhm @ 1kHz	2000 Hrs @ 85°C	PC Pins	Through Hole	Coin, Stacked Vertical	0.492" (12.50mm)	1.378" L x 0.591" W (35.00mm x 15.00mm)	1.043" (26.50mm)	-20°C ~ 85°C
SM0006-180-P CAPACITOR 6F 0%/20% 180V CHAS LICAP Technologies, Inc.	1	-	RFQ	Datasheet	-	Box	Active	6 F	0%, +20%	180 V	200mOhm	1500 Hrs @ 65°C	Screw Terminals	Chassis Mount	Module	-	14.528" L x 9.449" W (369.00mm x 240.00mm)	3.110" (79.00mm)	-40°C ~ 65°C
XLR-48R6167-R CAP 166F 0% +20% 48.6V CHAS MNT Eaton - Electronics Division	0	-	RFQ	Datasheet	XLR	Bulk	Active	166 F	0%, +20%	48.6 V	5mOhm	1500 Hrs @ 65°C	Screw Terminals	User Defined	Module	-	16.516" L x 7.657" W (419.50mm x 194.50mm)	6.905" (175.40mm)	-40°C ~ 65°C
XLR-51R3187-R CAP 188F 0% +20% 51.3V MODULE Eaton - Electronics Division	0	-	RFQ	Datasheet	XLR	Box	Active	188 F	0%, +20%	51.3 V	5mOhm	1500 Hrs @ 65°C	Screw Terminals	User Defined	Module	-	16.516" L x 7.657" W (419.50mm x 194.50mm)	6.905" (175.40mm)	-40°C ~ 65°C
SCMZ1EP1F6STAB2 CAP 165F -10% +30% 48V MODULE KYOCERA AVX	1	-	RFQ	Datasheet	SCM	Bulk	Active	165 F	-10%, +30%	48 V	5.22mOhm @ 1kHz	1000 Hrs @ 65°C	Cable with Connector	User Defined	Module	-	16.339" L x 7.480" W (415.00mm x 190.00mm)	7.087" (180.00mm)	-40°C ~ 65°C
ADCR-S03R0SA105MB CAPACITOR 1F 3V TH Abracon LLC	0	-	RFQ	Datasheet	ADCR-S03R0S	Bag	Active	1 F	±20%	3 V	350mOhm	-	PC Pins	Through Hole	Radial, Can	0.138" (3.50mm)	0.315" Dia (8.00mm)	0.571" (14.50mm)	-40°C ~ 70°C
JUMT1105MPD CAP 1F 20% 2.7V T/H Nichicon	0	-	RFQ	Datasheet	EVerCAP® JUM	Bulk	Last Time Buy	1 F	±20%	2.7 V	1.8Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.138" (3.50mm)	0.315" Dia (8.00mm)	0.512" (13.00mm)	-25°C ~ 70°C
SCCR25B505PRB SUPERCAP CYLINDRICAL KYOCERA AVX	0	-	RFQ	Datasheet	SCC	Bulk	Last Time Buy	5 F	0%, +100%	2.7 V	85mOhm @ 1kHz	2000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can	0.138" (3.50mm)	0.315" Dia (8.00mm)	1.043" (26.50mm)	-40°C ~ 65°C

Total 2853 Record«Prev 1... 68 69 70 717273 74 75...143 Next»
