Electric Double Layer Capacitors (EDLC), Supercapacitors

Electric double layer capacitors (EDLC), also known as supercapacitors, are energy storage components that provide high capacitance, fast charge and discharge capability, and long cycle life. They are commonly used for backup power, peak current support, energy buffering, regenerative energy storage, memory backup, industrial controls, smart meters, automotive electronics, and renewable energy systems.

TomatoElec is an independent electronic components distributor supplying EDLC and supercapacitor products from mainstream manufacturers such as KYOCERA AVX, KEMET, Eaton, Cornell Dubilier, Panasonic, Nichicon, Vishay, and Maxwell Technologies. Customers can check inventory, price, package, specifications, parameters and PDF datasheets in the product list below, and submit a BOM or RFQ for supercapacitor sourcing support.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Capacitance	Tolerance	Voltage - Rated	ESR (Equivalent Series Resistance)	Lifetime @ Temp.	Termination	Mounting Type	Package / Case	Lead Spacing	Size / Dimension	Height - Seated (Max)	Operating Temperature
DSM236Q009W075PB 23.3F, 9V, 57X57X19.5MM STD MOD Cornell Dubilier Knowles	54	-	RFQ	Datasheet	DSM	Bulk	Active	23.3 F	-10%, +30%	9 V	122mOhm	1000 Hrs @ 65°C	Cable with Connector	Chassis Mount	Module	-	2.244" L x 0.768" W (57.00mm x 19.50mm)	2.244" (57.00mm)	-40°C ~ 65°C
DSF607Q3R0L 600F 3.0V 35*70 Cornell Dubilier Knowles	94	-	RFQ	Datasheet	DSF	Bulk	Active	600 F	-10%, +30%	3 V	3mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can - Snap-In - 4 Lead	0.886" (22.50mm)	1.378" Dia (35.00mm)	2.835" (72.00mm)	-40°C ~ 65°C
FT0H565ZF CAP 5.6F -20% +80% 5.5V T/H KEMET	30	-	RFQ	Datasheet	FT	Bulk	Active	5.6 F	-20%, +80%	5.5 V	600mOhm @ 1kHz	-	PC Pins	Through Hole	Radial, Can	0.787" (20.00mm)	1.752" Dia (44.50mm)	0.669" (17.00mm)	-40°C ~ 85°C
SCAP,PBLS-5.6/13.5 CAP 5.6F -10% +20% 13.5V UCAP PK Tecate Group	27	-	RFQ	Datasheet	PBLS	Bulk	Active	5.6 F	-10%, +20%	13.5 V	185mOhm	1000 Hrs @ 65°C	Wire Leads with Connector	User Defined	Module, Wire Leads	-	2.598" L x 0.551" W (66.00mm x 14.00mm)	1.811" (46.00mm)	-40°C ~ 65°C
SCCY1AB857SLBLE CAP 850F 0% +100% 2.7V CHAS MT KYOCERA AVX	6	-	RFQ	Datasheet	SCC LE	Bulk	Active	850 F	0%, +100%	2.7 V	0.8mOhm @ 1kHz	1000 Hrs @ 60°C	Weld Stud	Chassis Mount	Radial, Can	-	1.378" Dia (35.00mm)	4.606" (117.00mm)	-40°C ~ 65°C

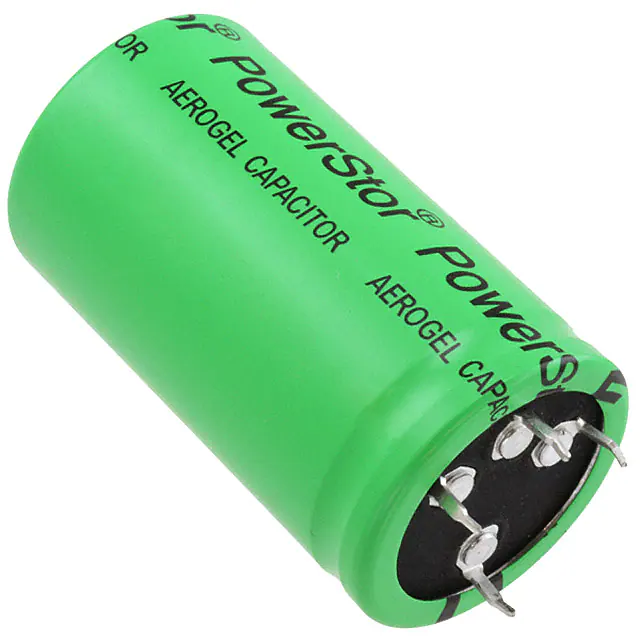

XB3560-2R5407-R CAP 400F 10% 2.5V T/H Eaton - Electronics Division	95	-	RFQ	Datasheet	XB	Bulk	Active	400 F	±10%	2.5 V	4.5mOhm	1500 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can - Snap-In	0.886" (22.50mm)	1.378" Dia (35.00mm)	2.520" (64.00mm)	-25°C ~ 70°C
TPLH-2R7/1200SL60X74 CAP 1200F 2.7V CHASSIS MOUNT Tecate Group	31	-	RFQ	Datasheet	TPLH-2.7V Threaded	Bulk	Active	1200 F	-	2.7 V	0.25mOhm	1500 Hrs @ 65°C	Screw Terminals	Chassis, Stud Mount	Axial, Can - Screw Terminals	-	2.362" Dia (60.00mm)	2.933" (74.50mm)	-40°C ~ 65°C
TPLH-2R7/2000SL60102 CAP 2000F 2.7V CHASSIS MOUNT Tecate Group	14	-	RFQ	Datasheet	TPLH-2.7V Threaded	Bulk	Active	2000 F	-	2.7 V	0.21mOhm	1500 Hrs @ 65°C	Screw Terminals	Chassis, Stud Mount	Axial, Can - Screw Terminals	-	2.362" Dia (60.00mm)	4.035" (102.50mm)	-40°C ~ 65°C
SKELCAP SCA1800 CAP 1800F 2.85V CHASSIS MOUNT Skeleton Technologies GmbH	12	-	RFQ	Datasheet	-	Box	Active	1800 F	-	2.85 V	0.27mOhm	1500 Hrs @ 65°C	Weld Stud	Chassis Mount	Axial, Can	-	2.370" Dia (60.20mm)	3.358" (85.30mm)	-40°C ~ 65°C
FS1B505ZF CAP 5F -20% +80% 12V T/H KEMET	19	-	RFQ	Datasheet	FS	Bulk	Active	5 F	-20%, +80%	12 V	4Ohm @ 1kHz	-	PC Pins	Through Hole	Radial, Can	0.787" (20.00mm)	1.764" Dia (44.80mm)	2.362" (60.00mm)	-25°C ~ 70°C
PBLH-18R0/500SD SCAP,PBLH-166/54 Tecate Group	4	-	RFQ	Datasheet	PBLH	Box	Active	500 F	-	18 V	1.7mOhm	1500 Hrs @ 65°C	-	Chassis Mount	Module	-	18.504" L x 6.535" W (470.00mm x 166.00mm)	2.795" (71.00mm)	-40°C ~ 65°C
SM0006-150-NB CAPACITOR 6F 0%/20% 150V CHAS LICAP Technologies, Inc.	4	-	RFQ	Datasheet	-	Box	Active	6 F	0%, +20%	150 V	200mOhm	1500 Hrs @ 65°C	Screw Terminals	Chassis Mount	Module	-	14.528" L x 9.449" W (369.00mm x 240.00mm)	3.110" (79.00mm)	-40°C ~ 65°C
HS0612-3R8505-R CAP 5F 3.8V THROUGH HOLE Eaton - Electronics Division	79	-	RFQ	Datasheet	-	Strip	Active	-	-	-	-	-	-	-	-	-	-	-	-
HSL0612-3R8505-R CAP 5F 3.8V THROUGH HOLE Eaton - Electronics Division	90	-	RFQ	Datasheet	-	Strip	Active	-	-	-	-	-	-	-	-	-	-	-	-
TPLCE-3R8/3.0MR5X12 CAP HYBRID 3.0F, 3.8V T/H Tecate Group	80	-	RFQ	Datasheet	TPLCE	Bulk	Active	3 F	±20%	3.8 V	4Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.492" Dia (12.50mm)	1.850" (47.00mm)	-25°C ~ 70°C
TPLCE-3R8/8.0MR6X12 CAP HYBRID 8.0F, 3.8V T/H Tecate Group	64	-	RFQ	Datasheet	TPLCE	Bulk	Active	8 F	±20%	3.8 V	1.2Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.102" (2.60mm)	0.248" Dia (6.30mm)	0.551" (14.00mm)	-25°C ~ 70°C
TPLCE-3R8/25MR8X14 CAP HYBRID 25F, 3.8V T/H Tecate Group	100	-	RFQ	Datasheet	TPLCE	Bulk	Active	25 F	±20%	3.8 V	400mOhm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.138" (3.50mm)	0.315" Dia (8.00mm)	0.630" (16.00mm)	-25°C ~ 70°C
TPLCE-3R8/22MR6X22 CAP HYBRID 22F, 3.8V T/H Tecate Group	75	-	RFQ	Datasheet	TPLCE	Bulk	Active	22 F	±20%	3.8 V	450mOhm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.098" (2.50mm)	0.248" Dia (6.30mm)	0.945" (24.00mm)	-25°C ~ 70°C
TPLCE-3R8/40MR8X20 CAP HYBRID 40F, 3.8V T/H Tecate Group	78	-	RFQ	Datasheet	TPLCE	Bulk	Active	40 F	±20%	3.8 V	250mOhm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.138" (3.50mm)	0.315" Dia (8.00mm)	0.866" (22.00mm)	-25°C ~ 70°C
TPLCE-3R8/55MR10X16 CAP HYBRID 55F, 3.8V T/H Tecate Group	66	-	RFQ	Datasheet	TPLC	Bulk	Active	55 F	±20%	3.8 V	200mOhm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.394" Dia (10.00mm)	0.709" (18.00mm)	-25°C ~ 70°C

Total 2853 Record«Prev 1... 58 59 60 616263 64 65...143 Next»
