Electric Double Layer Capacitors (EDLC), Supercapacitors

Electric double layer capacitors (EDLC), also known as supercapacitors, are energy storage components that provide high capacitance, fast charge and discharge capability, and long cycle life. They are commonly used for backup power, peak current support, energy buffering, regenerative energy storage, memory backup, industrial controls, smart meters, automotive electronics, and renewable energy systems.

TomatoElec is an independent electronic components distributor supplying EDLC and supercapacitor products from mainstream manufacturers such as KYOCERA AVX, KEMET, Eaton, Cornell Dubilier, Panasonic, Nichicon, Vishay, and Maxwell Technologies. Customers can check inventory, price, package, specifications, parameters and PDF datasheets in the product list below, and submit a BOM or RFQ for supercapacitor sourcing support.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Capacitance	Tolerance	Voltage - Rated	ESR (Equivalent Series Resistance)	Lifetime @ Temp.	Termination	Mounting Type	Package / Case	Lead Spacing	Size / Dimension	Height - Seated (Max)	Operating Temperature
MAL223591001E3 40F 3,0V 18X31 Vishay Beyschlag/Draloric/BC Components	144	-	RFQ	Datasheet	ENYCAP™ 235 EDLC-HVR, Automotive, AEC-Q200	Tray	Active	40 F	-20%, +50%	3 V	16mOhm @ 1kHz	2000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.709" Dia (18.00mm)	1.319" (33.50mm)	-40°C ~ 85°C
MAL222090009E3 CAPACITOR 55F -20% +50% 2.7V T/H Vishay Beyschlag/Draloric/BC Components	643	-	RFQ	Datasheet	ENYCAP™ 220 EDLC, Automotive, AEC-Q200	Tray	Active	55 F	-20%, +50%	2.7 V	18mOhm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.709" Dia (18.00mm)	1.673" (42.50mm)	-40°C ~ 85°C
FYD0H224ZF CAP 220MF -20% +80% 5.5V T/H KEMET	190	-	RFQ	Datasheet	FYD	Bulk	Active	220 mF	-20%, +80%	5.5 V	120Ohm @ 1kHz	-	PC Pins	Through Hole	Radial, Can	0.200" (5.08mm)	0.571" Dia (14.50mm)	0.591" (15.00mm)	-25°C ~ 70°C
SCMR14J334SRBB0 CAP 330MF -10% +30% 8.1V T/H KYOCERA AVX	111	-	RFQ	Datasheet	SCM	Bulk	Active	330 mF	-10%, +30%	8.1 V	500mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can	0.531" (13.50mm)	0.945" L x 0.315" W (24.00mm x 8.00mm)	0.630" (16.00mm)	-40°C ~ 65°C
TVA1635-3R0356-R CAP 35F 3V .015 OHM AECQ Eaton - Electronics Division	101	-	RFQ	Datasheet	TVA	Bulk	Active	35 F	-10%, +30%	3 V	150mOhm	1000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.650" Dia (16.50mm)	1.496" (38.00mm)	-40°C ~ 65°C
PHB-5R0V155-R CAP 1.5F -10% +30% 5V T/H Eaton - Electronics Division	1,696	-	RFQ	Datasheet	PHB	Bulk	Active	1.5 F	-10%, +30%	5 V	330mOhm @ 100Hz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.465" (11.80mm)	0.681" L x 0.354" W (17.30mm x 9.00mm)	0.866" (22.00mm)	-25°C ~ 70°C
SCMR18J604SRBB0 CAP 600MF -10% +30% 8.1V T/H KYOCERA AVX	165	-	RFQ	Datasheet	SCM	Bulk	Active	600 mF	-10%, +30%	8.1 V	400mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can	0.531" (13.50mm)	0.945" L x 0.315" W (24.00mm x 8.00mm)	0.787" (20.00mm)	-40°C ~ 65°C
FR0H224ZF CAP 220MF -20% +80% 5.5V T/H KEMET	534	-	RFQ	Datasheet	FR	Bulk	Active	220 mF	-20%, +80%	5.5 V	180Ohm @ 1kHz	-	PC Pins	Through Hole	Radial, Can	0.200" (5.08mm)	0.571" Dia (14.50mm)	0.827" (21.00mm)	-40°C ~ 85°C
TPLH-3R0/100SS22X46 CAP 100F 3V THROUGH HOLE Tecate Group	217	-	RFQ	Datasheet	TPLH-Snap-In	Bulk	Active	100 F	-	3 V	12mOhm	1500 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can - Snap-In	0.315" (8.00mm)	0.866" Dia (22.00mm)	1.890" (48.00mm)	-40°C ~ 65°C
MAL222591009E3 CAP 60F -20% +50% 2.7V T/H Vishay Beyschlag/Draloric/BC Components	235	-	RFQ	Datasheet	ENYCAP™ 225 EDLC-R, Automotive, AEC-Q200	Tray	Active	60 F	-20%, +50%	2.7 V	9mOhm @ 1kHz	2000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.709" Dia (18.00mm)	1.673" (42.50mm)	-40°C ~ 85°C
MAL222090008E3 CAPACITOR 45F -20% +50% 2.7V T/H Vishay Beyschlag/Draloric/BC Components	178	-	RFQ	Datasheet	ENYCAP™ 220 EDLC, Automotive, AEC-Q200	Tray	Active	45 F	-20%, +50%	2.7 V	21mOhm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.709" Dia (18.00mm)	1.476" (37.50mm)	-40°C ~ 85°C
DSM504Q009W075PB 0.5F, 9V, 21.5X24.5X7.5MM, STD M Cornell Dubilier Knowles	198	-	RFQ	Datasheet	DSM	Bulk	Active	500 mF	-10%, +30%	9 V	1.94Ohm	1000 Hrs @ 65°C	Cable with Connector	Chassis Mount	Module	-	0.846" L x 0.295" W (21.50mm x 7.50mm)	0.965" (24.50mm)	-40°C ~ 65°C
DSM335Q009W075PB 3.3F, 9V, 33X30X11MM, STD MOD Cornell Dubilier Knowles	200	-	RFQ	Datasheet	DSM	Bulk	Active	3.3 F	-10%, +30%	9 V	546mOhm	1000 Hrs @ 65°C	Cable with Connector	Chassis Mount	Module	-	1.299" L x 0.433" W (33.00mm x 11.00mm)	1.260" (32.00mm)	-40°C ~ 65°C
DSM105Q009W075PB 1F, 9V, 27X27X9MM, STD MOD Cornell Dubilier Knowles	200	-	RFQ	Datasheet	DSM	Bulk	Active	1 F	-10%, +30%	9 V	455mOhm	1000 Hrs @ 65°C	Cable with Connector	Chassis Mount	Module	-	1.063" L x 0.354" W (27.00mm x 9.00mm)	1.063" (27.00mm)	-40°C ~ 65°C
DSM505Q009W075PB 5F, 9V, 41X30X14MM, STD MOD Cornell Dubilier Knowles	161	-	RFQ	Datasheet	DSM	Bulk	Active	5 F	-10%, +30%	9 V	167mOhm	1000 Hrs @ 65°C	Cable with Connector	Chassis Mount	Module	-	1.614" L x 0.551" W (41.00mm x 14.00mm)	1.457" (37.00mm)	-40°C ~ 65°C
HVZ0E107NF-LT CAP 100F 30% 2.7V T/H KEMET	23	-	RFQ	Datasheet	HVZ	Bulk	Active	100 F	±30%	2.7 V	30mOhm @ 1kHz	-	PC Pins	Through Hole	Radial, Can - Snap-In	0.394" (10.00mm)	0.984" Dia (25.00mm)	2.047" (52.00mm)	-25°C ~ 60°C

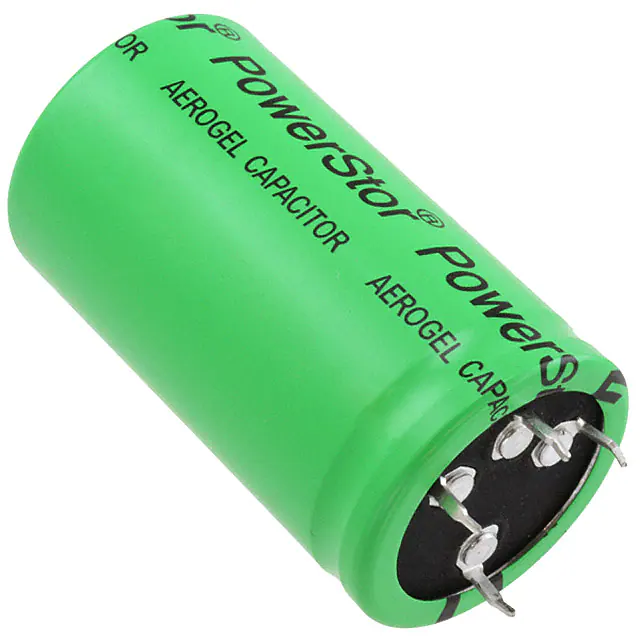

XV3585-2R7607-R CAP 600F -5% +10% 2.7V T/H Eaton - Electronics Division	441	-	RFQ	Datasheet	XV	Bulk	Active	600 F	-5%, +10%	2.7 V	2.6mOhm	1500 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can - Snap-In - 4 Lead	0.886" (22.50mm)	1.378" Dia (35.00mm)	3.484" (88.50mm)	-40°C ~ 65°C
DSM126Q009W075PB 11.6F, 9V, 51X39X17.5MM, STD MOD Cornell Dubilier Knowles	140	-	RFQ	Datasheet	DSM	Bulk	Active	11.6 F	-10%, +30%	9 V	152mOhm	1000 Hrs @ 65°C	Cable with Connector	Chassis Mount	Module	-	2.008" L x 0.689" W (51.00mm x 17.50mm)	1.535" (39.00mm)	-40°C ~ 65°C

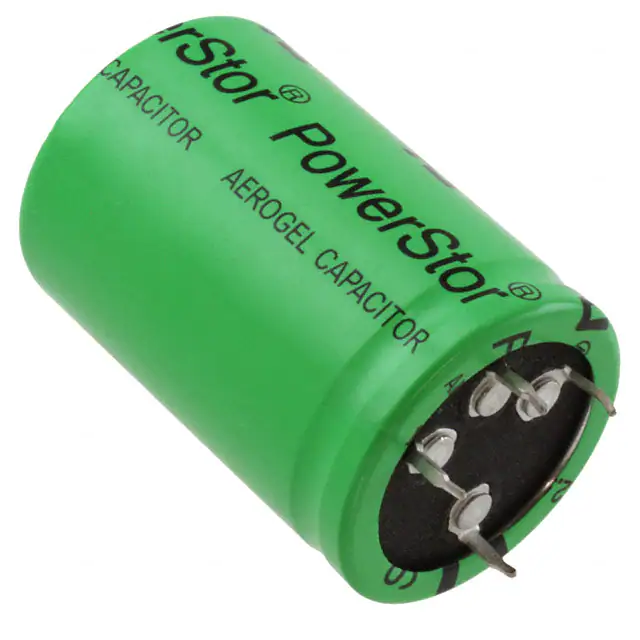

XB3550-2R5307-R CAP 300F 10% 2.5V T/H Eaton - Electronics Division	0	-	RFQ	Datasheet	XB	Bulk	Active	300 F	±10%	2.5 V	7mOhm	1500 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can - Snap-In	0.886" (22.50mm)	1.378" Dia (35.00mm)	2.126" (54.00mm)	-25°C ~ 70°C
HVZ0E207NF-LT CAP 200F 30% 2.7V T/H KEMET	0	-	RFQ	Datasheet	HVZ	Bulk	Active	200 F	±30%	2.7 V	30mOhm @ 1kHz	-	PC Pins	Through Hole	Radial, Can - Snap-In	0.394" (10.00mm)	1.378" Dia (35.00mm)	2.047" (52.00mm)	-25°C ~ 60°C

Total 2853 Record«Prev 1... 25 26 27 282930 31 32...143 Next»
