Electric Double Layer Capacitors (EDLC), Supercapacitors

Electric double layer capacitors (EDLC), also known as supercapacitors, are energy storage components that provide high capacitance, fast charge and discharge capability, and long cycle life. They are commonly used for backup power, peak current support, energy buffering, regenerative energy storage, memory backup, industrial controls, smart meters, automotive electronics, and renewable energy systems.

TomatoElec is an independent electronic components distributor supplying EDLC and supercapacitor products from mainstream manufacturers such as KYOCERA AVX, KEMET, Eaton, Cornell Dubilier, Panasonic, Nichicon, Vishay, and Maxwell Technologies. Customers can check inventory, price, package, specifications, parameters and PDF datasheets in the product list below, and submit a BOM or RFQ for supercapacitor sourcing support.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Capacitance	Tolerance	Voltage - Rated	ESR (Equivalent Series Resistance)	Lifetime @ Temp.	Termination	Mounting Type	Package / Case	Lead Spacing	Size / Dimension	Height - Seated (Max)	Operating Temperature
PHV-5R4H255-R CAP 2.5F -10% +30% 5.4V T/H Eaton - Electronics Division	399	-	RFQ	Datasheet	PHV	Bulk	Active	2.5 F	-10%, +30%	5.4 V	80mOhm @ 100Hz	1000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can, Horizontal	0.209" (5.30mm)	0.906" L x 0.839" W (23.00mm x 21.30mm)	0.433" (11.00mm)	-40°C ~ 65°C
PM-5R0H105-R CAP 1F -20% +80% 5V T/H Eaton - Electronics Division	1,704	-	RFQ	Datasheet	PM	Bulk	Active	1 F	-20%, +80%	5 V	200mOhm	1000 Hrs @ 60°C	PC Pins	Through Hole	Radial, Can, Horizontal	0.465" (11.80mm)	0.866" L x 0.681" W (22.00mm x 17.30mm)	0.354" (9.00mm)	-40°C ~ 60°C
PHV-5R4H505-R CAP 5F -10% +30% 5.4V T/H Eaton - Electronics Division	1,467	-	RFQ	Datasheet	PHV	Bulk	Active	5 F	-10%, +30%	5.4 V	70mOhm @ 100Hz	1000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can, Horizontal	0.209" (5.30mm)	1.280" L x 0.839" W (32.50mm x 21.30mm)	0.433" (11.00mm)	-40°C ~ 65°C
PHB-5R0V505-R CAP 5F -10% +30% 5V T/H Eaton - Electronics Division	2,489	-	RFQ	Datasheet	PHB	Bulk	Active	5 F	-10%, +30%	5 V	130mOhm @ 100Hz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.209" (5.30mm)	0.839" L x 0.433" W (21.30mm x 11.00mm)	1.280" (32.50mm)	-25°C ~ 70°C
MAL219691154E3 CAP 4F -20% +80% 5.6V SMD Vishay Beyschlag/Draloric/BC Components	764	-	RFQ	Datasheet	ENYCAP™ 196HVC	Tray	Last Time Buy	4 F	-20%, +80%	5.6 V	10Ohm @ 1kHz	1000 Hrs @ 70°C	SMD (SMT) Tabs	Surface Mount	Coin, Wide Terminals Same Side	-	0.551" L x 0.551" W (14.00mm x 14.00mm)	0.150" (3.80mm)	-20°C ~ 70°C
MAL219691254E3 CAP 15F -20% +80% 5.6V SMD Vishay Beyschlag/Draloric/BC Components	373	-	RFQ	Datasheet	ENYCAP™ 196HVC	Tray	Last Time Buy	15 F	-20%, +80%	5.6 V	2.4Ohm @ 1kHz	1000 Hrs @ 85°C	SMD (SMT) Tabs	Surface Mount	Coin, Wide Terminals Same Side	-	0.945" L x 0.945" W (24.00mm x 24.00mm)	0.150" (3.80mm)	-20°C ~ 85°C
KR-5R5V155-R CAP 1.5F -20% +80% 5.5V T/H Eaton - Electronics Division	974	-	RFQ	Datasheet	KR	Bulk	Active	1.5 F	-20%, +80%	5.5 V	30Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Axial, Can - Vertical	0.197" (5.00mm)	0.748" Dia (19.00mm)	0.768" (19.50mm)	-25°C ~ 70°C
HV1860-2R7107-R CAP 100F -10% +30% 2.7V T/H Eaton - Electronics Division	365	-	RFQ	Datasheet	HV	Bulk	Active	100 F	-10%, +30%	2.7 V	12mOhm @ 100Hz	1000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.709" Dia (18.00mm)	2.382" (60.50mm)	-40°C ~ 65°C
MAL219691253E3 CAP 15F -20% +80% 4.2V SMD Vishay Beyschlag/Draloric/BC Components	220	-	RFQ	Datasheet	ENYCAP™ 196HVC	Tray	Last Time Buy	15 F	-20%, +80%	4.2 V	1.8Ohm @ 1kHz	1000 Hrs @ 85°C	SMD (SMT) Tabs	Surface Mount	Coin, Wide Terminals Same Side	-	0.945" L x 0.866" W (24.00mm x 22.00mm)	0.150" (3.80mm)	-20°C ~ 85°C
TPLC-3R8/220MR16X25 CAP LITH HYBRID 220F 3.8V T/H Tecate Group	682	-	RFQ	Datasheet	TPLC	Tray	Active	220 F	±20%	3.8 V	65mOhm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.630" Dia (16.00mm)	1.063" (27.00mm)	-15°C ~ 70°C
PHV-5R4V505-R CAP 5F -10% +30% 5.4V T/H Eaton - Electronics Division	722	-	RFQ	Datasheet	PHV	Bulk	Active	5 F	-10%, +30%	5.4 V	70mOhm @ 100Hz	1000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can	0.209" (5.30mm)	0.839" L x 0.433" W (21.30mm x 11.00mm)	1.280" (32.50mm)	-40°C ~ 65°C
PHV-5R4H305-R CAP 3F -10% +30% 5.4V T/H Eaton - Electronics Division	405	-	RFQ	Datasheet	PHV	Bulk	Active	3 F	-10%, +30%	5.4 V	80mOhm @ 100Hz	1000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can, Horizontal	0.465" (11.80mm)	1.280" L x 0.681" W (32.50mm x 17.30mm)	0.354" (9.00mm)	-40°C ~ 65°C
TPLH-3R0/450SS35X71 CAP 450F 3V THROUGH HOLE Tecate Group	1,022	-	RFQ	Datasheet	TPLH-Snap-In	Bulk	Active	450 F	-	3 V	3.6mOhm	1500 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can - Snap-In - 4 Lead	0.902" (22.90mm)	1.378" Dia (35.00mm)	2.874" (73.00mm)	-40°C ~ 65°C

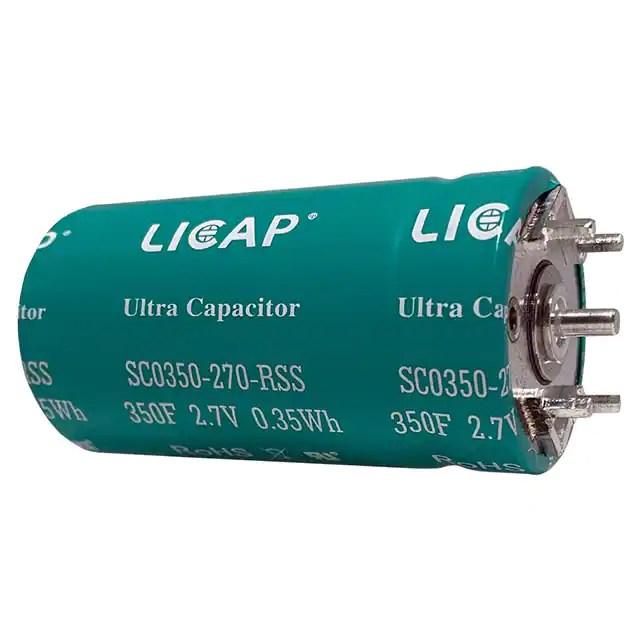

SC0350-270-RSS CAPACITOR 350F 0%/20% 2.7V TH LICAP Technologies, Inc.	208	-	RFQ	Datasheet	-	Box	Active	350 F	0%, +20%	2.7 V	2.8mOhm	1500 Hrs @ 65°C	Solder Lug	Through Hole	Radial, Can - Solder Lug - 4 Lead	-	1.254" Dia (31.85mm)	2.421" (61.50mm)	-50°C ~ 65°C
SCAP,PBLS-1.25/21.6 CAP 1.25F -10% +20% 21.6V UCAP Tecate Group	482	-	RFQ	Datasheet	PBLS	Bulk	Active	1.25 F	-10%, +20%	21.6 V	540mOhm	1000 Hrs @ 65°C	Wire Leads with Connector	User Defined	Module, Wire Leads	-	1.693" L x 0.866" W (43.00mm x 22.00mm)	1.417" (36.00mm)	-40°C ~ 65°C
MAL219691216E3 CAP 15F -20% +80% 8.4V T/H Vishay Beyschlag/Draloric/BC Components	112	-	RFQ	Datasheet	ENYCAP™ 196HVC	Tray	Last Time Buy	15 F	-20%, +80%	8.4 V	3.6Ohm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	Coin, Stacked Horizontal	0.630" (16.00mm)	0.472" Dia x 0.591" L (12.00mm x 15.00mm)	0.472" (12.00mm)	-20°C ~ 85°C

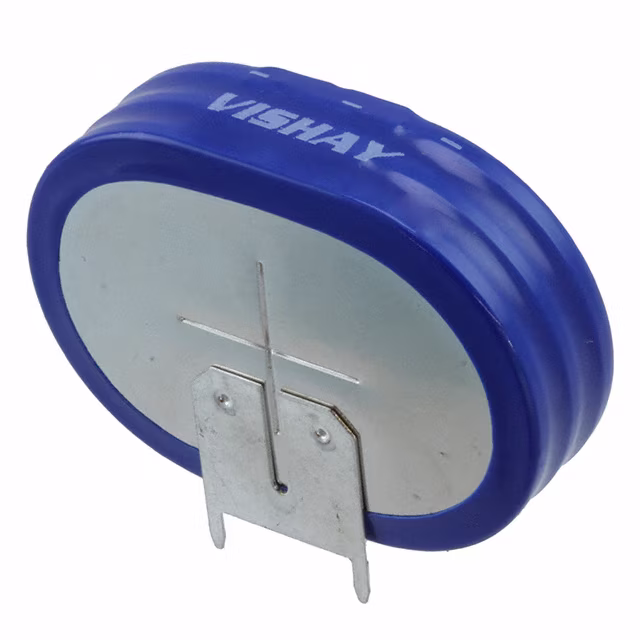

MAL219690101E3 CAP 90F -20% +80% 4.2V T/H Vishay Beyschlag/Draloric/BC Components	173	-	RFQ	Datasheet	ENYCAP™ 196HVC	Tray	Last Time Buy	90 F	-20%, +80%	4.2 V	40mOhm @ 1kHz	2000 Hrs @ 85°C	PC Pins	Through Hole	Coin, Stacked Vertical	0.394" (10.00mm)	1.378" L x 0.984" W (35.00mm x 25.00mm)	0.394" (10.00mm)	-20°C ~ 85°C
SCAP,PBLS-4.5/27 CAP 4.5F -10% +20% 27V UCAP PACK Tecate Group	137	-	RFQ	Datasheet	PBLS	Bulk	Active	4.5 F	-10%, +20%	27 V	220mOhm	1000 Hrs @ 65°C	Wire Leads with Connector	User Defined	Module, Wire Leads	-	2.598" L x 1.083" W (66.00mm x 27.50mm)	2.402" (61.00mm)	-40°C ~ 65°C
XL60-3R0308W-R CAP 3V 3000F WELD Eaton - Electronics Division	444	-	RFQ	Datasheet	XL60	Bulk	Active	3000 F	0%, +20%	3 V	0.23mOhm	1500 Hrs @ 65°C	Weld Stud	Chassis Mount	Axial, Can	-	2.390" Dia x 5.433" L (60.70mm x 138.00mm)	-	-40°C ~ 65°C
SC3000-300-ASC CAP 3V 3000F AXIAL SCREW TERMINA LICAP Technologies, Inc.	43	-	RFQ	Datasheet	-	Box	Active	3000 F	0%, +20%	3 V	0.29mOhm	1500 Hrs @ 65°C	Screw Terminals	Chassis Mount	Axial, Can - Screw Terminals	-	2.402" Dia x 5.413" L (61.00mm x 137.50mm)	-	-40°C ~ 65°C

Total 2853 Record«Prev 1... 14 15 16 171819 20 21...143 Next»
