Electric Double Layer Capacitors (EDLC), Supercapacitors

Electric double layer capacitors (EDLC), also known as supercapacitors, are energy storage components that provide high capacitance, fast charge and discharge capability, and long cycle life. They are commonly used for backup power, peak current support, energy buffering, regenerative energy storage, memory backup, industrial controls, smart meters, automotive electronics, and renewable energy systems.

TomatoElec is an independent electronic components distributor supplying EDLC and supercapacitor products from mainstream manufacturers such as KYOCERA AVX, KEMET, Eaton, Cornell Dubilier, Panasonic, Nichicon, Vishay, and Maxwell Technologies. Customers can check inventory, price, package, specifications, parameters and PDF datasheets in the product list below, and submit a BOM or RFQ for supercapacitor sourcing support.

Mfr. Part #	Price	Quantity	Datasheet	Series	Packaging	Product Status	Capacitance	Tolerance	Voltage - Rated	ESR (Equivalent Series Resistance)	Lifetime @ Temp.	Termination	Mounting Type	Package / Case	Lead Spacing	Size / Dimension	Height - Seated (Max)	Operating Temperature
S501LF357V2R7A CAP 350F -5% +10% 2.7V T/H KEMET	-	RFQ	Datasheet	S501	Bulk	Obsolete	350 F	-5%, +10%	2.7 V	3.1mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can - Snap-In	0.394" (10.00mm)	1.378" Dia (35.00mm)	2.402" (61.00mm)	-40°C ~ 65°C

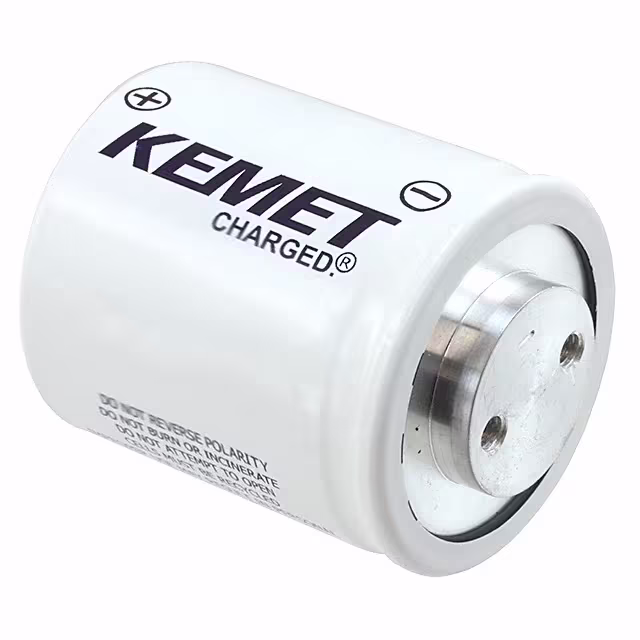

S301RP128R2R7W CAP 1200F 0% 2.7V CHASSIS MOUNT KEMET	-	RFQ	Datasheet	S301	Bulk	Obsolete	1200 F	-0%	2.7 V	0.25mOhm @ 1kHz	1000 Hrs @ 65°C	Screw Terminals	Chassis Mount	Axial, Can - Screw Terminals	0.787" (20.00mm)	2.390" Dia x 3.169" L (60.70mm x 80.50mm)	-	-40°C ~ 65°C

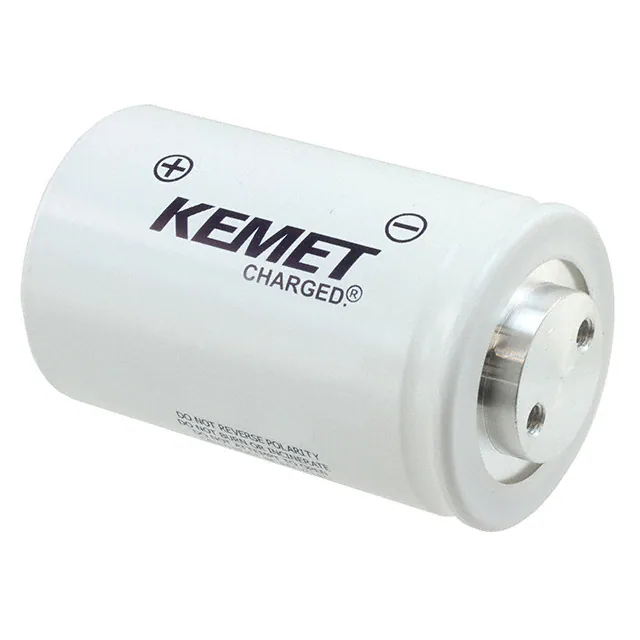

S301RS208R2R7W CAP 2000F 0% 2.7V CHASSIS MOUNT KEMET	-	RFQ	Datasheet	S301	Bulk	Obsolete	2000 F	-0%	2.7 V	0.23mOhm @ 1kHz	1000 Hrs @ 65°C	Screw Terminals	Chassis Mount	Axial, Can - Screw Terminals	0.787" (20.00mm)	2.390" Dia x 4.272" L (60.70mm x 108.50mm)	-	-40°C ~ 65°C

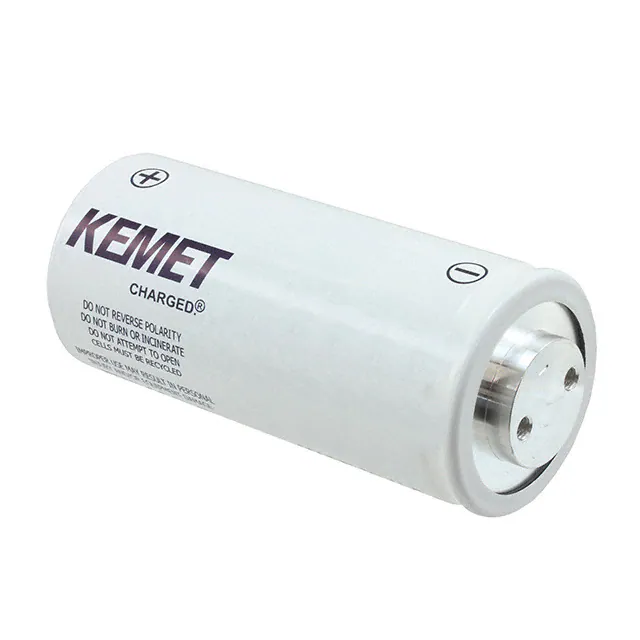

S301RV308R2R7W CAP 3000F 0% 2.7V CHASSIS MOUNT KEMET	-	RFQ	Datasheet	S301	Bulk	Obsolete	3000 F	-0%	2.7 V	0.2mOhm @ 1kHz	1000 Hrs @ 65°C	Screw Terminals	Chassis Mount	Axial, Can - Screw Terminals	0.787" (20.00mm)	2.390" Dia x 5.669" L (60.70mm x 144.00mm)	-	-40°C ~ 65°C
S01PM5805K016A CAP 58F 10% 16V CHASSIS MT KEMET	-	RFQ	Datasheet	S01	Bulk	Obsolete	58 F	±10%	16 V	23mOhm	1000 Hrs @ 65°C	Screw Terminals	Chassis Mount	Module	-	8.873" L x 2.000" W (225.37mm x 50.80mm)	3.000" (76.20mm)	-40°C ~ 65°C
PAS614L-VL3 CAP 300MF 3.3V SURFACE MNT Taiyo Yuden	-	RFQ	Datasheet	PAS	Tray	Discontinued at Digi-Key	300 mF	-	3.3 V	80Ohm	-	SMD (SMT) Tabs	Surface Mount	Coin, Thin Terminals - Same Sides	-	0.268" Dia (6.80mm)	0.071" (1.80mm)	-20°C ~ 60°C
JJD0E408MSEGBN CAP 4000F 20% 2.5V CHASSIS MOUNT Nichicon	-	RFQ	Datasheet	EVerCAP® JJD	Bulk	Obsolete	4000 F	±20%	2.5 V	2.2mOhm	2000 Hrs @ 60°C	Screw Terminals	Chassis Mount	Radial, Can - Screw Terminals	1.126" (28.60mm)	2.500" Dia (63.50mm)	6.024" (153.00mm)	-25°C ~ 60°C
JJD0E608MSEH CAP 6000F 20% 2.5V CHASSIS MOUNT Nichicon	-	RFQ	Datasheet	EVerCAP® JJD	Bulk	Obsolete	6000 F	±20%	2.5 V	2.2mOhm	2000 Hrs @ 60°C	Screw Terminals	Chassis Mount	Radial, Can - Screw Terminals	1.252" (31.80mm)	3.000" Dia (76.20mm)	6.614" (168.00mm)	-25°C ~ 60°C
JJL0E857MSEDBN CAP 850F 20% 2.5V CHASSIS MOUNT Nichicon	-	RFQ	Datasheet	EVerCAP® JL	Bulk	Active	850 F	±20%	2.5 V	2.5mOhm	2000 Hrs @ 60°C	Screw Terminals	Chassis Mount	Radial, Can - Screw Terminals	0.740" (18.80mm)	1.575" Dia (40.00mm)	5.433" (138.00mm)	-25°C ~ 60°C
MAL219691114E3 CAP 4F -20% +80% 5.6V T/H Vishay Beyschlag/Draloric/BC Components	-	RFQ	Datasheet	ENYCAP™ 196HVC	Tray	Last Time Buy	4 F	-20%, +80%	5.6 V	10Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Coin, Stacked Horizontal	0.394" (10.00mm)	0.276" Dia x 0.394" L (7.00mm x 10.00mm)	0.276" (7.00mm)	-20°C ~ 70°C
MAL219691101E3 CAP 4F -20% +80% 1.4V T/H Vishay Beyschlag/Draloric/BC Components	-	RFQ	Datasheet	ENYCAP™ 196HVC	Tray	Last Time Buy	4 F	-20%, +80%	1.4 V	2.5Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Coin, Stacked Vertical	0.295" (7.50mm)	0.276" Dia (7.00mm)	0.102" (2.60mm)	-20°C ~ 70°C
MAL219691111E3 CAP 4F -20% +80% 1.4V T/H Vishay Beyschlag/Draloric/BC Components	-	RFQ	Datasheet	ENYCAP™ 196HVC	Tray	Last Time Buy	4 F	-20%, +80%	1.4 V	2.5Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Coin, Stacked Horizontal	0.110" (2.80mm)	0.276" Dia x 0.098" L (7.00mm x 2.50mm)	0.295" (7.50mm)	-20°C ~ 70°C
MAL219691121E3 CAP 4F -20% +80% 1.4V T/H Vishay Beyschlag/Draloric/BC Components	-	RFQ	Datasheet	ENYCAP™ 196HVC	Tray	Last Time Buy	4 F	-20%, +80%	1.4 V	2.5Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Coin, Stacked Horizontal	0.126" (3.20mm)	0.276" Dia x 0.098" L (7.00mm x 2.50mm)	0.276" (7.00mm)	-20°C ~ 70°C
MAL219691201E3 CAP 15F -20% +80% 1.4V T/H Vishay Beyschlag/Draloric/BC Components	-	RFQ	Datasheet	ENYCAP™ 196HVC	Tray	Last Time Buy	15 F	-20%, +80%	1.4 V	600mOhm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	Coin, Stacked Vertical	0.492" (12.50mm)	0.472" Dia (12.00mm)	0.110" (2.80mm)	-20°C ~ 85°C
MAL219691241E3 CAP 15F -20% +80% 1.4V SMD Vishay Beyschlag/Draloric/BC Components	-	RFQ	Datasheet	ENYCAP™ 196HVC	Tray	Last Time Buy	15 F	-20%, +80%	1.4 V	600mOhm @ 1kHz	1000 Hrs @ 85°C	SMD (SMT) Tabs	Surface Mount	Coin, Wide Terminals Same Side	0.118" (3.00mm)	0.492" Dia (12.50mm)	0.110" (2.80mm)	-20°C ~ 85°C
MAL219691261E3 CAP 15F -20% +80% 1.4V SNAP Vishay Beyschlag/Draloric/BC Components	-	RFQ	Datasheet	ENYCAP™ 196HVC	Tray	Last Time Buy	15 F	-20%, +80%	1.4 V	600mOhm @ 1kHz	1000 Hrs @ 85°C	SMD (SMT) Tabs	User Defined	Coin	-	0.472" Dia x 0.571" L (12.00mm x 14.50mm)	0.138" (3.50mm)	-20°C ~ 85°C

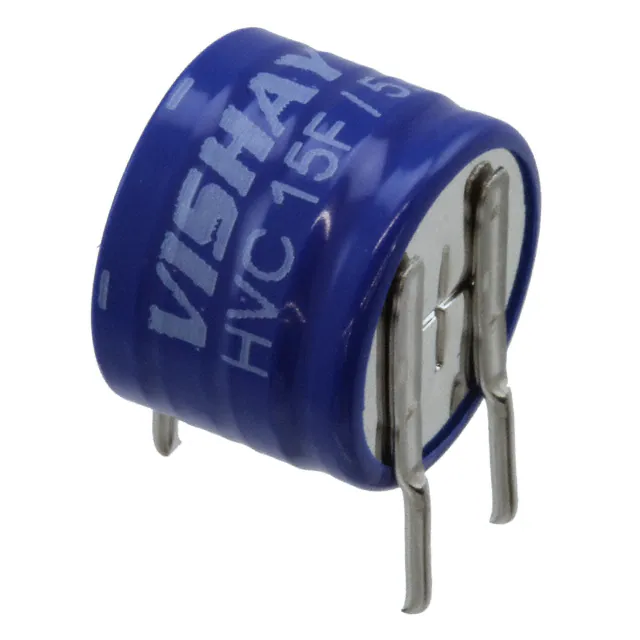

MAL219691212E3 CAP 15F -20% +80% 2.8V T/H Vishay Beyschlag/Draloric/BC Components	-	RFQ	Datasheet	ENYCAP™ 196HVC	Tray	Last Time Buy	15 F	-20%, +80%	2.8 V	1.2Ohm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	Coin, Stacked Horizontal	0.228" (5.80mm)	0.472" Dia x 0.197" L (12.00mm x 5.00mm)	0.472" (12.00mm)	-20°C ~ 85°C
MAL219691262E3 CAP 15F -20% +80% 2.8V SNAP Vishay Beyschlag/Draloric/BC Components	-	RFQ	Datasheet	ENYCAP™ 196HVC	Tray	Last Time Buy	15 F	-20%, +80%	2.8 V	1.2Ohm @ 1kHz	1000 Hrs @ 85°C	SMD (SMT) Tabs	User Defined	Coin	-	0.945" L x 0.571" W (24.00mm x 14.50mm)	0.138" (3.50mm)	-20°C ~ 85°C
MAL219691103E3 CAP 4F -20% +80% 4.2V T/H Vishay Beyschlag/Draloric/BC Components	-	RFQ	Datasheet	ENYCAP™ 196HVC	Tray	Last Time Buy	4 F	-20%, +80%	4.2 V	7.5Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Coin, Stacked Vertical	0.295" (7.50mm)	0.276" Dia (7.00mm)	0.295" (7.50mm)	-20°C ~ 70°C
MAL219691123E3 CAP 4F -20% +80% 4.2V T/H Vishay Beyschlag/Draloric/BC Components	-	RFQ	Datasheet	ENYCAP™ 196HVC	Tray	Last Time Buy	4 F	-20%, +80%	4.2 V	7.5Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Coin, Stacked Horizontal	0.295" (7.50mm)	0.276" Dia x 0.295" L (7.00mm x 7.50mm)	0.276" (7.00mm)	-20°C ~ 70°C

Total 2853 Record«Prev 1... 120 121 122 123124125 126 127...143 Next»
