Bridge Rectifiers

TomatoElec supplies bridge rectifiers for industrial, automotive, power supply, communication and general electronics applications. Our sourcing support covers commonly used bridge rectifier products for AC to DC conversion and rectification circuit designs.

We support flexible RFQ service for bridge rectifier sourcing and help customers improve procurement efficiency for regular demand, urgent requirements and selected hard-to-find parts.

With access to multiple supply channels, TomatoElec aims to provide customers with reliable bridge rectifier sourcing support, responsive quotation and global delivery service.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Diode Type	Technology	Voltage - Peak Reverse (Max)	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr	Operating Temperature	Grade	Qualification	Mounting Type	Supplier Device Package
KBPC1006-G BRIDGE RECT 1PHASE 600V 10A KBPC Comchip Technology	142	-	RFQ	Datasheet	-	4-Square, KBPC	Bulk	Active	Single Phase	Standard	600 V	10 A	1.1 V @ 5 A	10 µA @ 600 V	-55°C ~ 150°C (TJ)	-	-	QC Terminal	KBPC

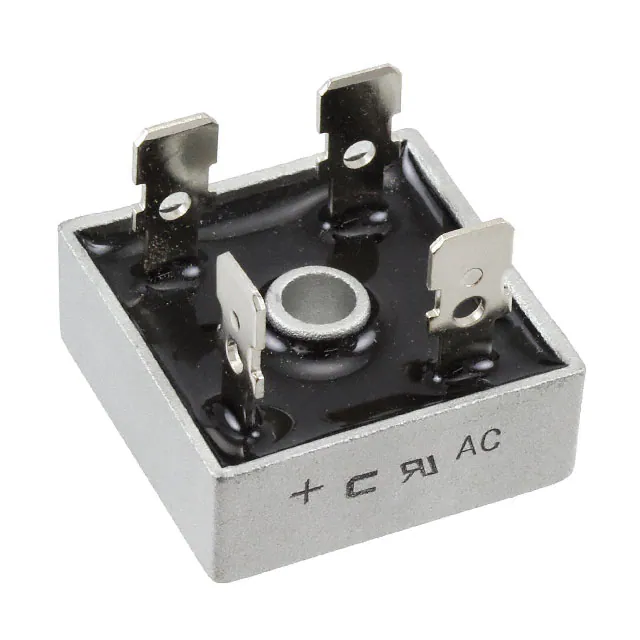

KBPC2504-G BRIDGE RECT 1PHASE 400V 25A KBPC Comchip Technology	645	-	RFQ	Datasheet	-	4-Square, KBPC	Bulk	Active	Single Phase	Standard	400 V	25 A	1.1 V @ 12.5 A	10 µA @ 400 V	-55°C ~ 150°C (TJ)	-	-	QC Terminal	KBPC
KBPC2506-G BRIDGE RECT 1PHASE 600V 25A KBPC Comchip Technology	341	-	RFQ	Datasheet	-	4-Square, KBPC	Bulk	Active	Single Phase	Standard	600 V	25 A	1.1 V @ 12.5 A	10 µA @ 600 V	-55°C ~ 150°C (TJ)	-	-	QC Terminal	KBPC
KBPC2502-G BRIDGE RECT 1PHASE 200V 25A KBPC Comchip Technology	307	-	RFQ	Datasheet	-	4-Square, KBPC	Bulk	Active	Single Phase	Standard	200 V	25 A	1.1 V @ 12.5 A	10 µA @ 200 V	-55°C ~ 150°C (TJ)	-	-	QC Terminal	KBPC
KBPC2508-G BRIDGE RECT 1PHASE 800V 25A KBPC Comchip Technology	252	-	RFQ	Datasheet	-	4-Square, KBPC	Bulk	Active	Single Phase	Standard	800 V	25 A	1.1 V @ 12.5 A	10 µA @ 800 V	-55°C ~ 150°C (TJ)	-	-	QC Terminal	KBPC
MT3516A-BP BRIDGE RECT 3P 1.6KV 35A MT-35A Micro Commercial Co	1,953	-	RFQ	Datasheet	-	4-Square, MT-35A	Bulk	Active	Three Phase	Standard	1.6 kV	35 A	1.2 V @ 12 A	-	-40°C ~ 150°C (TJ)	-	-	QC Terminal	MT-35A
KBPC3510-G BRIDGE RECT 1PHASE 1KV 35A KBPC Comchip Technology	539	-	RFQ	Datasheet	-	4-Square, KBPC	Tray	Active	Single Phase	Standard	1 kV	35 A	1.1 V @ 17.5 A	10 µA @ 1000 V	-55°C ~ 150°C (TJ)	-	-	QC Terminal	KBPC
KBPC3506-G BRIDGE RECT 1PHASE 600V 35A KBPC Comchip Technology	233	-	RFQ	Datasheet	-	4-Square, KBPC	Tray	Active	Single Phase	Standard	600 V	35 A	1.1 V @ 17.5 A	10 µA @ 600 V	-55°C ~ 150°C (TJ)	-	-	QC Terminal	KBPC
KBPC5006-G BRIDGE RECT 1PHASE 600V 50A KBPC Comchip Technology	219	-	RFQ	Datasheet	-	4-Square, KBPC	Tray	Active	Single Phase	Standard	600 V	50 A	1.1 V @ 25 A	10 µA @ 600 V	-55°C ~ 150°C (TJ)	-	-	QC Terminal	KBPC

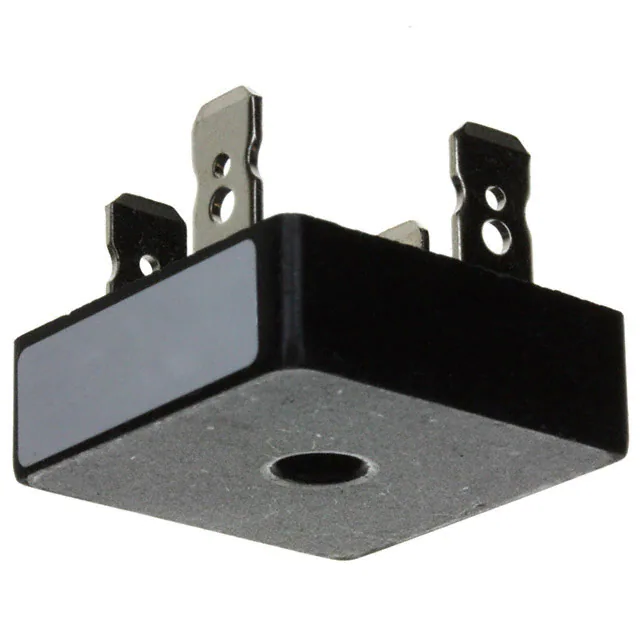

VS-36MB160A BRIDGE RECT 1P 1.6KV 35A D-34 Vishay General Semiconductor - Diodes Division	143	-	RFQ	Datasheet	-	4-Square, D-34	Bulk	Active	Single Phase	Standard	1.6 kV	35 A	-	10 µA @ 1600 V	-55°C ~ 150°C (TJ)	-	-	QC Terminal	D-34
FUE30-12N1 BRIDGE RECT 1P 1.2KV 30A I4-PAC IXYS	506	-	RFQ	Datasheet	-	i4-Pac™-5	Tube	Active	Single Phase	Standard	1.2 kV	30 A	2.37 V @ 10 A	100 µA @ 1200 V	-55°C ~ 175°C (TJ)	-	-	Through Hole	ISOPLUS i4-PAC™
GUO40-08NO1 BRIDGE RECT 3PHASE 800V 40A GUFP IXYS	157	-	RFQ	Datasheet	-	5-SIP	Tube	Active	Three Phase	Standard	800 V	40 A	1.28 V @ 30 A	40 µA @ 800 V	-40°C ~ 175°C (TJ)	-	-	Through Hole	GUFP
APT60DF60HJ BRIDGE RECT 1P 600V 90A SOT-227 Microchip Technology	109	-	RFQ	Datasheet	-	SOT-227-4, miniBLOC	Bulk	Active	Single Phase	Standard	600 V	90 A	2.3 V @ 60 A	25 µA @ 600 V	-55°C ~ 175°C (TJ)	-	-	Chassis Mount	SOT-227
VBO40-08NO6 BRIDGE RECT 1P 800V 40A SOT-227B IXYS	101	-	RFQ	Datasheet	-	SOT-227-4, miniBLOC	Tube	Active	Single Phase	Standard	800 V	40 A	1.15 V @ 20 A	300 µA @ 800 V	-40°C ~ 150°C (TJ)	-	-	Chassis Mount	SOT-227B
VBE60-06A BRIDGE RECT 1P 600V 60A SOT-227B IXYS	375	-	RFQ	Datasheet	-	SOT-227-4, miniBLOC	Tube	Active	Single Phase	Standard	600 V	60 A	1.26 V @ 30 A	150 µA @ 600 V	-40°C ~ 150°C (TJ)	-	-	Chassis Mount	SOT-227B
MD100S16M2-BP BRIDGE RECT 3PHASE 1.6KV 100A M2 Micro Commercial Co	105	-	RFQ	Datasheet	-	M2 Module	Bulk	Active	Three Phase	Standard	1.6 kV	100 A	1.9 V @ 150 A	300 µA @ 1600 V	-40°C ~ 150°C (TJ)	-	-	Chassis Mount	M2

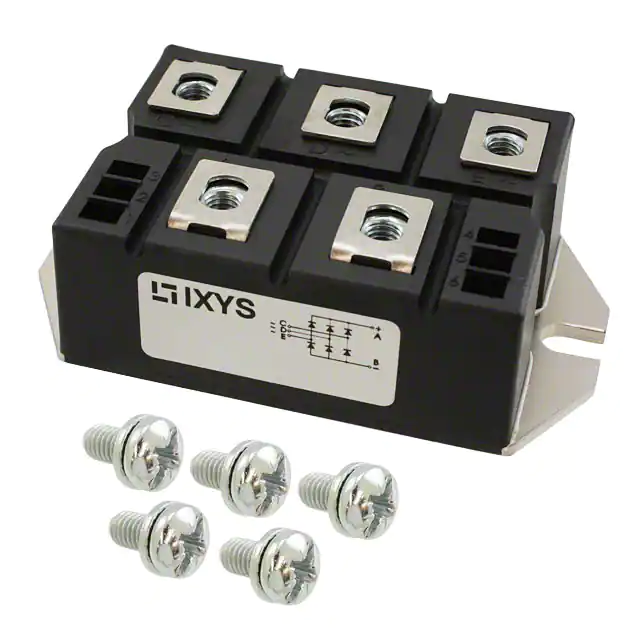

VUO110-16NO7 BRIDGE RECT 3P 1.6KV 127A PWS-E IXYS	42	-	RFQ	Datasheet	-	PWS-E	Box	Active	Three Phase	Standard	1.6 kV	127 A	1.13 V @ 50 A	100 µA @ 1600 V	-40°C ~ 150°C (TJ)	-	-	Chassis Mount	PWS-E
MD250S16M3-BP BRIDGE RECT 3PHASE 1.6KV 250A M3 Micro Commercial Co	32	-	RFQ	Datasheet	-	M3	Bulk	Active	Three Phase	Standard	1.6 kV	250 A	1.6 V @ 300 A	500 µA @ 1600 V	-40°C ~ 150°C (TJ)	-	-	Chassis Mount	M3
DF02 BRIDGE RECT 1PHASE 100V 1A DB-M SMC Diode Solutions	1,433	-	RFQ	Datasheet	-	4-EDIP (0.321", 8.15mm)	Tube	Active	Single Phase	Standard	100 V	1 A	1.1 V @ 1 A	5 µA @ 100 V	-55°C ~ 150°C (TJ)	-	-	Through Hole	DB-M
ABS10M-13 BRIDGE RECT 1PHASE 1KV 1A 4-SOPA Diodes Incorporated	2,877	-	RFQ	Datasheet	-	4-SMD, Gull Wing	Tape & Reel (TR)	Active	Single Phase	Standard	1 kV	1 A	950 mV @ 500 mA	10 µA @ 1000 V	-55°C ~ 150°C (TJ)	-	-	Surface Mount	4-SOPA (Type WX)

Total 6960 Record«Prev 1... 17 18 19 202122 23 24...348 Next»
