Digital to Analog Converters (DAC)
Digital to Analog Converters (DACs) are mixed-signal ICs used to convert digital data into analog voltage or current outputs. They are widely used in industrial control, instrumentation, audio systems, communication equipment, test devices, sensor control, power management, automotive electronics and embedded applications.
This category includes precision DACs, voltage output DACs, current output DACs, audio DACs, multi-channel DACs, low-power DACs and related data conversion components. These devices are commonly selected based on resolution, output type, number of channels, interface type, settling time, accuracy, supply voltage, package type and application requirements.
TomatoElec supplies original Digital to Analog Converters from recognized semiconductor manufacturers such as Analog Devices, Texas Instruments, Microchip, STMicroelectronics, Renesas, onsemi, NXP and other major brands. As an in-stock electronic components supplier and independent distributor, TomatoElec provides inventory support, original component sourcing and BOM sourcing services for global customers.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Number of Bits | Number of D/A Converters | Settling Time | Output Type | Differential Output | Data Interface | Reference Type | Voltage - Supply, Analog | Voltage - Supply, Digital | INL/DNL (LSB) | Architecture | Operating Temperature | Supplier Device Package | Mounting Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DAC8412FPZIC DAC 12BIT V-OUT 28DIP |
10 | - |
|
Datasheet |
- | 28-DIP (0.600", 15.24mm) | Bulk | Active | Not Verified | 12 | 4 | 10µs (Typ) | Voltage - Buffered | No | Parallel | External | 5V ~ 15V, -15V | 5V | ±2 (Max), -1 | R-2R | -40°C ~ 85°C | 28-PDIP | Through Hole | - | - |
|
|
DAC8413FPZIC DAC 12BIT V-OUT 28DIP |
24 | - |
|
Datasheet |
- | 28-DIP (0.600", 15.24mm) | Tube | Active | Not Verified | 12 | 4 | 10µs (Typ) | Voltage - Buffered | No | Parallel | External | 5V ~ 15V, -15V | 5V | ±2 (Max), -1 | R-2R | -40°C ~ 85°C | 28-PDIP | Through Hole | - | - |
|

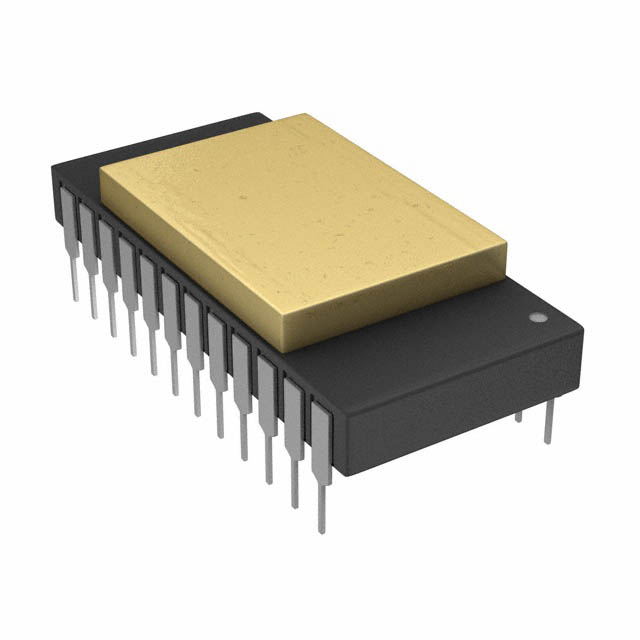

AD565AJDIC DAC 12BIT A-OUT 24CDIP |
9 | - |
|
Datasheet |
- | 24-CDIP (0.600", 15.24mm) | Tube | Active | Not Verified | 12 | 1 | 400ns | Current - Unbuffered | No | Parallel | External, Internal | ±11.4V ~ 16.5V | - | ±0.5, ±0.5 | R-2R | 0°C ~ 70°C | 24-CDIP | Through Hole | - | - |
|
AD7247BQIC DAC 12BIT V-OUT 24CDIP |
15 | - |
|
Datasheet |
DACPORT® | 24-CDIP (0.300", 7.62mm) | Tube | Active | Not Verified | 12 | 2 | 10µs | Voltage - Buffered | No | Parallel | External, Internal | ±15V | 15V | ±0.5 (Max), ±0.9 (Max) | R-2R | -55°C ~ 125°C | 24-CDIP | Through Hole | - | - |
|
LTC2000CY-14#PBFIC DAC 14BIT A-OUT 170BGA |
1 | - |
|
Datasheet |
- | 170-LFBGA | Tray | Active | Not Verified | 14 | 1 | 2.2ns (Typ) | Current - Unbuffered | Yes | LVDS - Parallel | External, Internal | 1.8V ~ 1.92V, 3.135V ~ 3.465V | 1.8V ~ 1.92V, 3.135V ~ 3.465V | ±0.5, ±0.2 | Current Steering | 0°C ~ 70°C | 170-BGA (15x9) | Surface Mount | - | - |
|
|
AD767BDIC DAC 12BIT V-OUT 24CDIP |
3 | - |
|
Datasheet |
- | 24-CDIP (0.300", 7.62mm) | Tube | Active | Not Verified | 12 | 1 | 4µs | Voltage - Buffered | No | Parallel | External, Internal | ±11.4V ~ 16.5V | - | ±0.25, ±0.25 | Current Steering | -25°C ~ 85°C | 24-CDIP | Through Hole | - | - |
|
AD7228KPZIC DAC 8BIT V-OUT 28PLCC |
7 | - |
|
Datasheet |
- | 28-LCC (J-Lead) | Tube | Active | Not Verified | 8 | 8 | 5µs, 7µs | Voltage - Buffered | No | Parallel | External | 10.8V ~ 16.5V, -5V | 13.5V ~ 16.5V | ± 1 (Max), 1 (Max) | R-2R | -40°C ~ 85°C | 28-PLCC (11.51x11.51) | Surface Mount | - | - |
|
AD5532ABCZ-2IC DAC 14BIT V-OUT 74CSPBGA |
3 | - |
|
Datasheet |
- | 74-LBGA, CSPBGA | Tray | Active | Not Verified | 14 | 32 | 30µs | Voltage - Unbuffered | No | Parallel, SPI | External | 5V, 8V ~ 16.5V, -4.75V ~ 16.5V | 2.7V ~ 5.5V | ±0.39 (Max), ±1 (Max) | - | -40°C ~ 85°C | 74-CSPBGA (12x12) | Surface Mount | - | - |
|
AD9119BBCZIC DAC 11BIT A-OUT 160CSPBGA |
7 | - |
|
Datasheet |
- | 160-LFBGA, CSPBGA | Tray | Active | Not Verified | 11 | 1 | 13ns (Typ) | Current - Unbuffered | Yes | LVDS - Parallel | External, Internal | 1.7V ~ 1.9V | 1.7V ~ 1.9V | 0.2, 0.15 | Quad-Switch | -40°C ~ 85°C | 160-CSPBGA (12x12) | Surface Mount | - | - |
|
|
LTC2000ACY-14#PBFIC DAC 14BIT A-OUT 170BGA |
178 | - |
|
Datasheet |
- | 170-LFBGA | Tray | Active | Not Verified | 14 | 1 | 2.2ns (Typ) | Current - Unbuffered | Yes | LVDS - Parallel | External, Internal | 1.8V ~ 1.92V, 3.135V ~ 3.465V | 1.8V ~ 1.92V, 3.135V ~ 3.465V | ±0.5, ±0.2 | Current Steering | 0°C ~ 70°C | 170-BGA (15x9) | Surface Mount | - | - |
|
AD9755ASTZIC DAC 14BIT A-OUT 48LQFP |
0 | - |
|
Datasheet |
TxDAC+® | 48-LQFP | Tray | Active | Not Verified | 14 | 1 | 11ns (Typ) | Current - Unbuffered | Yes | Parallel | External, Internal | 3V ~ 3.6V | 3V ~ 3.6V | ±2.5, ±1.5 | Current Source | -40°C ~ 85°C | 48-LQFP (7x7) | Surface Mount | - | - |
|
|
AD5532HSABCZIC DAC 14BIT V-OUT 74CSPBGA |
0 | - |
|
Datasheet |
- | 74-LBGA, CSPBGA | Tray | Active | Not Verified | 14 | 32 | 30µs | Voltage - Unbuffered | No | Parallel, SPI | External | 5V, 8V ~ 16.5V, -4.75V ~ 16.5V | 2.7V ~ 5.5V | ±0.39 (Max), ±1 (Max) | - | -40°C ~ 85°C | 74-CSPBGA (12x12) | Surface Mount | - | - |
|
AD5371BSTZIC DAC 14BIT V-OUT 80LQFP |
10 | - |
|
Datasheet |
- | 80-LQFP | Tray | Active | Not Verified | 14 | 40 | 30µs | Voltage - Buffered | No | SPI, DSP | External | 9V ~ 16.5V, -4.5V ~ 16.5V | 2.5V ~ 5.5V | ±1 (Max), ±1 (Max) | String DAC | -40°C ~ 85°C | 80-LQFP (12x12) | Surface Mount | - | - |
|
|
AD7228LPZIC DAC 8BIT V-OUT 28PLCC |
6 | - |
|
Datasheet |
- | 28-LCC (J-Lead) | Tube | Active | Not Verified | 8 | 8 | 5µs, 7µs | Voltage - Buffered | No | Parallel | External | 10.8V ~ 16.5V, -5V | 13.5V ~ 16.5V | ±0.5 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C | 28-PLCC (11.51x11.51) | Surface Mount | - | - |
|
|
AD9736BBCIC DAC 14BIT A-OUT 160CSPBGA |
0 | - |
|
Datasheet |
- | 160-LFBGA, CSPBGA | Tray | Active | Not Verified | 14 | 1 | - | Current - Unbuffered | Yes | LVDS - Parallel | External, Internal | 1.7V ~ 1.9V, 3.13V ~ 3.47V | 1.7V ~ 1.9V, 3.13V ~ 3.47V | ±1, ±0.6 | Oversampling Interpolating DAC | -40°C ~ 85°C | 160-CSPBGA (12x12) | Surface Mount | - | - |
|
|
AD7245ATQIC DAC 12BIT V-OUT 24CDIP |
5 | - |
|
Datasheet |
DACPORT® | 24-CDIP (0.300", 7.62mm) | Tube | Active | Not Verified | 12 | 1 | 10µs | Voltage - Buffered | No | Parallel | Internal | ±10.8V ~ 16.5V | 10.8V ~ 16.5V | ±0.75 (Max), ±1 (Max) | R-2R | -55°C ~ 125°C | 24-CDIP | Through Hole | - | - |
|
|
AD7244AQIC DAC 14BIT V-OUT 24CDIP |
9 | - |
|
Datasheet |
- | 24-CDIP (0.300", 7.62mm) | Tube | Active | Not Verified | 14 | 2 | 4µs | Voltage - Buffered | No | SPI | External, Internal | ±5V | - | ±2 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C | 24-CDIP | Through Hole | - | - |
|
AD558SD/883BIC DAC 8BIT V-OUT 16CDIP |
1 | - |
|
Datasheet |
DACPORT® | 16-CDIP (0.300", 7.62mm) | Tube | Active | Not Verified | 8 | 1 | 1.5µs | Voltage - Unbuffered | No | I2L | Internal | 4.5V ~ 16.5V | 4.5V ~ 16.5V | ±2.5, ±2 | R-2R | -55°C ~ 125°C | 16-CDIP | Through Hole | - | - |
|
5962-89932012AIC DAC 8BIT MULTIPLY HS 20CLCC |
2 | - |
|
Datasheet |
- | 20-CLCC | Bulk | Active | Not Verified | 8 | 1 | 85ns (Typ) | Current - Unbuffered | Yes | Parallel | External | ±4.5V ~ 18V | 9V ~ 36V | - | Multiplying DAC | -55°C ~ 125°C | 20-CLCC (9x9) | Surface Mount | - | - |
|
5962-8778901EAIC DAC 8BIT V-OUT 16CERDIP |
3 | - |
|
Datasheet |
- | 16-CDIP (0.300", 7.62mm) | Tube | Active | Not Verified | 8 | 1 | 3µs | Voltage - Buffered | No | Parallel | Internal | 4.5V ~ 16.5V | 4.5V ~ 16.5V | ±0.75 (Max), - | R-2R | -55°C ~ 125°C | 16-CDIP | Through Hole | - | - |
