Aluminum - Polymer Capacitors
Aluminum - Polymer Capacitors
Aluminum - polymer capacitors are capacitors that use a conductive polymer electrolyte to provide low ESR, stable capacitance, and improved ripple current performance compared with conventional aluminum electrolytic capacitors. They are commonly used for power filtering, decoupling, voltage stabilization, DC-DC converters, computer motherboards, servers, communication equipment, industrial electronics, and automotive systems.
TomatoElec is an independent electronic components distributor supplying aluminum - polymer capacitors from mainstream manufacturers such as Panasonic, Nichicon, Rubycon, United Chemi-Con, Nippon Chemi-Con, KEMET, Vishay, KYOCERA AVX, and Murata. Customers can check inventory, price, package, specifications, parameters and PDF datasheets in the product list below, and submit a BOM or RFQ for aluminum - polymer capacitor sourcing support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEH-ZE1H101VCAP ALUMHYB 100UF 20% 50V SMD |
1,224 | - |
|
Datasheet |
ZE, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 100 µF | ±20% | 50 V | 28mOhm | 2000 Hrs @ 145°C | -55°C ~ 145°C | AEC-Q200 | Automotive | - | 120 mA @ 100 Hz | 800 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
|
EEH-ZE1E331VCAP ALUMHYB 330UF 20% 25V SMD |
1,004 | - |
|
Datasheet |
ZE, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 330 µF | ±20% | 25 V | 20mOhm | 2000 Hrs @ 145°C | -55°C ~ 145°C | AEC-Q200 | Automotive | - | 135 mA @ 100 Hz | 900 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
63SXV56MCAP ALUM POLY 56UF 20% 63V SMD |
869 | - |
|
Datasheet |
OS-CON™, SXV | Tape & Reel (TR) | Active | Polymer | 56 µF | ±20% | 63 V | 25mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 147.5 mA @ 120 Hz | 2.95 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
PCX1D151MCL1GSCAP ALUM POLY 150UF 20% 20V SMD |
385 | - |
|
Datasheet |
PCX | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 20 V | 28mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | General Purpose | - | - | 2.2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
PLX1V390MCL1TDCAP ALUM POLY 39UF 20% 35V TH |
145 | - |
|
Datasheet |
PLX | Cut Tape (CT) | Active | Polymer | 39 µF | ±20% | 35 V | 33mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 1.8 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole | |
|

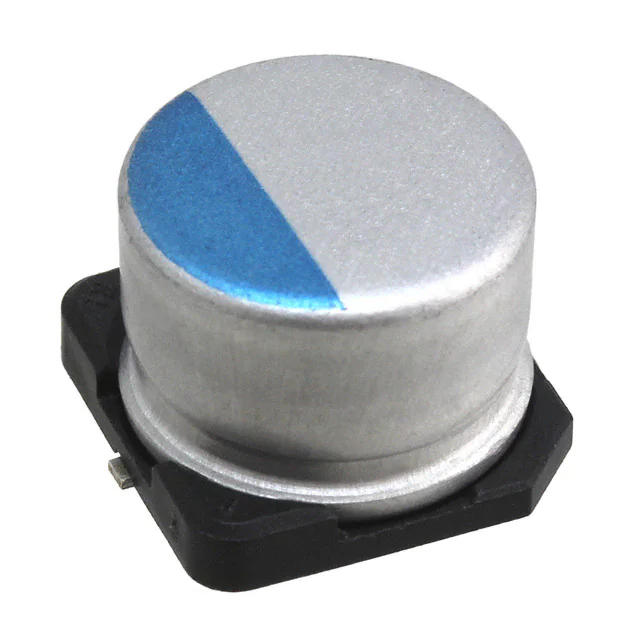

PCX1D121MCL1GSCAP ALUM POLY 120UF 20% 20V SMD |
1,393 | - |
|
Datasheet |
PCX | Tape & Reel (TR) | Active | Polymer | 120 µF | ±20% | 20 V | 35mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | General Purpose | - | - | 1.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
A768MS227M1GLAV022CAP ALUM POLY 220UF 20% 40V SMD |
1,353 | - |
|
Datasheet |
A768, Anti-Vibration | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 40 V | 22mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | Anti-Vibration | 110 mA @ 120 Hz | 2.2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.520" (13.20mm) | 0.425" L x 0.406" W (10.80mm x 10.30mm) | Surface Mount | |
|
25PHV560M10X16.5CAP ALUMHYB 560UF 20% 25V SMD |
710 | - |
|
Datasheet |
PHV | Tape & Reel (TR) | Active | Hybrid | 560 µF | ±20% | 25 V | 11mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 240 mA @ 100 Hz | 4.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.661" (16.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
20SVPT560MCAP ALUM POLY 560UF 20% 20V SMD |
186 | - |
|
Datasheet |
OS-CON™, SVPT | Tape & Reel (TR) | Active | Polymer | 560 µF | ±20% | 20 V | 12mOhm | 20000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 270 mA @ 120 Hz | 5.4 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
A700D187M004ATE015CAP ALUM POLY 180UF 20% 4V SMD |
1,000 | - |
|
Datasheet |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 4 V | 15mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 4.1 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
A700D157M006ATE015CAP ALUM POLY 150UF 20% 6.3V SMD |
500 | - |
|
Datasheet |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 6.3 V | 15mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 4.1 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
PCV1J390MCL2GSCAP ALUM POLY 39UF 20% 63V SMD |
11,056 | - |
|
Datasheet |
PCV | Tape & Reel (TR) | Active | Polymer | 39 µF | ±20% | 63 V | 29mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.4 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
EEF-KX0D471RECAP ALUM POLY 470UF 20% 2V SMD |
3,536 | - |
|
Datasheet |
SP-Cap KX | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 2 V | 9mOhm | 5500 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 6.3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
A759MW157M1JAAE048CAP ALUM POLY 150UF 20% 63V TH |
2,284 | - |
|
Datasheet |
A759 | Bulk | Active | Polymer | 150 µF | ±20% | 63 V | 48mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 130.5 mA @ 120 Hz | 2.61 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.709" (18.00mm) | - | Through Hole | |
|
|
63PHV100M10X16.5CAP ALUMHYB 100UF 20% 63V SMD |
1,834 | - |
|
Datasheet |
PHV | Tape & Reel (TR) | Active | Hybrid | 100 µF | ±20% | 63 V | 15mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 195 mA @ 100 Hz | 3.9 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.661" (16.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
PCR1D331MCL6GSCAP ALUM POLY 330UF 20% 20V SMD |
1,589 | - |
|
Datasheet |
PCR | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 20 V | 19mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 3.3 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
RNL1C222MDS1CAP ALUM POLY 2200UF 20% 16V TH |
773 | - |
|
Datasheet |
FPCAP, RNL | Bulk | Active | Polymer | 2200 µF | ±20% | 16 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 810 mA @ 120 Hz | 8.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.846" (21.50mm) | - | Through Hole | |
|
APXA160ARA221MJC0GCAP ALUM POLY 220UF 20% 16V SMD |
2,315 | - |
|
Datasheet |
NPCAP™-PXA | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 16 V | 14mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.05 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.480" (12.20mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
2R5SVT680MXCAP ALUM POLY 680UF 20% 2.5V SMD |
2,000 | - |
|
Datasheet |
OS-CON™, SVT | Tape & Reel (TR) | Active | Polymer | 680 µF | ±20% | 2.5 V | 16mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 175 mA @ 120 Hz | 3.5 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.256" (6.50mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
RNL1C182MDS1PHCAP ALUM POLY 1800UF 20% 16V TH |
917 | - |
|
Datasheet |
FPCAP, RNL | Cut Tape (CT) | Active | Polymer | 1800 µF | ±20% | 16 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 810 mA @ 120 Hz | 8.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.846" (21.50mm) | - | Through Hole |
