Aluminum - Polymer Capacitors
Aluminum - Polymer Capacitors
Aluminum - polymer capacitors are capacitors that use a conductive polymer electrolyte to provide low ESR, stable capacitance, and improved ripple current performance compared with conventional aluminum electrolytic capacitors. They are commonly used for power filtering, decoupling, voltage stabilization, DC-DC converters, computer motherboards, servers, communication equipment, industrial electronics, and automotive systems.
TomatoElec is an independent electronic components distributor supplying aluminum - polymer capacitors from mainstream manufacturers such as Panasonic, Nichicon, Rubycon, United Chemi-Con, Nippon Chemi-Con, KEMET, Vishay, KYOCERA AVX, and Murata. Customers can check inventory, price, package, specifications, parameters and PDF datasheets in the product list below, and submit a BOM or RFQ for aluminum - polymer capacitor sourcing support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PLG0J182MDO1TDCAP ALUM POLY 1800UF 20% 6.3V TH |
450 | - |
|
Datasheet |
PLG | Cut Tape (CT) | Active | Polymer | 1800 µF | ±20% | 6.3 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.6 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
A700V336M010ATE028CAP ALUM POLY 33UF 20% 10V SMD |
7,295 | - |
|
Datasheet |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 33 µF | ±20% | 10 V | 28mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 3.1 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
EEF-CS1C330RCAP ALUM POLY 33UF 20% 16V SMD |
6,996 | - |
|
Datasheet |
SP-Cap CS | Tape & Reel (TR) | Not For New Designs | Polymer | 33 µF | ±20% | 16 V | 40mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.2 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.047" (1.20mm) | - | Surface Mount | |
|
PCG1C151MCL1GSCAP ALUM POLY 150UF 20% 16V SMD |
2,278 | - |
|
Datasheet |
PCG | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 16 V | 28mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2.8 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
HHXD350ARA271MJA0GCAP ALUMHYB 270UF 20% 35V SMD |
1,127 | - |
|
Datasheet |
HXD | Tape & Reel (TR) | Active | Hybrid | 270 µF | ±20% | 35 V | 20mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 325 mA @ 120 Hz | 2.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
EEH-ZF1V151PCAP ALUMHYB 150UF 20% 35V SMD |
753 | - |
|
Datasheet |
ZF | Tape & Reel (TR) | Active | Hybrid | 150 µF | ±20% | 35 V | 23mOhm | 1000 Hrs @ 150°C | -55°C ~ 150°C | AEC-Q200 | Automotive | - | 142.5 mA @ 100 Hz | 950 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
PCR1D151MCL1GSCAP ALUM POLY 150UF 20% 20V SMD |
722 | - |
|
Datasheet |
PCR | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 20 V | 39mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1.2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
PLF1D151MDO2TDCAP ALUM POLY 150UF 20% 20V TH |
370 | - |
|
Datasheet |
PLF | Cut Tape (CT) | Active | Polymer | 150 µF | ±20% | 20 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.32 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|

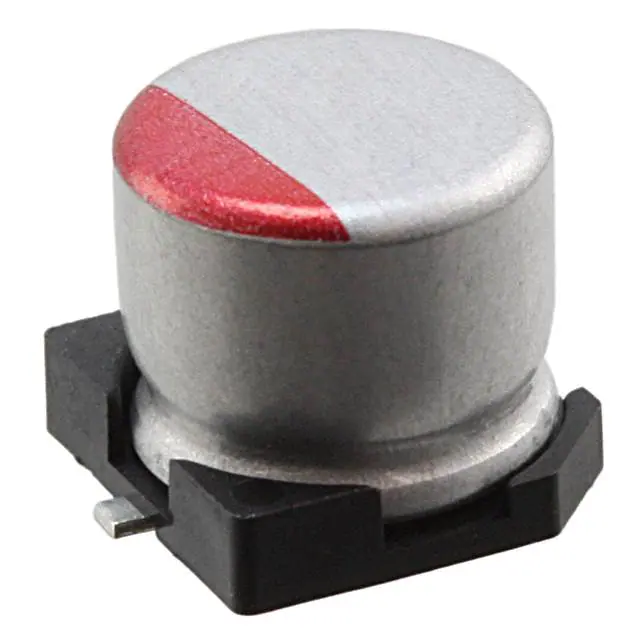

RHA1C271MCN1GSCAP ALUM POLY 270UF 20% 16V SMD |
3,434 | - |
|
Datasheet |
FPCAP, RHA | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | 16 V | 22mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 330 mA @ 120 Hz | 3.3 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
EEH-ZT1H121PCAP ALUMHYB 120UF 20% 50V SMD |
934 | - |
|
Datasheet |
ZT | Tape & Reel (TR) | Active | Hybrid | 120 µF | ±20% | 50 V | 23mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 435 mA @ 100 Hz | 2.9 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
|
PCG0G272MCL1GSCAP ALUM POLY 2700UF 20% 4V SMD |
8,760 | - |
|
Datasheet |
PCG | Tape & Reel (TR) | Active | Polymer | 2700 µF | ±20% | 4 V | 11mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 5.3 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
HHXB630ARA330MHA0GCAP ALUM HYBRID 33UF 20% 63V SMD |
1,819 | - |
|
Datasheet |
HXB | Tape & Reel (TR) | Not For New Designs | Hybrid | 33 µF | ±20% | 63 V | 40mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | - | 1.6 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.406" (10.30mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
870135675003CAP ALUM POLY 100UF 20% 35V TH |
503 | - |
|
Datasheet |
WCAP-PTHT | Cut Tape (CT) | Active | Polymer | 100 µF | ±20% | 35 V | 22mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 200 mA @ 120 Hz | 4 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
50PEV33M6.3X8CAP ALUM HYBRID 33UF 20% 50V SMD |
1,189 | - |
|
Datasheet |
PEV | Tape & Reel (TR) | Active | Hybrid | 33 µF | ±20% | 50 V | 40mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | - | - | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
PCF1D101MCL1GSCAP ALUM POLY 100UF 20% 20V SMD |
1,153 | - |
|
Datasheet |
PCF | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 20 V | 22mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
477AVG025MFBJCAP ALUM POLY 470UF 20% 25V TH |
652 | - |
|
Datasheet |
AVG | Bulk | Active | Polymer | 470 µF | ±20% | 25 V | 18mOhm | 1500 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 212.5 mA @ 120 Hz | 4.25 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.532" (13.50mm) | - | Through Hole | |
|
RNU1J390MDN1PHCAP ALUM POLY 39UF 20% 63V TH |
1,240 | - |
|
Datasheet |
FPCAP, RNU | Cut Tape (CT) | Active | Polymer | 39 µF | ±20% | 63 V | 25mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 260 mA @ 120 Hz | 2.6 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
RPS1C271MCN1GSCAP ALUM POLY 270UF 20% 16V SMD |
884 | - |
|
Datasheet |
FPCAP, RPS | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | 16 V | 14mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 440 mA @ 120 Hz | 4.4 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
APXA100ARA271MHC0GCAP ALUM POLY 270UF 20% 10V SMD |
813 | - |
|
Datasheet |
NPCAP™-PXA | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | 10 V | 14mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.42 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
-Photo-Taped-Size-G.jpg)
|
EEH-AZT1J680BCAP ALUM HYBRID 68UF 20% 63V TH |
715 | - |
|
Datasheet |
ZT | Cut Tape (CT) | Active | Hybrid | 68 µF | ±20% | 63 V | 25mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 420 mA @ 100 Hz | 2.8 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | - | Through Hole |
