Aluminum - Polymer Capacitors
Aluminum - Polymer Capacitors
Aluminum - polymer capacitors are capacitors that use a conductive polymer electrolyte to provide low ESR, stable capacitance, and improved ripple current performance compared with conventional aluminum electrolytic capacitors. They are commonly used for power filtering, decoupling, voltage stabilization, DC-DC converters, computer motherboards, servers, communication equipment, industrial electronics, and automotive systems.
TomatoElec is an independent electronic components distributor supplying aluminum - polymer capacitors from mainstream manufacturers such as Panasonic, Nichicon, Rubycon, United Chemi-Con, Nippon Chemi-Con, KEMET, Vishay, KYOCERA AVX, and Murata. Customers can check inventory, price, package, specifications, parameters and PDF datasheets in the product list below, and submit a BOM or RFQ for aluminum - polymer capacitor sourcing support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PLS0J561MCO6TDCAP ALUM POLY 560UF 20% 6.3V TH |
773 | - |
|
Datasheet |
PLS | Cut Tape (CT) | Active | Polymer | 560 µF | ±20% | 6.3 V | 8mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole | |
|
|
PLS0J561MCO6CAP ALUM POLY 560UF 20% 6.3V TH |
305 | - |
|
Datasheet |
PLS | Bulk | Active | Polymer | 560 µF | ±20% | 6.3 V | 8mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole | |
|
EEH-ZC1J820PCAP ALUM HYBRID 82UF 20% 63V SMD |
276 | - |
|
Datasheet |
ZC | Tape & Reel (TR) | Active | Hybrid | 82 µF | ±20% | 63 V | 30mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 210 mA @ 120 Hz | 1.4 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
HHXA250ARA560MF61GCAP ALUM HYBRID 56UF 20% 25V SMD |
1,816 | - |
|
Datasheet |
HXA | Tape & Reel (TR) | Not For New Designs | Hybrid | 56 µF | ±20% | 25 V | 50mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 900 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
6SEP330M+TCAP ALUM POLY 330UF 20% 6.3V TH |
616 | - |
|
Datasheet |
OS-CON™, SEP | Cut Tape (CT) | Active | Polymer | 330 µF | ±20% | 6.3 V | 25mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 185 mA @ 120 Hz | 3.7 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | - | Through Hole | |
|
PCF1D220MCL1GSCAP ALUM POLY 22UF 20% 20V SMD |
1,998 | - |
|
Datasheet |
PCF | Tape & Reel (TR) | Active | Polymer | 22 µF | ±20% | 20 V | 50mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 1.7 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
APSG160ELL561MHB5JCAP ALUM POLY 560UF 20% 16V TH |
1,959 | - |
|
Datasheet |
NPCAP™-PSG | Bulk | Active | Polymer | 560 µF | ±20% | 16 V | 8mOhm | 20000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
-Photo-Taped-Size-F.jpg)
|
EEH-AZC1J470BCAP ALUM HYBRID 47UF 20% 63V TH |
1,563 | - |
|
Datasheet |
ZC | Cut Tape (CT) | Active | Hybrid | 47 µF | ±20% | 63 V | 40mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 165 mA @ 100 Hz | 1.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | - | Through Hole | |
|
|
EEH-AZC1V151BCAP ALUM HYBRID 150UF 20% 35V TH |
1,508 | - |
|
Datasheet |
ZC | Cut Tape (CT) | Active | Hybrid | 150 µF | ±20% | 35 V | 27mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 240 mA @ 100 Hz | 1.6 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | - | Through Hole | |
|
EEH-ZT1J680PCAP ALUM HYBRID 68UF 20% 63V SMD |
824 | - |
|
Datasheet |
ZT | Tape & Reel (TR) | Active | Hybrid | 68 µF | ±20% | 63 V | 25mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 420 mA @ 100 Hz | 2.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
870135374005CAP ALUM POLY 330UF 20% 16V TH |
616 | - |
|
Datasheet |
WCAP-PTHT | Cut Tape (CT) | Active | Polymer | 330 µF | ±20% | 16 V | 10mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 280 mA @ 120 Hz | 5.6 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
|
HHXA630ARA100MF61GCAP ALUM HYBRID 10UF 20% 63V SMD |
1,990 | - |
|
Datasheet |
HXA | Tape & Reel (TR) | Not For New Designs | Hybrid | 10 µF | ±20% | 63 V | 120mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 700 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
PCF1E100MCL1GSCAP ALUM POLY 10UF 20% 25V SMD |
1,969 | - |
|
Datasheet |
PCF | Tape & Reel (TR) | Active | Polymer | 10 µF | ±20% | 25 V | 60mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 1.6 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
875075155010CAP ALUM POLY 1000UF 20% 6.3V |
1,263 | - |
|
Datasheet |
WCAP-PSLC | Tape & Reel (TR) | Active | Polymer | 1000 µF | ±20% | 6.3 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 260 mA @ 120 Hz | 5.2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.461" (11.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
PCF1D100MCL1GSCAP ALUM POLY 10UF 20% 20V SMD |
1,048 | - |
|
Datasheet |
PCF | Tape & Reel (TR) | Active | Polymer | 10 µF | ±20% | 20 V | 120mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 900 mA @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
A781MN187M1VLAS025CAP ALUMHYB 180UF 20% 35V SMD |
3,330 | - |
|
Datasheet |
A781 | Tape & Reel (TR) | Active | Hybrid | 180 µF | ±20% | 35 V | 25mOhm | 2000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 2.8 A @ 100 Hz | 7 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|

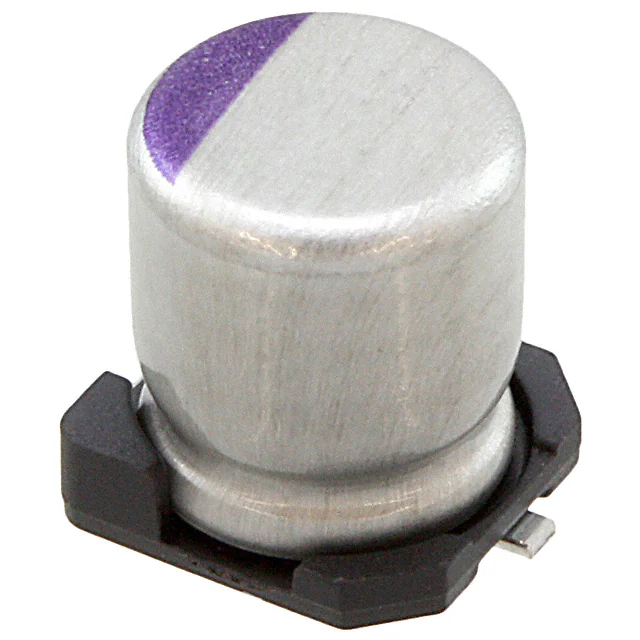

20SVPA47MCAP ALUM POLY 47UF 20% 20V SMD |
2,754 | - |
|
Datasheet |
OS-CON™, SVPA | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 20 V | 33mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 131.5 mA @ 120 Hz | 2.63 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
APXE100ARA560ME61GCAP ALUM POLY 56UF 20% 10V SMD |
1,753 | - |
|
Datasheet |
NPCAP™-PXE | Tape & Reel (TR) | Active | Polymer | 56 µF | ±20% | 10 V | 28mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.31 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.228" (5.80mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
25SVPK82MCAP ALUM POLY 82UF 20% 25V SMD |
127 | - |
|
Datasheet |
OS-CON™, SVPK | Tape & Reel (TR) | Active | Polymer | 82 µF | ±20% | 25 V | 25mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 48 mA @ 120 Hz | 960 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
EEF-SX0E221ERCAP ALUM POLY 220UF 20% 2.5V SMD |
15,000 | - |
|
Datasheet |
SP-Cap SX | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 2.5 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
