Aluminum - Polymer Capacitors
Aluminum - Polymer Capacitors
Aluminum - polymer capacitors are capacitors that use a conductive polymer electrolyte to provide low ESR, stable capacitance, and improved ripple current performance compared with conventional aluminum electrolytic capacitors. They are commonly used for power filtering, decoupling, voltage stabilization, DC-DC converters, computer motherboards, servers, communication equipment, industrial electronics, and automotive systems.
TomatoElec is an independent electronic components distributor supplying aluminum - polymer capacitors from mainstream manufacturers such as Panasonic, Nichicon, Rubycon, United Chemi-Con, Nippon Chemi-Con, KEMET, Vishay, KYOCERA AVX, and Murata. Customers can check inventory, price, package, specifications, parameters and PDF datasheets in the product list below, and submit a BOM or RFQ for aluminum - polymer capacitor sourcing support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

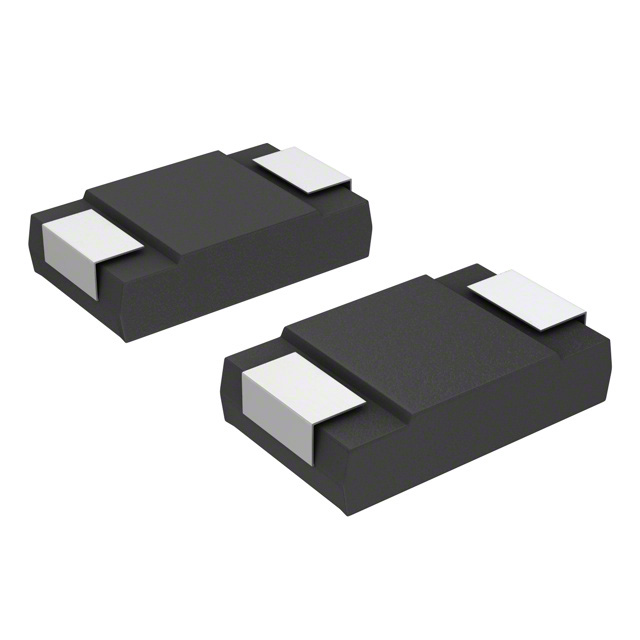

ESRD100M12BCAP ALUM POLY 10UF 20% 12.5V SMD |
0 | - |
|
Datasheet |
ESRD | Bulk | Obsolete | Polymer | 10 µF | ±20% | 12.5 V | 60mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 1 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.071" (1.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
ESRD101M02RCAP ALUM POLY 100UF 20% 2V SMD |
0 | - |
|
Datasheet |
ESRD | Tape & Reel (TR) | Obsolete | Polymer | 100 µF | ±20% | 2 V | 18mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 2.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.071" (1.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
ESRD101M0EXBCAP ALUM POLY 100UF 20% 2.5V SMD |
0 | - |
|
Datasheet |
ESRD | Bulk | Obsolete | Polymer | 100 µF | ±20% | 2.5 V | 15mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 2.7 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.071" (1.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
ESRD101M0EXRCAP ALUM POLY 100UF 20% 2.5V SMD |
0 | - |
|
Datasheet |
ESRD | Tape & Reel (TR) | Obsolete | Polymer | 100 µF | ±20% | 2.5 V | 15mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 2.7 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.071" (1.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
ESRD121M02XBCAP ALUM POLY 120UF 20% 2V SMD |
0 | - |
|
Datasheet |
ESRD | Bulk | Obsolete | Polymer | 120 µF | ±20% | 2 V | 15mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 2.7 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.071" (1.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
ESRD121M02XRCAP ALUM POLY 120UF 20% 2V SMD |
0 | - |
|
Datasheet |
ESRD | Tape & Reel (TR) | Obsolete | Polymer | 120 µF | ±20% | 2 V | 15mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 2.7 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.071" (1.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|

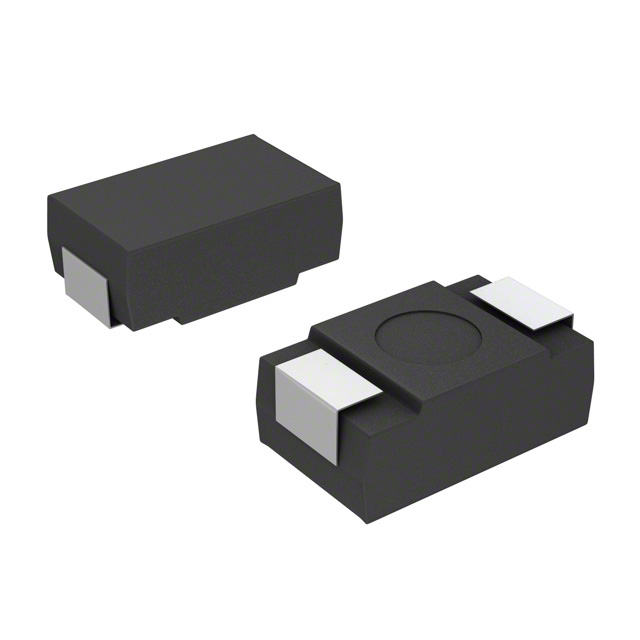

ESRD121M04RCAP ALUM POLY 120UF 20% 4V SMD |
0 | - |
|
Datasheet |
ESRD | Tape & Reel (TR) | Obsolete | Polymer | 120 µF | ±20% | 4 V | 15mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.110" (2.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
ESRD121M06XRCAP ALUM POLY 120UF 20% 6.3V SMD |
0 | - |
|
Datasheet |
ESRD | Tape & Reel (TR) | Obsolete | Polymer | 120 µF | ±20% | 6.3 V | 12mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 3.3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.110" (2.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
ESRD151M04XRCAP ALUM POLY 150UF 20% 4V SMD |
0 | - |
|
Datasheet |
ESRD | Tape & Reel (TR) | Obsolete | Polymer | 150 µF | ±20% | 4 V | 12mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 3.3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.110" (2.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
ESRD151M0ERCAP ALUM POLY 150UF 20% 2.5V SMD |
0 | - |
|
Datasheet |
ESRD | Tape & Reel (TR) | Obsolete | Polymer | 150 µF | ±20% | 2.5 V | 15mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.110" (2.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
ESRD181M0ERCAP ALUM POLY 180UF 20% 2.5V SMD |
0 | - |
|
Datasheet |
ESRD | Tape & Reel (TR) | Obsolete | Polymer | 180 µF | ±20% | 2.5 V | 15mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.110" (2.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
ESRD220M06RCAP ALUM POLY 22UF 20% 6.3V SMD |
0 | - |
|
Datasheet |
ESRD | Tape & Reel (TR) | Obsolete | Polymer | 22 µF | ±20% | 6.3 V | 40mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 1.6 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.071" (1.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
ESRD220M08RCAP ALUM POLY 22UF 20% 8V SMD |
0 | - |
|
Datasheet |
ESRD | Tape & Reel (TR) | Obsolete | Polymer | 22 µF | ±20% | 8 V | 28mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 2 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.071" (1.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
ESRD220M12BCAP ALUM POLY 22UF 20% 12.5V SMD |
0 | - |
|
Datasheet |
ESRD | Bulk | Obsolete | Polymer | 22 µF | ±20% | 12.5 V | 30mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 1.6 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.071" (1.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
ESRD221M02BCAP ALUM POLY 220UF 20% 2V SMD |
0 | - |
|
Datasheet |
ESRD | Bulk | Obsolete | Polymer | 220 µF | ±20% | 2 V | 15mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.110" (2.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
ESRD221M02RCAP ALUM POLY 220UF 20% 2V SMD |
0 | - |
|
Datasheet |
ESRD | Tape & Reel (TR) | Obsolete | Polymer | 220 µF | ±20% | 2 V | 15mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.110" (2.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
ESRD221M0EXBCAP ALUM POLY 220UF 20% 2.5V SMD |
0 | - |
|
Datasheet |
ESRD | Bulk | Obsolete | Polymer | 220 µF | ±20% | 2.5 V | 12mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 3.3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.110" (2.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
ESRD221M0EXRCAP ALUM POLY 220UF 20% 2.5V SMD |
0 | - |
|
Datasheet |
ESRD | Tape & Reel (TR) | Obsolete | Polymer | 220 µF | ±20% | 2.5 V | 12mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 3.3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.110" (2.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
ESRD271M02XBCAP ALUM POLY 270UF 20% 2V SMD |
0 | - |
|
Datasheet |
ESRD | Bulk | Obsolete | Polymer | 270 µF | ±20% | 2 V | 12mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 3.3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.110" (2.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
ESRD271M02XRCAP ALUM POLY 270UF 20% 2V SMD |
0 | - |
|
Datasheet |
ESRD | Tape & Reel (TR) | Obsolete | Polymer | 270 µF | ±20% | 2 V | 12mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 3.3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.110" (2.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
