Aluminum - Polymer Capacitors
Aluminum - Polymer Capacitors
Aluminum - polymer capacitors are capacitors that use a conductive polymer electrolyte to provide low ESR, stable capacitance, and improved ripple current performance compared with conventional aluminum electrolytic capacitors. They are commonly used for power filtering, decoupling, voltage stabilization, DC-DC converters, computer motherboards, servers, communication equipment, industrial electronics, and automotive systems.
TomatoElec is an independent electronic components distributor supplying aluminum - polymer capacitors from mainstream manufacturers such as Panasonic, Nichicon, Rubycon, United Chemi-Con, Nippon Chemi-Con, KEMET, Vishay, KYOCERA AVX, and Murata. Customers can check inventory, price, package, specifications, parameters and PDF datasheets in the product list below, and submit a BOM or RFQ for aluminum - polymer capacitor sourcing support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEH-ZU1J151PCAP ALUMHYB 150UF 20% 63V SMD |
278 | - |
|
Datasheet |
ZU | Tape & Reel (TR) | Active | Hybrid | 150 µF | ±20% | 63 V | 10mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 780 mA @ 100 Hz | 5.2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.661" (16.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
MAL218297802E3CAP ALUM HYBRID 22UF 20% 63V SMD |
17,113 | - |
|
Datasheet |
182 CPHZ | Tape & Reel (TR) | Active | Hybrid | 22 µF | ±20% | 63 V | 80mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | - | Automotive | - | - | 1.5 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.248" L x 0.248" W (6.30mm x 6.30mm) | Surface Mount | |
|
A700D226M016ATE030CAP ALUM POLY 22UF 20% 16V SMD |
251 | - |
|
Datasheet |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 22 µF | ±20% | 16 V | 30mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 2.9 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
PCR1J560MCL1GSCAP ALUM POLY 56UF 20% 63V SMD |
9,975 | - |
|
Datasheet |
PCR | Tape & Reel (TR) | Active | Polymer | 56 µF | ±20% | 63 V | 27mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 2.9 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
EEH-ZU1H221PCAP ALUMHYB 220UF 20% 50V SMD |
900 | - |
|
Datasheet |
ZU | Tape & Reel (TR) | Active | Hybrid | 220 µF | ±20% | 50 V | 10mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 780 mA @ 100 Hz | 5.2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.661" (16.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
PLX1H220MCL1TDCAP ALUM POLY 22UF 20% 50V TH |
374 | - |
|
Datasheet |
PLX | Cut Tape (CT) | Active | Polymer | 22 µF | ±20% | 50 V | 35mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 1.8 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole | |
|
EEH-ZS1V471VCAP ALUMHYB 470UF 20% 35V SMD |
506 | - |
|
Datasheet |
ZS, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 470 µF | ±20% | 35 V | 11mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 600 mA @ 100 Hz | 4 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.661" (16.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
875075661004CAP ALUM POLY 100UF 20% 35V SMD |
1,364 | - |
|
Datasheet |
WCAP-PSLC | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 35 V | 25mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 190 mA @ 120 Hz | 3.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
EEH-ZT1E561UVCAP ALUMHYB 560UF 20% 25V SMD |
1,680 | - |
|
Datasheet |
ZTU | Tape & Reel (TR) | Active | Hybrid | 560 µF | ±20% | 25 V | 16mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 330 mA @ 100 Hz | 2.2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.425" (10.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
|
EEH-ZS1J151VCAP ALUMHYB 150UF 20% 63V SMD |
299 | - |
|
Datasheet |
ZS, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 150 µF | ±20% | 63 V | 15mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 525 mA @ 100 Hz | 3.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.661" (16.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|

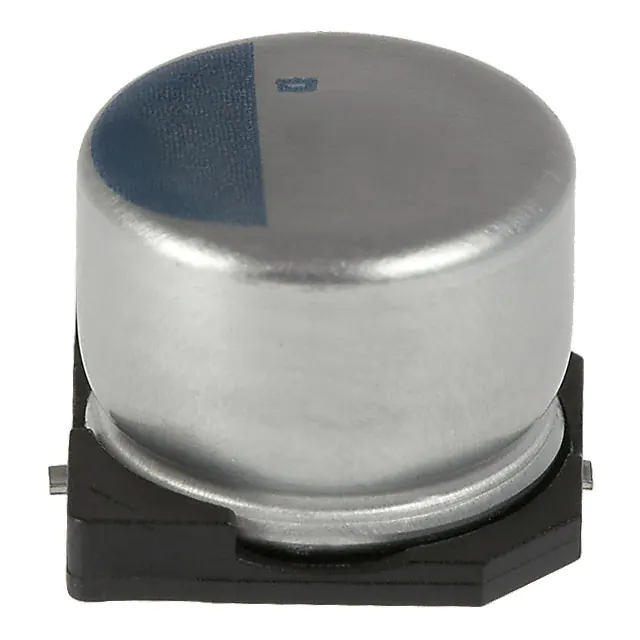

APXH200ARA820MJ80GCAP ALUM POLY 82UF 20% 20V SMD |
618 | - |
|
Datasheet |
NPCAP™-PXH | Tape & Reel (TR) | Active | Polymer | 82 µF | ±20% | 20 V | 45mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 2.4 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.303" (7.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
EEH-ZE1V271VCAP ALUMHYB 270UF 20% 35V SMD |
1,480 | - |
|
Datasheet |
ZE, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 270 µF | ±20% | 35 V | 20mOhm | 2000 Hrs @ 145°C | -55°C ~ 145°C | AEC-Q200 | Automotive | - | 135 mA @ 100 Hz | 900 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
HZA686M035X16T-FCAP ALUM HYBRID 68UF 20% 35V SMD |
9,558 | - |
|
Datasheet |
HZA | Tape & Reel (TR) | Active | Hybrid | 68 µF | ±20% | 35 V | 35mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive, Bypass, Decoupling | - | 200 mA @ 120 Hz | 2 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
PCV1H470MCL1GSCAP ALUM POLY 47UF 20% 50V SMD |
3,465 | - |
|
Datasheet |
PCV | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 50 V | 30mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2.2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|

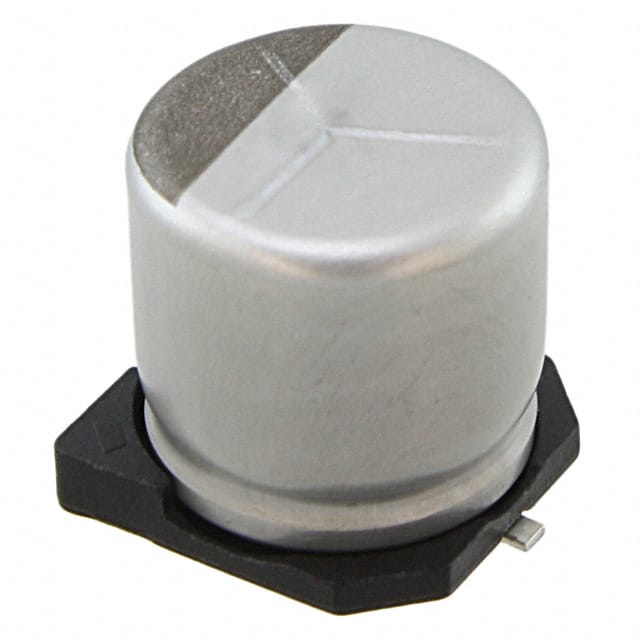

HHXA630ARA560MJA0GCAP ALUM HYBRID 56UF 20% 63V SMD |
262 | - |
|
Datasheet |
HXA | Tape & Reel (TR) | Not For New Designs | Hybrid | 56 µF | ±20% | 63 V | 30mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1.4 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.406" (10.30mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
|
PCH1J470MCL1GSCAP ALUM POLY 47UF 20% 63V SMD |
1,500 | - |
|
Datasheet |
PCH | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 63 V | 35mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 75 mA @ 120 Hz | 1.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.319" (8.10mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
63SXV39MCAP ALUM POLY 39UF 20% 63V SMD |
185 | - |
|
Datasheet |
OS-CON™, SXV | Tape & Reel (TR) | Active | Polymer | 39 µF | ±20% | 63 V | 25mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 46.5 mA @ 120 Hz | 930 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
PCR1V151MCL1GSCAP ALUM POLY 150UF 20% 35V SMD |
1,665 | - |
|
Datasheet |
PCR | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 35 V | 25mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 2.1 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
HZA107M050G24T-FCAP ALUMHYB 100UF 20% 50V SMD |
23,855 | - |
|
Datasheet |
HZA | Tape & Reel (TR) | Active | Hybrid | 100 µF | ±20% | 50 V | 28mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive, Bypass, Decoupling | - | 200 mA @ 120 Hz | 2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
PCV1H680MCL2GSCAP ALUM POLY 68UF 20% 50V SMD |
19,445 | - |
|
Datasheet |
PCV | Tape & Reel (TR) | Active | Polymer | 68 µF | ±20% | 50 V | 29mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.4 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
