Aluminum - Polymer Capacitors
Aluminum - Polymer Capacitors
Aluminum - polymer capacitors are capacitors that use a conductive polymer electrolyte to provide low ESR, stable capacitance, and improved ripple current performance compared with conventional aluminum electrolytic capacitors. They are commonly used for power filtering, decoupling, voltage stabilization, DC-DC converters, computer motherboards, servers, communication equipment, industrial electronics, and automotive systems.
TomatoElec is an independent electronic components distributor supplying aluminum - polymer capacitors from mainstream manufacturers such as Panasonic, Nichicon, Rubycon, United Chemi-Con, Nippon Chemi-Con, KEMET, Vishay, KYOCERA AVX, and Murata. Customers can check inventory, price, package, specifications, parameters and PDF datasheets in the product list below, and submit a BOM or RFQ for aluminum - polymer capacitor sourcing support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A700D686M010ATCAP ALUM POLY 68UF 20% 10V SMD |
0 | - |
|
Datasheet |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 68 µF | ±20% | 10 V | 18mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 3.7 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
MAL218397103E3CAP ALUM HYBRID 33UF 20% 50V SMD |
0 | - |
|
Datasheet |
183 CPHT | Box | Active | Hybrid | 33 µF | ±20% | 50 V | 40mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | - | Automotive | - | 110 mA @ 120 Hz | 1.1 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.354" (9.00mm) | - | Surface Mount | |
|
A700V107M006ATE018CAP ALUM POLY 100UF 20% 6.3V SMD |
0 | - |
|
Datasheet |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 6.3 V | 18mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
RNU1E391MDN1CAP ALUM POLY 390UF 20% 25V TH |
0 | - |
|
Datasheet |
FPCAP, RNU | Bulk | Active | Polymer | 390 µF | ±20% | 25 V | 14mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 500 mA @ 120 Hz | 5 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
APXE2R5ARA222MJA0GCAP ALUM POLY 2200UF 20% 2.5V |
0 | - |
|
Datasheet |
NPCAP™-PXE | Tape & Reel (TR) | Active | Polymer | 2200 µF | ±20% | 2.5 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.406" (10.30mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|

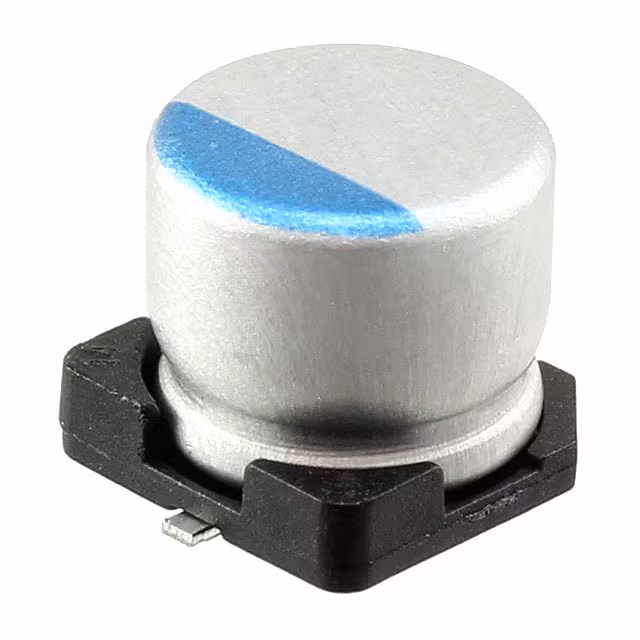

PCR1D101MCL1GSCAP ALUM POLY 100UF 20% 20V SMD |
0 | - |
|
Datasheet |
PCR | Tape & Reel (TR) | Obsolete | Polymer | 100 µF | ±20% | 20 V | 41mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1.3 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
PCR1E101MCL4GSCAP ALUM POLY 100UF 20% 25V SMD |
0 | - |
|
Datasheet |
PCR | Tape & Reel (TR) | Obsolete | Polymer | 100 µF | ±20% | 25 V | 27mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1.6 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
875075155001CAP ALUM POLY 180UF 20% 6.3V SMD |
0 | - |
|
Datasheet |
WCAP-PSLC | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 6.3 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 260 mA @ 120 Hz | 5.2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.461" (11.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
20SEQP150M+TCAP ALUM POLY 150UF 20% 20V TH |
0 | - |
|
Datasheet |
OS-CON™, SEQP | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 20 V | 20mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 68.35 mA @ 120 Hz | 1.367 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
SPSX391M02R-6CAP ALUM POLY 390UF 20% 2V SMD |
0 | - |
|
Datasheet |
SPSX | Tape & Reel (TR) | Obsolete | Polymer | 390 µF | ±20% | 2 V | 6mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 3.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.083" (2.10mm) | - | Surface Mount | |
|
EEF-SD0D391RCAP ALUM POLY 390UF 20% 2V SMD |
0 | - |
|
Datasheet |
SP-Cap SD | Tape & Reel (TR) | Obsolete | Polymer | 390 µF | ±20% | 2 V | 7mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 3.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.110" (2.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|

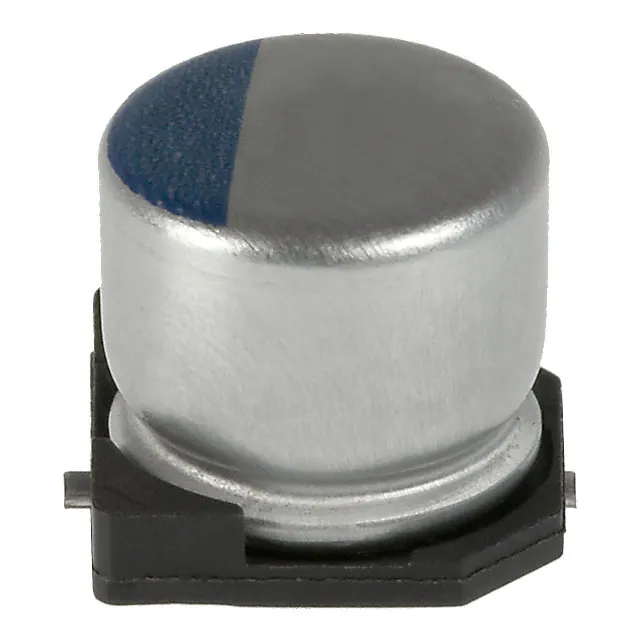

APXC6R3ARA181MF60GCAP ALUM POLY 180UF 20% 6.3V SMD |
0 | - |
|
Datasheet |
NPCAP™-PXC | Tape & Reel (TR) | Obsolete | Polymer | 180 µF | ±20% | 6.3 V | 22mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.58 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.224" (5.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
PCR1A181MCL1GSCAP ALUM POLY 180UF 20% 10V SMD |
0 | - |
|
Datasheet |
PCR | Tape & Reel (TR) | Obsolete | Polymer | 180 µF | ±20% | 10 V | 34mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1.4 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
PCR1D151MCL4GSCAP ALUM POLY 150UF 20% 20V SMD |
0 | - |
|
Datasheet |
PCR | Tape & Reel (TR) | Obsolete | Polymer | 150 µF | ±20% | 20 V | 25mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1.7 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
AHA1010560M050RCAP ALUM HYBRID 56UF 20% 50V SMD |
0 | - |
|
Datasheet |
AHA | Tape & Reel (TR) | Active | Hybrid | 56 µF | ±20% | 50 V | 25mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 230 mA @ 100 Hz | 2.3 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.433" (11.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
336AVG100MGBJCAP ALUM POLY 33UF 20% 100V TH |
0 | - |
|
Datasheet |
AVG | Bulk | Active | Polymer | 33 µF | ±20% | 100 V | 38mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 105 mA @ 120 Hz | 2.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.532" (13.50mm) | - | Through Hole | |
|
PCS0G151MCL1GSCAP ALUM POLY 150UF 20% 4V SMD |
0 | - |
|
Datasheet |
PCS | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 4 V | 25mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2.2 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
RVB0G221MNGCAP ALUM POLY 220UF 20% 4V SMD |
0 | - |
|
Datasheet |
FPCAP, VB | Tape & Reel (TR) | Obsolete | Polymer | 220 µF | ±20% | 4 V | 15mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.118" (3.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
APXG160ARA561MHA0GCAP ALUM POLY 560UF 20% 16V SMD |
0 | - |
|
Datasheet |
NPCAP™-PXG | Tape & Reel (TR) | Obsolete | Polymer | 560 µF | ±20% | 16 V | 18mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.9 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.406" (10.30mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
875115645010CAP ALUM POLY 18UF 20% 35V SMD |
0 | - |
|
Datasheet |
WCAP-PSHP | Tape & Reel (TR) | Active | Polymer | 18 µF | ±20% | 35 V | 60mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 70 mA @ 120 Hz | 1.4 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
