Aluminum - Polymer Capacitors
Aluminum - Polymer Capacitors
Aluminum - polymer capacitors are capacitors that use a conductive polymer electrolyte to provide low ESR, stable capacitance, and improved ripple current performance compared with conventional aluminum electrolytic capacitors. They are commonly used for power filtering, decoupling, voltage stabilization, DC-DC converters, computer motherboards, servers, communication equipment, industrial electronics, and automotive systems.
TomatoElec is an independent electronic components distributor supplying aluminum - polymer capacitors from mainstream manufacturers such as Panasonic, Nichicon, Rubycon, United Chemi-Con, Nippon Chemi-Con, KEMET, Vishay, KYOCERA AVX, and Murata. Customers can check inventory, price, package, specifications, parameters and PDF datasheets in the product list below, and submit a BOM or RFQ for aluminum - polymer capacitor sourcing support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEF-CD0E151RCAP ALUM POLY 150UF 20% 2.5V SMD |
0 | - |
|
Datasheet |
SP-Cap CD | Tape & Reel (TR) | Obsolete | Polymer | 150 µF | ±20% | 2.5 V | 18mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|

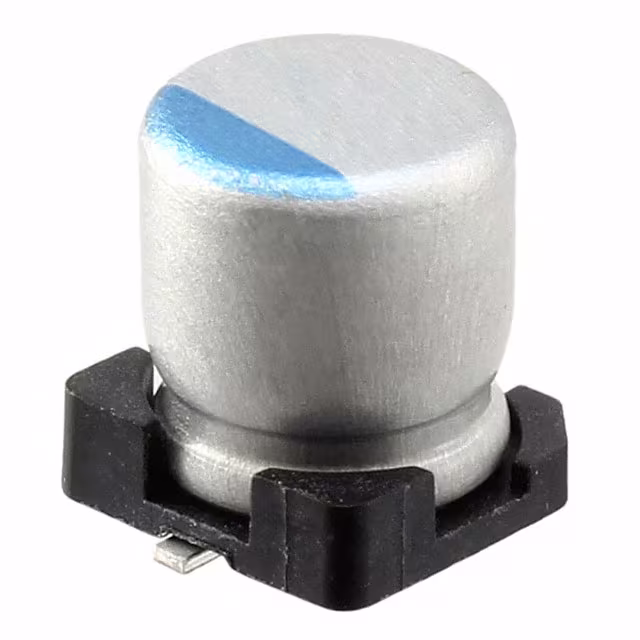

PCR1H120MCL1GSCAP ALUM POLY 12UF 20% 50V SMD |
0 | - |
|
Datasheet |
PCR | Tape & Reel (TR) | Obsolete | Polymer | 12 µF | ±20% | 50 V | 88mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 600 mA @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
|
PCR1J6R8MCL1GSCAP ALUM POLY 6.8UF 20% 63V SMD |
0 | - |
|
Datasheet |
PCR | Tape & Reel (TR) | Obsolete | Polymer | 6.8 µF | ±20% | 63 V | 92mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 600 mA @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
RNU0G821MDN1KXCAP ALUM POLY 820UF 20% 4V TH |
0 | - |
|
Datasheet |
FPCAP, RNU | Cut Tape (CT) | Active | Polymer | 820 µF | ±20% | 4 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 570 mA @ 120 Hz | 5.7 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
A765KN277M1ALAE020CAP ALUM POLY 270UF 20% 10V SMD |
0 | - |
|
Datasheet |
A765 | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | 10 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 180 mA @ 120 Hz | 3.6 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
UPR1C471MP26312LCAP ALUM POLY 470UF 20% 16V TH |
0 | - |
|
Datasheet |
UPR | Active | Polymer | 470 µF | ±20% | 16 V | 11mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.3 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.531" (13.50mm) | - | Through Hole | ||
|
|
UPE1E471MP30812RSCAP ALUM POLY 470UF 20% 25V TH |
0 | - |
|
Datasheet |
UPE | Active | Polymer | 470 µF | ±20% | 25 V | 16mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5 A @ 100 kHz | - | 0.197" (5.00mm) | 0.315" Dia (8.00mm) | 0.531" (13.50mm) | - | Through Hole | ||
|
VSE0E561MCB6357CAP ALUM POLY 560UF 20% 2.5V SMD |
0 | - |
|
Datasheet |
VSE | Active | Polymer | 560 µF | ±20% | 2.5 V | 16mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.5 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | ||
|
A700V227M004PTE015CAP ALUM POLY 220UF 4V SMD |
0 | - |
|
Datasheet |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 4 V | 15mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 4.24 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
A700X187M006ATE0157280CAP ALUM POLY 180UF 20% 6.3V SMD |
0 | - |
|
Datasheet |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 6.3 V | 15mOhm | - | - | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
A700D127M006ATE0187280CAP ALUM POLY 120UF 20% 6.3V SMD |
0 | - |
|
Datasheet |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 120 µF | ±20% | 6.3 V | 18mOhm | - | - | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
476ALG050MFBJCAP ALUM POLY 47UF 20% 50V TH |
0 | - |
|
Datasheet |
ALG | Bulk | Active | Polymer | 47 µF | ±20% | 50 V | 27mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | Automotive | - | 135 mA @ 120 Hz | 2.7 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.532" (13.50mm) | - | Through Hole | |
|
|
RAHTK220M1REH0002ECAP ALUM HYBRID 22UF 20% 80V SMD |
0 | - |
|
Datasheet |
HTK | Tape & Reel (TR) | Active | Hybrid | 22 µF | ±20% | 80 V | 45mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | Anti-Vibration | 110 mA @ 120 Hz | 1.1 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.331" L x 0.331" W (8.40mm x 8.40mm) | Surface Mount | |
|
|
RSHTK220M1REH0002ECAP ALUM HYBRID 22UF 20% 80V SMD |
0 | - |
|
Datasheet |
HTK | Tape & Reel (TR) | Active | Hybrid | 22 µF | ±20% | 80 V | 45mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | Anti-Vibration | 110 mA @ 120 Hz | 1.1 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.331" L x 0.331" W (8.40mm x 8.40mm) | Surface Mount | |
|
|
P295BJ222M500ALW0CCAP ALUM POLY 180UF 20% 4V SMD |
0 | - |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
MAL218497362E3CAP ALUM POLY 1200UF 20% 4V SMD |
0 | - |
|
- |
184 CPNS | Box | Active | Polymer | 1200 µF | ±20% | 4 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 260 mA @ 120 Hz | 5.2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
URH1D331MNN6312CAP ALUM POLY 330UF 20% 20V TH |
0 | - |
|
Datasheet |
URH | Active | Polymer | 330 µF | ±20% | 20 V | 18mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 3.64 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.531" (13.50mm) | - | Through Hole | ||
|
APD0811121M050RCAP ALUM POLY 120UF 20% 50V SMD |
0 | - |
|
Datasheet |
APD | Tape & Reel (TR) | Active | Polymer | 120 µF | ±20% | 50 V | 27mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 105 mA @ 120 Hz | 2.1 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
APXA200ARA220MF60SCAP ALUM POLY 22UF 20% 20V SMD |
0 | - |
|
Datasheet |
NPCAP™-PXA | Tape & Reel (TR) | Obsolete | Polymer | 22 µF | ±20% | 20 V | 50mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 1.65 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.224" (5.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
ECASD40J686M015K00CAP ALUM POLY 68UF 20% 6.3V SMD |
0 | - |
|
Datasheet |
ECAS | Tape & Reel (TR) | Obsolete | Polymer | 68 µF | ±20% | 6.3 V | 15mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 2 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
