Aluminum - Polymer Capacitors
Aluminum - Polymer Capacitors
Aluminum - polymer capacitors are capacitors that use a conductive polymer electrolyte to provide low ESR, stable capacitance, and improved ripple current performance compared with conventional aluminum electrolytic capacitors. They are commonly used for power filtering, decoupling, voltage stabilization, DC-DC converters, computer motherboards, servers, communication equipment, industrial electronics, and automotive systems.
TomatoElec is an independent electronic components distributor supplying aluminum - polymer capacitors from mainstream manufacturers such as Panasonic, Nichicon, Rubycon, United Chemi-Con, Nippon Chemi-Con, KEMET, Vishay, KYOCERA AVX, and Murata. Customers can check inventory, price, package, specifications, parameters and PDF datasheets in the product list below, and submit a BOM or RFQ for aluminum - polymer capacitor sourcing support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APSG160ELL272MJ20SCAP ALUM POLY 2.7MF 20% 16V TH |
3,909 | - |
|
Datasheet |
NPCAP™-PSG | Bulk | Active | Polymer | 2.7 mF | ±20% | 16 V | 8mOhm | 20000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 810 mA @ 120 Hz | 8.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.846" (21.50mm) | - | Through Hole | |
|
EEH-ZA1V220RCAP ALUM HYBRID 22UF 20% 35V SMD |
2,895 | - |
|
Datasheet |
ZA | Tape & Reel (TR) | Active | Hybrid | 22 µF | ±20% | 35 V | 100mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 90 mA @ 100 Hz | 900 mA @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
|
HHXF500ARA101MJA0GCAP ALUMHYB 100UF 20% 50V SMD |
890 | - |
|
Datasheet |
HXF | Tape & Reel (TR) | Active | Hybrid | 100 µF | ±20% | 50 V | 20mOhm | 3000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 430 mA @ 120 Hz | 4.3 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
10SVP270MCAP ALUM POLY 270UF 20% 10V SMD |
257 | - |
|
Datasheet |
OS-CON™, SVP | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | 10 V | 25mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 185 mA @ 120 Hz | 3.7 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
EEH-ZK1V181PCAP ALUMHYB 180UF 20% 35V SMD |
4,086 | - |
|
Datasheet |
ZK | Tape & Reel (TR) | Active | Hybrid | 180 µF | ±20% | 35 V | 27mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 300 mA @ 100 Hz | 2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
PCS1A121MCL1GSCAP ALUM POLY 120UF 20% 10V SMD |
3,591 | - |
|
Datasheet |
PCS | Tape & Reel (TR) | Active | Polymer | 120 µF | ±20% | 10 V | 27mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2.3 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
6SVP330MCAP ALUM POLY 330UF 20% 6.3V SMD |
2,196 | - |
|
Datasheet |
OS-CON™, SVP | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 6.3 V | 25mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 185 mA @ 120 Hz | 3.7 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
|
PCS1C680MCL1GSCAP ALUM POLY 68UF 20% 16V SMD |
940 | - |
|
Datasheet |
PCS | Tape & Reel (TR) | Active | Polymer | 68 µF | ±20% | 16 V | 30mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2.2 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
A780MS337M1VLAS020CAP ALUMHYB 330UF 20% 35V SMD |
792 | - |
|
Datasheet |
A780 | Tape & Reel (TR) | Active | Hybrid | 330 µF | ±20% | 35 V | 20mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 880 mA @ 100 Hz | 2.2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|

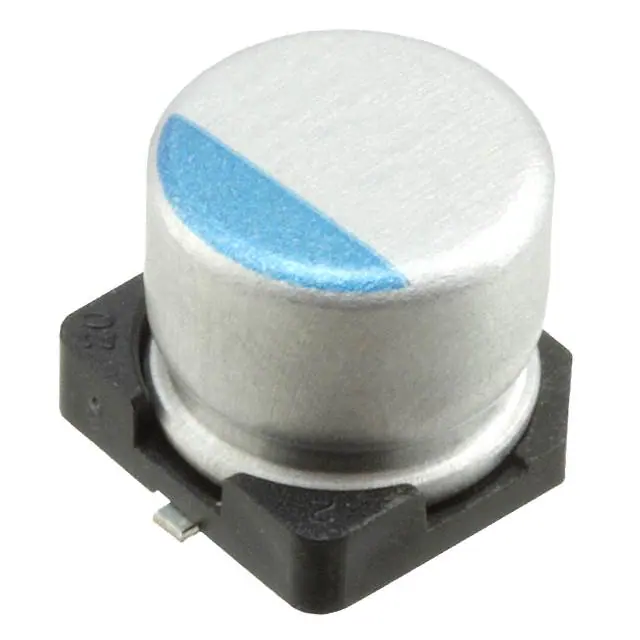

PCV1E330MCL1GSCAP ALUM POLY 33UF 20% 25V SMD |
5,673 | - |
|
Datasheet |
PCV | Tape & Reel (TR) | Active | Polymer | 33 µF | ±20% | 25 V | 60mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 1 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
EEH-ZC1V100RCAP ALUM HYBRID 10UF 20% 35V SMD |
1,828 | - |
|
Datasheet |
ZC | Tape & Reel (TR) | Active | Hybrid | 10 µF | ±20% | 35 V | 100mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 55 mA @ 100 Hz | 550 mA @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
870135774001CAP ALUM POLY 22UF 20% 50V TH |
728 | - |
|
Datasheet |
WCAP-PTHT | Cut Tape (CT) | Active | Polymer | 22 µF | ±20% | 50 V | 35mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 125 mA @ 120 Hz | 2.5 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole | |
|
GYB1H101MCQ1GSCAP ALUMHYB 100UF 20% 50V SMD |
371 | - |
|
Datasheet |
GYB | Tape & Reel (TR) | Active | Hybrid | 100 µF | ±20% | 50 V | 28mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | 300 mA @ 120 Hz | 2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
|
EEF-CX1V220RCAP ALUM POLY 22UF 20% 35V SMD |
4,346 | - |
|
Datasheet |
SP-Cap CX | Tape & Reel (TR) | Active | Polymer | 22 µF | ±20% | 35 V | 40mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.2 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
-Photo-Taped-Size-F.jpg)
|
EEH-AZA1V151BCAP ALUM HYBRID 150UF 20% 35V TH |
3,353 | - |
|
Datasheet |
ZA-A | Cut Tape (CT) | Active | Hybrid | 150 µF | ±20% | 35 V | 27mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 345 mA @ 100 Hz | 2.3 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | - | Through Hole | |
|
|
EEH-AZA1V101BCAP ALUM HYBRID 100UF 20% 35V TH |
2,564 | - |
|
Datasheet |
ZA-A | Cut Tape (CT) | Active | Hybrid | 100 µF | ±20% | 35 V | 27mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 345 mA @ 100 Hz | 2.3 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | - | Through Hole | |
|
A750MW128M1EAAE014CAP ALUM POLY 1200UF 20% 25V TH |
1,746 | - |
|
Datasheet |
A750 | Bulk | Active | Polymer | 1200 µF | ±20% | 25 V | 14mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 295.5 mA @ 120 Hz | 5.91 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.709" (18.00mm) | - | Through Hole | |
|
|
EEH-AZA1H470BCAP ALUM HYBRID 47UF 20% 50V TH |
1,572 | - |
|
Datasheet |
ZA-A | Cut Tape (CT) | Active | Hybrid | 47 µF | ±20% | 50 V | 30mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 270 mA @ 100 Hz | 1.8 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | - | Through Hole | |
|
|
EEH-AZA1J470BCAP ALUM HYBRID 47UF 20% 63V TH |
1,073 | - |
|
Datasheet |
ZA-A | Cut Tape (CT) | Active | Hybrid | 47 µF | ±20% | 63 V | 40mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 255 mA @ 100 Hz | 1.7 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | - | Through Hole | |
|
|
GYB1E331MCQ1GSCAP ALUMHYB 330UF 20% 25V SMD |
1,040 | - |
|
Datasheet |
GYB | Tape & Reel (TR) | Active | Hybrid | 330 µF | ±20% | 25 V | 20mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | 375 mA @ 120 Hz | 2.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
