Aluminum - Polymer Capacitors
Aluminum - Polymer Capacitors
Aluminum - polymer capacitors are capacitors that use a conductive polymer electrolyte to provide low ESR, stable capacitance, and improved ripple current performance compared with conventional aluminum electrolytic capacitors. They are commonly used for power filtering, decoupling, voltage stabilization, DC-DC converters, computer motherboards, servers, communication equipment, industrial electronics, and automotive systems.
TomatoElec is an independent electronic components distributor supplying aluminum - polymer capacitors from mainstream manufacturers such as Panasonic, Nichicon, Rubycon, United Chemi-Con, Nippon Chemi-Con, KEMET, Vishay, KYOCERA AVX, and Murata. Customers can check inventory, price, package, specifications, parameters and PDF datasheets in the product list below, and submit a BOM or RFQ for aluminum - polymer capacitor sourcing support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RPA0608221M016BCAP ALUM POLY 220UF 20% 16V TH |
18,176 | - |
|
Datasheet |
RPA | Bulk | Active | Polymer | 220 µF | ±20% | 16 V | 15mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 175 mA @ 120 Hz | 3.5 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.374" (9.50mm) | - | Through Hole | |
|
16SVP3R3MCAP ALUM POLY 3.3UF 20% 16V SMD |
5,120 | - |
|
Datasheet |
OS-CON™, SVP | Tape & Reel (TR) | Active | Polymer | 3.3 µF | ±20% | 16 V | 260mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 33 mA @ 120 Hz | 660 mA @ 100 kHz | - | - | 0.157" Dia (4.00mm) | 0.217" (5.50mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
EEH-ZK1E470RCAP ALUM HYBRID 47UF 20% 25V SMD |
7,993 | - |
|
Datasheet |
ZK | Tape & Reel (TR) | Active | Hybrid | 47 µF | ±20% | 25 V | 80mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 127.5 mA @ 100 Hz | 850 mA @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
RFS1C390MCN1GSCAP ALUM POLY 39UF 20% 16V SMD |
7,777 | - |
|
Datasheet |
FPCAP, RFS | Tape & Reel (TR) | Active | Polymer | 39 µF | ±20% | 16 V | 35mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 207 mA @ 120 Hz | 2.07 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
A765MU158M1ALAE014CAP ALUM POLY 1500UF 20% 10V SMD |
4,316 | - |
|
Datasheet |
A765 | Tape & Reel (TR) | Active | Polymer | 1500 µF | ±20% | 10 V | 14mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 270 mA @ 120 Hz | 5.4 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.508" (12.90mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
A750MS567M1EAAE015CAP ALUM POLY 560UF 20% 25V TH |
2,582 | - |
|
Datasheet |
A750 | Bulk | Active | Polymer | 560 µF | ±20% | 25 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 245 mA @ 120 Hz | 4.9 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
A755KS107M1EAAE025CAP ALUM POLY 100UF 20% 25V TH |
2,199 | - |
|
Datasheet |
A755 | Bulk | Active | Polymer | 100 µF | ±20% | 25 V | 25mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 125 mA @ 120 Hz | 2.5 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
10SVP330MXCAP ALUM POLY 330UF 20% 10V SMD |
1,618 | - |
|
Datasheet |
OS-CON™, SVP | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 10 V | 25mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 185 mA @ 120 Hz | 3.7 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
EEF-SX0D331XRCAP ALUM POLY 330UF 20% 2V SMD |
9,642 | - |
|
Datasheet |
SP-Cap SX | Tape & Reel (TR) | Not For New Designs | Polymer | 330 µF | ±20% | 2 V | 6mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | Surface Mount | |
|
16SEPC100MW+SCAP ALUM POLY 100UF 20% 16V TH |
7,613 | - |
|
Datasheet |
OS-CON™, SEPC | Cut Tape (CT) | Active | Polymer | 100 µF | ±20% | 16 V | 10mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 234 mA @ 120 Hz | 4.68 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.354" (9.00mm) | - | Through Hole | |
|

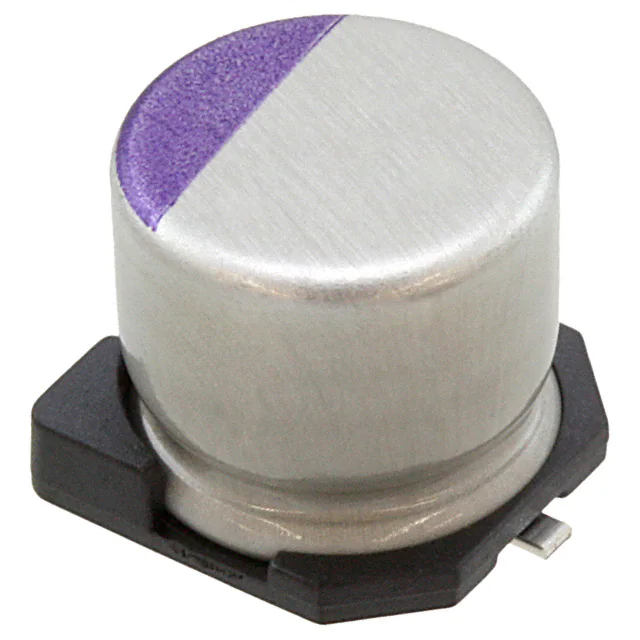

10SVP56MCAP ALUM POLY 56UF 20% 10V SMD |
7,307 | - |
|
Datasheet |
OS-CON™, SVP | Tape & Reel (TR) | Active | Polymer | 56 µF | ±20% | 10 V | 45mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 85 mA @ 120 Hz | 1.7 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
AHA0608470M035RCAP ALUM HYBRID 47UF 20% 35V SMD |
4,563 | - |
|
Datasheet |
AHA | Tape & Reel (TR) | Active | Hybrid | 47 µF | ±20% | 35 V | 60mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 130 mA @ 100 Hz | 1.3 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.335" (8.50mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
35SEPF22MCAP ALUM POLY 22UF 20% 35V TH |
1,512 | - |
|
Datasheet |
OS-CON™, SEPF | Bulk | Active | Polymer | 22 µF | ±20% | 35 V | 35mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 130 mA @ 120 Hz | 2.6 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | - | Through Hole | |
|
A759MS158M0JAAE013CAP ALUM POLY 1500UF 20% 6.3V TH |
1,136 | - |
|
Datasheet |
A759 | Bulk | Active | Polymer | 1500 µF | ±20% | 6.3 V | 13mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 354.65 mA @ 120 Hz | 7.093 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
RSS0J101MCN1GSCAP ALUM POLY 100UF 20% 6.3V SMD |
901 | - |
|
Datasheet |
FPCAP, RSS | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 6.3 V | 25mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 250 mA @ 120 Hz | 2.5 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.256" L x 0.256" W (6.50mm x 6.50mm) | Surface Mount | |
|
RNS1D680MDN1KXCAP ALUM POLY 68UF 20% 20V TH |
653 | - |
|
Datasheet |
FPCAP, RNS | Cut Tape (CT) | Active | Polymer | 68 µF | ±20% | 20 V | 25mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 360 mA @ 120 Hz | 3.6 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
|
RFS0J101MCN1GSCAP ALUM POLY 100UF 20% 6.3V SMD |
4,220 | - |
|
Datasheet |
FPCAP, RFS | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 6.3 V | 24mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 250 mA @ 120 Hz | 2.5 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.224" (5.70mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
EEH-ZK1E151XPCAP ALUMHYB 150UF 20% 25V SMD |
2,154 | - |
|
Datasheet |
ZK | Tape & Reel (TR) | Active | Hybrid | 150 µF | ±20% | 25 V | 30mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 270 mA @ 100 Hz | 1.8 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
A759MS108M1AAAE012CAP ALUM POLY 1000UF 20% 10V TH |
2,004 | - |
|
Datasheet |
A759 | Bulk | Active | Polymer | 1000 µF | ±20% | 10 V | 12mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 354.65 mA @ 120 Hz | 7.093 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
A750MV108M1EAAE014CAP ALUM POLY 1000UF 20% 25V TH |
1,440 | - |
|
Datasheet |
A750 | Bulk | Active | Polymer | 1000 µF | ±20% | 25 V | 14mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 255 mA @ 120 Hz | 5.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.630" (16.00mm) | - | Through Hole |
