Aluminum Electrolytic Capacitors
Aluminum electrolytic capacitors are polarized capacitors used for bulk capacitance, filtering, ripple current smoothing, energy storage and power supply stabilization. Common types include radial leaded, surface mount, snap-in, screw terminal, low-ESR and long-life aluminum electrolytic capacitors.
These capacitors are widely used in industrial power supplies, DC/DC converters, motor drives, LED power systems, communication equipment, consumer electronics and repair applications. When selecting aluminum electrolytic capacitors, buyers should confirm capacitance, voltage rating, ESR, ripple current, lifetime, temperature range, size, package style and application requirements.
TomatoElec is an independent electronic components distributor supporting aluminum electrolytic capacitor sourcing from multiple manufacturers. We help buyers check specifications, package options, inventory availability, PDF datasheets, RFQ requirements and BOM sourcing needs for engineering samples, urgent replacement and production purchasing.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

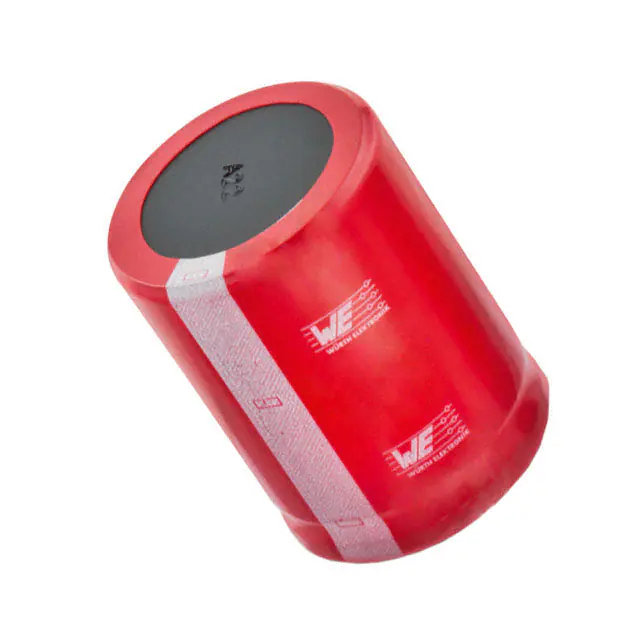

861221084006CAP ALUM 470UF 20% 200V SNAP TH |
90 | - |
|
|
WCAP-AIE8 | Tray | Active | 470 µF | ±20% | 200 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.95 A @ 120 Hz | 2.691 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
UBT1C332MHD8CAP ALUM 3300UF 20% 16V RADIAL |
93 | - |
|
|
UBT | Bulk | Active | 3300 µF | ±20% | 16 V | - | 10000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | Automotive | 1.816 A @ 120 Hz | 2.71 A @ 100 kHz | 20 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.319" (33.50mm) | - | Through Hole | |
|
|
UBX1C102MHLCAP ALUM 1000UF 20% 16V RADIAL |
33 | - |
|
|
UBX | Bulk | Active | 1000 µF | ±20% | 16 V | - | 2000 Hrs @ 150°C | -55°C ~ 150°C | Polar | AEC-Q200 | Automotive | 536 mA @ 120 Hz | 800 mA @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|
|
EKZN630ELL122MLN3SCAP ALUM 1200UF 20% 63V RADIAL |
40 | - |
|
|
KZN | Bulk | Active | 1200 µF | ±20% | 63 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.968 A @ 120 Hz | 3.28 A @ 100 kHz | 20 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.299" (33.00mm) | - | Through Hole | |
|
REF1840821M100BCAP ALUM 820UF 20% 100V RADIAL |
70 | - |
|
|
REF | Bulk | Active | 820 µF | ±20% | 100 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.62 A @ 120 Hz | 2.7 A @ 100 kHz | 32 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
865060263012CAP ALUM 4700UF 20% 10V SMD |
95 | - |
|
|
WCAP-ASLL | Tape & Reel (TR) | Active | 4700 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.17 A @ 120 Hz | 1.8 A @ 100 kHz | 35 mOhms | - | 0.630" Dia (16.00mm) | 0.669" (17.00mm) | 0.673" L x 0.673" W (17.10mm x 17.10mm) | Surface Mount | |
|
861220784007CAP ALUM 3300UF 20% 63V SNAP TH |
87 | - |
|
|
WCAP-AIE8 | Tray | Active | 3300 µF | ±20% | 63 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.74 A @ 120 Hz | 3.5072 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
UUN1E102MNJ1MSCAP ALUM 1000UF 20% 25V SMD |
75 | - |
|
|
UUN | Tape & Reel (TR) | Active | 1000 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Bi-Polar | - | General Purpose | 780 mA @ 120 Hz | 897 mA @ 10 kHz | - | - | 0.709" Dia (18.00mm) | 0.886" (22.50mm) | 0.752" L x 0.752" W (19.10mm x 19.10mm) | Surface Mount | |
|

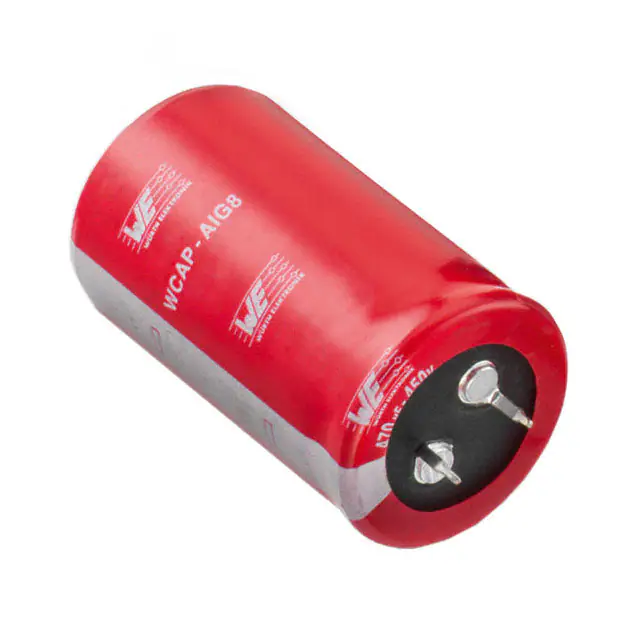

861010784009CAP ALUM 3300UF 20% 63V SNAP TH |
68 | - |
|
|
WCAP-AIG8 | Tray | Active | 3300 µF | ±20% | 63 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.12 A @ 120 Hz | 3.9936 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
UYA1K431MNJ1MSCAP ALUM 430UF 20% 80V SMD |
100 | - |
|
|
UYA | Tape & Reel (TR) | Active | 430 µF | ±20% | 80 V | - | 5000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 750 mA @ 120 Hz | 1.5 A @ 100 kHz | - | - | 0.630" Dia (16.00mm) | 0.886" (22.50mm) | 0.673" L x 0.673" W (17.10mm x 17.10mm) | Surface Mount | |
|
AFK107M80H32T-FCAP ALUM 100UF 20% 80V SMD |
90 | - |
|
|
AFK | Tape & Reel (TR) | Active | 100 µF | ±20% | 80 V | 320mOhm @ 100kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 375 mA @ 120 Hz | 500 mA @ 100 kHz | 320 mOhms | - | 0.492" Dia (12.50mm) | 0.551" (14.00mm) | 0.531" L x 0.590" W (13.50mm x 15.00mm) | Surface Mount | |
|
EGXF500ELL152MK40SCAP ALUM 1500UF 20% 50V RADIAL |
84 | - |
|
|
GXF | Bulk | Active | 1500 µF | ±20% | 50 V | 23mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 1.956 A @ 120 Hz | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.634" (41.50mm) | - | Through Hole | |
|
UCM1E392MNJ1MSCAP ALUM 3900UF 20% 25V SMD |
145 | - |
|
|
UCM | Tape & Reel (TR) | Active | 3900 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.27 A @ 120 Hz | 2.54 A @ 100 kHz | 34 mOhms | - | 0.630" Dia (16.00mm) | 0.886" (22.50mm) | 0.673" L x 0.673" W (17.10mm x 17.10mm) | Surface Mount | |
|
860160581039CAP ALUM 2200UF 20% 35V RADIAL |
69 | - |
|
|
WCAP-ATLL | Cut Tape (CT) | Active | 2200 µF | ±20% | 35 V | - | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 3.132 A @ 100 kHz | 36 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|
UCM2A391MNS1MSCAP ALUM 100V POLAR |
75 | - |
|
|
UCM | Tape & Reel (TR) | Active | 390 µF | ±20% | 100 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.02 A @ 120 Hz | 2.04 A @ 100 kHz | 66 mOhms | - | 0.630" Dia (16.00mm) | 0.886" (22.50mm) | 0.673" L x 0.673" W (17.10mm x 17.10mm) | Surface Mount | |
|

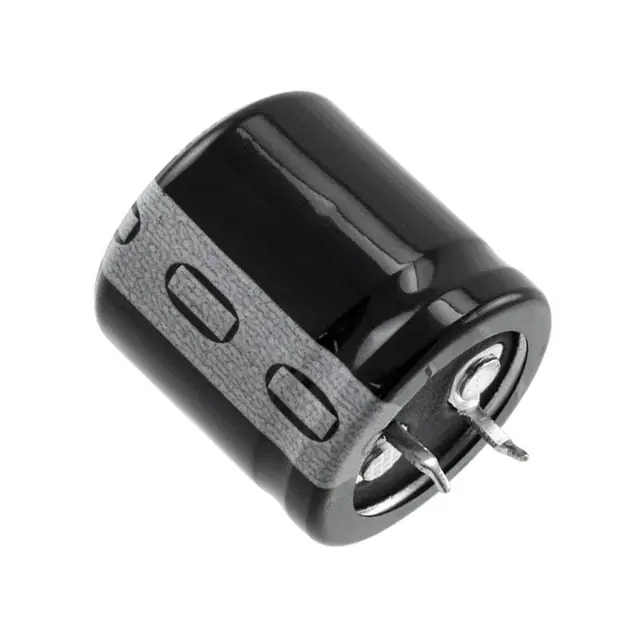

B41252A4229MCAP ALUM 22000UF 20% 16V SNAP TH |
47 | - |
|
|
B41252 | Bulk | Active | 22000 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.03 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 1.850" (47.00mm) | - | Through Hole | |
|
EKWB451ELL101MLN3SCAP ALUM 100UF 20% 450V RADIAL |
99 | - |
|
|
KWB | Bulk | Active | 100 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 720 mA @ 120 Hz | 1.08 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.319" (33.50mm) | - | Through Hole | |
|
|
UPZ2W560MHDCAP ALUM 56UF 20% 450V RADIAL TH |
43 | - |
|
|
UPZ | Bulk | Active | 56 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 440 mA @ 120 Hz | - | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.319" (33.50mm) | - | Through Hole | |
|
UBY1V302MHLCAP ALUM 3000UF 20% 35V RADIAL |
28 | - |
|
|
UBY | Bulk | Active | 3000 µF | ±20% | 35 V | 26mOhm @ 100kHz | 3000 Hrs @ 135°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 3.195 A @ 120 Hz | 4.26 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|
861011084015CAP ALUM 680UF 20% 200V SNAP TH |
100 | - |
|
|
WCAP-AIG8 | Tray | Active | 680 µF | ±20% | 200 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.98 A @ 120 Hz | 4.1124 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole |
